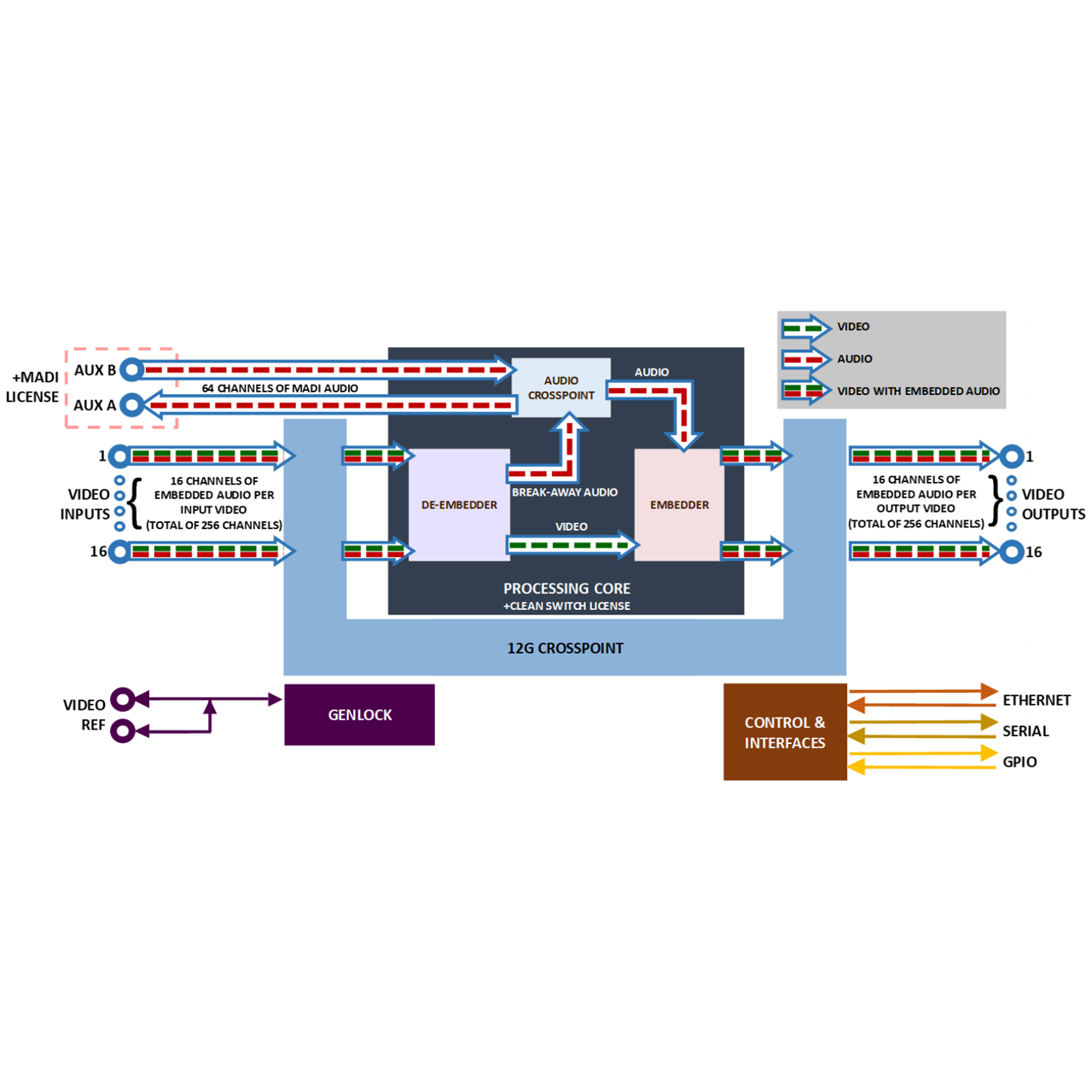

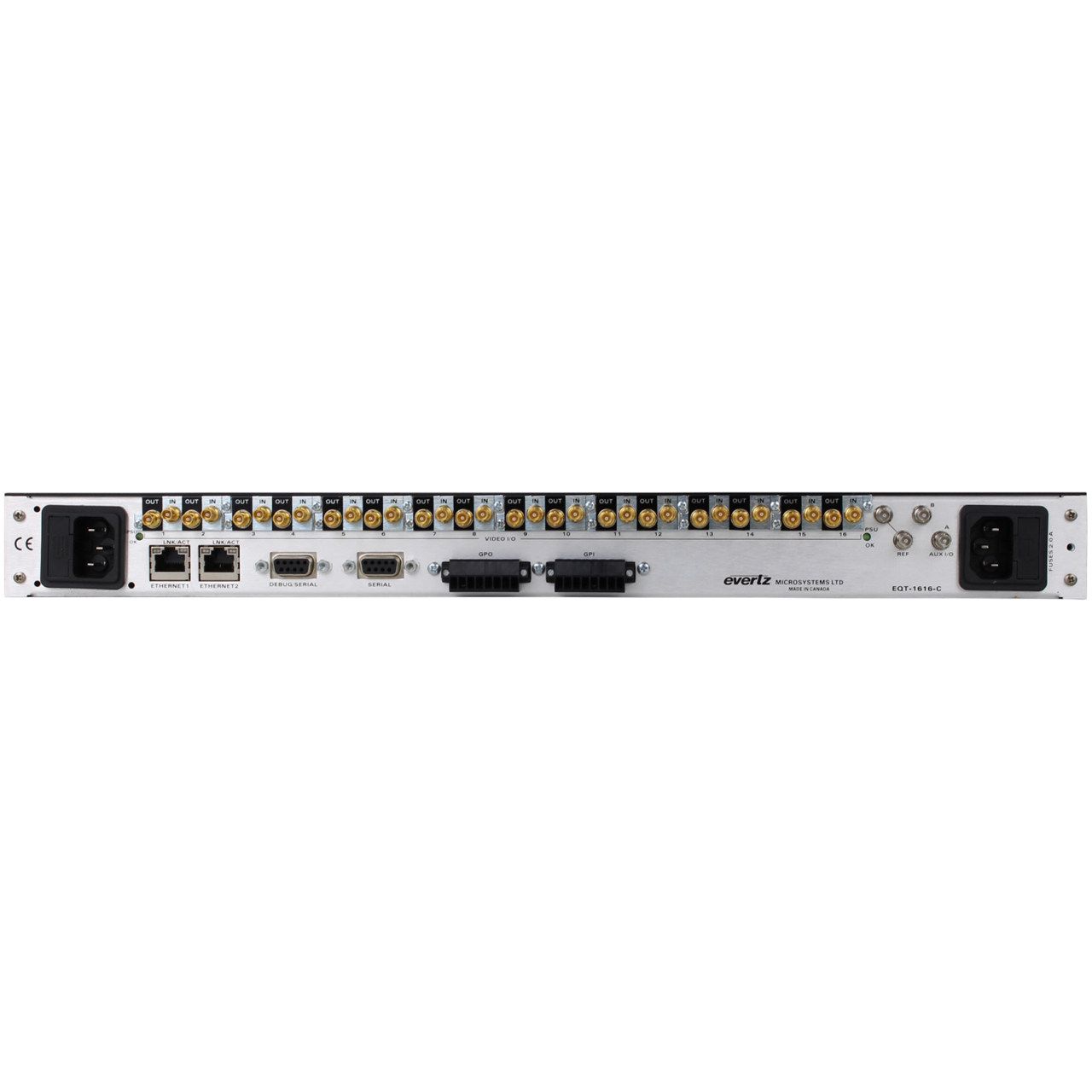

The Evertz EQT-1616-3G-C is a revolutionary design enclosed in a compact 1RU frame, capable of high-level integrated functionalities and routing of up to 16 input and 16 output 12Gbps signals, uses unique serviceable rear modules, on serviceable sub modules.
EQT-1616-3G-C uses format-independent data paths to support digital signals from 270Mb/s to 12Gb/s. It boasts forward-looking hardware to support integrated functionalities, such as multiplexing single-link 4K to quad-link UHD and de-multiplexing quad-link UHD to single-link UHD.
Among these functionalities, clean and quiet switching is an enable key-feature that provides for all 16 outputs seamless video and "popless" audio switching. This is ideal for use in master control UHD applications as a bypass router, or as a simple Master Control router itself, supporting two quad-link UHD deterministically routed or 4 single-link UHD clean and quiet switching paths.
MADI is another enable key-feature, which activates 64 channels of MADI audio, allowing them to be shuffled into the 16 output video bus as embedded audio and vice-versa.

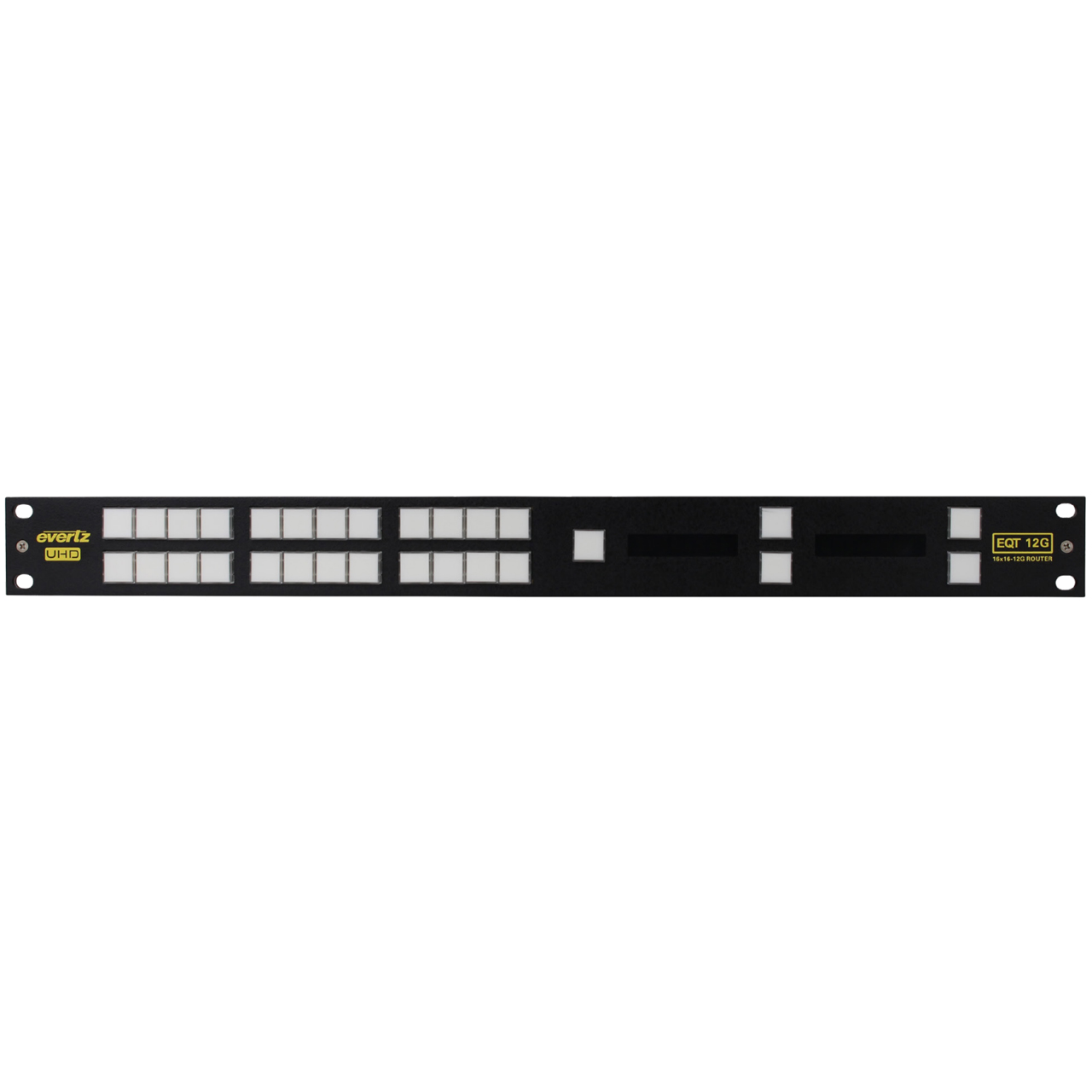

The EQT-1616-3G-C can be controlled by Evertz' customizable front panel CP-2402E (sold separately - must be factory installed), remote CP's and magnum over Ethernet, Serial and GPIO ports as well. It is also VistaLINK PRO capable, offering remote monitoring, control and configuration capabilities via Simple Network Management Protocol (SNMP).

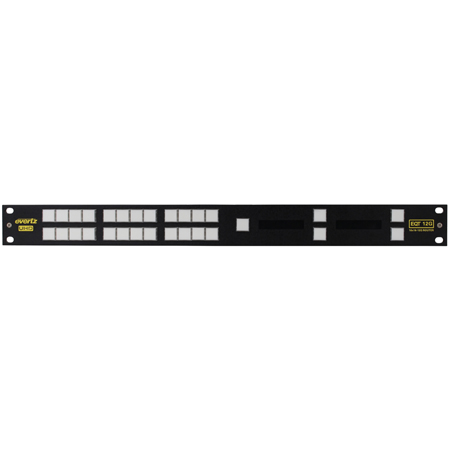

Please Note: Image is for reference only. Front Panel CP-2402E Is Sold Separately.
