Evertz SCORPION-2RU Flexible Multi-Media Edge Compute Platform

SCORPION-2RU - Overview

• Features:

  • JPEG-XS, JPEG-2K, HEVC, SMPTE ST 2022, ST 2110 codecs and protocols to accommodate different bandwidth availability and latency tolerances
  • Retransmission or FEC technology for compressed signal transport over lossy or impaired networks
  • Link, network, and hardware redundancy schemes for guaranteed operation, including hitless switching operation
  • Transport remote microphones or acquire announcer feeds for use in remote production as MADI, AES, or analog audio.
  • Move serial data, GPIO, timing, and other workflow-specific ANC data alongside audio and video for remote acquisition or transport applications.
  • Video-based conversion and synchronization functions like frame sync, up/down/cross, and HDR conversion
  • Shuffle, embed, de-embed level adjustment, up and down mix audio regardless if it is embedded or coming from a discrete or network source
  • Embed, de-embed, filter, and author data pertinent to your workflow, from SCTE to serial data to captions.
  • Internal, hot-swappable 120/240V AC power supply (optional redundant supply available)
  • Hot-swappable frame controller with 1GbE RJ-45 for out-of-band management and control (optional redundant frame controller available). In-band control configuration is also supported.

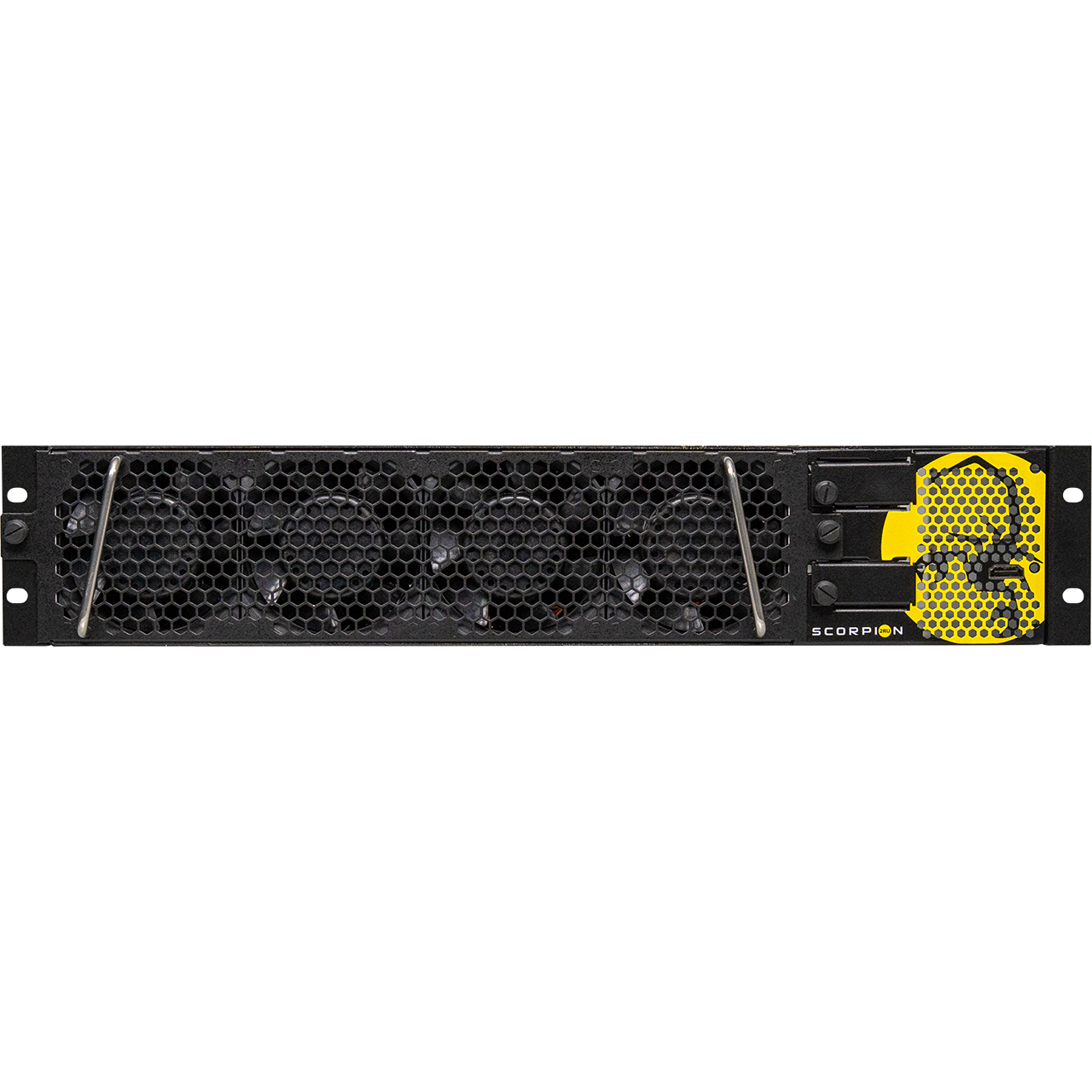

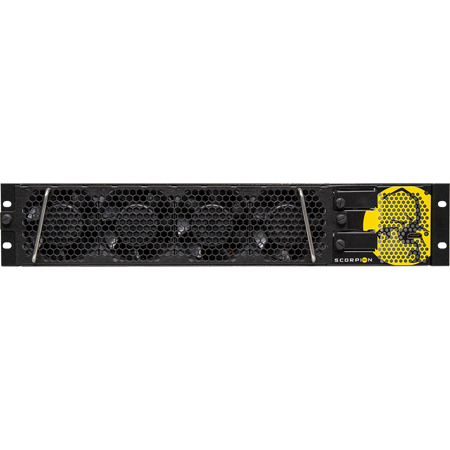

  • Front hot-swappable fan array facilitating front to rear cooling (replacement/spare options available)
  • Internal Ethernet switching fabrics for media, management, and control, supporting from 1GbE to 800GbE network connectivity.
  • Control plane switching fabrics for isolation of management and control networks via frame controller GbE RJ-45 ports.
  • Built-in processor for internal timing distribution, SDI routing and processing, test pattern generation, basic analyzer, and HDMI display driver

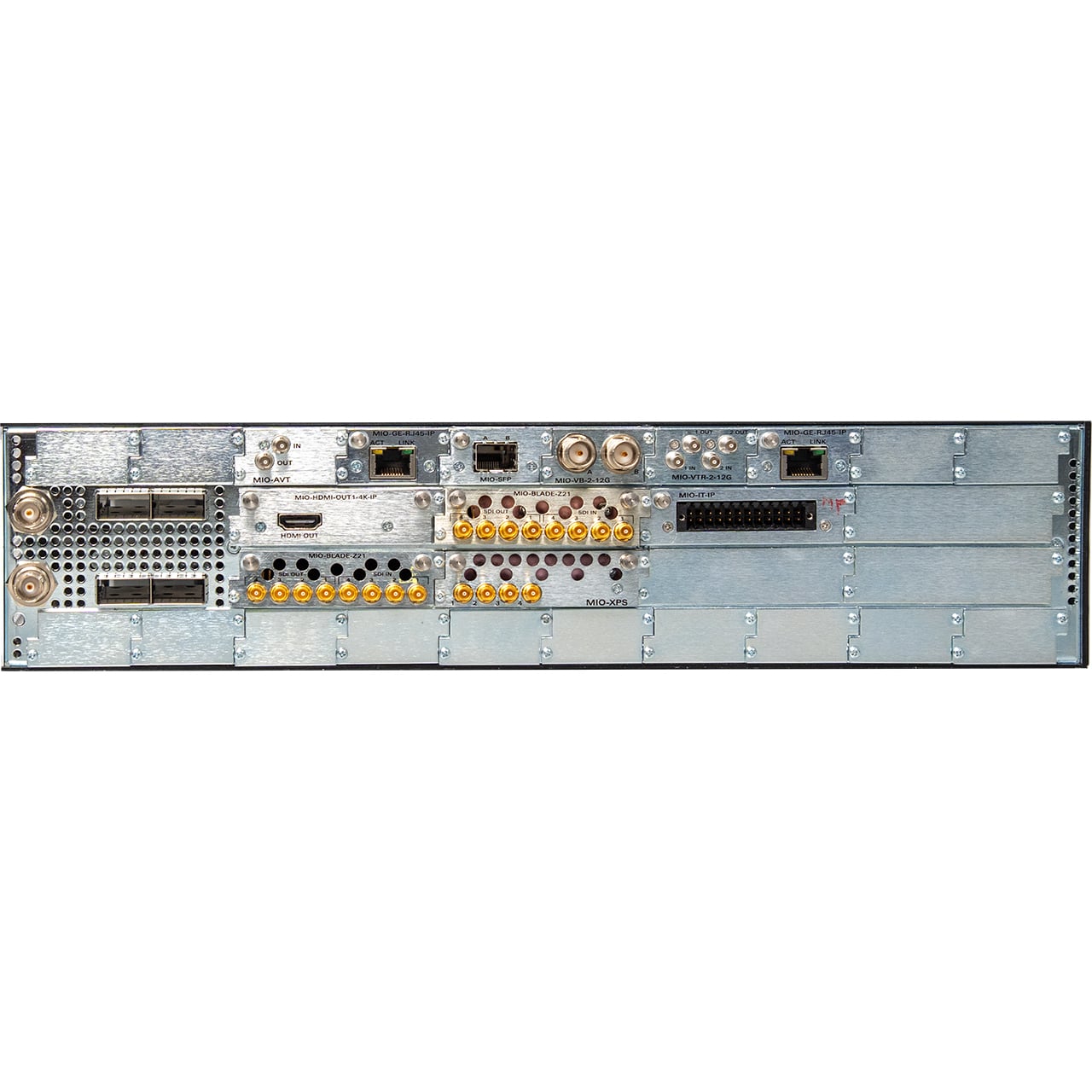

  • Top and bottom row: 20x single or 10x dual-slot MIO modules
  • Middle rows: 8x dual-slot MIO modules
  • Catalogue of MIO modules supporting video, audio, and data formats, including optional blade modules for video processing, conversion, and encoding functions
  • Up to 4x QSFP-DD interfaces, supporting from 1GbE to 800GbE network connectivity
  • SFP network connections down to 1Gbps facilitated by MIO modules


• Specifications:

  • Reference:
    - 2x BNC analog reference inputs per IEC 61169.8 Annex A, analog 625/525 (tri-level)
    - Network timing (PTP, NTP)
  • Dimensions(L x W x H): 16" x 19" x 3.6" (92mm x 483mm x 407mm)
  • Module Capacity: Up to 36x slots available for SCORPION
  • Cooling: Front to rear airflow using SCORPION-2RU-FAN hot-swappable assembly
  • Power Supply Configuration Redundant and hot-swappable internal power supplies
  • Voltage:: Auto-ranging, 100-240V AC (50/60Hz)
  • Max. Power Consumption: 1500W per supply


• Item Includes:

  • 1x Frame controller
  • 1x Internal power supply and fan assembly
