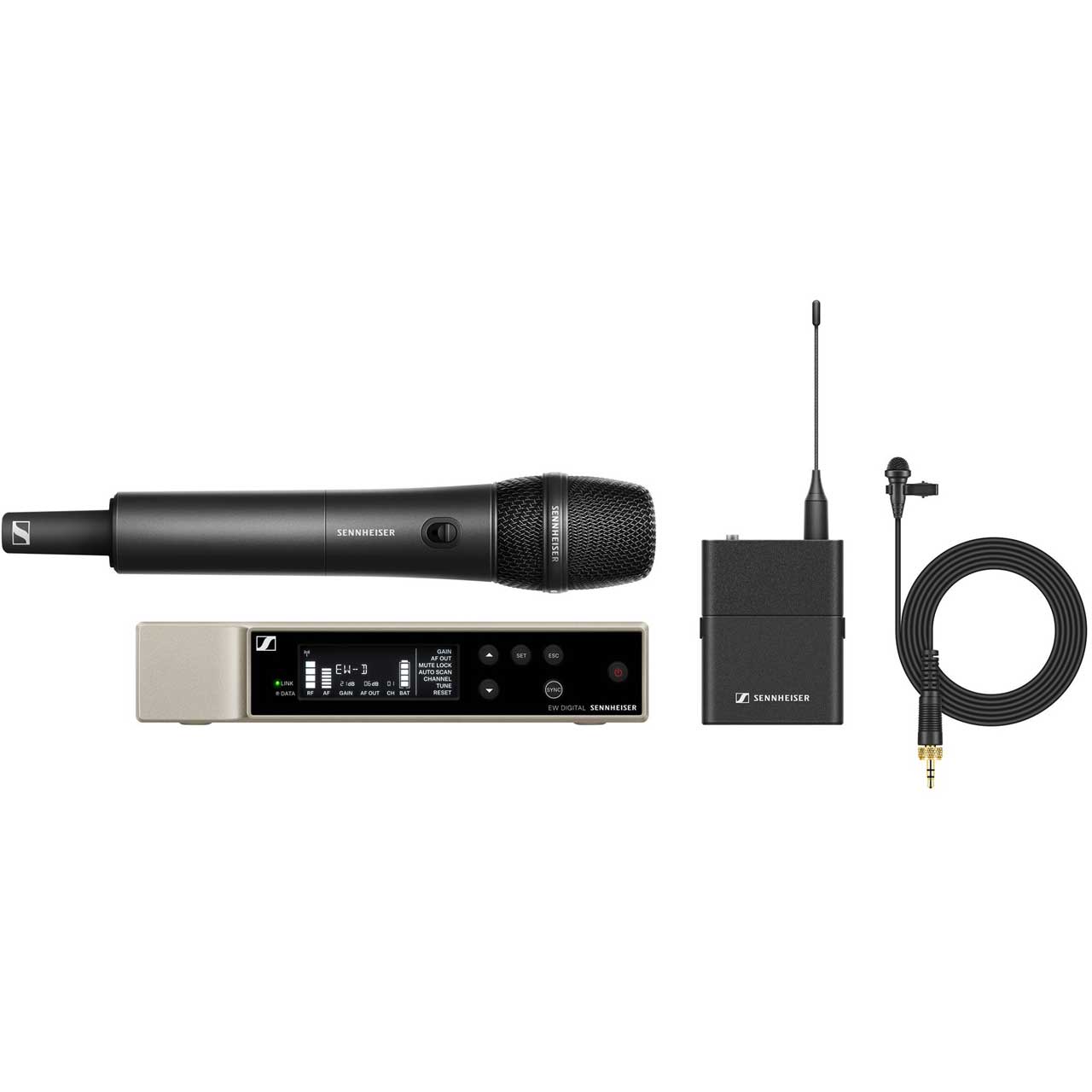

Sennheiser EW-D ME2/835-S SET Digital Wireless Vocal Set w/ RX/TX/Mute Switch and Lavalier Mic (552 - 607.8 MHz)

ITEM #: EWDME2-835S-R4-9 MFG #: EW-D ME2/835-S SET (R4-9)

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,250.00

Our Price:

$999.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    EW-D ME2/835-S SET (R4-9) - Overview

    The Sennheiser EW-D ME2/835-S SET (R4-9) is a versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

    Benefit from the EW-D SKM-S handheld transmitter with the dynamic MMD 835 microphone module in addition to a robust bodypack transmitter with metal housing and unobstrusive clip-on microphone ME 2 (omni-directional) with high speech intelligibility.

    • Features:

      • Digital wireless eliminates noise, interference and static bursts
      • UHF transmission greatly enhances range, reliability and scalability
      • Mobile App streamlines setup and operation and eliminates complicated menus
      • Automated setup creates reliable connections with minimal time and effort
      • Up to 2,240 selectable frequencies
      • 56 MHz Bandwidth will allow for up to 90 channels
      • Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

    • Specifications:

      • System
      • Audio Link Frequency Ranges: R4-9 552 - 607.8 MHz
      • Bluetooth® Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
      • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
      • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
      • Operating Temperature: -10 °C - +55 °C, (14 °F - 131 °F)
      • Relative humidity: 5 - 95 % (non-condensing)

        EW-D EM (Rack Receiver)
      • Input Voltage: 11 - 13 V~
      • Input current: ≤ 300 mA
      • Transmit power (radiated): BLE: max. 10 mW EIRP
      • Audio output power: 18 dBu max.
      • Dimensions: 212 x 44 x 189 mm
      • Weight: approx. 1000 g (without antennas and power supply)

        EW-D SKM-S (Handheld Transmitter)
      • Input voltage: 2.0 - 4.35 V
      • Input current: < 300 mA
      • Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
      • Occupied bandwidth: 200 kHz
      • Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
      • Dimensions: 50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module)
      • Weight (without batteries): approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module)

        EW-D SK (Bodypack Transmitter)
      • Input voltage: 2.0 - 4.35 V
      • Input current: < 300 mA
      • Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
      • Occupied bandwidth: 200 kHz
      • Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
      • Dimensions: 63 x 80 x 20 mm (without antenna)
      • Weight (without batteries): approx. 120 g

        ME 2 (Lavalier Microphone)
      • Transducer principle: pre-polarized condensor microphone
      • Pick-up pattern: omni-directional
      • Sensitivity (free field, no load) (1 kHz): 17 mV/Pa
      • Max. SPL at 1 kHz: 130 dB
      • Frequency response: 50 to 18,000 Hz
      • Equivalent noise level A-weighted (DIN IEC 651): 32 dB
      • Connector: 3.5 mm jack
      • Cable length: approx. 1.60 m
      • Supply voltage: 7.5 V

        MMD 835 (Microphone Module)
      • Transducer principle: dynamic
      • Sensitivity: 2.1 mV/Pa
      • Sound pressure level: 154 dB SPL
      • Pick-up pattern: cardioid

    • Item Includes:

      • 1x EW-D EM Rack Receiver
      • 1x EW-D SK Bodypack Transmitter
      • 1x EW-D SKM-S Handheld Transmitter
      • 1x ME 2 Lavalier Microphone
      • 1x MZQ 1 Microphone Clamp
      • 2x Rod Antennas
      • 1x Power Supply with Adapters
      • 1x Rackmount Set
      • 4x Rubber Feet
      • 1x Quick Guide
      • 1x Safety Guide
      • 1x Manufacturer Declaration Sheet

    • GTIN:

      0615104336230
