Sennheiser EW-DX SK 3-PIN Q1-9 Bodypack Mic Transmitter with 3-Pin Connector - 470.2-550 MHz - B-Stock (Open Box)

ITEM #: EWDXSK3PQ19-BSTK MFG #: EWDXSK3PQ19-BSTK

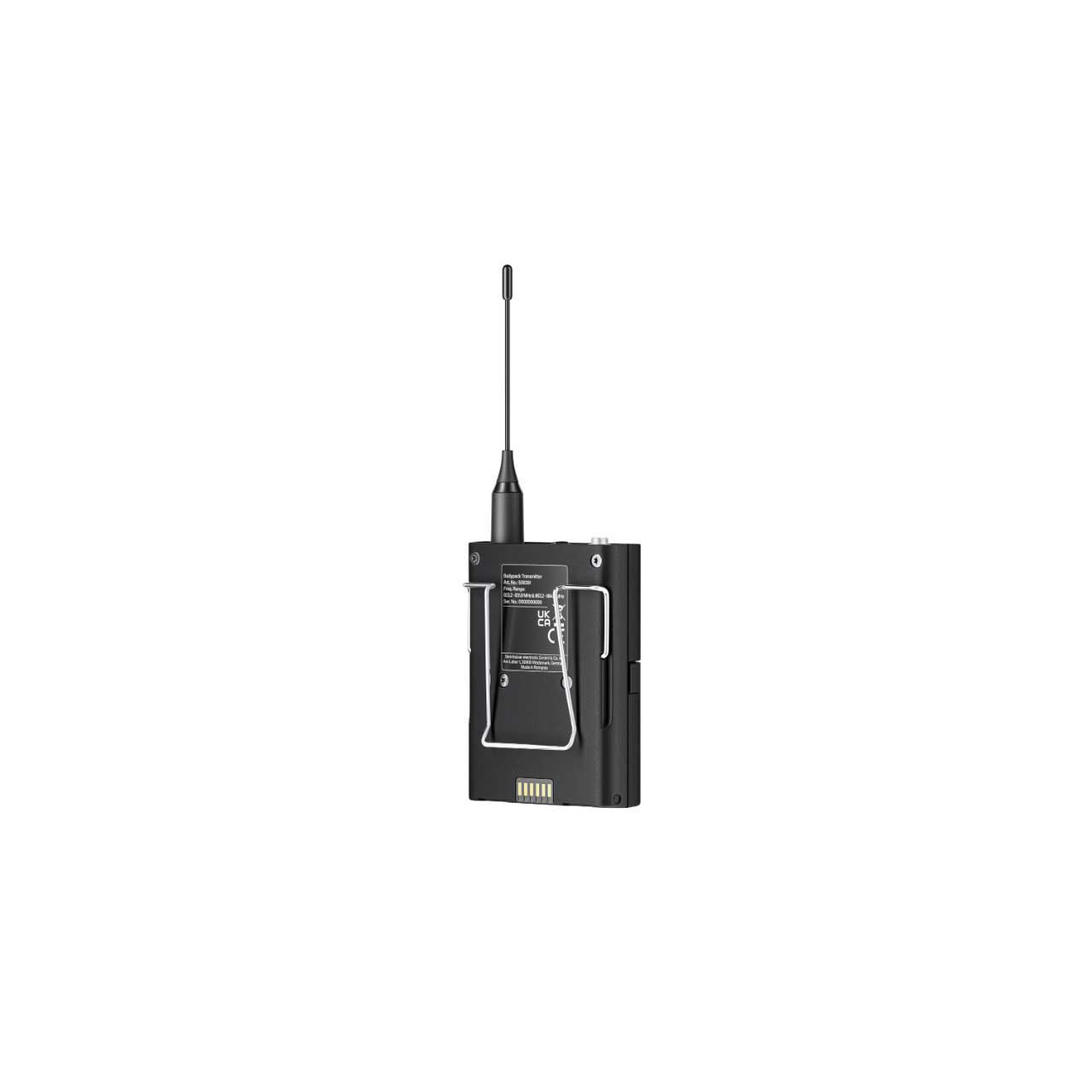

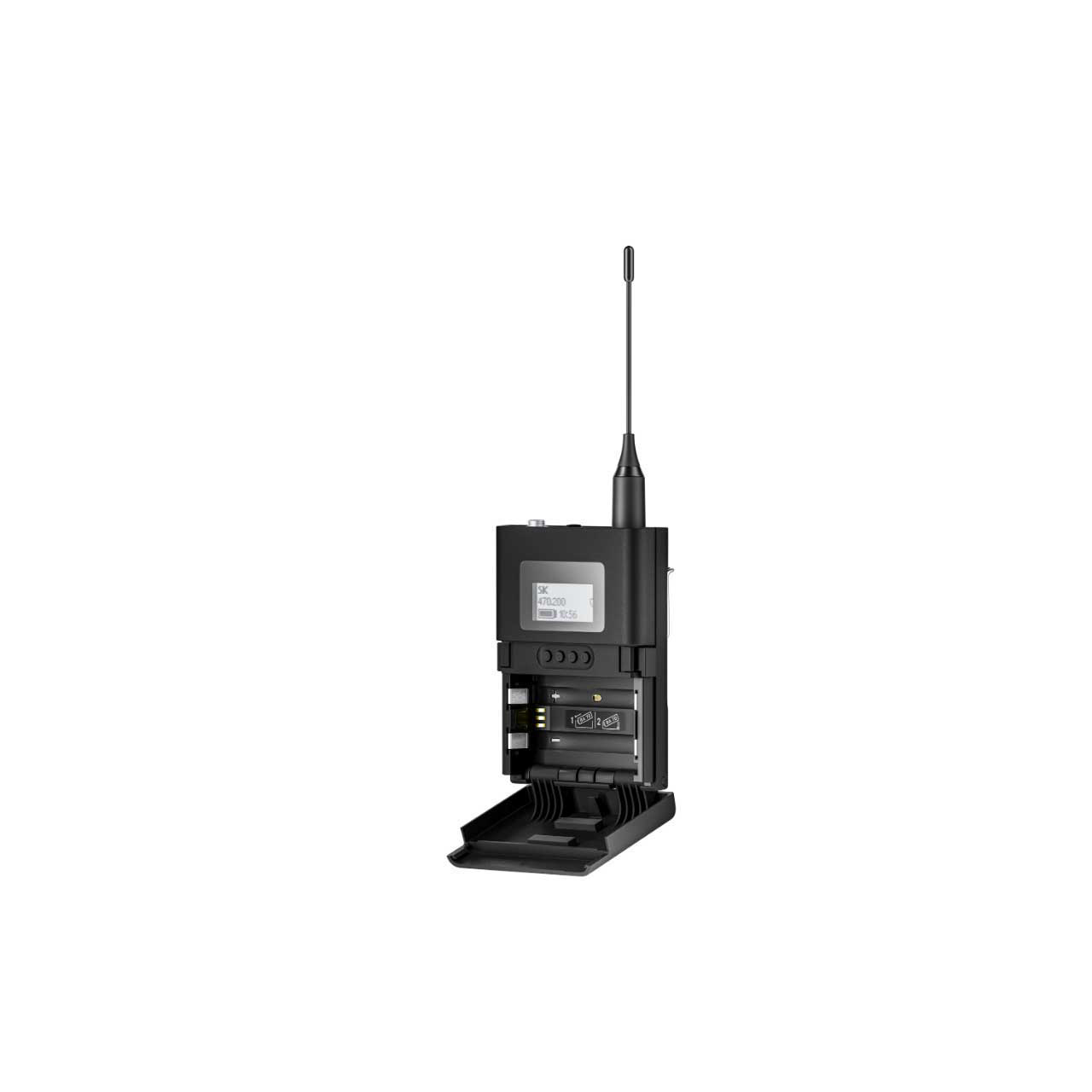

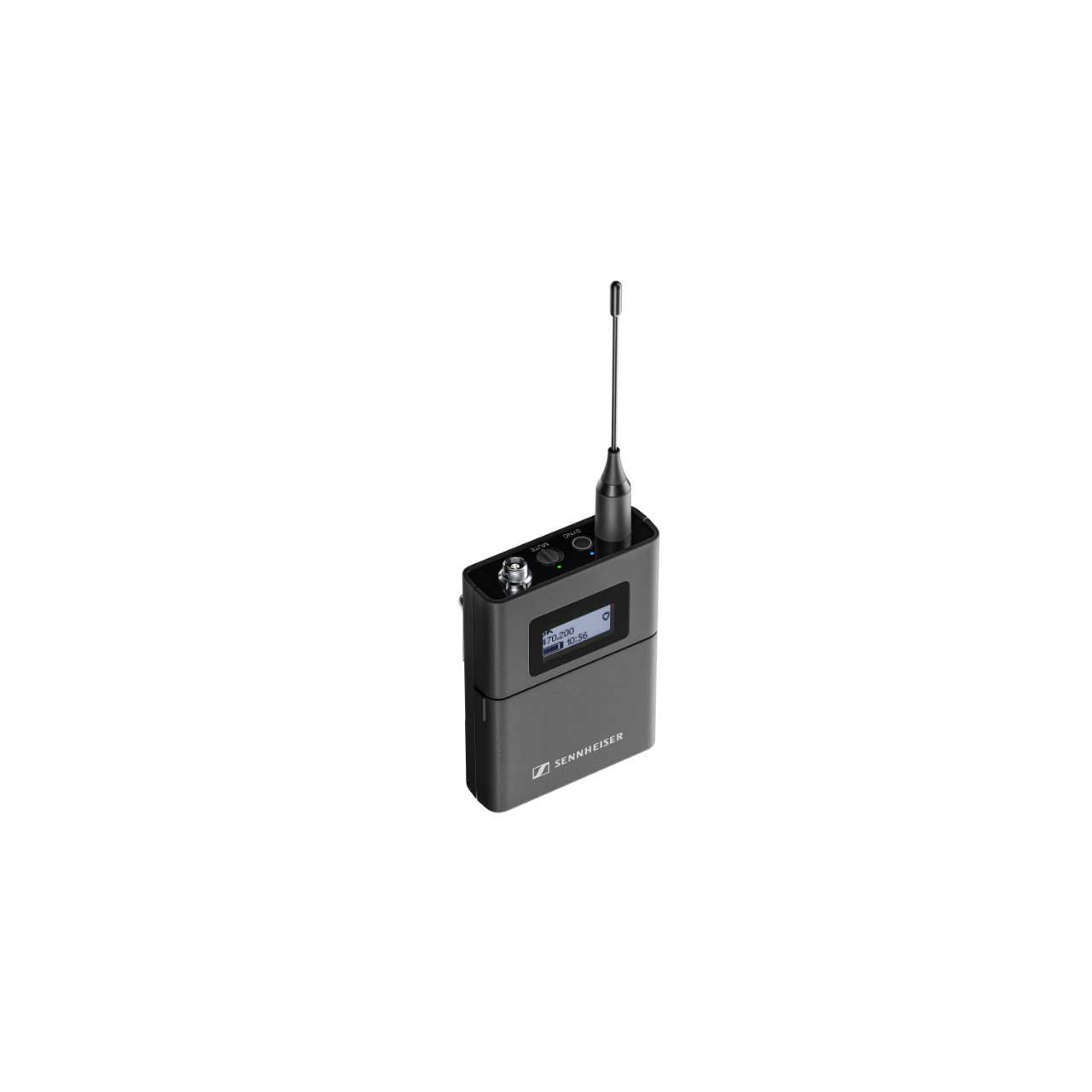

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$649.00

Our Price:

$549.00

Special Price:

$449.00

Availability: In Stock
iAvailability Description Popup


EWDXSK3PQ19-BSTK - Overview

Sennheiser EW-DX SK 3-PIN (Q1-9) compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers - with 3-Pin. The Q1-9 has a frequency of 470.2 - 550 MHz.

Focus less on the wireless and more on the audio. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of expertise to deliver a digital UHF system that can be scaled with ease. Multiple hardware and software options create networkable solutions for nearly any stage or campus, while equidistant channel spacing, auto scan, and Bluetooth® Low Energy sync automatically coordinate and set frequencies with the push of a button. Monitor your devices from a distance-even from your pocket-with tools like Sennheiser Control Cockpit, Wireless Systems Manager, and the Smart Assist app. The future of wireless is here.

Applications
Education
Corporate
Performers
Houses of Worship
Rental Houses
Theaters
Broadcast Studios
Presentations/Lectures
Meetings
Live Sound

Please Note! This is an open box B-Stock item. The transmitter is a fully operational but is missing its accessories. No visible damage. No longer under manufacturers warranty.

Accoessories not included:
- 1x Clip
- 2x Batteries (AA)
- 1x Quick guide
- 1x Safety guide
- 1x Manufacturer declaration sheet

  • Features:

    • EW-DX SK
    • 3-Pin
    • 10mW RF power with up to 100m/328ft working range
    • Charging contacts for in-device charging with CHG 70N
    • Persistent eInk display - parameters visible on screen even when device is not powered on
    • Programmable mute switch - customize the device depending on your professional needs
    • Extended runtime with lithium ion batteries - up to 12 hours operation time
    • Mic input trim control
    • Metal housing

  • Specifications:

    • System
    • Audio Link Frequency Ranges
      Q1-9: 470.2 - 550 MHz
      R1-9: 520 - 576 MHz
      V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65MHz
    • Bluetooth® Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
    • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
    • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
    • Dynamic Range: 134 dB
    • System Latency: 1.9 ms
    • Operating Temperature: -10°C - +55°C (14°F - 131°F)
    • Relative Humidity: 5 - 95 % (non-condensing)

      EW-DX SK (Bodypack Transmitter)
    • Input Voltage: 2.0 - 4.35 V
    • Input Current: < 300 mA
    • Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
    • Occupied Bandwidth: 200 kHz
    • Transmit Power (Radiated):
      Audio Link: 10 mW ERP (Range Y1-3: 12 mW ERP)
      LD Mode: 10 mW ERP
      BLE: max. 10 mW EIRP
    • Dimensions (Without Antenna): 2.5 x 3.35 x 0.79" (63.5 x 85 x 20mm)
    • Weight (Without Batteries): approx. 0.26-0.27Lbs (115-120g)

  • Item Includes:

    • 1x EW-DX SK 3.5-Pin bodypack transmitter

  • GTIN:

    0615104362321
