Thor Fiber F-2A-XLR-PHP-TXRX 2 XLR Analog Audio Over Fiber Transmitter and Receiver Kit - Singlemode - LC/PC Simplex

F-2A-XLR-PHP-TXRX - Overview

• Features:

  • Each audio channel supports 48V phantom power switch key, adjustable phantom power switch
  • FPGA digital code and clock recovery technology
  • Automatic high-pass filter to isolate the DC offset
  • Intelligent noise reduction system for soft rising or falling ramp waves and simulated squelch with a 100dB signal-to-noise ratio (SNR) without popping
  • Audio interface is level 3 lightning protection,
  • Standard single-mode transmission distance of 12.42 Miles (20km)
  • LED status indicator lights to monitor the running status
  • Plug and play, no setup required

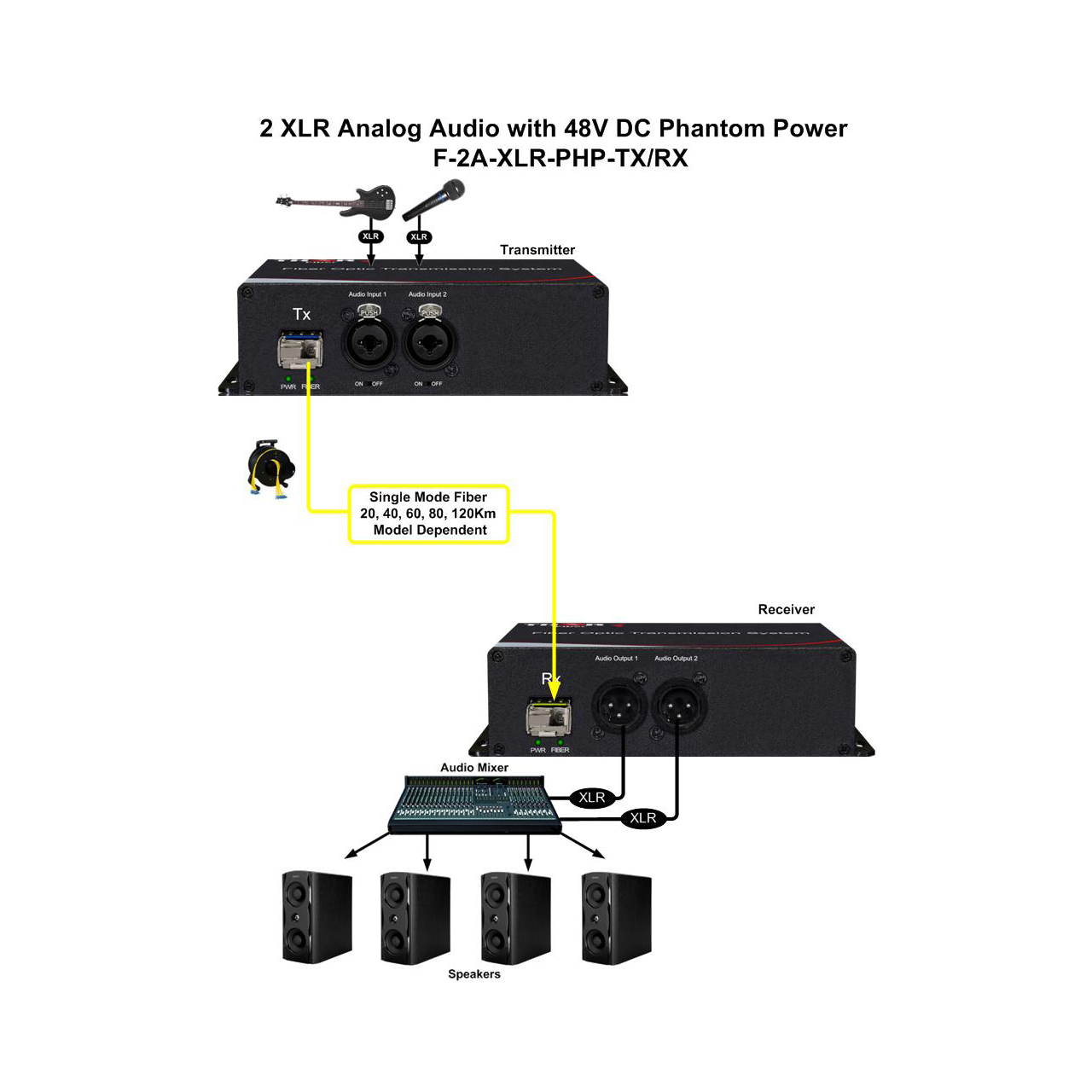

  • Devices are sold as a pair; note that devices are distinguished between transmitter and receiver


• Specifications:

  Fiber Parameters
  • Wavelength: 1310nm & 1470nm - 1610nm (selected according to the function of the device)
  • Transmitter Power: > -7dB
  • Receiver Sensitivity: > -24dB
  • Fiber Connector: LC/PC simlex

    Audio Parameters
  • Signal Level: 0Vp-p - 8Vp-p
  • Dynamic Bandwidth: 101dB
  • Total Harmonic Distortion (THD): -90dB
  • Sampling Frequency: 192kHz
  • Audio A/D Sampling: 24 Bit
  • Signal-to-Noise Ratio (SNR): 100dB
  • Amplitude-Frequency Characteristic: ≤Ý0.5dB
  • Audio Input/Output Impedance: And 600Ω in equilibrium
  • Audio Maximum Input/Output Voltage: 0V - 4V/0V - 2.5V
  • Audio Gain: ±0.1dB
  • Maximum Input Level: ≥9.5dBm
  • Non-Linear Distortion: ≤0.2%
  • Audio Physical Interface:
    - Dual-on (Transmitter)
    - Cannon Head (Receiver)

    Working Parameters
  • Working Temperature: -4°F - 158°F (-20°C - 70°C)
  • Storage Temperature: -40°F - 185&Deg;F (-40°C - 85°C)
  • Relative Humidity: 5% - 95% (non-condensing)
  • Working Life: > 100,000 hours

    Power Supply Modes
  • Desktop Type: DC 12V/1A
  • Power Dissipation: < 2W
  • Rack Type: AC 110V - 240V, 50/60Hz


• Item Includes:

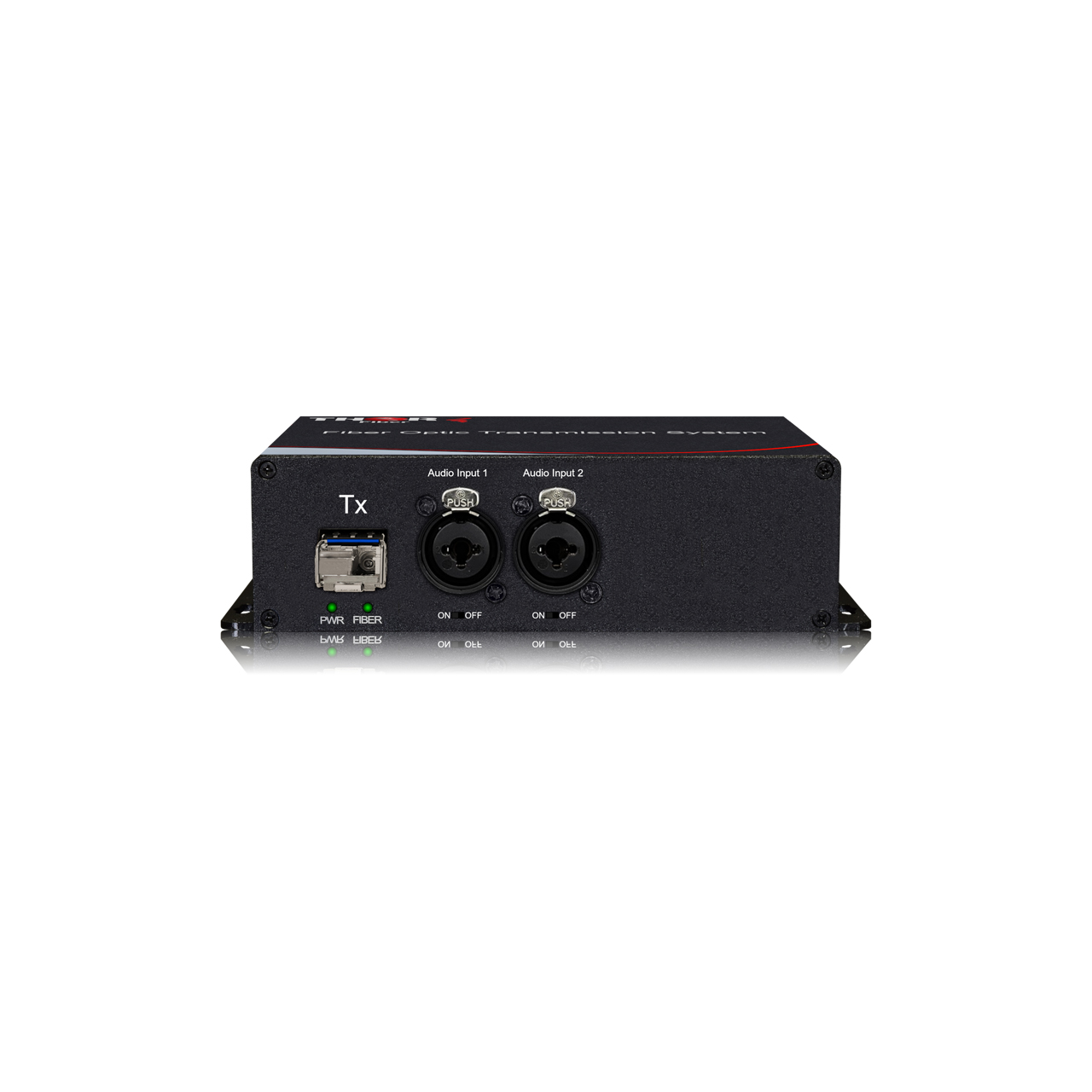

  • 1x Thor Fiber F-2A-XLR-PHP Transmitter
  • 1x Thor Fiber F-2A-XLR-PHP Receiver
  • 2x US Power Cord


• Warranty:

  • 5 Year Limited Warranty
