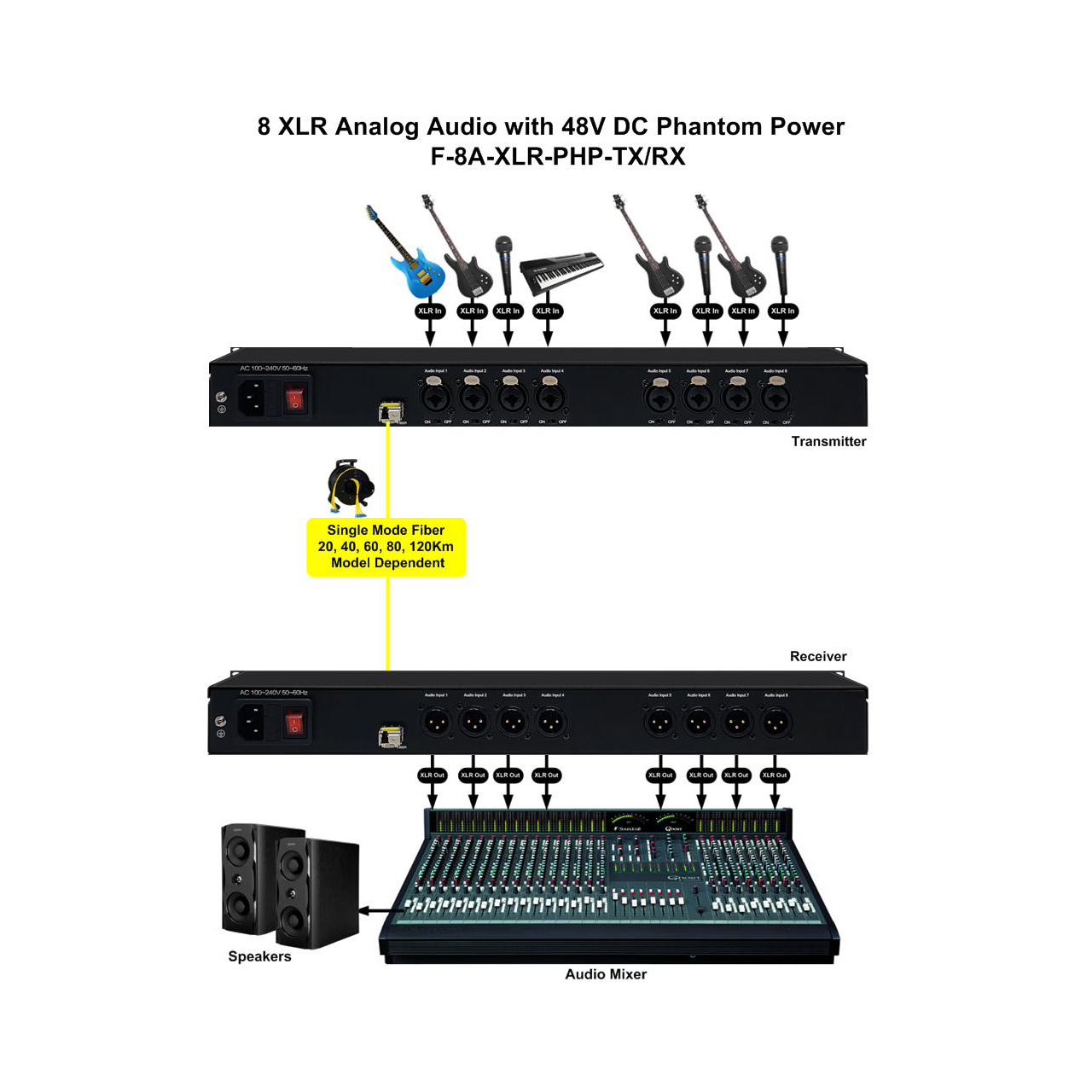

Thor Fiber F-8A-XLR-PHP-TXRX 8 XLR Analog Audio Over Fiber TX/Rx Kit -Single Mode - ST - 12 Mile Range

F-8A-XLR-PHP-TXRX - Overview

• Features:

  • Employs CWDM (Coarse Wavelength Division Multiplexing) technology, enabling the transmission of one or more channels of analog balanced XLR audio.

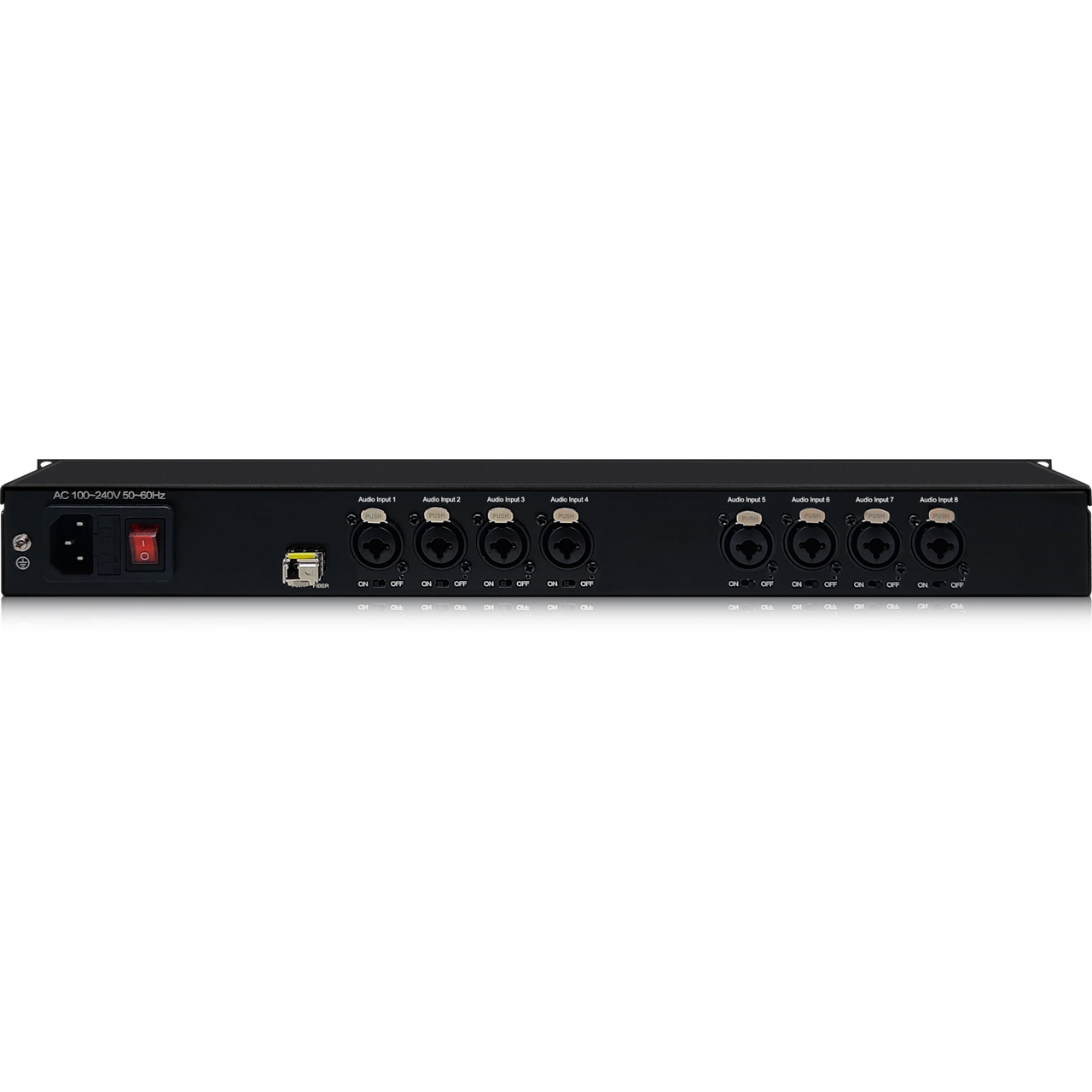

  • Each audio channel is equipped with an adjustable phantom power switch for 48V phantom power control.
  • Features FPGA-based digital coding and clock recovery technology for superior signal processing.
  • Built-in automatic high-pass filter to eliminate DC offset.
  • Advanced noise reduction system that smooths soft rising and falling ramp waves, with simulated squelch, providing a 100dB signal-to-noise ratio (SNR) free from audio pops.
  • The audio interface is protected with Level 3 lightning protection.
  • Supports standard single-mode fiber optic transmission over distances up to 20 kilometers.
  • LED status indicators provide real-time monitoring of operational conditions.
  • Plug-and-play functionality with no need for additional setup.
  • Sold as a pair of devices, clearly differentiated as transmitter and receiver.


• Specifications:

  Fiber
  • Wavelength: 1310nm & 1470nm - 1610nm (selected according to the function of the device)
  • Transmitter Power: > -7dB
  • Receiver Sensitivity: > -24dB
  • Fiber Connector: ST (SC, FC, LC optional + additional cost)

    Audio Parameter
  • Signal Level: 0Vp-p - 8Vp-p
  • Dynamic Bandwidth: 101dB
  • Total Harmonic Distortion (THD): -90dB
  • Sampling Frequency: 192kHz
  • Audio A/D Sampling: 24 Bit
  • Signal-to-Noise Ratio (SNR): 100dB
  • Amplitude-Frequency Characteristic: ≤±0.5dB
  • Audio Maximum Input/Output Voltage: 0V - 4V/0V - 2.5V
  • Audio Gain: ±0.1dB
  • Maximum Input Level: ≥9.5dBm
  • Non-linear Distortion: ≤0.2%

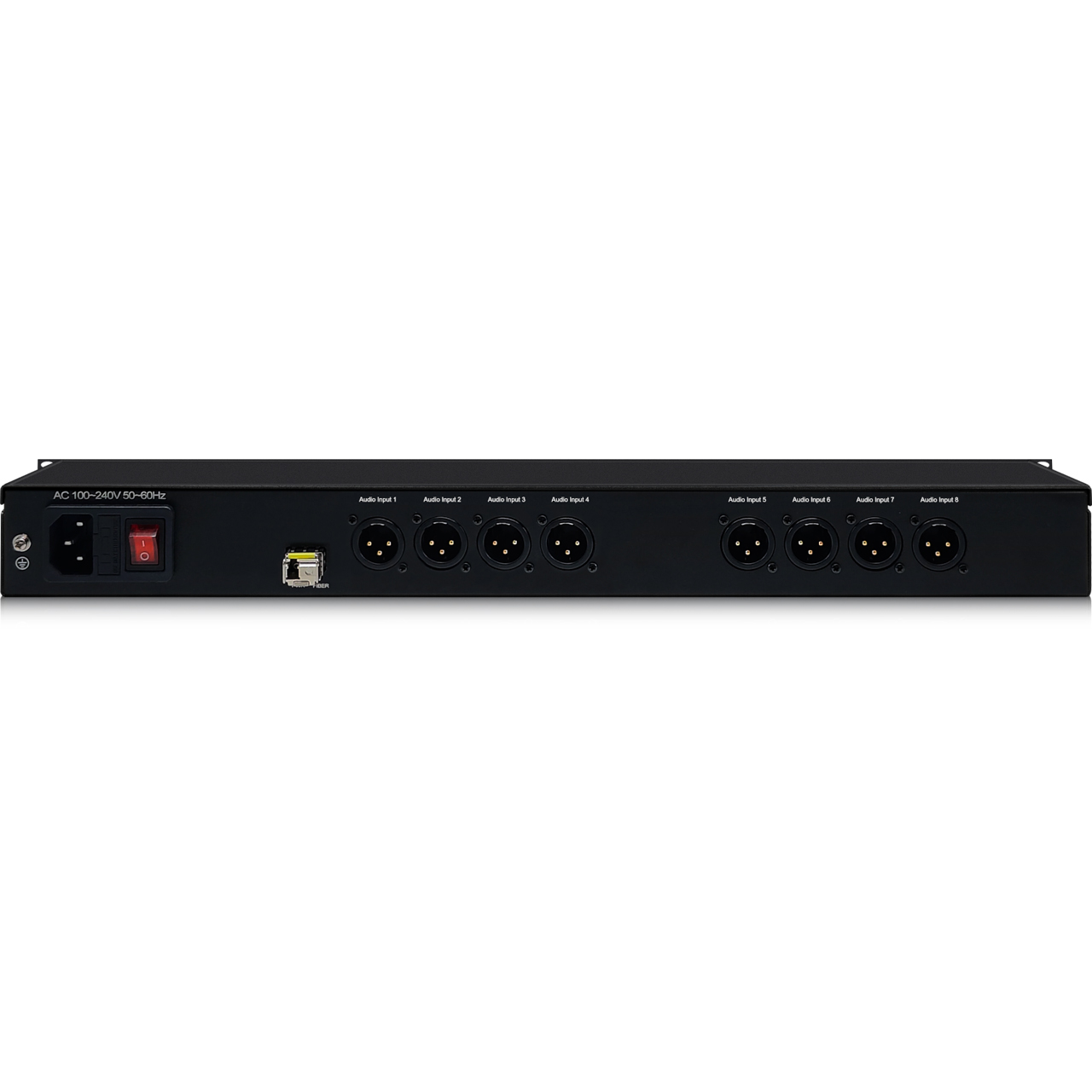

  • Audio Physical Interface:
    - Dual-on (Transmitter)
    - Cannon Head (receiver)

    Working Parameter
  • Working Temperature: -4%deg;F - 158°F (-20°C - 70°C)
  • Storage Temperature: -40°F - 185°F (-40°C - 85°C)
  • Relative Humidity: 5% - 95% (non-condensing)
  • Working Life: > 100,000 hours

    Power Supply Mode
  • Desktop Type: DC 12V/1A
  • Power Dissipation: < 2W
  • Rack Type: AC 110V - 240V, 50/60Hz


• Item Includes:

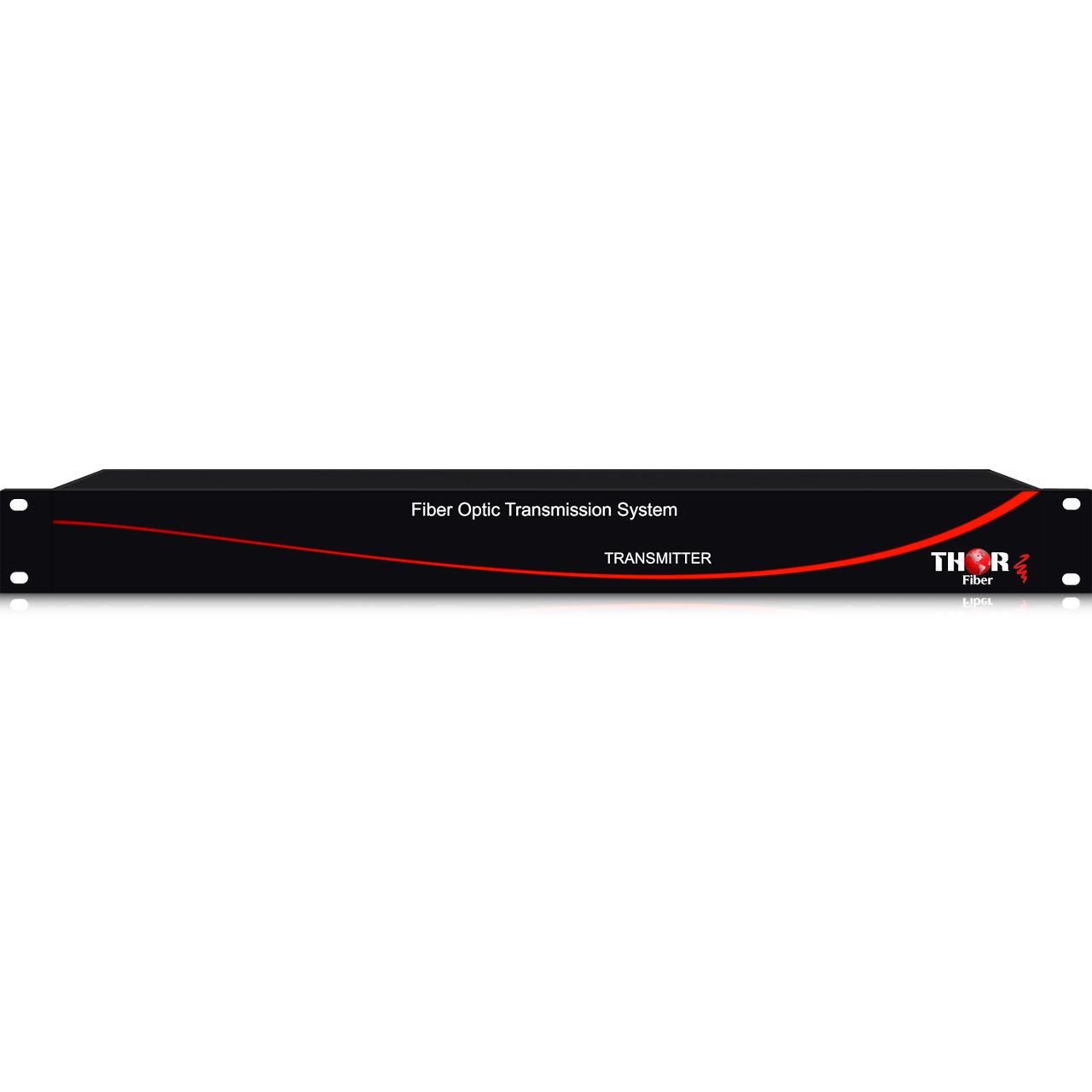

  • 1x Thor Fiber F-8A-XLR-PHP Transmitter
  • 1x Thor Fiber F-8A-XLR-PHP Receiver
  • 2x US Power Cord


• Warranty:

  • 5 Year Limited Warranty
