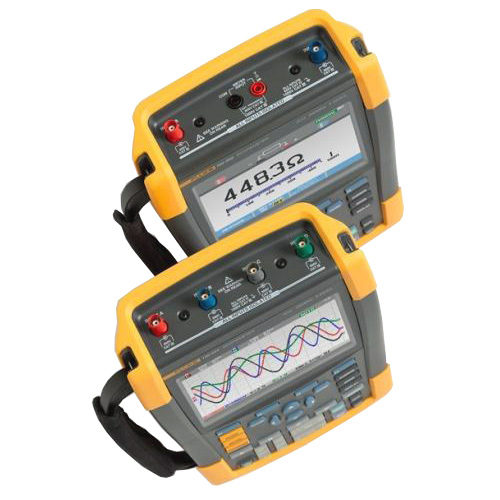

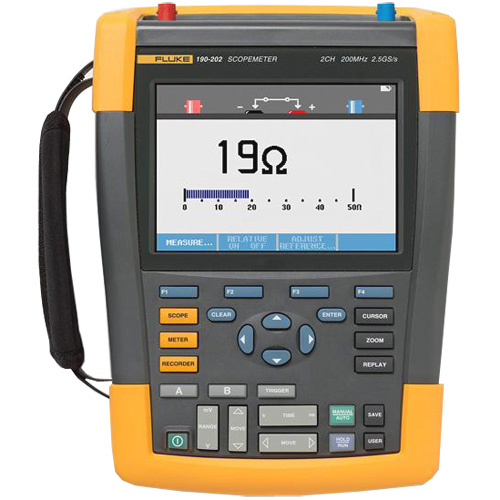

Fluke Scopemeter 2Ch 200MHZ 2.5 GS/s CAT IV Rated Color - Americas - with Li-Ion Battery
  • Fluke Scopemeter 2Ch 200MHZ 2.5 GS/s CAT IV Rated Color - Americas - with Li-Ion Battery
  • Fluke Scopemeter 2Ch 200MHZ 2.5 GS/s CAT IV Rated Color - Americas - with Li-Ion Battery
  • Fluke Scopemeter 2Ch 200MHZ 2.5 GS/s CAT IV Rated Color - Americas - with Li-Ion Battery
Questions? Ask a Markertek Expert:
800-522-2025 Email

Fluke Scopemeter 2Ch 200MHZ 2.5 GS/s CAT IV Rated Color - Americas - with Li-Ion Battery

Manufacturer: Fluke Electronics

Item #: FLK-190-202-AM   •   MFG #: FLUKE-190-202/AM


Our Price:$4,399.99

free ship
Direct Ship from manufacturer, contact us for availability
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.
  • Item restricted to the Contiguous United States ground shipment only.

California Residents:
Cancer and Reproductive Harm -


Fluke now extends the 190 Series of portable oscilloscopes with the new two-channel 190-202 model built for industrial plant maintenance professionals who work on:
Heavy-duty electrical equipment
Electro-mechanical machinery
Plant automation control systems
The Fluke 190202 2 Channel ScopeMeter oscilloscopes from Fluke, with electrically isolated channels, are safety rated for industrial applications. These scopes combine rugged portability with the high performance of bench oscilloscopes to take you from troubleshooting microelectronics all the way into power electronic applications.

The Fluke 190 Series II Models, 190-202, with a wide range of bandwidth options. Fast sampling rates up to 2.5 GS/s, 400 ps resolution and deep memory of 10,000 samples per channel allow high-accuracy capture and display of waveform details, noise, and other disturbances.

Perform timing or amplitude related measurements on three phases or three-axis control systems or simply compare and contrast multiple test points in a circuit under test. Features like TrendPlot, ScopeRecord, and Connect-and-View help you quickly diagnose industrial machinery, automation and process controls, and power electronics to minimize repair costs and downtime. These features make the oscilloscopes easy to use especially when diagnosing the most difficult problems like complex waveforms, intermittent events and signal fluctuations or drift.

Introducing the first two-channel scope with CAT IV rating
The first CAT III 1000 V/CAT IV 600 V rated, four-channel portable scope on the market, the new Fluke 190 Series-II brings an unprecedented combination of performance and ruggedness into the field.

Take on new challenges in industrial machinery, automation and process controls, power conversion electronics
Analyze timing and amplitude relationships of multiple signals simultaneously, easily compare and contrast waveform traces spotting irregularities with ease.
For three-phase power applications like industrial motors and drives, UPS and inverters for wind energy, and diesel locomotive controls for transportation
For three-axis testing when you need to measure input, output and control signals simultaneously
The ultimate in portability
New high-performance batteries take advantage of Li-ion technology to keep you going strong for a full shift. With the easy-access battery door of the Fluke 190/202 you can make battery swaps fast.

New USB connectivity makes it easy to capture and share waveforms
The new Fluke 190 Series II offers two USB ports, electrically isolated from measurement input circuits. Easily transfer data to a PC. Archive and share waveforms with OEMs, colleagues and support staff. Store unlimited waveforms, screen captures and instrument setups onto USB memory devices.

  • Features

    • IEC 61010 1000V CAT III/600V CAT IV safety rating
    • Two fully isolated floating input channels with up to 2.5 GS/s real-time sampling rate
    • Built-in 5000 count Digital Multimeter
    • 8ns glitch detect
    • 10,000 sample deep memory per channel for displaying high resolution waveform details
    • Two input channels let you log inputs and measurements over time
    • Kensington lock security slot
    • High capacity Li-ion batteries offer up to Four hours operation
    • Battery access door to easily swap out batteries for extended operation
    • Two electrically isolated USB ports, mini USB-A for PC connectivity and a USB memory device port
    • Security slot to lock down instrument using standard Kensington PC lock
    • Screw insert for standard camera mounting accessories
    • Up to 400 pico seconds resolution
    • Connect-and-View to easily trigger on and display even complex waveforms
    • TrendPlot and ScopeRecord to capture or plot waveforms and measurements over extended time spans
    • Replay last 100 screens to go back in time to see waveform anomalies
    • Environmentally tested to meet IP51 dust-proof and drip-proof rating and withstand 3g vibration or 30 g shock
  • Specifications

    • Vertical deflection
    • Bandwidth 200 MHz
    • Real-time sample rate 2.25 GS/s
    • Channels 2
    • Number of scope inputs 2 input channels plus external trigger
    • Rise Time 3.5
    • Accuracy ± (2.1 % of reading + 0.04 x range/div) @ 5 mV/div to 100 V/div
    • Channel architecture All inputs fully insulated from each other and from ground Inputs may be activated in any combination
    • Input coupling AC or DC, with ground level indicator
    • Input sensitivity 2 mV/div to 100 V/div, plus variable attenuation
    • Bandwidth limiter User selectable: 20 kHz, 20 MHz or full bandwidth
    • Normal/invert/variable On each input channel, switched separately
    • Input voltage CAT III 1000 V/CAT IV 600 V rated, see General Specifications for further details
    • Input impedance 1 MO ± 1 % // 14 pF ± 2 pF
    • Vertical resolution 8 bit
      Horizontal deflection
    • Max. real-time sample rate
    • (sampled simultaneously) 2.25 GS/s for each channel
    • Record length Up to 10,000 samples per channel
    • Time base range 2 ns/div to 4 s/div
    • Time base in a 1-2-4-sequence
    • Slower time/division settings using ScopeRecordT Roll mode
    • Glitch capture 8 ns
    • Scope
    • measurements Cursor 7
    • Automatic 30
    • Maximum
    • Record length ScopeRecord mode 30,000 pts per input
    • Scope mode 10,000 pts per input
    • Timing accuracy ± (0.01 % of reading + 1 pixel)
      Meter Modes
    • Meter inputs Via 4 mm banana inputs, fully isolated from scope inputs and scope ground
    • Number of readings One at a time
    • Maximum resolution 5,000 counts
    • Input impedance 1 MO ± 1 % // 14 pF ± 2 pF
    • Advanced meter functions Auto/manual ranging, relative measurements (Zero reference), TrendPlot recording
      Horizontal deflection
    • Vdc accuracy ± (0.5 % + 5 counts)
    • Vac true rms accuracy 15 Hz to 60 Hz ± (1 % + 10 counts)
    • 60 Hz to 1 kHz ± (2.5 % + 15 counts)
    • Vac+dc true
    • rms accuracy 15 Hz to 60 Hz ± (1 % + 10 counts)
    • 60 Hz to 1 kHz ± (2.5 % + 15 counts)
    • Voltmeter ranges 500 mV, 5 V, 50 V, 500 V, 1,000 V
    • Ranges 500 O, 5 kO, 50 kO, 500 kO, 5 MO, 30 MO
    • Accuracy ± (0.6 % + 5 counts)
      Other meter functions
    • Continuity Beeper on < 50 O (± 30 O)
    • Diode test Up to 2.8 V
    • Current (A) Adc, Aac, Aac+dc using an optional current clamp or shunt Scaling factors: 0.1 mV/A, 1 mV/A to 100 V/A and 400 mV/A
    • Temperature With optional accessories. Scale factors 1 °C/mV or 1 °F/mV
