Remee FOC24SBIOPA 24F Indoor/Outdoor Plenum Armored Fiber Cable - 2500 Foot

Name: Remee FOC24SBIOPA 24F Indoor/Outdoor Plenum Armored Fiber Cable - 2500 Foot
Brand: Remee Wire & Cable
SKU: FOC24SBIOPA25K
Availability: Backorder

ITEM #: FOC24SBIOPA25K MFG #: FOC24SBIOPA25K

Remee Wire & Cable

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Shipment of this item is subject to a separate oversized-package carrier surcharge.
Shipped truck freight.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FOC24SBIOPA25K - Overview

The Remee FOC24SBIOPA is a 2500ft, 24-fiber singlemode OS2 armored indoor/outdoor plenum fiber optic cable in Remee's REMEX 33-Series. It combines plenum-rated construction with aluminum interlocking armor for use in both indoor and outdoor environments

Please Note: Spools have a ±5% variance in length. Contact one of our sales reps for exact reel size.

Applications:
• Campus backbone networks
• Building-to-building fiber links
• Data centers
• Enterprise LAN backbones
• Industrial and outdoor installations requiring both plenum rating and armored protection

Features:
- 24 singlemode OS2 fibers with G.657.A1 bend-insensitive fiber (BIF)
- Aluminum interlocking armor for enhanced crush and rodent resistance
- Indoor/Outdoor plenum-rated (OFNP) construction
- 900μm tight-buffered fiber design for easier termination and handling
- Water-swellable aramid yarn strength members to provide tensile strength and moisture protection
- UV-resistant Remguard plenum-rated inner and outer jackets
- Manufactured in the USA and ETL listed

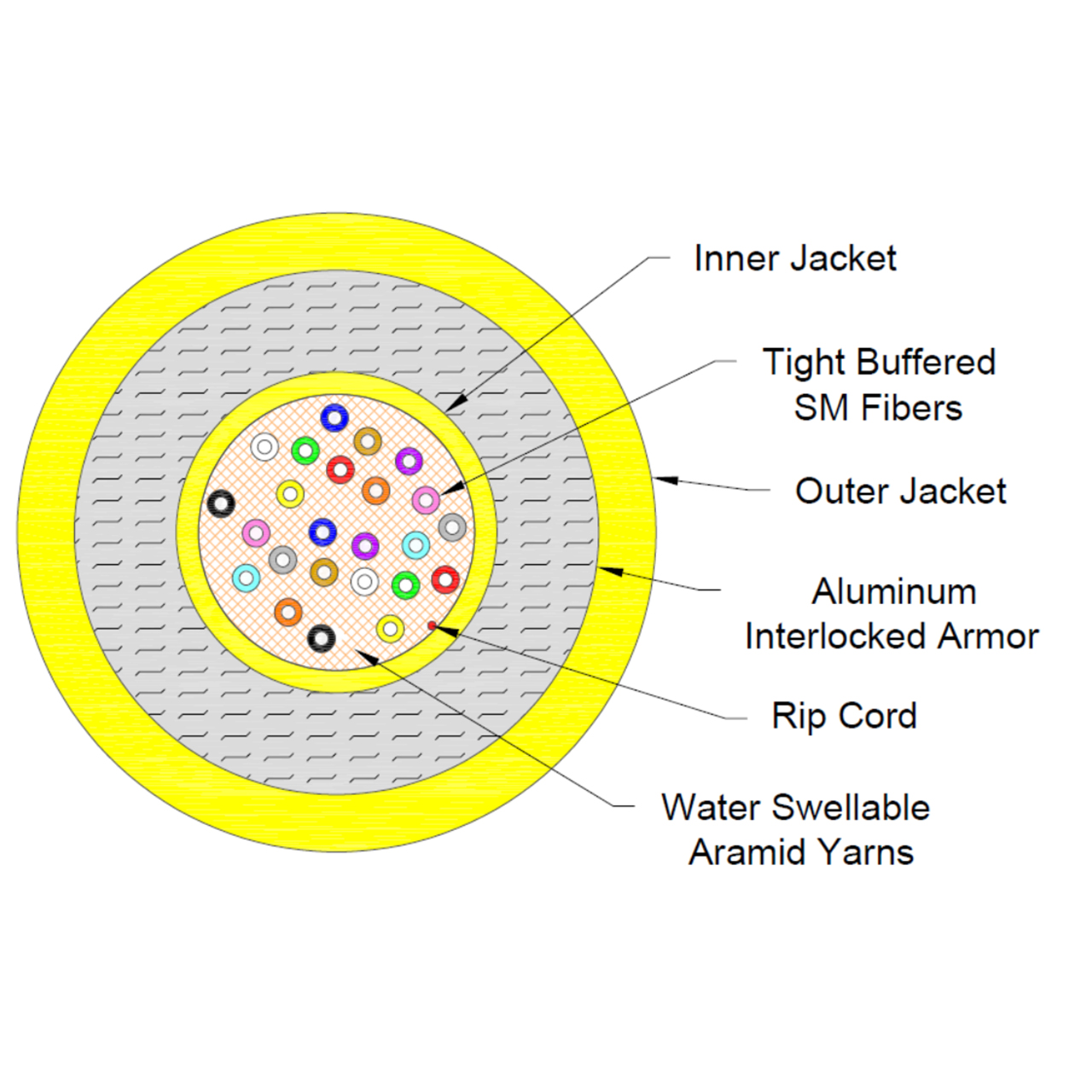

Specifications:
- Spool Length: 2500ft (762m)
- Tight Buffered Fiber Dimension: 900μm, Nominal
- Tight Buffer Color Code: As per TIA/EIA-598 standard or per customer requirement
- Cable Strength: Water swellable aramid yarns are pulled in with tight-buffered fibers under the inner sheath
- Inner Sheath: UV resistant Remguard plenum rated polymer
- Inner Sheath Surface Print: REMFO 33-SERIES FIBER OPTIC CABLE 12-SM OS2 G.657.A1 BIF INDOOR/OUTDOOR
- REMEE PRODUCTS CORP. OFNP C(ETL)US MADE IN USA
- MM/YY (LOT#) SEQ FT
- Armor: Aluminum interlocking armor
- Overall Sheath: UV resistant Remguard plenum rated polymer

  76B Fiber Characteristics
- Fiber Type: SM
- Maximum Attenuation @ 1310/1550nm: 0.40/0.30dB/km
- Cladding Diameter: 125.0 ±0.7μm
- Maximum Core/Clad Concentricity Error: 0.5μm
- Maximum Cladding Non-circularity: 0.7μm
- Primary Coating Diameter: 242 ±7μm
- Cabled Cutoff Wavelength: <1260nm
- Mode Field Diameter:
  - 9.0 ±0.4μm @1310nm
  - 10.1 ±0.5μm @1550nm
- Temperature Dependence: ≤0.05dB/km
- Zero Dispersion Slope: ≤0.092ps/nm²-km
- Attenuation with Bending 1 Turn on a Mandrel Radius of 10mm @ 1550/1625nm: ≤0.75/1.5dB
- Attenuation with Bending 10 Turns on a Mandrel Radius of 15mm @ 1550/1625nm: ≤0.25/1.0dB
- Maximum PMD Link Design Value: 0.06ps/km
- Group Refractive Index @ 1310/1550nm: 1.4676/1.468
- Proof Test: 100kpsi

  Mechanical & Environmental Performance
- Maximum Tensile Load (Without Armor):
  - Installation: 2700N/600lbs
  - Long Term: 600N/135lbs
- Maximum Tensile Load (With Armor): 600N/150lbs
- Crush Resistance:
  - Without Armor: 100N/cm
  - With Armor: 1000N/cm
- Impact Resistance (min.): 25 Impacts
- Flexing ±90° (min.): 25 Cycles
- Minimum Bending Radius:
  - Loaded: 20 x Diameter
  - Unloaded: 10 x Diameter
Item Includes:
- 1x Remee FOC24SBIOPA 24F Indoor/Outdoor Plenum Armored Fiber Cable - 2500 Foot
Warranty:
- 1 Year Limited Warranty
