FOR-A HVS-190S EXPRESS Hanabi 1M/E Live Event 3G/HD Production Video Switcher Chassis with Editor Control Software & PS

ITEM #: FORA-HVS190SEXPR MFG #: HVS-190S EXPRESS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$10,835.00

Our Price:

$10,293.25

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HVS-190S EXPRESS - Overview

Introducing HVS-190S, a portable 1 M/E video switcher that builds on the features of the capable and popular HVS-490. Take advantage of remote control for off-site event management, and add an HVS-NIF card for NDI connectivity in a highly reliable mixed SDI/IP system. Includes frame synchronization, resizing, 2.5D wipes and other DVEs, chroma keying, FLEXaKEYTM, and more.

The HVS-190S has a built-in Web server that lets you change settings from a PC or a tablet. A clip memory feature has been added to the still store to support playback of video or animations and enhances productions through the use of CG wipes, while the multi-viewer meets a diverse range of monitoring needs. The equipment can be used in all types of locations, including live events, sports, news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative your ideas.

Frame sync and proc amp functionality is provided for all inputs, with safety markers for each output. The HDMI port supports audio output, and, as a 2.0b port, HD or 4K output, with the latter enabling display of HD images in 4 quadrants. Expand input or output for either model with a variety of optional I/O cards.

Remote Control
Set up HVS-190S at venues to manage events remotely from a control panel at your base of operations.

Excels in Many Applications
Beneficial for broadcasting, live production, corporate events, or other applications, regardless of the market.

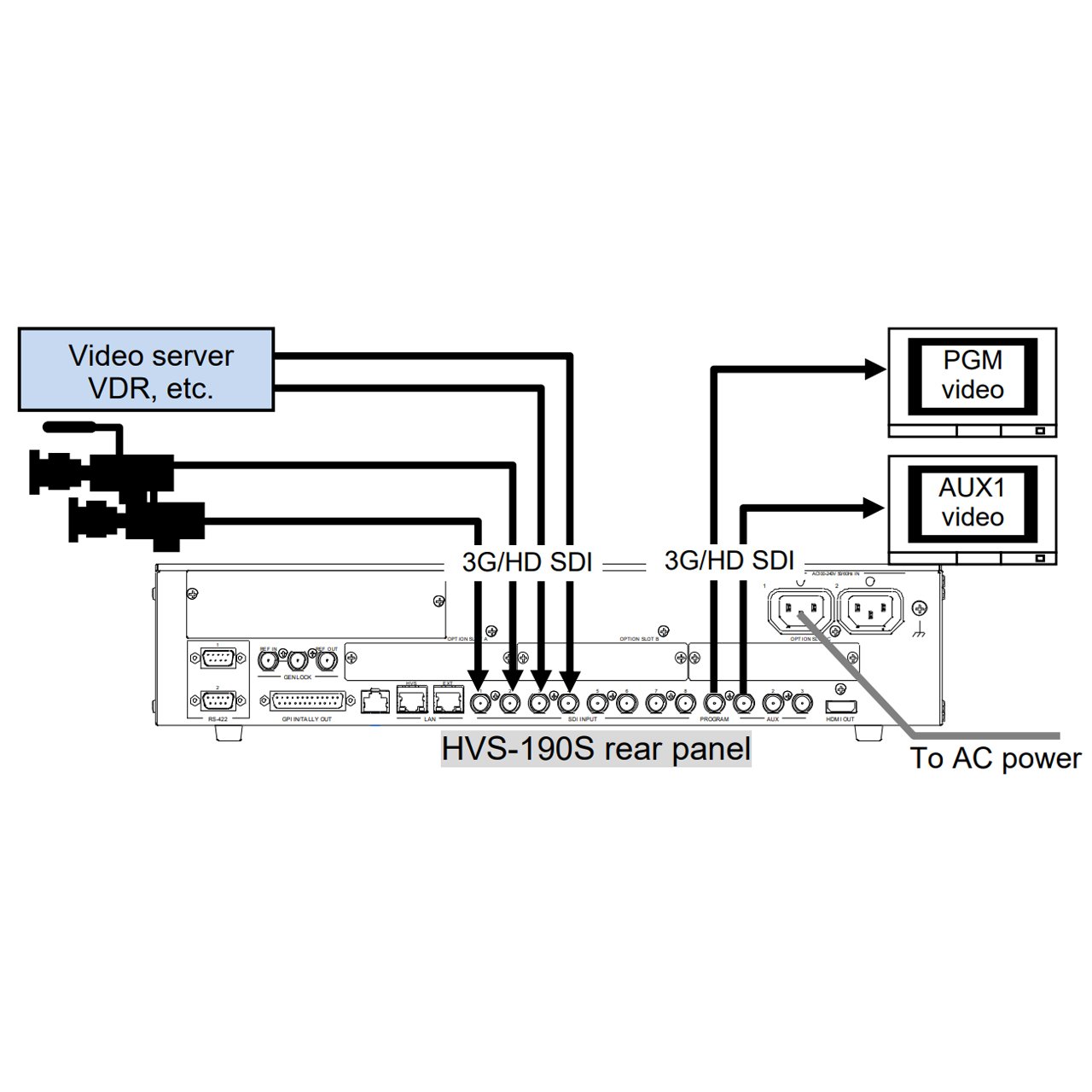

Examples of Application
- Mixed SDI/NDI Production: Video feeds with both on-site and remote performers can be sent to the switcher along with computer content. In addition to the PGM bus, provides an ample selection of Aux buses (12) that can be used to send any video back to remote talent.

- SDI/IP Simulcasts: Simultaneously with SDI playout, connect to streaming sites via a MoIP stream, enabling mixed or coordinated broadcasts of both sources.

* NDI is a registered trademark of Vizrt.

Please Note: HVS-NIF NDI and HVS-DNT Dante optional cards are sold separately!

  • Features:

    • Hanabi 1M/E Switcher 3G/HD, Main unit (Without HVS-190OU 12-Button Operation Unit)
    • The operation panel for HVS-490 can be connected
    • 8x HD-SDI inputs, 4 HD SDI outputs, and 1x HDMI output, Aux Cut/Mix trans
    • Frame Synchronizer & Proc Amp on Each Input (Maximum 20x Inputs, 11x Outputs with I/O options)
    • 2x Keys & 4x FLEXaKEY with 1 assignable Chroma Key
    • 4x 2.5D DVE for keys and Background transitions
    • 2x Still Stores, 31sec HD clip player
    • Multi-Viewer with 39 patterns, Macro/Event memory, WebGUI Browser built in
    • NDI Input/Output with HVS-NIF option card (sold separately)
    • Dante 64x64 Input/Output with HVS-DNT option card (sold separately)
    • Redundant Power Supply for MU included

  • Specifications:

    • Video Formats:
      - 1080p/59.94, 50(Level-A)
      - 1080i/59.94, 50
      - 1080p/23.98, 24, 25, 29.97
      - 1080PsF/23.98, 24, 25, 29.97
      - 720p/59.94, 50
    • Color Sampling: YCbCr: 4:2:2 10bit
    • Number of Video Inputs:
      - Std: SDI x8
      - Max: 20 Up to 3 cards (on I/O option slots)
    • Video Inputs:
      - HD-SDI or 3G-SDI 75Ω BNC x8
      - All inputs with frame synchronizer for each
      - 1080p / 59.94, 50(Level-A/B)
      - ANC data is not passed for Level-B signals or when using FS.
    • Number of Video Outputs:
      - Std: SDI x4, HDMI x1
      - Max: 11 Up to 3 cards (on I/O option slots)
    • Video Outputs:
      - HD-SDI or 3G-SDI (Level-A only) 75Ω BNC x4
      - HDMI 2.0 Level-B (Type-A) x1 (AUDIO support)
    • Genlock Input: BB (NTSC/PAL) or Tri-level sync 75Ω BNC x1. Loop-through or 75Ω terminated
    • Genlock Adjustment Range: Horizontal timing: ±1H
    • Genlock Output: BB (NTSC/PAL) or Tri-level Sync 75Ω BNC x1
    • Chromakey: 1 channel
    • DVE Channel: 4 channels (2 channels in 1080p/59.94, 50) (For BKGD, KEY1-2 and FLEXaKEY1-4)
    • Multiviewer:
      - Std: 1 channel
      - Max: 2 channels (2-16 windows, 39 layout patterns)
      - Features: Title, Tally, Audio meter, Safety area and Border
      - Delay: 1 frame referring to PGM output.
    • HVS-LAN: 100BASE-TX/1000BASE-T RJ-45 x1
    • GPI IN/TALLY OUT:
      - 25-pin D-sub (female) x1 (inch screws)
      - 24-input/output: GPI in/out, tally output (program output available)
      - Open collector or relay contact input Open collector output
    • RS-422: 9-pin D-sub (female) x2 (inch screws). For video recorder/player, router, tally unit and editor connection
    • USB: USB2.0 (Type-A) x1 for USB stick connection
    • Power: AC 100V - 240V ±10% 50/60Hz
    • Consumption:
      - Standard: 66W (at AC 100V - 120V), 68W (at AC 220V - 240V)
      - With full options: 184W (at AC 100V - 120V), 178W (at AC 220V - 240V)
    • Dimensions: 17" x 9.65" x 3.46" (430mm x 245mm x 88mm)
    • Weight:
      - 12.89lbs (5.85kg)(Standard)
      - 17lbs (7.7kg)(w/ full options)

  • Item Includes:

    • 1x HVS-190ED
    • 1x HVS-190SPSM
    • 1x MU/OU Connection Cable
    • 1x AC Adapter
    • 1x AC cord
    • 1x Quick Setup Guide


HVS-190S EXPRESS - Required Accessories
