FOR-A IVS-720HS Digital Video Stabilizer Compact 1RU Half Size With Real-Time Motion Stabilization

ITEM #: FORA-IVS-720HS MFG #: IVS-720HS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
FOR-A
Free Shipping with $49 Minimum Order

List Price:

$8,250.00

Our Price:

$7,837.50

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

IVS-720HS - Overview

Digital Video Stabilizer to correct Unwanted Camera Movement and many forms of Vibration.
The FOR-A IVS-720HS provides real-time correction focused on unwanted camera motion while maintaining camera pan and tilt movement. Ideal for eliminating unwanted motion from weather cameras, hand held news cameras, or program production motion problems. Includes the optional ability to remove haze in real-time.

  • Features:

    • 3G/HD-SDI and SD-SDI formats: 1080p,1080i, 720p, 525/60, 625/50.
    • Compact 1RU size.
    • Provides real-time motion correction (2-frame delay).
    • Real-time haze or fog removal function (IVS-720HR option).
    • Auto detection of camera pan/tilt-only unwanted motion corrected.
    • Correction for both live and recorded video.
    • Powerful correction: up to 40% of source screen size, vertically or horizontally.
    • Sub-pixel precision.
    • Straightforward design - simply supply video signals, no special connection required.
    • Correction in active area only, preserves blanking data.
    • Blanking data transmission timing not affected by correction delay.
    • RS-232C/RS-422/LAN interfaces enable remote control (IVS-720IF option).
    • GUI control function via web browser (IVS-720IF option).


  • Specifications:

    • SDI Video Formats:
      - 1080/60p, 59.94p, 50p, 30p, 25p
      - 1080/60i, 59.94i, 50i
      - 720/60p, 59.94p, 50p
      - 525/59.94i, 625/50i

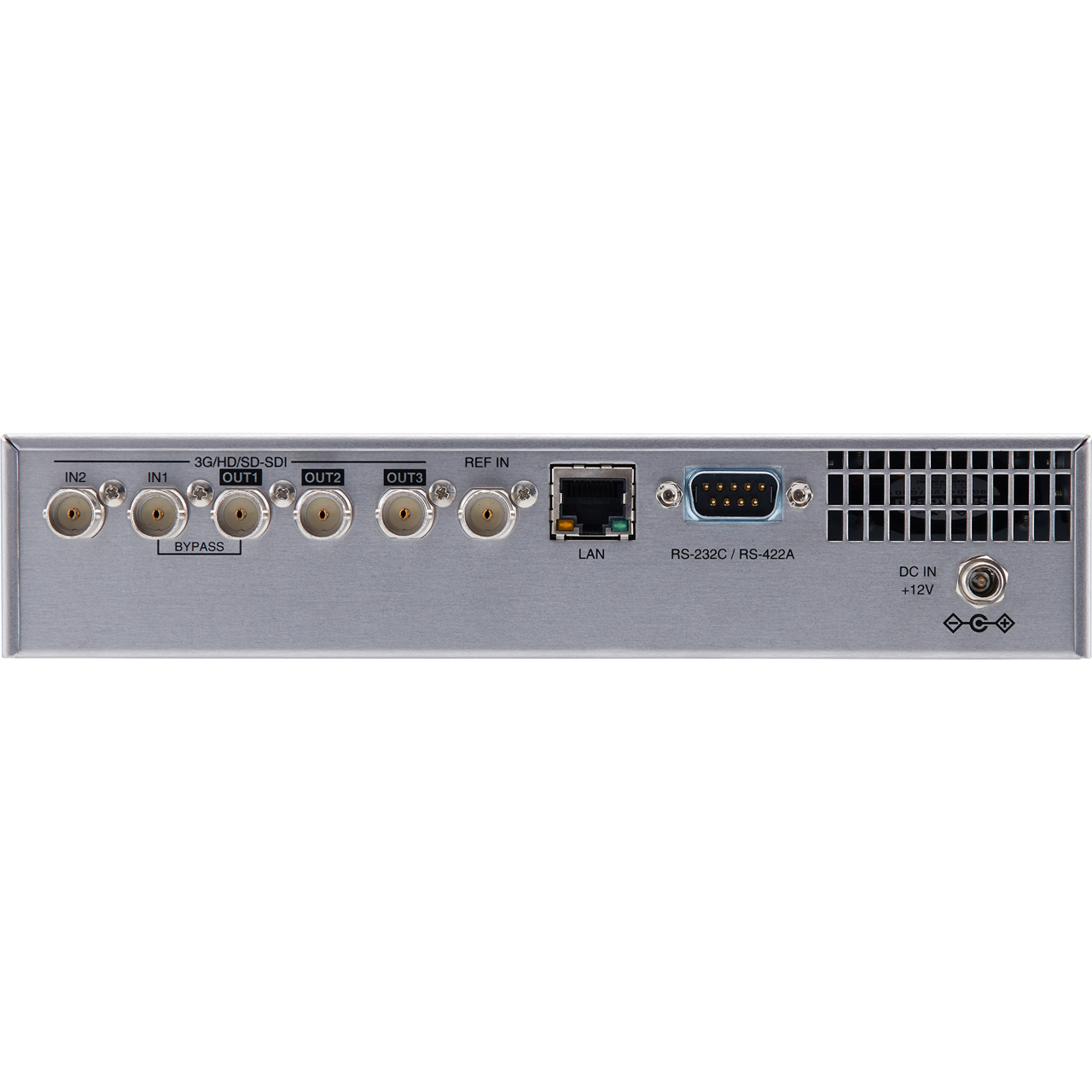

    • Video Inputs:
      - 3G-SDI: 3Gbps (Level-A/B)
      - HD-SDI: 1.5 Gbps
      - SD-SDI: 270 Mbps
      - 75-ohm BNC x2
      - IN1 to OUT1 relay bypass output available
    • Video Outputs:
      - 3G-SDI: 3Gbps (Level-A/B)
      - HD-SDI: 1.5 Gbps
      - SD-SDI: 270 Mbps
      - 75-ohm BNC x3 (Same video image)
      - IN1 to OUT1 relay bypass output available
    • Color Sampling: 3G/HD/SD-SDI: 4:2:2 10-bit
    • Synchronization: Genlock mode (IVS-720IF option required), Input Lock mode
    • I/O Delay:
      - 1080i, 525i, 625i: 2 frames (w/o Frame Sync function)
      - 1080p, 720p: 4 frames (w/o Frame Sync function)
    • Haze Removal and Low-Light/Backlight Correction (IVS-720HR option): FOR-A proprietary algorithm
    • Shake Correction: Correction range up to 40% horizontally and vertically
    • Shake Type: Vertical, horizontal, and diagonal (two-dimensional)
    • ANC Data: Both HANC and VANC data can be passed through
    • Temperature: 32°F - 104°F (0°C - 40°C)
    • Humidity: 30% - 90% (no condensation)
    • Power: +12V DC
    • Consumption: 46W
    • Dimensions: 8.34" x 1.73" x 13.78" (212mm x 44mm x 350mm)
    • Weight: 6.61lbs (3.0kg)
    • Consumables (at 24-hour operation): Cooling fan: Replace every 5 years (at room temp.)


  • Item Includes:

    • 1x FOR-A IVS-720HS Digital Video Stabilizer Compact 1RU Half Size With Real-Time Motion Stabilization
    • 1x AC adaptor
    • 1x CD-ROM
