Epiphan ESP1610 Pearl Nano All-In-One Video Production System - 12G-SDI/HDMI 2.0 Streamer and Recorder


Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    ESP1610 - Overview

    The perfect-fit streamer and recorder!

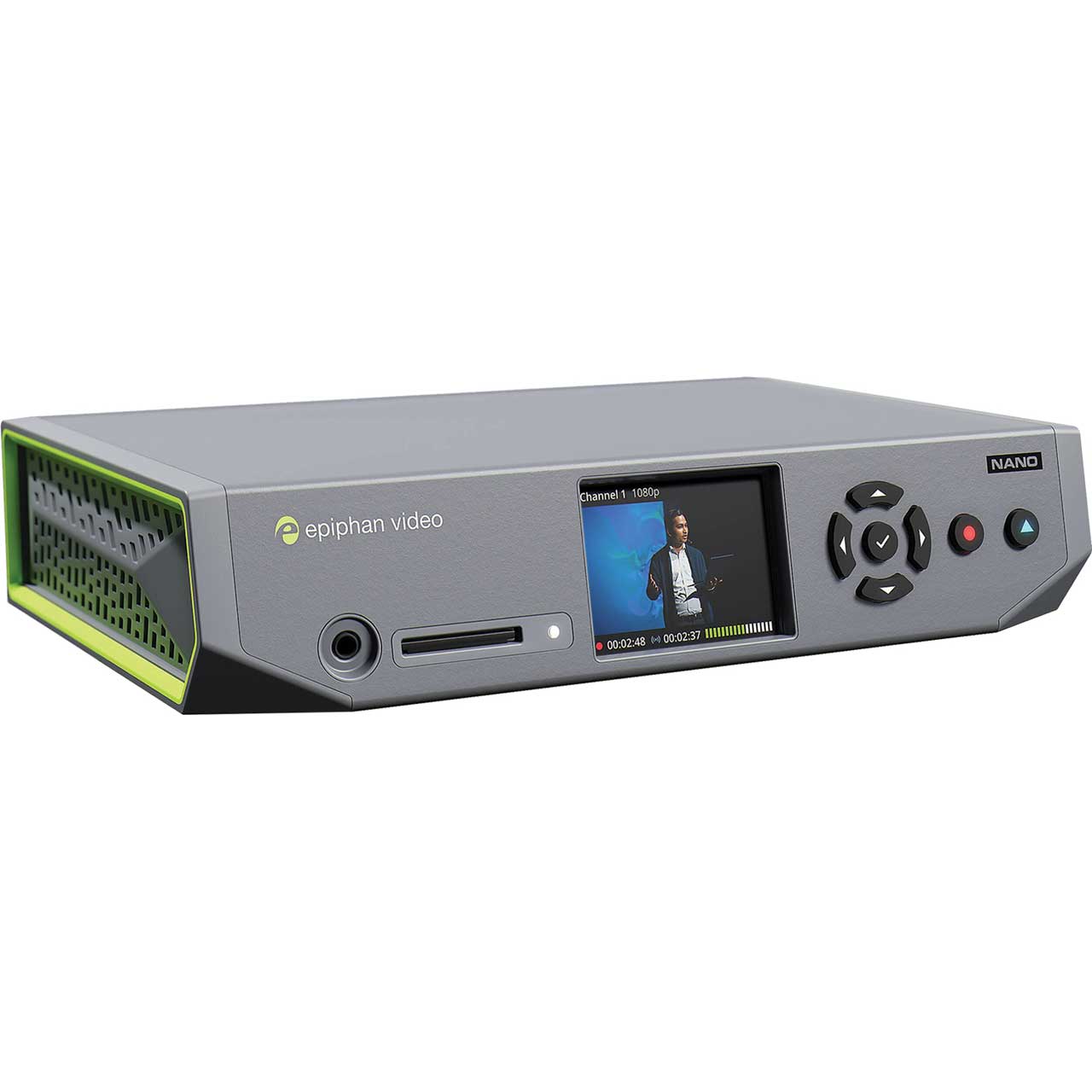

    The Epiphan Video Pearl Nano™ is the ultimate portable hardware encoder. Pearl Nano offers incredible versatility with a refined yet robust feature set that includes ingestion, encoding, HDMI pass-through, and recording.

    Fine-tuned for your productions

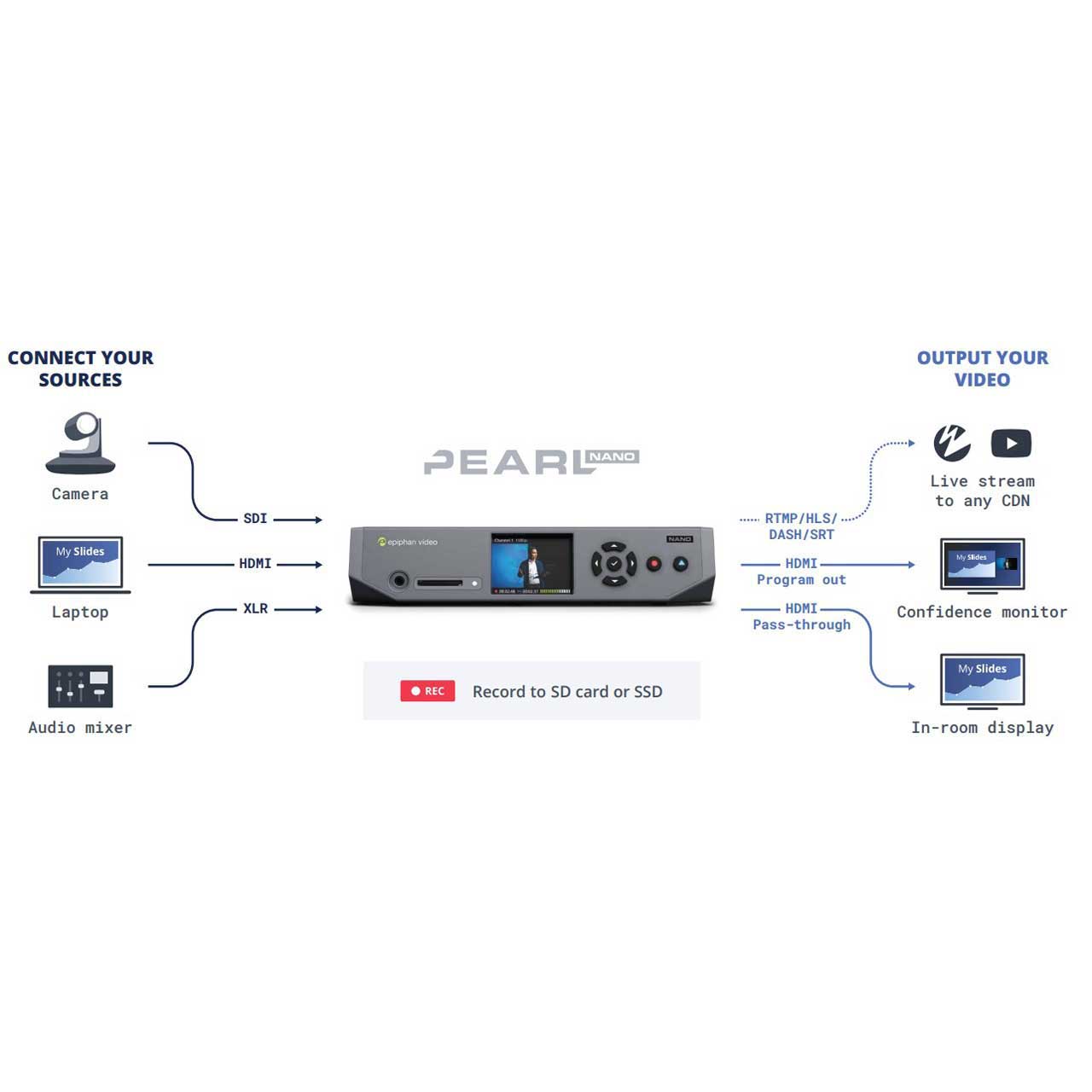

    Streamline your setup with the ability to directly connect HDMI and SDI video sources and XLR, RCA, or USB audio to Nano along with Power over Ethernet Plus (PoE+). For zero-latency display of video sources on in-room monitors, Nano also features a built-in HDMI pass-through.

    Control Nano your way
    Use Pearl Nano's front screen for basic configuration and control, jump into the browser-based interface or local console to access all the features this small but mighty encoder has to offer, or centralize configuration and monitoring with Epiphan's cloud-based platform.

    Key functions at your fingertips

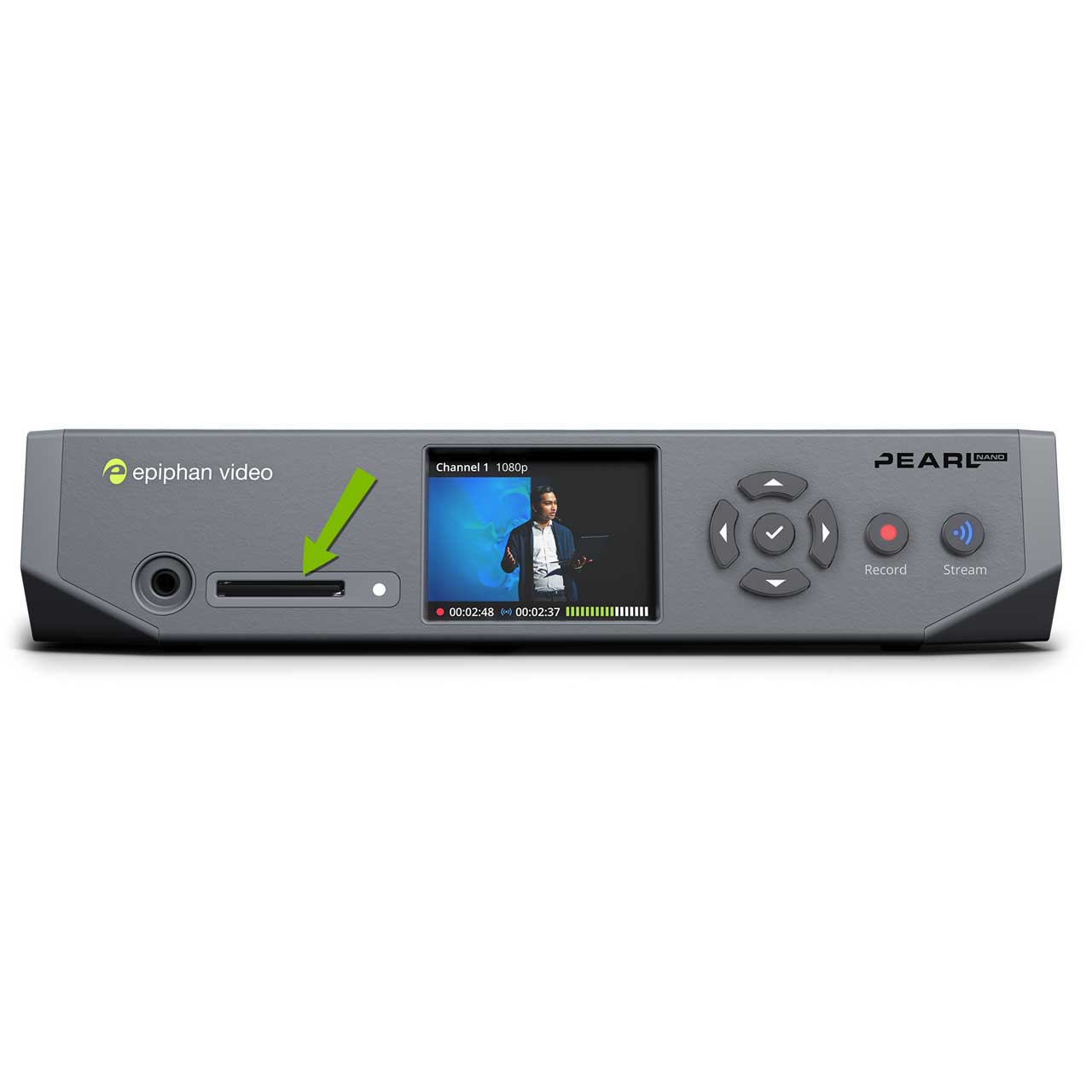

    Nano's front screen offers quick access to essential functions including basic configuration and easy streaming and recording. During events, the built-in screen serves as at-a-glance verification of your audio level and video program for production peace of mind.

    Cloud-based configuration and monitoring
    Epiphan Cloud streamlines configuration and monitoring of multiple Pearl Nanos and other Epiphan hardware with centralized access to key device statistics including operational status, system load, unit temperature, available storage, and overall health.

    Ideal for SRT contributions
    The compact and lightweight Pearl Nano supports Haivision's open-source Secure Reliable Transport (SRT) protocol for secure, high-quality, low-latency video streaming over any given network.

    Pair with Panopto or Kaltura
    Deep integration with Panopto and Kaltura lets you start and stop scheduled streaming or recording events using Nano's built-in screen and controls. The system can also push recordings to a user's folder on either platform to save administration time after events.

    Please Note! This item is restricted to Lower 48 Ground Shipment Only when purchased online. Need it more quickly? Please contact a Sales Representative by phone or e-mail for expedited delivery options.

    • Features:

      • Front screen for basic configuration/control and confidence monitoring
      • Video inputs for HDMI and SDI
      • Audio inputs for line-level XLR, RCA, and USB
      • HDMI program out and pass-through for zero-latency content display
      • Custom layout builder for a tailored video program
      • Intuitive browser-based UI and local console
      • Cloud-based configuration and control via Epiphan Cloud
      • SRT, HLS, MPEG-DASH, RTMP, and RTMPS streaming protocol support
      • Secure Sockets Layer (SSL)
      • Comprehensive integration with Kaltura and Panopto
      • Power over Ethernet Plus (PoE+) and DC power
      • Save recordings directly to an SD card (user supplied)
      • Expansion bay for user-supplied M.2 SATA SSD
      • Automatically transfer recordings to a USB drive or networked server
      • 802.1x network access control
      • Lightweight Directory Access Protocol (LDAP)
      • Integration with Crestron Systems
    • Specifications:

      • Video inputs
      • Connectors: 1 x HDMI™ 2.0, 1 x 12G SDI, 1 x USB Type A
      • Network inputs: SRT and RTSP

        Audio inputs
      • Connectors: 2 x XLR line level (stereo pair or two mono), 1 x USB, 1 x SDI, 1 x HDMI, 1 x RCA
      • Audio gain control: 0 dB to +30 dB

        Video outputs
      • 1 x HDMI pass-through, 1 x HDMI program out

        Video encoding
      • Codecs: H.264, H.265 (coming soon as a paid upgrade)
      • Color resolution: 4:2:0
      • Resolution: User selectable up to 1920 x 1200 (4K coming soon as a paid upgrade)

        Streaming protocols

        Encoded programs
      • 1 x 1080p program at 60 fps (with up to 2 Full HD sources; 4K coming soon as a paid upgrade)

        Audio encoding
      • MP3, PCM, and AAC (sampling 16 to 48 kHz with bitrate up to 320 kbps)

      • 1 x 10/100/1000 Ethernet port (RJ45)
      • 802.1 network security and certificate mangement

      • SD card: Up to 512 GB EXT4
      • Internal storage: SATA M.2 2280 SSD (M Key connector)
      • Local USB: Automatic or manual copy via 1 USB 3.0 port
      • Network storage: FTP, SFTP, SCP, RSYNC, CIFS, AWS, or WebDav servers

        Recording formats
      • AVI, MP4, MOV, or MPEG-TS

      • Browser-based Admin panel, front screen and control keys, remote login, HTTP, and RS-232 APIs
    • Item Includes:

      • 1x Epiphan Pearl Nano
      • 1x Power Supply
      • 1x Quick Start Guide
    • Warranty:

      • One-year phone support
      • One-year limited warranty
      • Free firmware upgrades
    • GTIN:
