Patton Fiberplex FP1008E Un-Managed Industrial Gigabit Ethernet Switch 8x 10/100/1000 RJ45 2x GigE SFP 12-48VDC Input

ITEM #: FP1008E-2SFP-DC MFG #: FP1008E/2SFP/DC

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$846.72

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    FP1008E/2SFP/DC - Overview

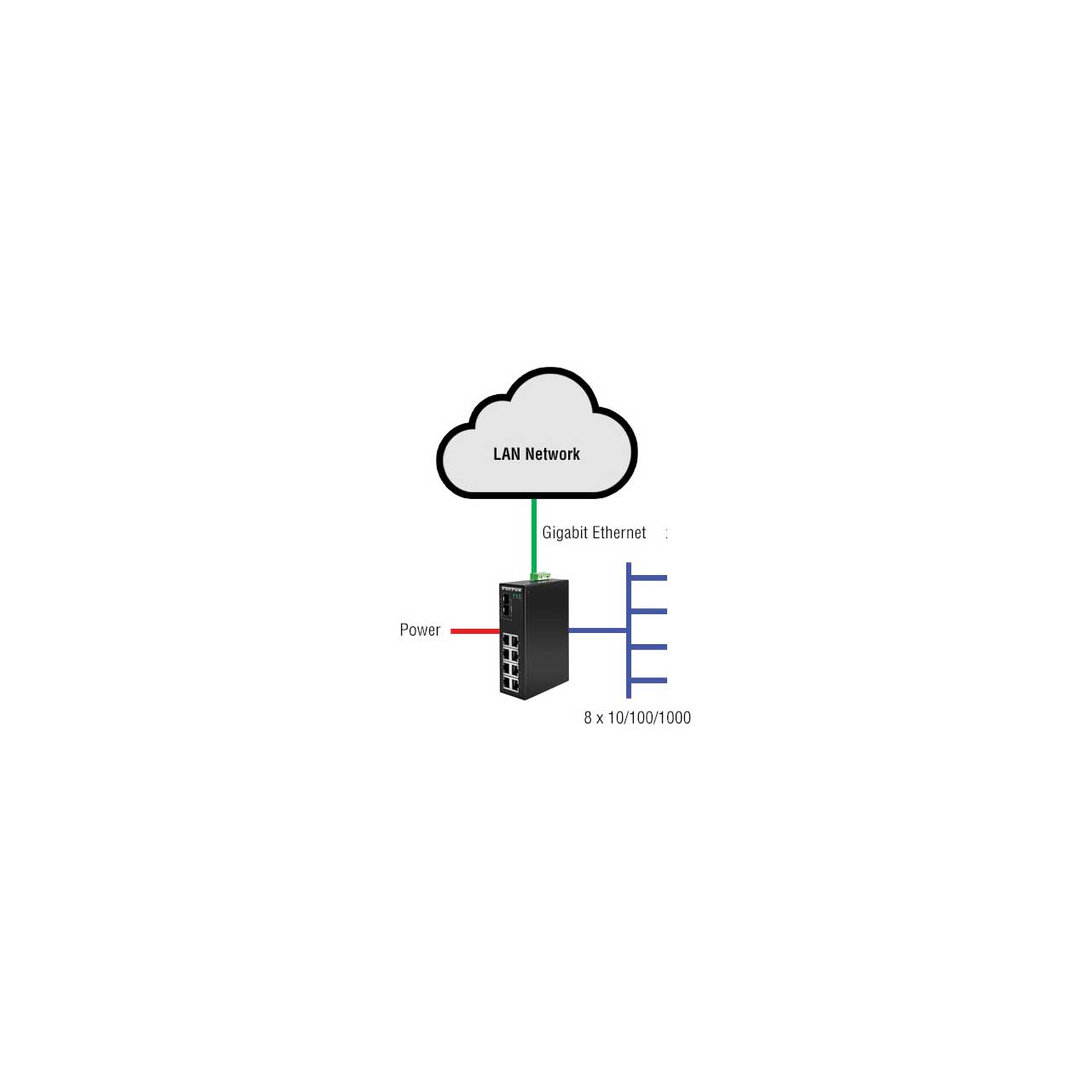

    Patton's FP1008E Un-Managed Industrial Gigabit Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

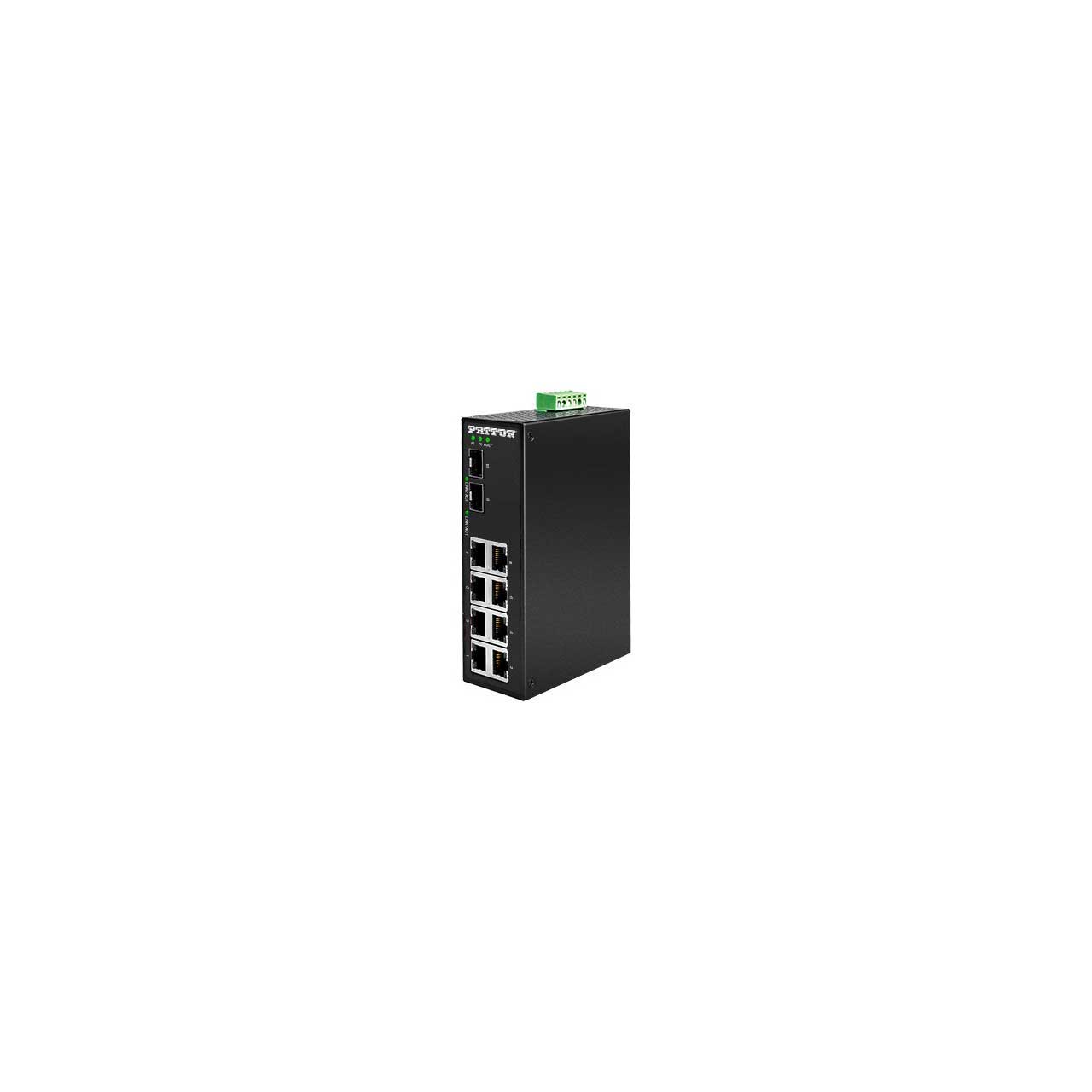

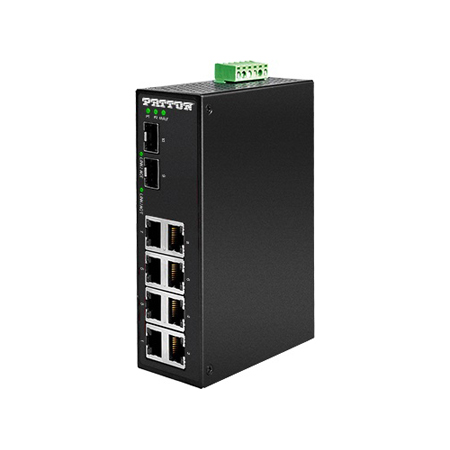

    The FP1008E is housed in an sturdy IP30 rated DIN-rail enclosure with wall mount options. The physical layer interfaces include 8 RJ45 10/100/1000 Ethernet ports and two Gigabit SFP+ slots that can be used for fiber trunk connections. To ensure operation in harsh environments the FP1008E provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 75°C (-40 to 167°F).

    • Features:

      • Supports auto MDI/MDI-X function
      • 10 ports include 8 10/100/1000TX RJ45 ports and 2 100/1000 SFP cages
      • Store-and-forward switching architecture
      • 20-Gbps backplane (switching fabric)
      • 8K MAC address table
      • 9.6K Jumbo frame supports
      • ESD protection: 6,000 VDC support
      • Redundant power input design: 12-48 VDC
      • Built-in relay output for power failure detection
      • Surge protection: 2,000 VDC support
      • Operating temperature range-EOT: -40 to 75°C
      • IP30 rugged metal case design
      • DIN-rail and wall mount support

    • Specifications:

      • Ethernet Port: 8 RJ45 Ports with 10/100/1000TX auto MDI/MDI-X connection & 2 100/1000 SFP cages
      • Fiber Port: 2 1-Gig SFP cages
      • Standards: IEEE 802.3, 3u, 3ab, 3az
      • Switching Architecture: Backplane (Switching Fabric): 20 Gbps
      • Transfer Rate: up to 1.0Gbps for Gigabit Ethernet port
      • Jumbo Frame: 9.6 Kbytes
      • MAC Table Size: 8K
      • Free fall / Shock / Vibration: IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
      • Overload Current Protection: Present
      • Operating Temperature: -40 to 167°F (-40 to 75°C)
      • Storage Temperature: -40 to 185°F (-40 to 85°C)
      • Ambient Relative Humidity: 5 to 95%, (non-condensing)
      • Input Voltage: 12-48 VDC, Redundant Input (with 1 removable 6-contact terminal block); 100-240 VAC adapter (optional)
      • Power Consumption: 10 Watts
      • Reverse Polarity Protection: Yes
      • Housing: Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
      • Dimensions (WxDxH): 1.81 x 3.89 x 5.59" (46 x 99 x 142mm)
      • Unit Weight: 2.5 lbs
      • Shipping Weight: 3.0 lbs
      • Certifications: FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
      • EMI: FCC Class A
      • EMS: EN6100-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11, 4-12, 6-2, 6-4

    • Item Includes:

      • 1 FP1008E/2SFP/DC Un-Managed Industrial Gigabit Ethernet Switch; 8x 10/100/1000 (RJ45); 2x GigE SFP, -40 to 75C; 12-48VDC Input
