Fiberplex SFP-RTGTXC-0000-0 RJ45 - 10/100/1000 Base-T Ethernet SFP Module

ITEM #: SFP-RTGTX-0000-0 MFG #: SFP-RTGTX-0000-0

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:


Availability: In Stock
iAvailability Description Popup

    SFP-RTGTX-0000-0 - Overview

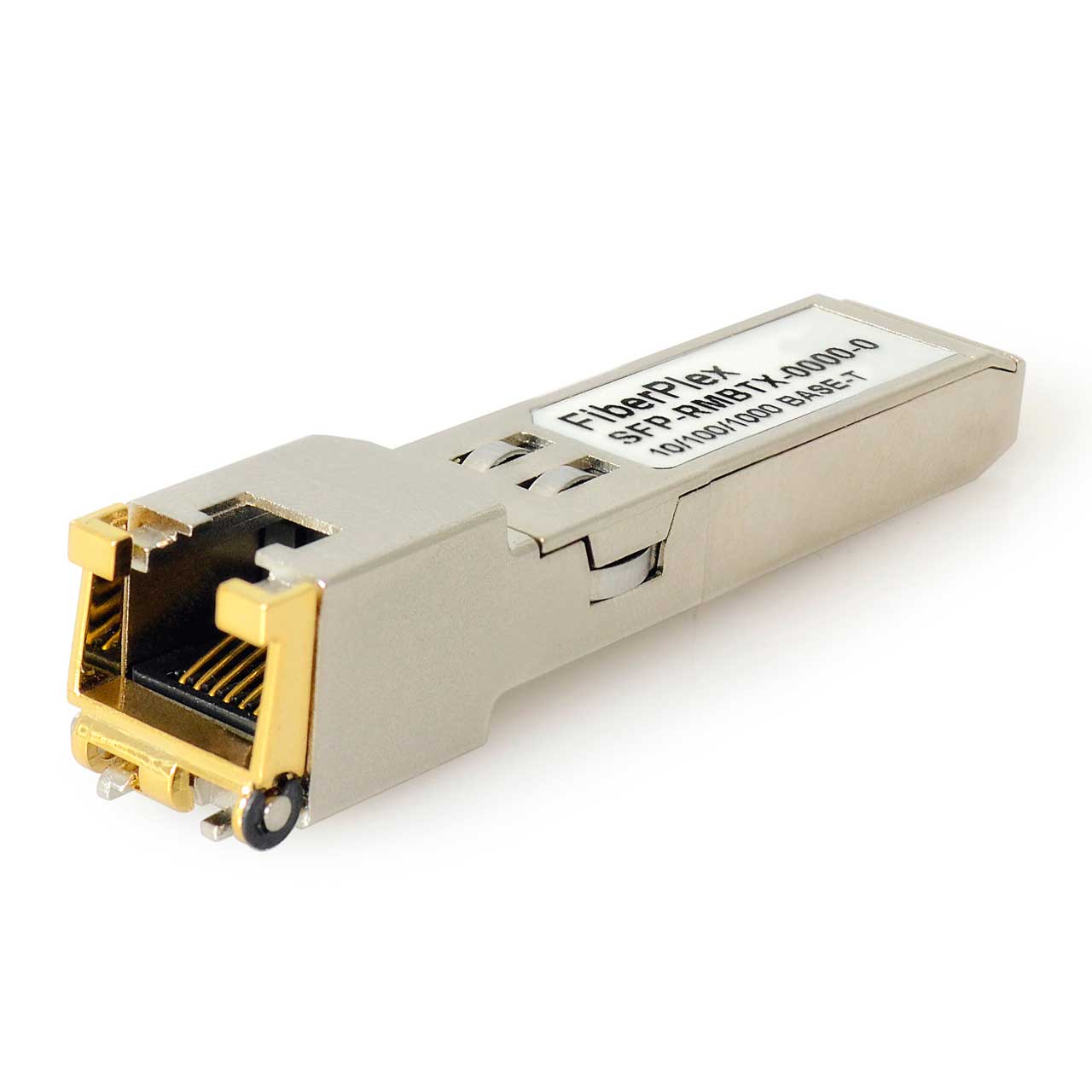

    The Fiberplex SFP-RTGTX-0000-0 Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable.

    The module supports 1000 Mbps (or 10/100/1000Mbps) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals.

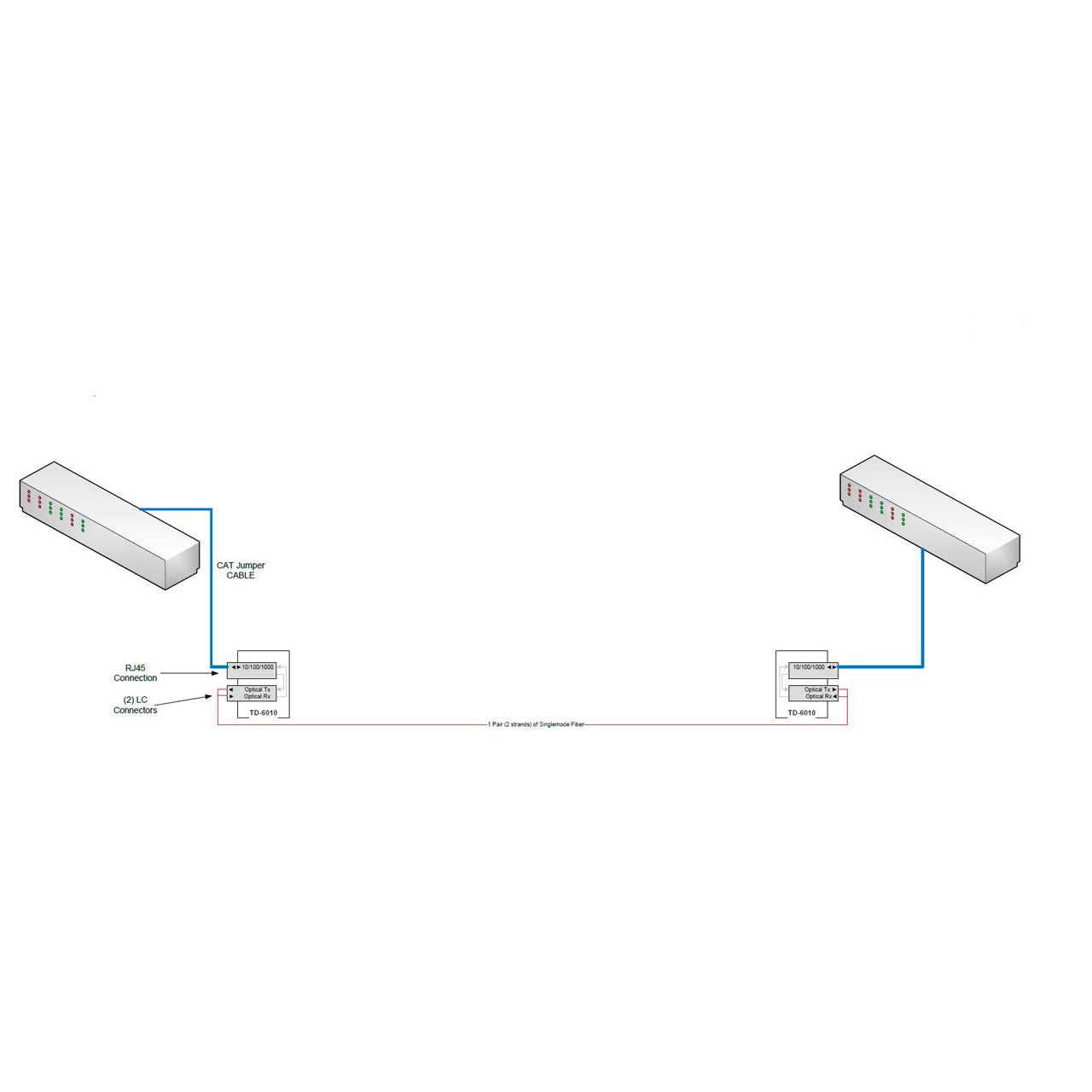

    Plugs directly in to the Fiberplex TD-6010 Throw Down Box.

    • Features:

      • Up to 1.25Gb/s bi-directional data links
      • Hot-pluggable SFP footprint
      • Compact RJ-45 connector assembly
      • 1000 BASE-T operation in host systems with SERDES interface
      • 10/100/1000Mbps compliant in host systems with SGMII interface
    • Specifications:

      • Extended case temperature range (0°C to +85°C
      • Fully metallic enclosure for low EMI
      • Low power dissipation (1.05 W typical)

    SFP-RTGTX-0000-0 - Required Accessories
