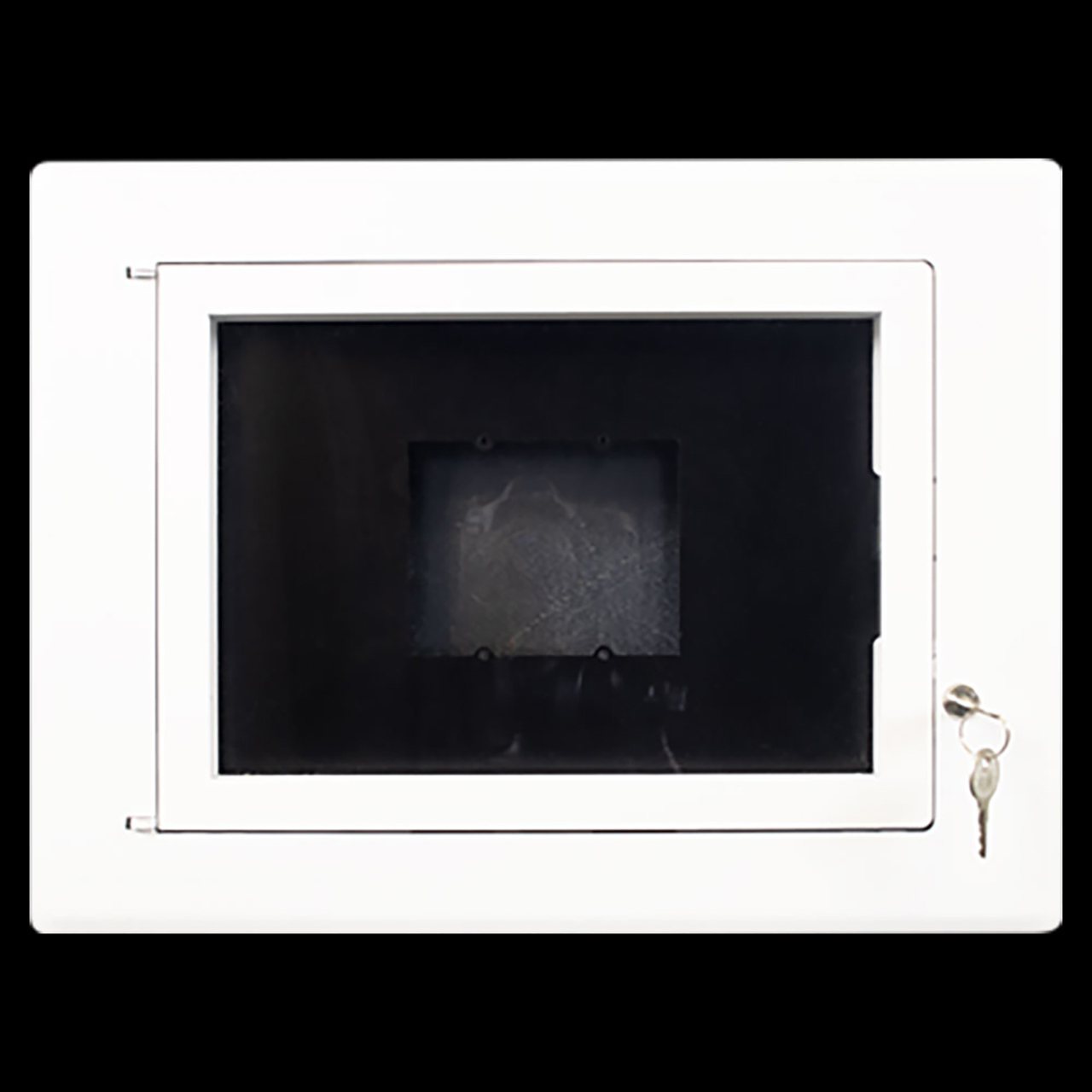

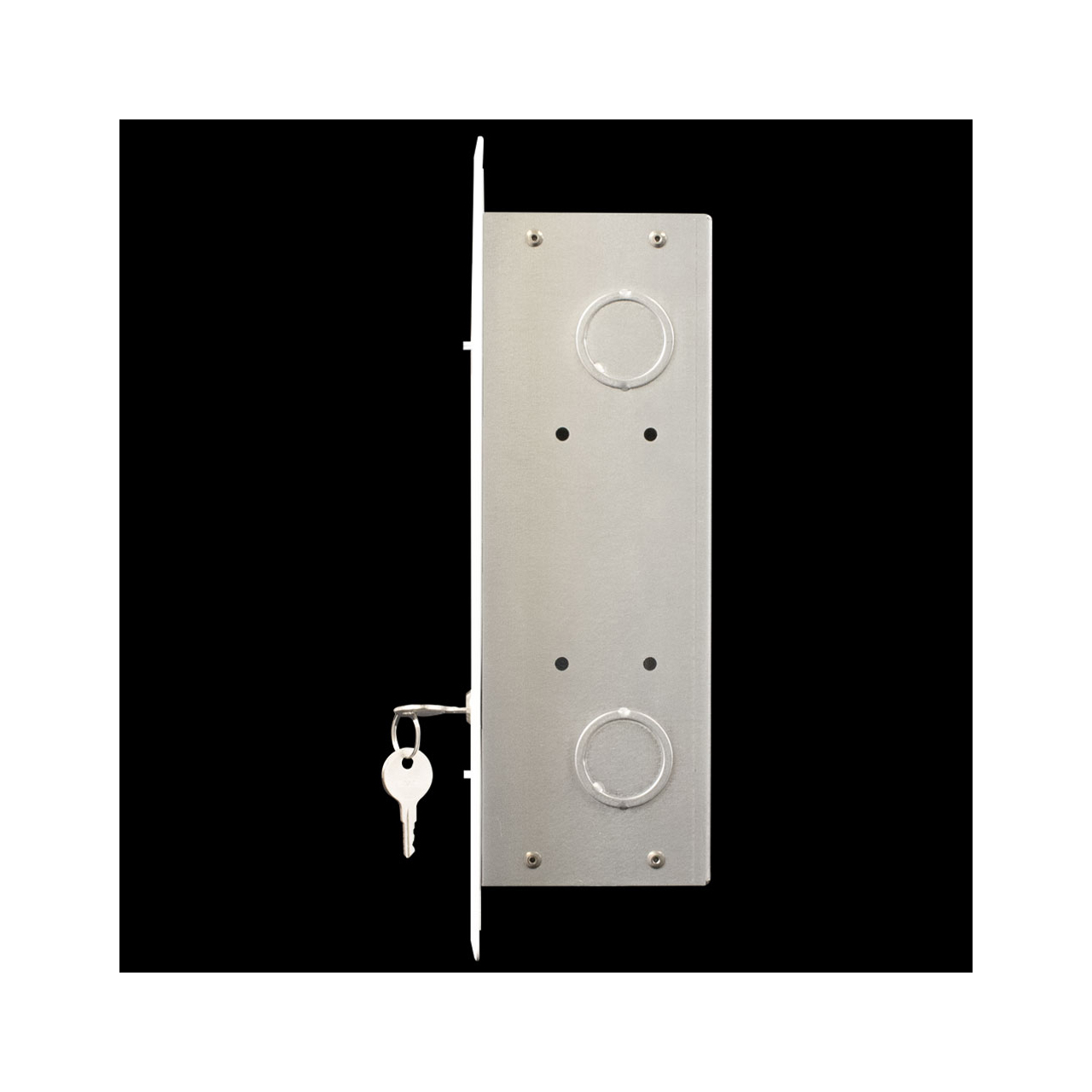

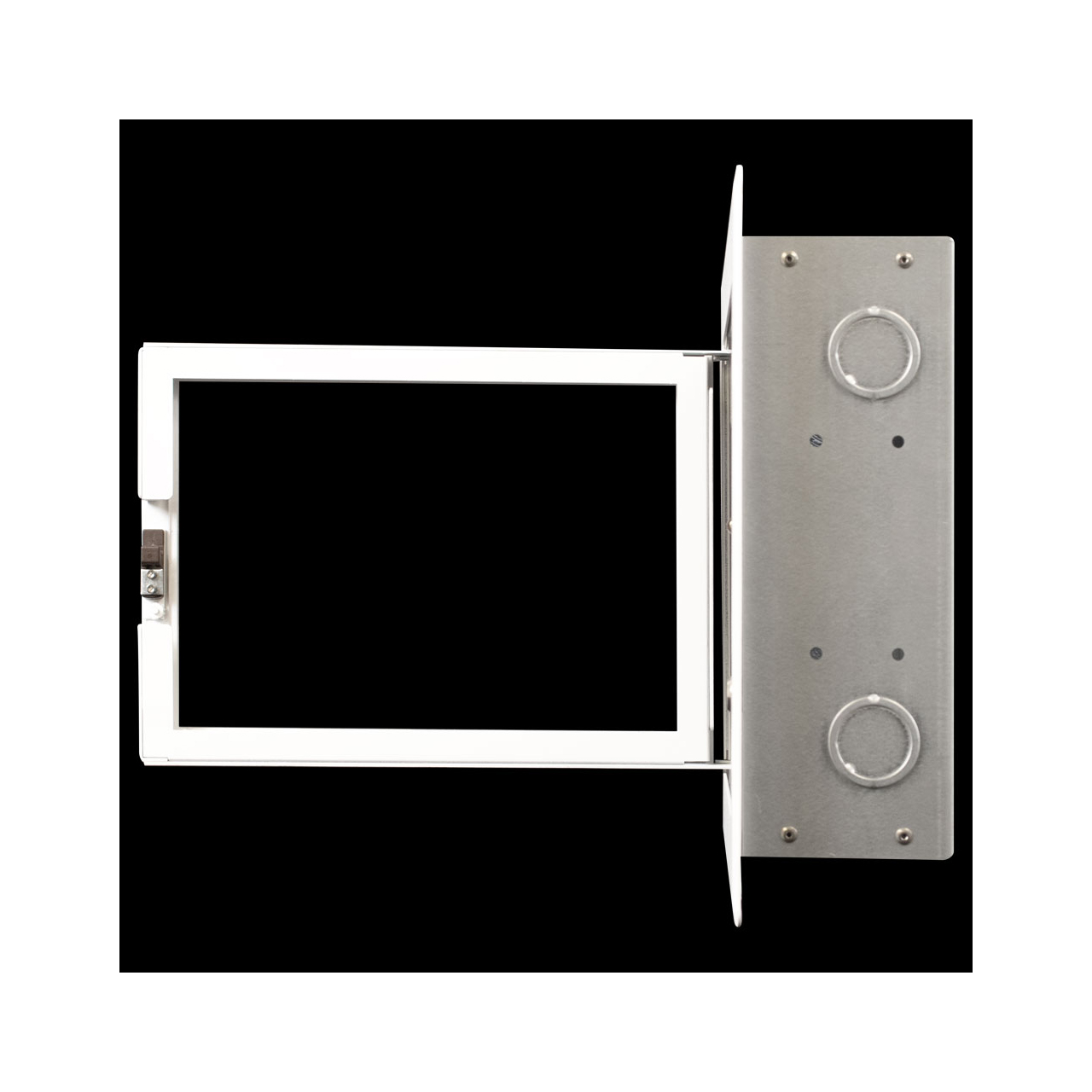

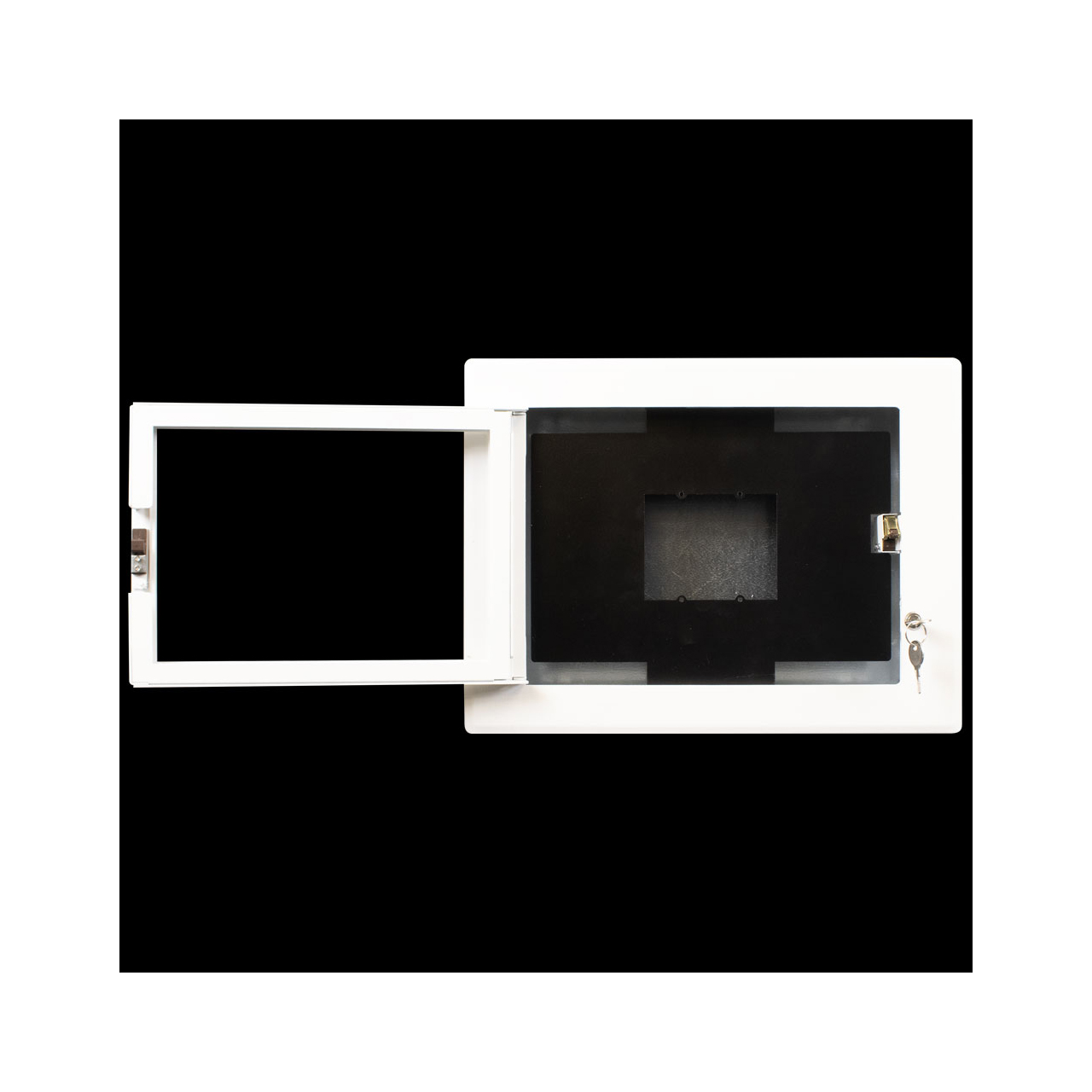

The FSR WB-TSC-FM-10 surface-mount touchscreen wall boxes are metal locking covers with clear acrylic windows designed to protect and restrict access to 5 to 10-inch touch panels mounted on a 2-gang back box. These wall boxes ensure clear visibility of wide-format displays while maintaining a sleek, low-profile design. The flushmount touchscreen wall boxes offer the same protection and monitoring features as their surface-mount counterparts but are designed to install flush to the wall. The flush-mount models are compatible with controllers up to a maximum panel size of 10.3" W x 8" H x 1.75" D. Panels with other mounting requirements can be supported; contact the factory for details. The flush mount is designed to blend seamlessly with any environment and boasts a sleek, flush design. The 180-degree hinge design allows the door to lay flat against the wall when open, providing users with unencumbered access to the front panel and making maintenance and operation hassle-free. The enclosure can be installed in landscape or portrait orientation; in landscape, the door can be mounted to open left or right; in portrait, the door swings up or down. This flush mount touchscreen wall box provides security against unauthorized access while allowing users to monitor the control panel's status through the clear window without opening the locked door.
Applications:
- Schools
- Hotels
- Conference Rooms
- Airports
- Arenas
- Houses of Worship
