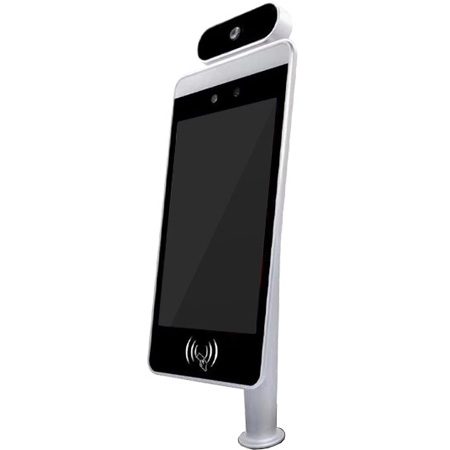

Goodview SV-1080-POLE Pole Unit with Dynamic Detection Display Temperature Scanner with Facial Recognition

ITEM #: GDV-SV-1080-POLE MFG #: SV-1080-POLE

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Special Price:


Availability: In Stock
iAvailability Description Popup

    SV-1080-POLE - Overview

    The Dynamic Detection Display line from Goodview utilizes advanced thermal detection technology to quickly scan internal body temperatures. Combined with intuitive EZ-Pass software, Dynamic Detection Displays can quickly identify potential safety threats and help mitigate large-scale exposure.

    Providing real-time protection and peace of mind for your organization and its customers. Temperature and facial scanners with ≤ .5°C accuracy

    The SV-1080-POLE comes with the Dynamic Detection Display on a Pole Unit.


    • Features:

      • ≤ .5°C Accuracy
      • Non-Touch Scanning
      • Network Capabilities
      • 3rd Party Integration Options
      • Toggle Capability for Facial Recognition Features
      • Optional Card Reader Features
      • Wall, Table & Podium Mounting Options
    • Specifications:

      • Camera
      • Resolution: 2 million Pixels
      • Type Binocular: (Wide Dynamic Camera)
      • Aperture: F2.4
      • Focus 50-150cm
      • White Balance: Auto
      • Photo Flood Light: LED & IR Dual Photo Flood Light

      • Size: 8.0in IPS LCD Screen
      • Resolution: 800x1280
      • Touch: Not supported (optional support)

      • CPU: RK3288 quad-core (optional RK3399 6-core, MSM8953 8-core)
      • Storage: EMMC 8G

      • Network Module: (1) Ethernet RJ-45 Port, WiFi
      • Audio: 2.5W / 4R speakers
      • USB: 1 USB OTG, 1 USB HOST standard A port
      • Serial: 1 RS232 serial port
      • Relay Output: 1
      • Euroblock: (1) input, (1) output

      • Card Reader: Optional IC card reader, ID card
      • Facial Recognition: Supports Simultaneous detection and tracking
      • Face Library: Up to 30,000
      • 1:N Facial Recognition: Supported
      • 1:1 Face Comparison: Supported
      • Identify Distance Configuration: Supported
      • UI Interface Configuration: Supported
      • Firmware Upgrades: Supported
      • 3rd Party Interface: Interfaces include device management, personnel
        / photo management, record query, etc.
      • Deployment: Support for Cloud Deployment, LAN, Stand-Alone

        Thermal Imaging Module
      • Temperature Detection: Supported
      • Temperature Detection Distance: 1 meter (optimal distance 0.5 meter)
      • Temperature measurement accuracy: ≤ 0.5
      • Temperature measurement range: 50°F~107.6°F
      • Thermal field of view: 89.6 X 89.6°F
      • Temperature Alarm: Supported

        General Parameters
      • Power: DC12V
      • Operating temperature: 32°F~140°F
      • Storage temperature: -4°F~140°F
      • Power Consumption: 13.5W(Max)
      • Installation method: Gate bracket, installation Bracket w/ Table Mount Bracket w/ Podium Stand
      • Size Base Unit: 10.78 x 5.03 x .84 Inches

    SV-1080-POLE - Required Accessories
