    UCE260 - Overview

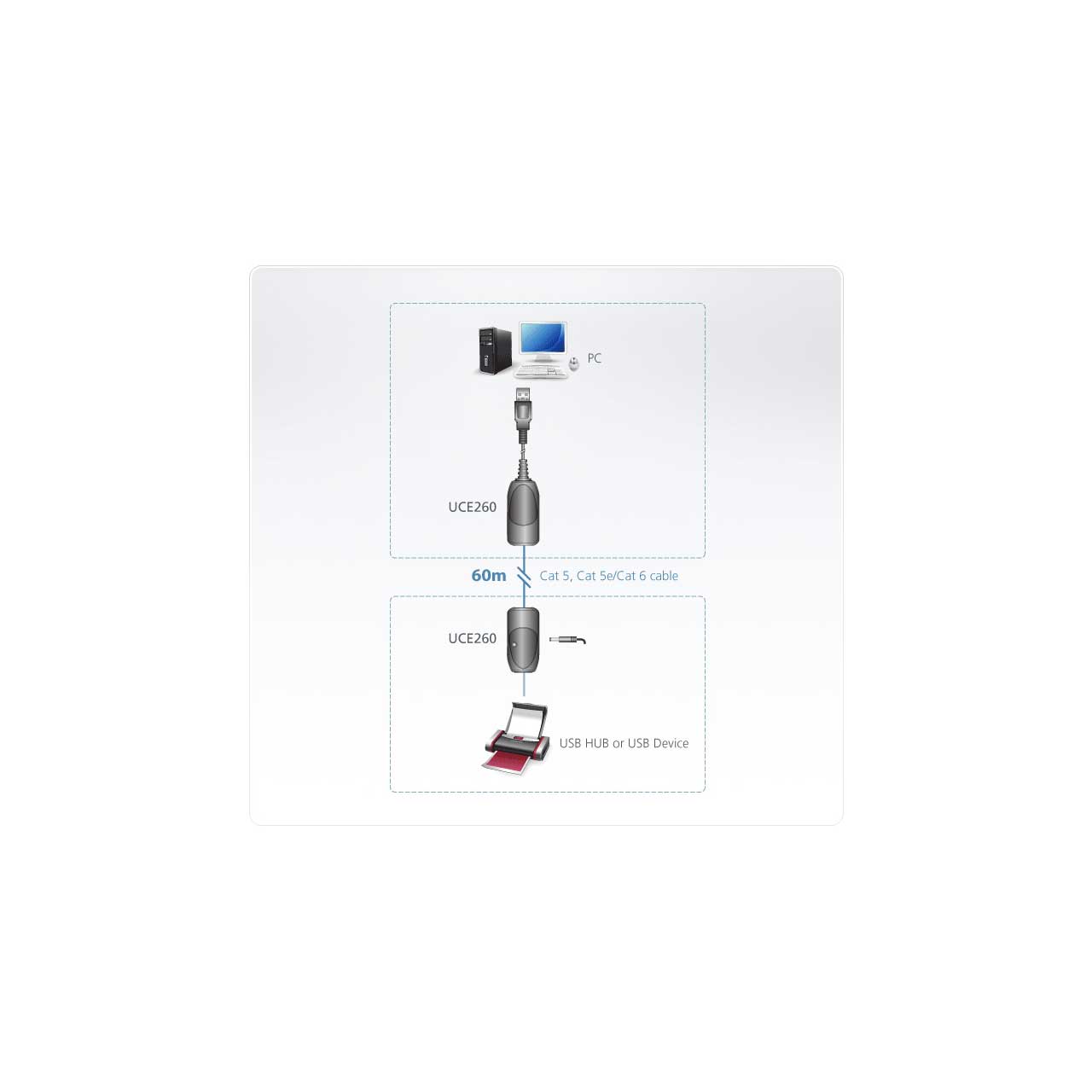

    The UCE260 from ATEN can easily send USB signals via Cat.5/5e/6 cable up to 60 meters (196 ft) at data rates of High Speed (480Mb/s), Full Speed (12Mb/s) and Low Speed (1.5Mb/s). Without any configuration or software driver, this USB extender allows you to extend your USB device or hub from your computer, which overcomes the typical USB cable limitation. The addition of this component to your running computer system provides no significant interruption to the operation of the system and does not require a restart as well. The included AC Adapter stabilizes the power supply.

    • Features:

      • Supports any High-Speed (480Mb/s), full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices
      • Extends signal transmission distance of a USB devices up to 60m via a Cat 5/5e/6 cable
      • Includes an AC adapter to stabilize power supply
      • Hot-Pluggable
      • The most cost-effective USB extender solution
      • No additional software driver required
    • Specifications:

      • Local Unit
      • Upstream Port: USB Type A Male
      • Downstream Port: RJ45 Jack
      • Power: Bus-Powered
        Remote Unit
      • Upstream Port: USB Type A Female
      • Downstream Port: RJ45 Jack
      • Power: Self-Powered
        Built-In Cable Length: 1 Feet
      • Interconnect Cable: Cat 5/5e/6 Cable
      • Max Cable Length60 m
      • Environmental: 0–40°C
        Physical Properties
      • Housing: Plastic
      • Weight: 0.15 lb
    • Item Includes:

      • 1x Local Unit with USB Cable
      • 1x Remote Unit
      • 1x Power Adapter (5V, 2.6A)
      • 1x User Instructions
    • GTIN:
