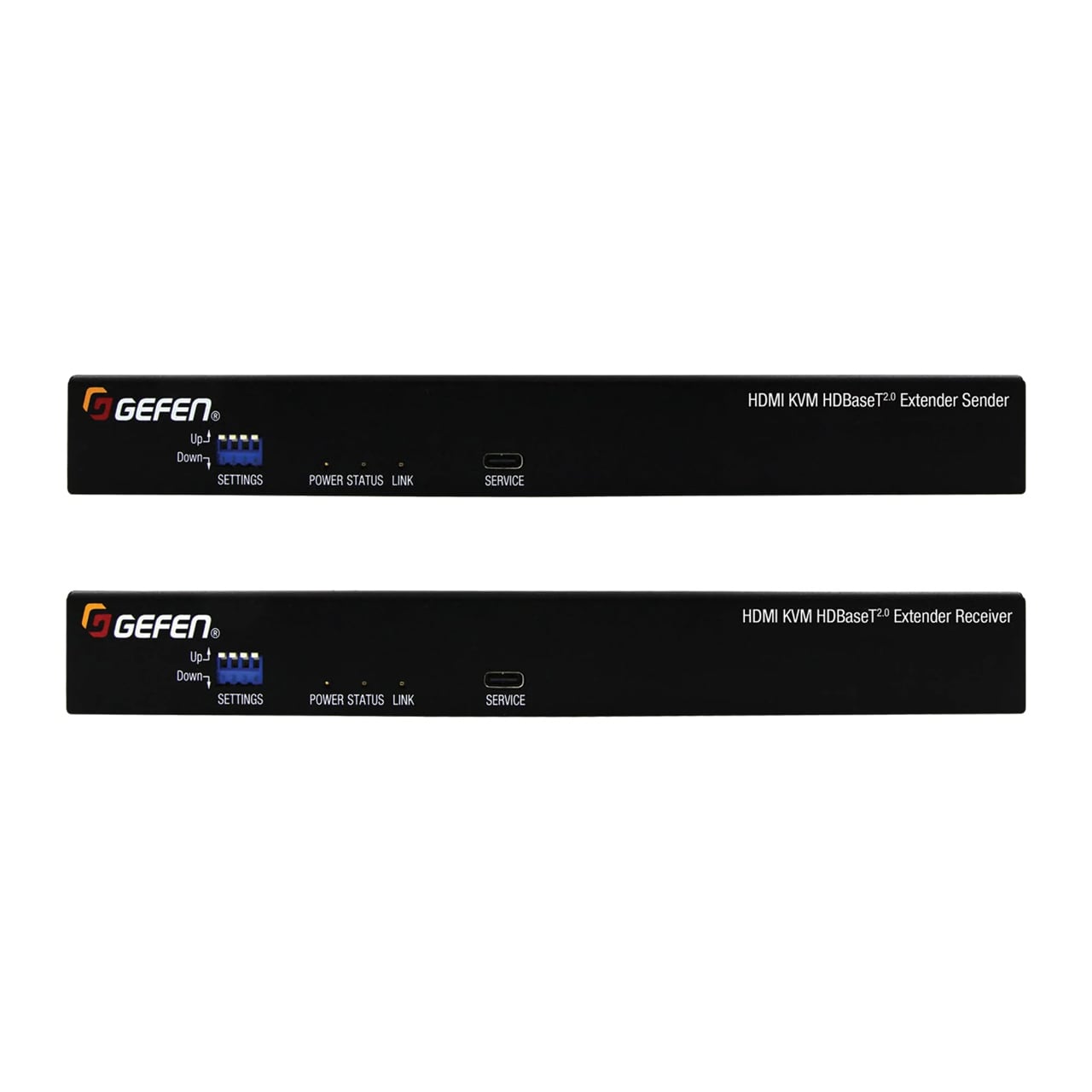

The Gefen GF-EXT-HDK-HBT2 HDMI KVM Extender delivers uncompressed 8K@60Hz (4:2:0) and 4K@120Hz video, USB 2.0 KVM, and audio up to 330ft (100m) via HDBaseT 2.0. Supporting HDR10, Dolby Audio, and HDCP 2.3, it delivers studio-grade visuals and high-quality audio. Features bi-directional PoH power for efficient setup and clean installations, EDID management, HPD stability, and analog audio de-embedding with eARC compatibility. Designed for control centers and production suites, it offers a low-latency control path with instantaneous KVM response, seamless USB control, and industrial-grade reliability. Field-upgradable firmware and heavy-duty metal housing complete this pro AV solution.
HDR10, Dolby Audio, and HDCP 2.3 Support
Delivers premium studio-grade visuals with HDR10 high dynamic range and Dolby Audio, ensuring vibrant colors and immersive sound; compliant with the latest HDCP 2.3 digital rights management.
USB 2.0 KVM Extension
Supports USB 2.0 devices including HID peripherals and touchscreens, enabling seamless remote control and interaction with devices via KVM over long distances.
Bi-Directional PoH+ Power and Audio De-Embedding
Integrates PoH+ (Power over HDBaseT) to power devices via a single cable for cleaner installations, with analog audio de-embedding and eARC compatibility for flexible audio routing.
Advanced Signal Management and EDID Handling
Features low-latency control path with EDID management and HPD signal stability to maintain seamless connectivity and natural input responsiveness.
Industrial-Grade Reliability
Built with heavy-duty metal housing, multi-region power supply, and reinforced connectors for durable, continuous professional use in control centers and production environments.
How It Works:

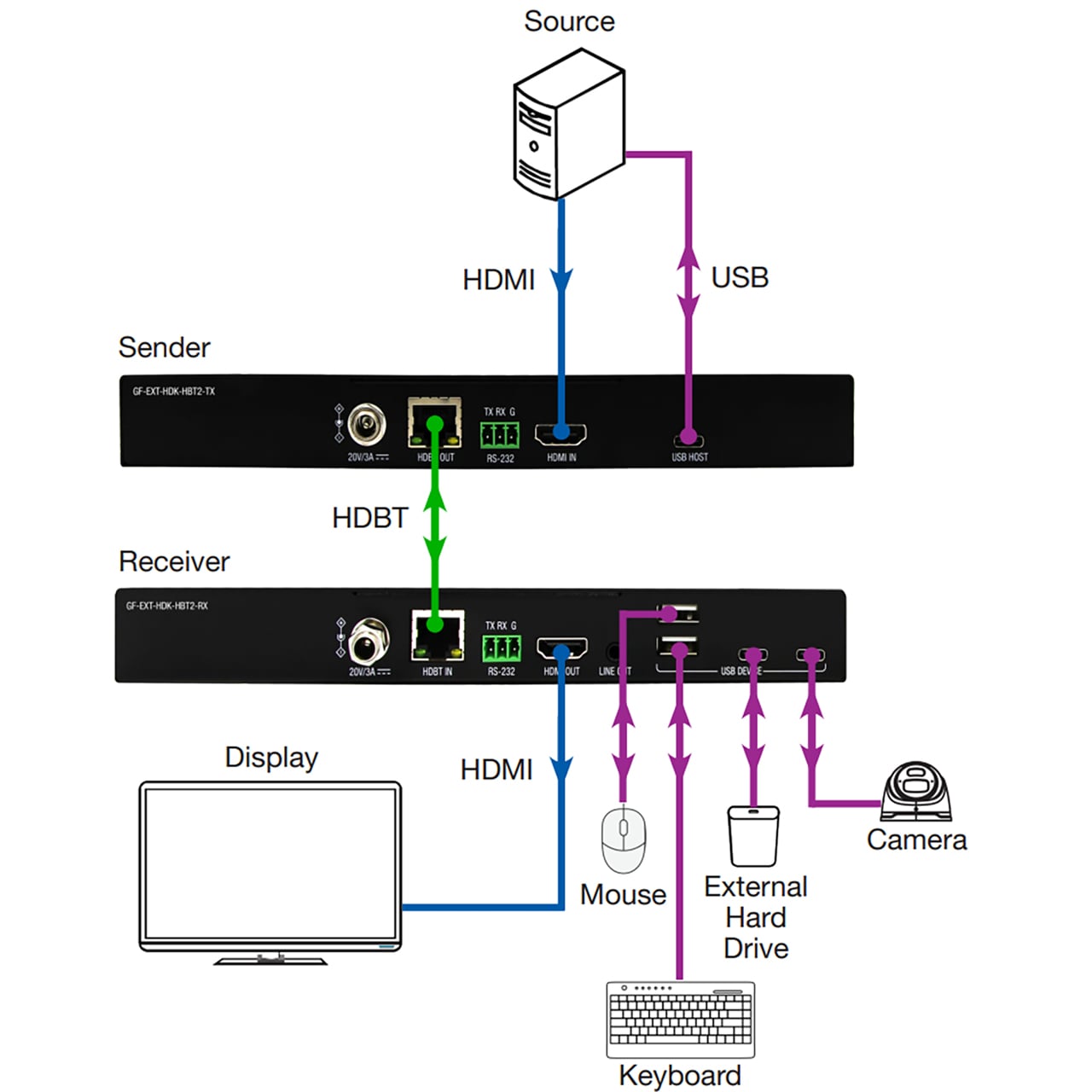

The Gefen GF-EXT-HDK-HBT2 uses HDBaseT 2.0 technology to transmit uncompressed ultra-high-definition HDMI video and USB signals over a single CAT cable, extending high-resolution content and peripheral control up to 330ft (100m). This eliminates the need for multiple cables, reducing installation complexity while preserving signal integrity.
Bi-directional Power over HDBaseT (PoH+) supplies power through the same cable, simplifying setup and reducing cable clutter. The device also supports audio de-embedding and eARC, enabling users to route audio flexibly from HDMI sources to external audio systems.
With advanced EDID management and low-latency signal processing, the extender ensures consistent display compatibility and fast, natural input response for KVM control. Its robust metal enclosure, heavy-duty housing, multi-region power supply, and reinforced connectors ensure reliable operation in demanding professional environments, such as control rooms and production suites.
Ideal for:
• Broadcast and Production Environments
• Corporate and Control Centers
• Healthcare and Medical Imaging
• Education and Training Facilities
• Use Case Examples
• Problems It Solves
System Requirements:
• HDMI Source and Display: Compatible HDMI sources and displays capable of handling 8K@60Hz and 4K@120Hz signals, leveraging the extender's full 40Gbps HDMI 2.1 bandwidth support.
• USB Devices: USB 2.0 compatible peripherals such as keyboards, mice, and touchscreens, supported by the integrated USB 2.0 KVM extension.
• Network Cabling: CAT6/CAT6a twisted pair cabling suitable for HDBaseT 2.0 transmission up to 330ft; shielded CAT6a or better is a best-practice recommendation
• Power: 12V/3A DC locking power supply (multi-region supported), with bi-directional PoH+ available between sender and receiver over the HDBaseT link.

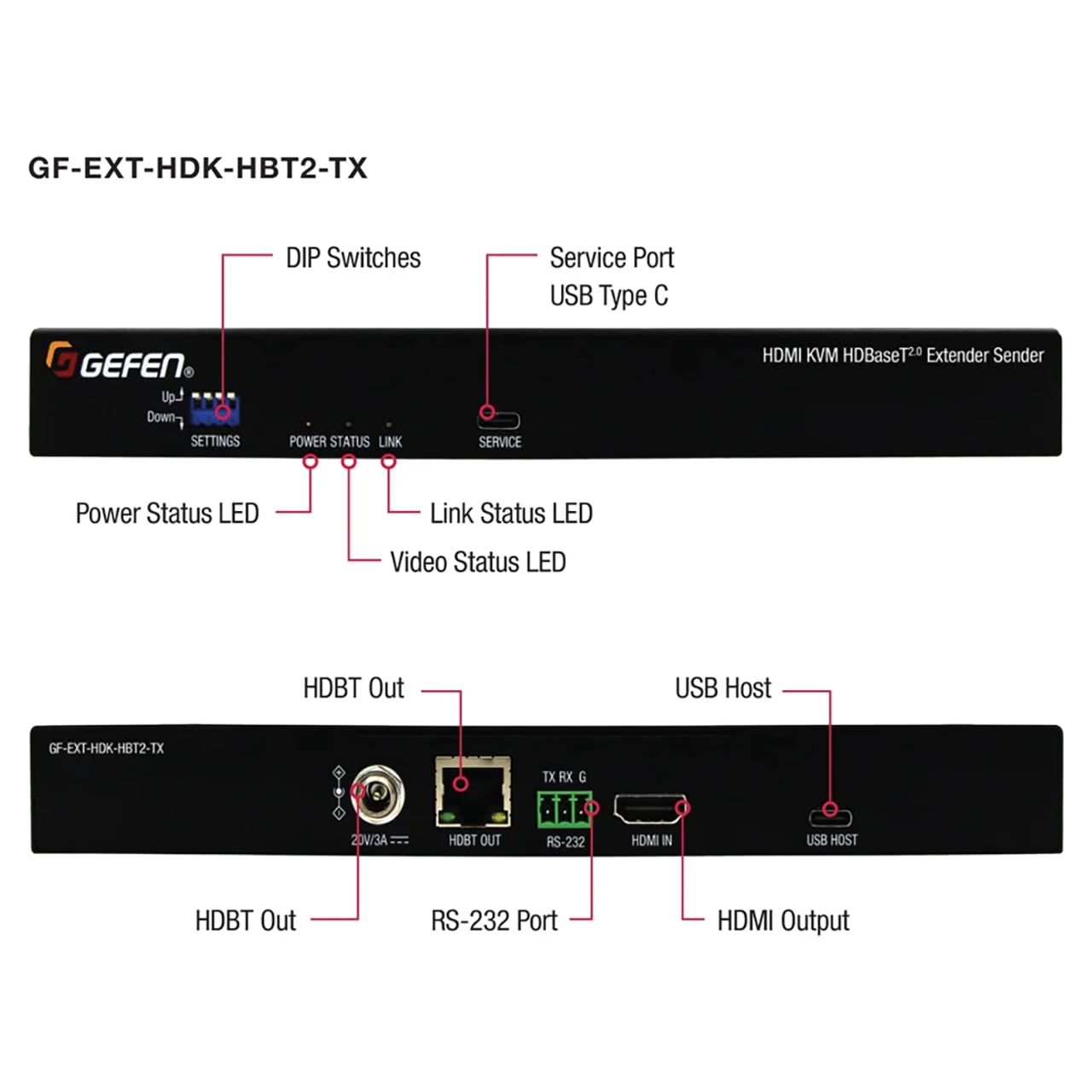

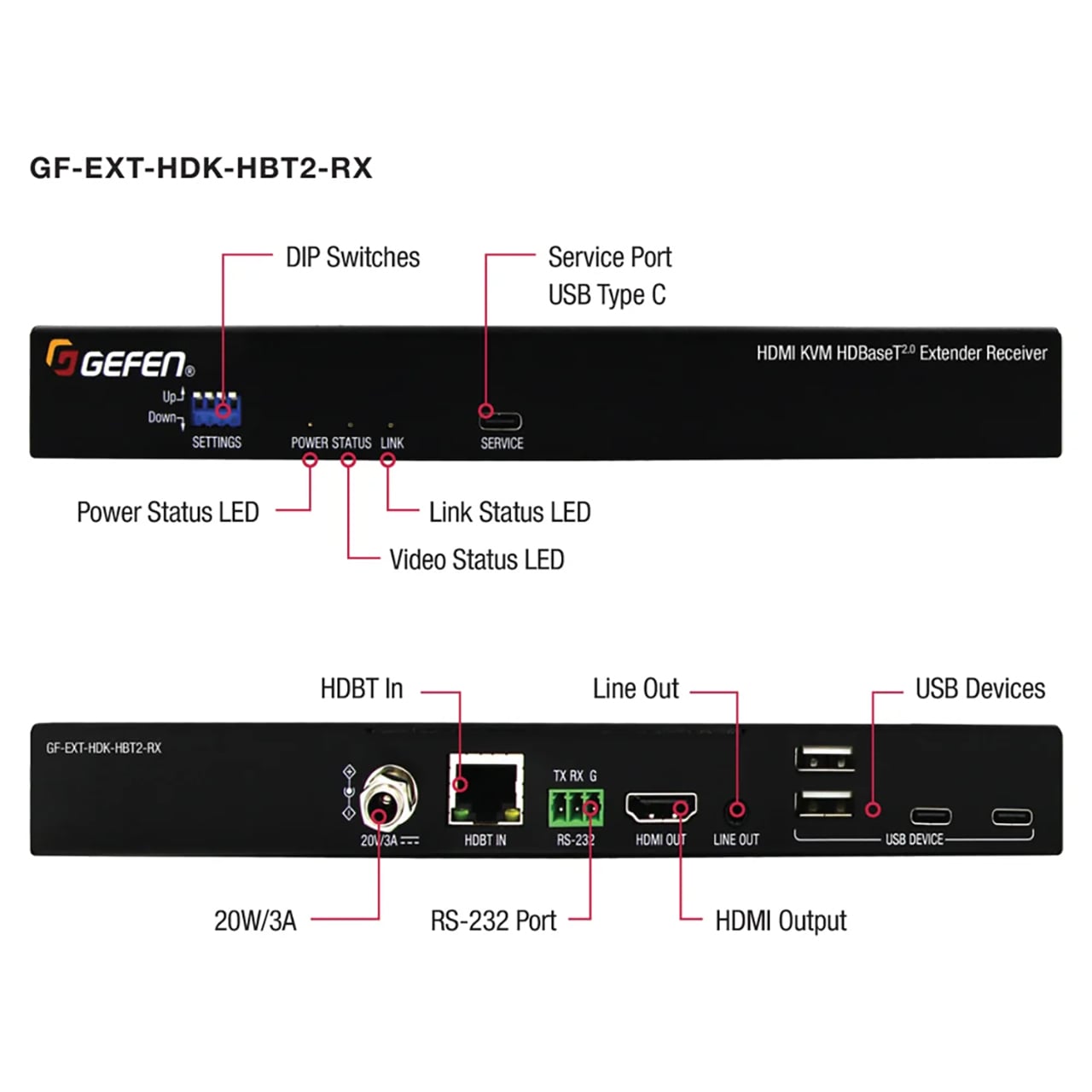

• Control Systems: RS-232 integration via the 3-terminal Euroblock connector on sender and receiver for serial-based control where required.
• Firmware: USB Type-C service port on sender and receiver for firmware updates via a connected PC.
