Gefen GF-EXT-WiK-5G 4K60Hz HDMI KVM Wireless Extender System with USB Support - 164ft Range over 5G Frequency Band

GF-EXT-WIK-5G - Overview

When running cable isn't an option - the GF-EXT-WiK-5G HDMI KVM Wireless Extender System provides a wire-free solution without sacrificing performance!

• Features:

  • Wireless 4K@60Hz Extension: Supports HDMI video up to 4K@60Hz 4:4:4, transmitted uncompressed.
  • HDCP 2.2/1.x Compliant: Content protection compliance across the wireless link.
  • Wireless Range up to 164ft (50m): Wireless transmission up to 50m (164 ft) through walls using the 5G frequency band.
  • Low Latency for Real-Time KVM: Low latency performance for real-time KVM operation.
  • Multi-Receiver Pairing: Supports up to 4 additional wireless receivers (GF-EXT-WiK-5G-RX) for mirroring.

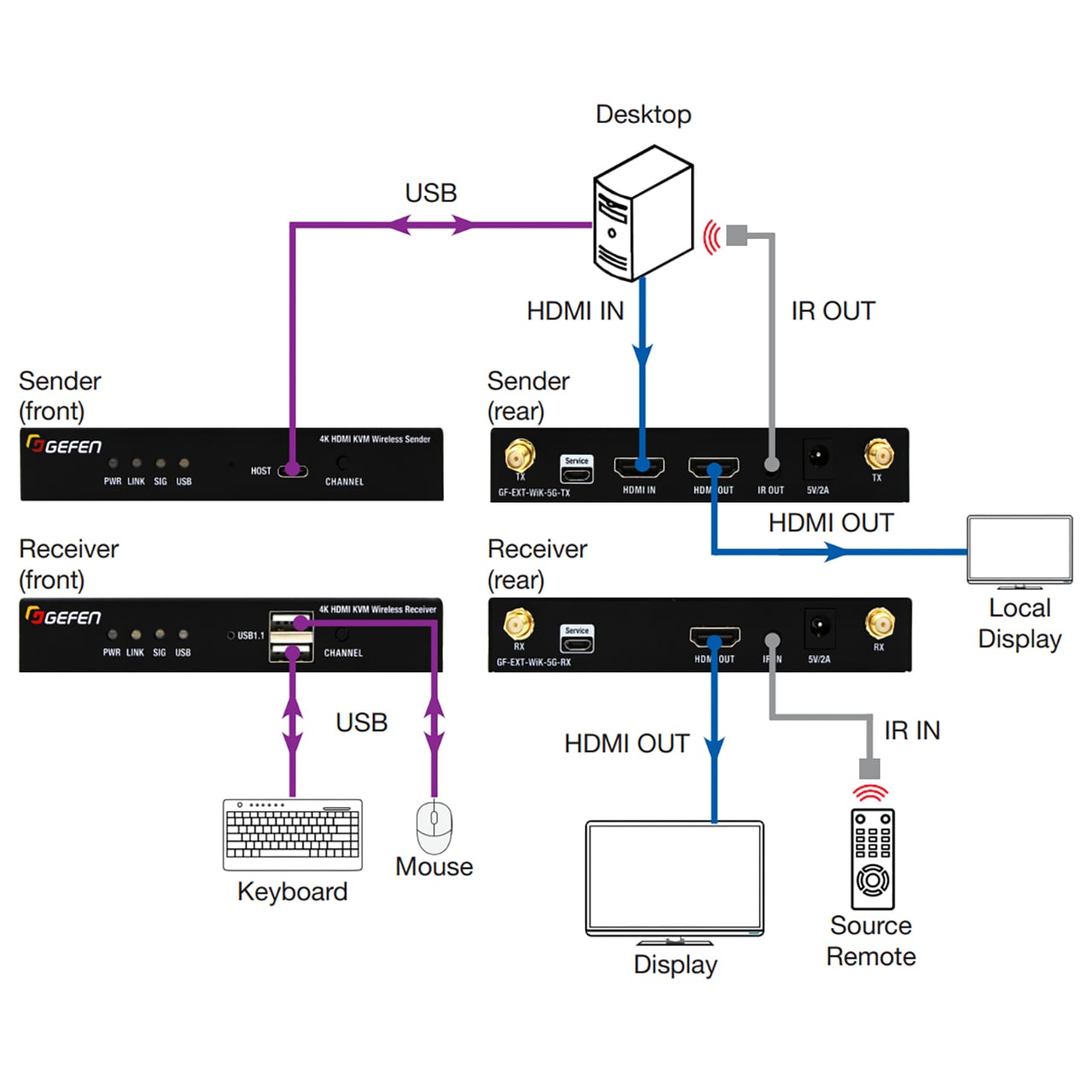

  • Local Monitoring: The transmitter includes an HDMI loop-out port, allowing connection to a nearby display for real-time monitoring without affecting the wireless link.
  • Comprehensive Control: IR pass-through enables full remote control of the source device from the display end, while integrated USB 1.1 extension supports keyboard and mouse operation with low latency for responsive KVM functionality.
  • Reliable Performance: A secure 5GHz wireless protocol ensures stable, interference-resistant signal transmission even in environments with multiple active systems.
  • Easy Maintenance: Firmware can be upgraded through the Micro-USB port, extending product longevity and compatibility with future updates.
  • Installer Ready: The package includes antennas, mounting ears, USB cables, and multi-region power supplies. All backed by Gefen's 3-year parts and labor warranty for professional peace of mind.


• Specifications:

  • Video Bandwidth: 18Gbps
  • Video Latency:
    - 120ms - 180ms @ 4K60Hz
    - 70ms - 120ms @ 1080P60Hz
  • Wi-Fi Frequency: 5.18GHz - 5.24GHz

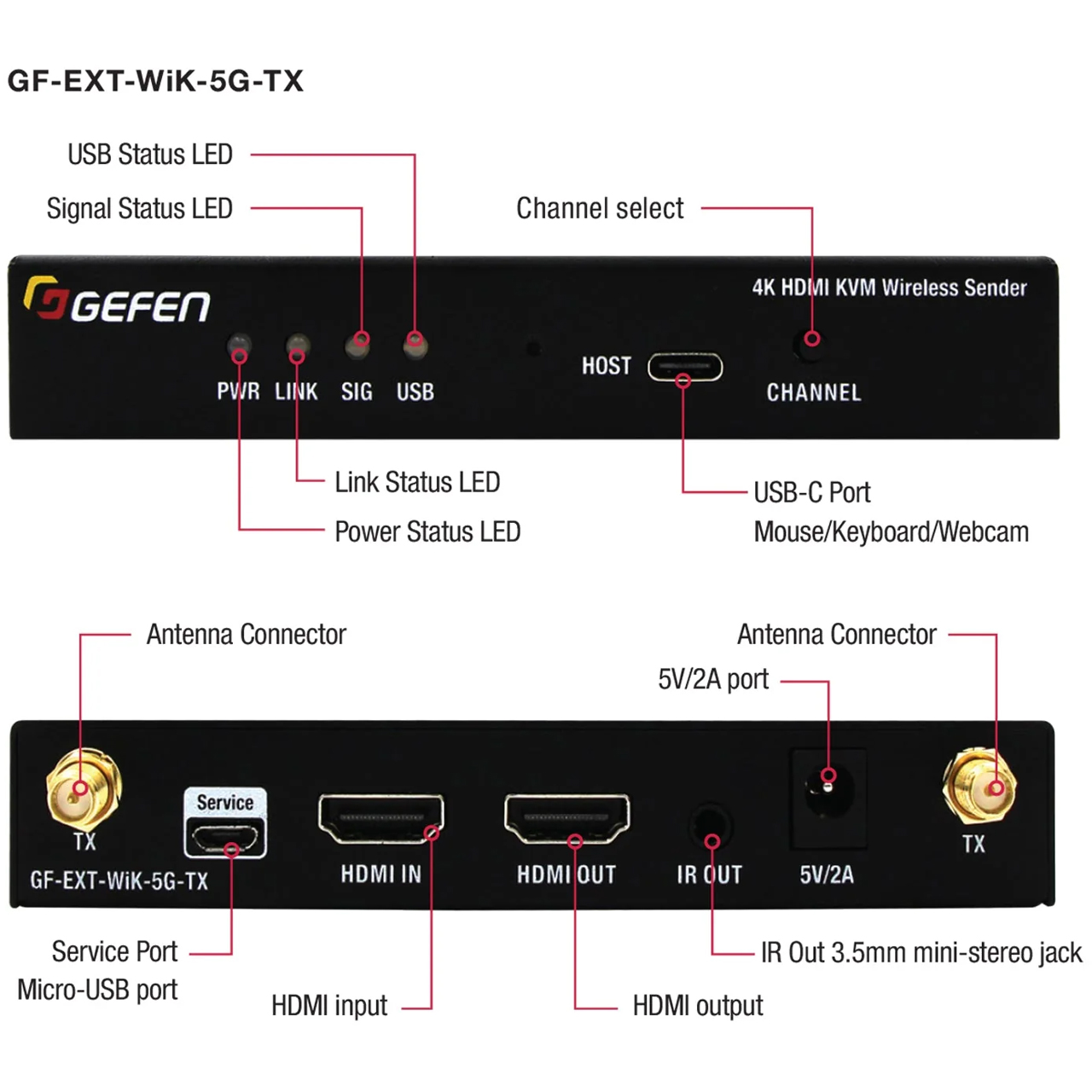

  • Video Input (Sender): 1x HDMI Type A
  • Video Local Output (Sender): 1x HDMI Type A

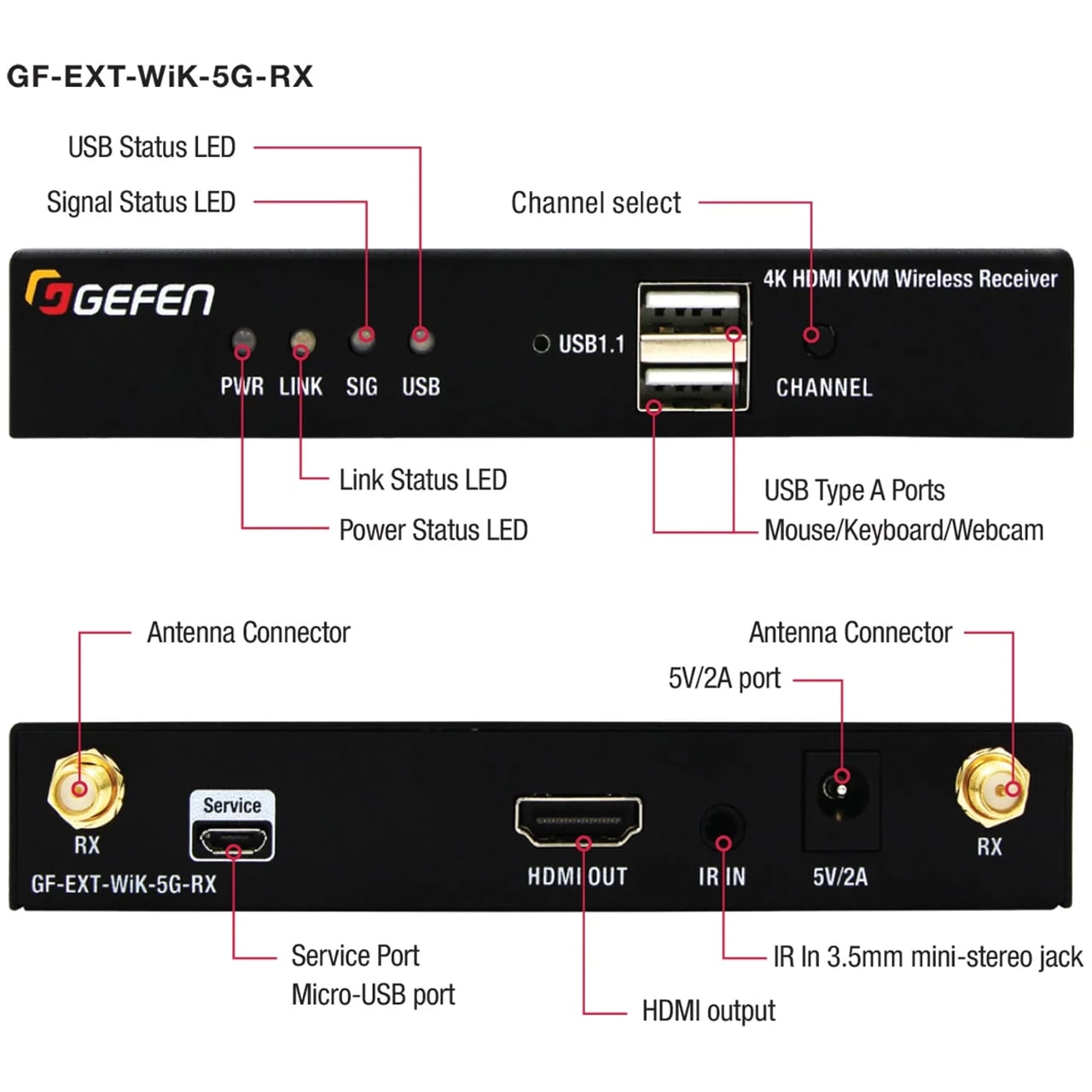

  • Video Output (Receiver): 1x HDMI Type A
  • USB (Sender): 1x USB-C
  • USB (Receiver): 2x USB Type A ports
  • USB Bandwidth: 12Mbps
  • IR Out (Sender): 1x 3.5mm mini-mono jack (using optional EXT-IREMIT)
  • IR In (Receiver): 1x 3.5mm mini-stereo jack (using optional EXT-RMT-EXTIRN)
  • Service Port (Sender & Receiver): 1x Micro-USB port (for firmware updates)
  • Channel Select Button (Sender & Receiver): 1x Tact-type, recessed
  • Power Indicator (Sender & Receiver): 1x LED, Bi-Color Blue/Red
  • Wi-Fi Indicator (Sender & Receiver): 1x LED, Green
  • KVM Indicator (Sender & Receiver): 1x LED, Green
  • Link Indicator (Sender & Receiver): 1x LED, Green
  • Power Requirement: 5V/2A DC (Multi-region supported)
  • Power Consumption: <5W (typical)
  • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
  • Operating Humidity: 20% - 90% RH (non-condensing)
  • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
  • Storage Humidity: 20% - 90% RH (non-condensing)
  • Dimensions (WxHxD): 4.53" x 4.92" x 0.81" (115mm x 125mm x 20.6mm)
  • Enclosure: Metal, surface-mountable with included brackets

    System Requirements:
  • HDMI source with output up to 4K@60Hz and support for HDCP 2.2/1.x protected content.
  • HDMI display, projector, or monitor capable of the desired resolution (up to 4K@60Hz).
  • Source device with a USB host port (USB-C via the sender, with USB 1.1 bandwidth) for keyboard, mouse, or compatible USB peripherals.
  • Standard USB 1.1 keyboard, mouse, or similar HID devices for KVM operation; optional low-bandwidth USB devices such as webcams supported within the 12Mbps limit.
  • Two available AC outlets to power the included 5V DC, 2A multi-region power supplies for the transmitter and receiver.
  • Indoor space where 5GHz (5.18GHz - 5.24GHz) wireless operation is permitted and practical, with up to 164ft (50m) separation between units.
  • Installations where walls and obstacles are within the performance expectations of a 5GHz link for reliable video and KVM operation.
  • Source equipment with IR control capability when using the 3.5mm IR out on the transmitter and IR in on the receiver with the appropriate optional IR accessories.
  • Additional GF-EXT-WiK-5G-RX receivers (up to four) when mirroring one source to multiple remote displays is required.


• Item Includes:

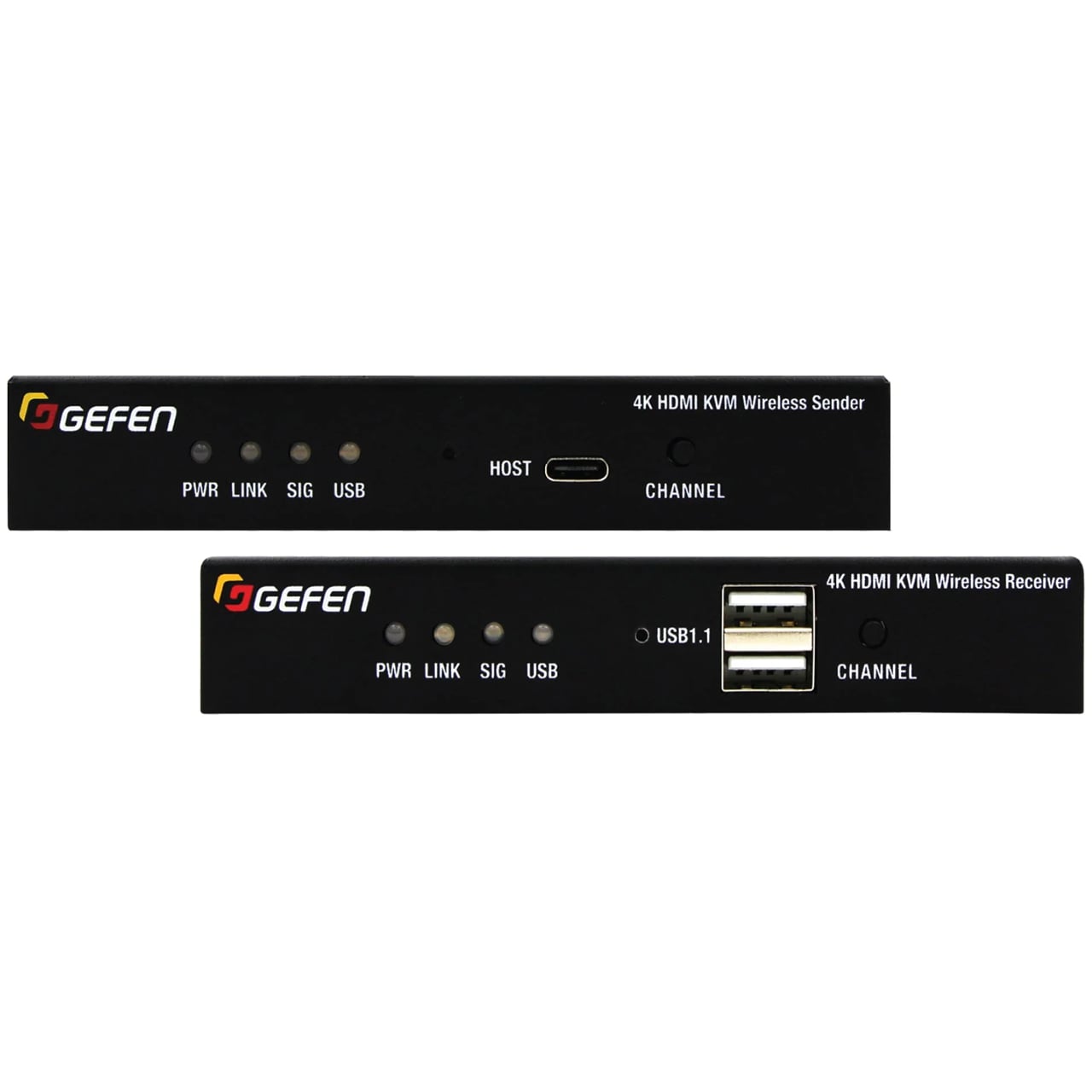

  • 1x GF-EXT-WiK-5G Sender (TX)
  • 1x GF-EXT-WiK-5G Receiver (RX)
  • 2x 5V/2A Power Supplies (US/UK/EU/AU)
  • 1x USB 2.0 Type-A to Type-C Cable (1.8m)
  • 4x Wireless Antennas
  • 4x Mounting Ears and Screws
  • 1x Quick Start Guide


• Warranty:

  • 3 Year Parts and Labor
