Multi-receiver pairing with the GF-EXT-WIK-5G ensure real-time performance and rock-solid reliability!

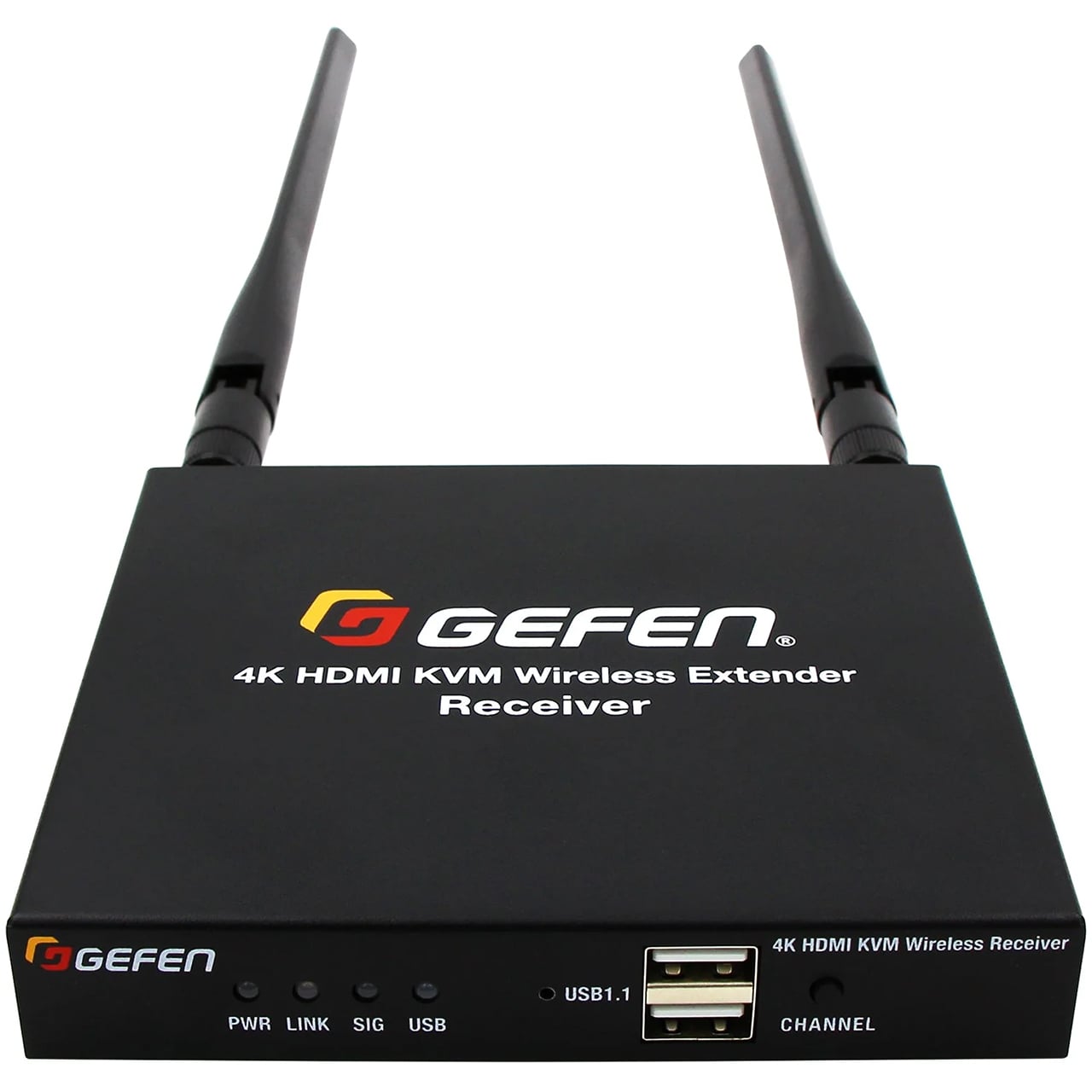

The Gefen GF-EXT-WiK-5G-RX 4K Wireless HDMI Receiver is an additional wireless receiver designed to pair with the Gefen GF-EXT-WiK-5G transmitter system for multi-display mirroring. Supports up to 4 additional GF-EXT-WiK-5G-RX wireless receivers for mirroring.
-
- HDCP 2.2/1.x Compliant: Content protection compliance across the wireless link.
- Low Latency for Real-Time KVM: Low latency performance for real-time KVM operation.
- Multi-Receiver Pairing: Supports up to 4 additional wireless receiver for mirroring.

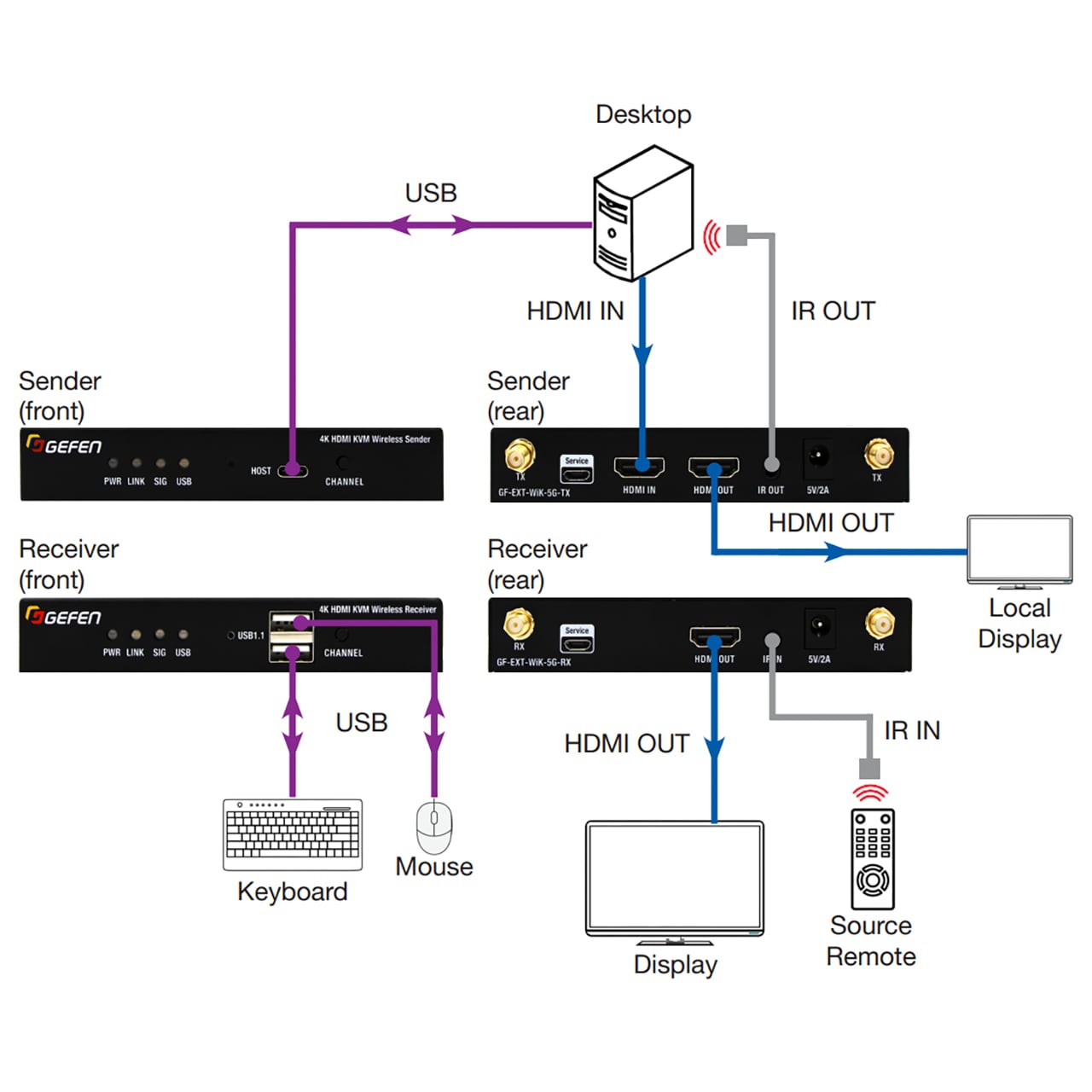

- Comprehensive Control: IR pass-through enables full remote control of the source device from the display end, while integrated USB 1.1 extension supports keyboard and mouse operation with low latency for responsive KVM functionality.
- Easy Maintenance: Firmware can be upgraded through the Micro-USB port, extending product longevity and compatibility with future updates.
-
- Video Bandwidth: 18Gbps
- Video Latency:
- 120ms - 180ms @ 4K60Hz
- 70ms - 120ms @ 1080p60Hz - Video Output: 1x HDMI Type A

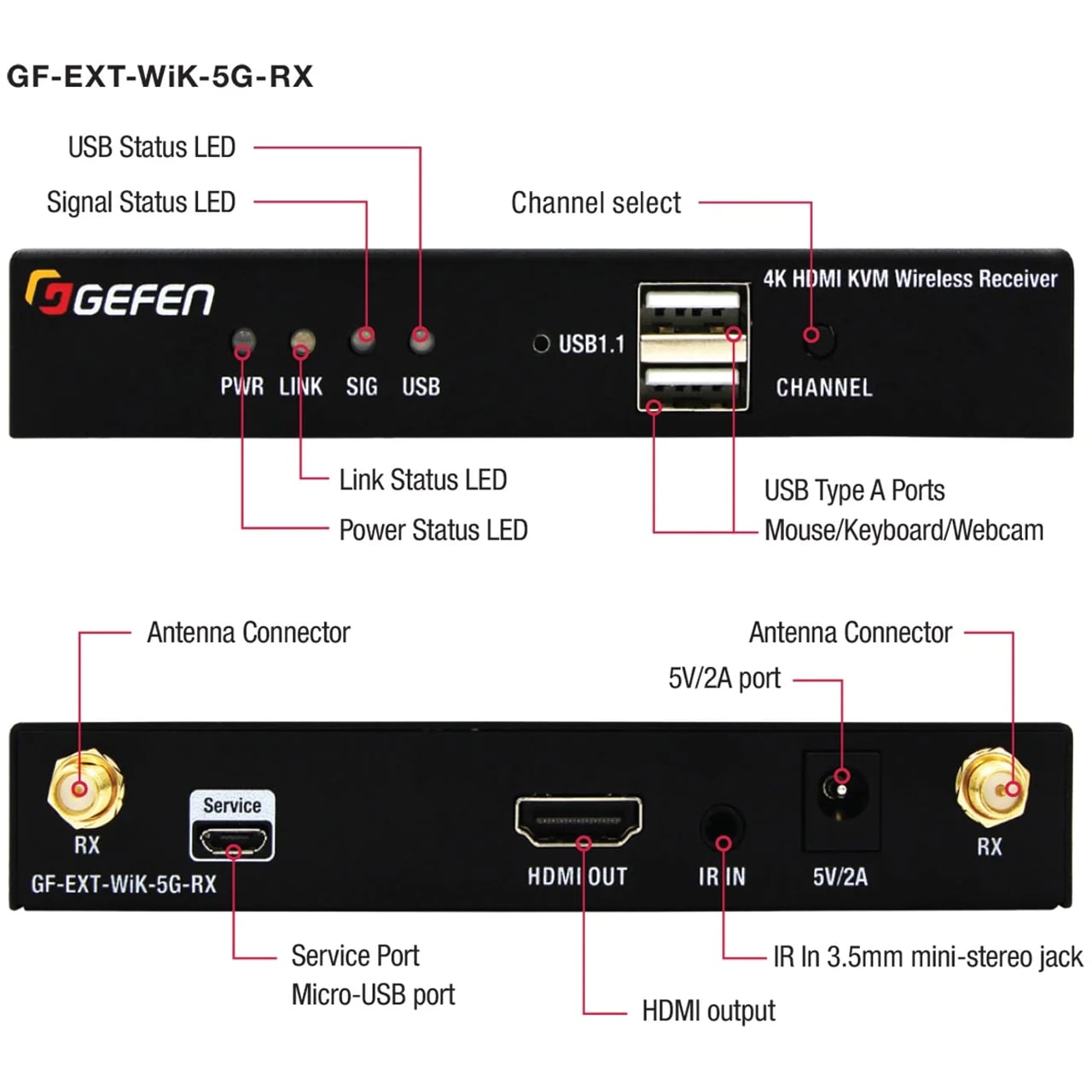

- USB: 2x USB Type A ports
- USB Bandwidth: 12Mbps
- IR In: 1x 3.5mm mini-stereo jack (using optional EXT-RMT-EXTIRN)
- Service Port: 1x Micro-USB port (for firmware updates)
- Channel Select Button: 1x Tact-type, recessed
- Power Indicator: 1x LED, Bi-Color Blue/Red
- Wi-Fi Indicator: 1x LED, Green
- KVM Indicator: 1x LED, Green
- Link Indicator: 1x LED, Green
- Power Requirement: 5V/2A DC (Multi-region supported)
- Power Consumption: <5W (typical)
- Operating Temperature: -4°F - 140°F (-20°C - 60°C)
- Operating Humidity: 20% - 90% RH (non-condensing)
- Storage Temperature: -22°F - 158°F (-30°C - 70°C)
- Storage Humidity: 20% - 90% RH (non-condensing)
- Dimensions (WxHxD): 4.53" x 4.92" x 0.81" (115mm x 125mm x 20.6mm)
- Enclosure: Metal, surface-mountable with included brackets
System Requirements: - HDMI source with output up to 4K@60Hz and support for HDCP 2.2/1.x protected content.
- HDMI display, projector, or monitor capable of the desired resolution (up to 4K@60Hz).
- Source device with a USB host port (USB-C via the sender, with USB 1.1 bandwidth) for keyboard, mouse, or compatible USB peripherals.
- Standard USB 1.1 keyboard, mouse, or similar HID devices for KVM operation; optional low-bandwidth USB devices such as webcams supported within the 12Mbps limit.
- Two available AC outlets to power the included 5V DC, 2A multi-region power supplies for the transmitter and receiver.
- Indoor space where 5GHz (5.18GHz - 5.24GHz) wireless operation is permitted and practical, with up to 164ft (50m) separation between units.
- Installations where walls and obstacles are within the performance expectations of a 5GHz link for reliable video and KVM operation.
- Source equipment with IR control capability when using the 3.5mm IR out on the transmitter and IR in on the receiver with the appropriate optional IR accessories.
- Additional GF-EXT-WiK-5G-RX receivers (up to four) when mirroring one source to multiple remote displays is required.
-
- 1x GF-EXT-WiK-5G Receiver (RX)
- 1x 5V/2A Power Supplies (US/UK/EU/AU)
- 2x Wireless Antennas
- 2x Mounting Ears and Screws
- 1x Quick Start Guide
-
-
