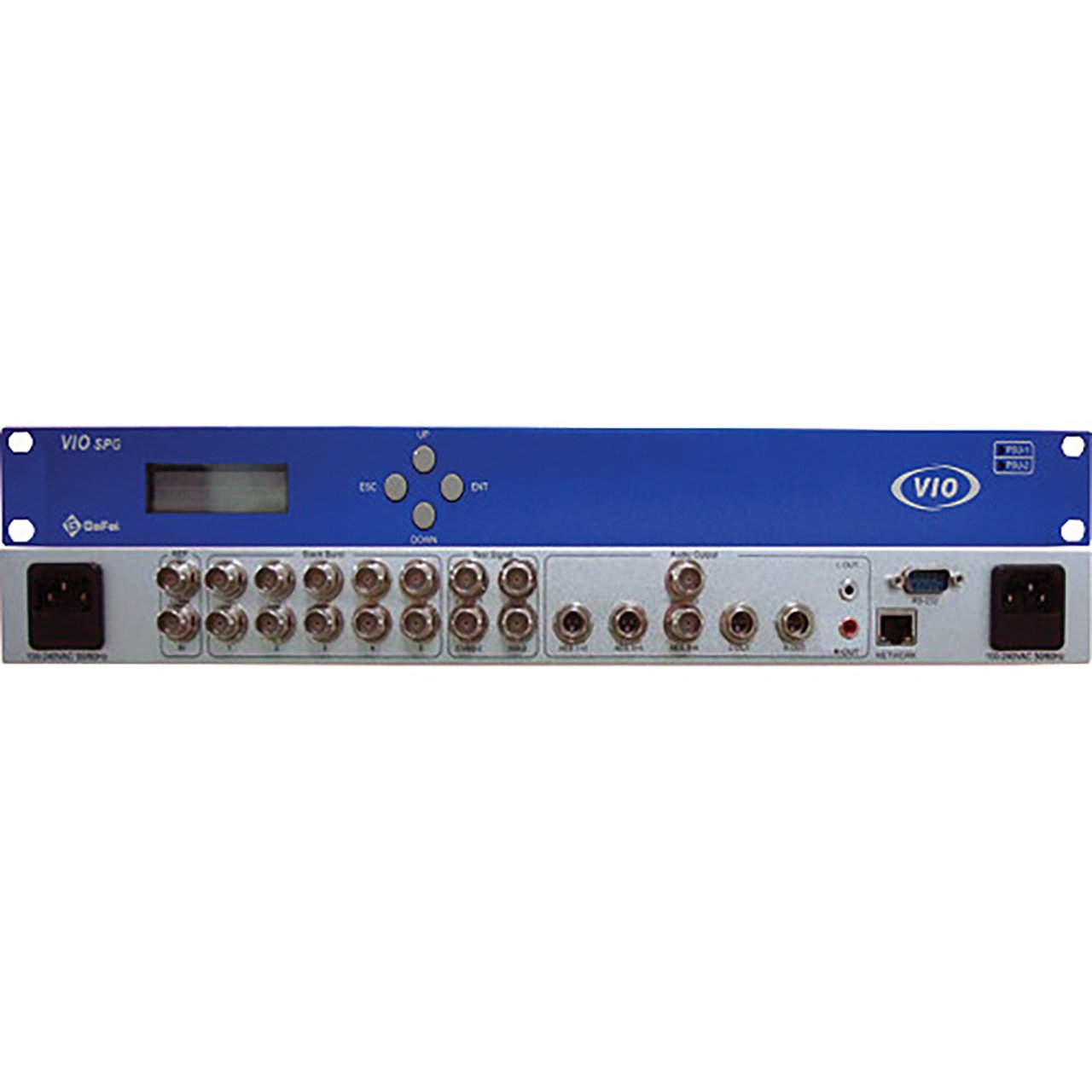

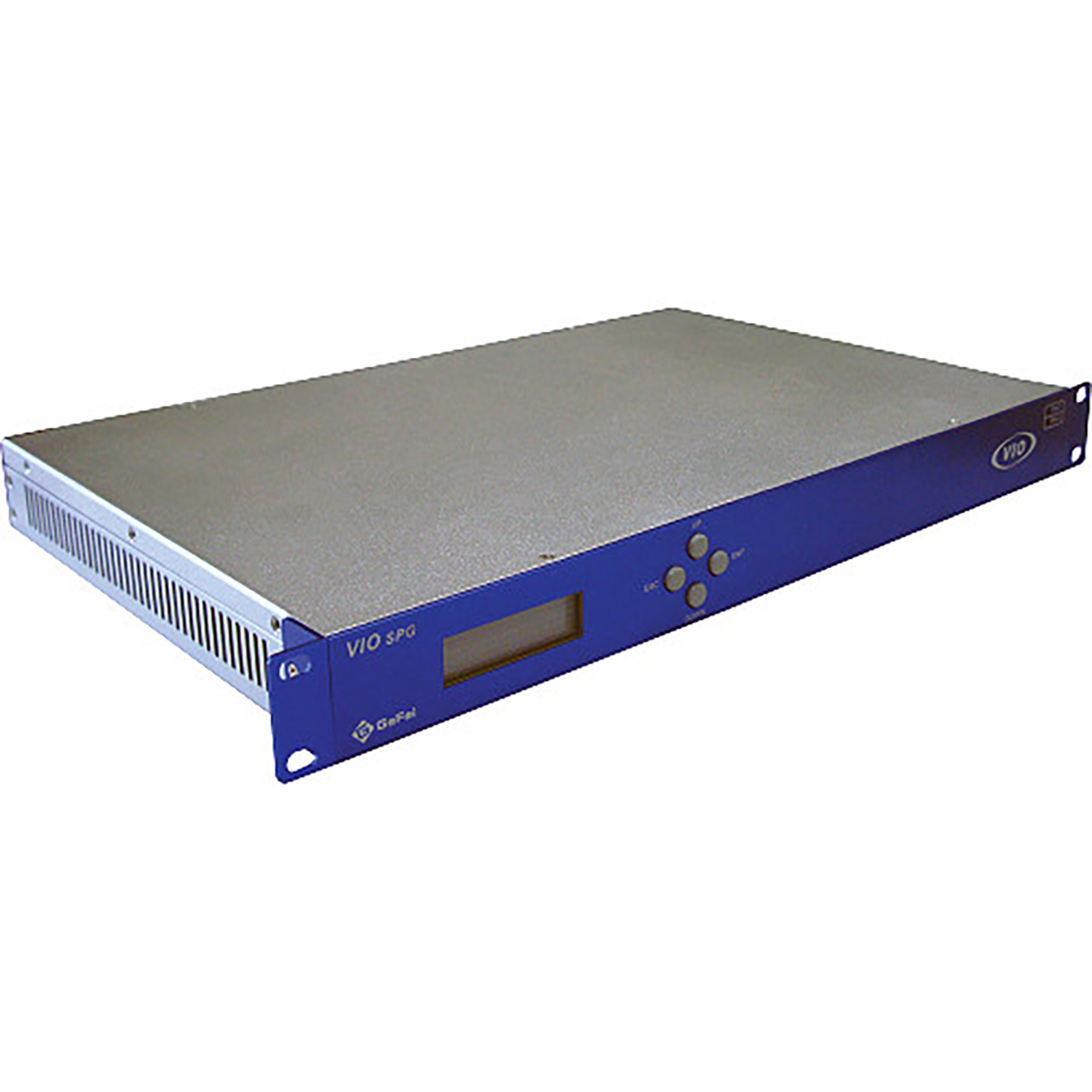

Gra-Vue VIO SPG Black Burst and Test Signal Generator

GFE-VIO-SPG - Overview

Engineered for Professional Broadcast!

• Features:

  • Provides 10-channel analog BB signal output
  • Provides 2-channel analog/HD/SD-SDI video test signal output (total 10 standard signals)
  • Provides analog/AES standard test audio output with different interfaces; volume and frequency can be set
  • Supports external phase lock of BB and test signal output, H Phase can be set
  • Inner WebServer; audio signal can be set with the net interface
  • Supports standard SNMP
  • Dual power


• Specifications:

  • Input Interface: 1x PAL/NTSC/tri-level, BNC
  • Level: 1Vp-p
  • Impedance: 75Ω
  • Output Interface:
    - 10x BB, BNC
    - 2x SDI, BNC (Reserved)
    - 2x CVBS, BNC (Reserved)
    - 2x AES, XLR and BNC (Reserved)
    - 2x Analog Audio, XLR and RCA (Reserved)
  • Control Interface: 10/100/1000M Ethernet, RJ45 (Reserved), RS232, DB9 female (Reserved)
  • Operating Temperature: 32°F - 149°F (0°C - 65°C)
  • Storage Temperature: -4°F - 158°F (-20°C - 70°C)
  • Power: 2 x 200 W redundancy
  • Dimensions: 1.73" x 17.3" x 14.5"
  • Package Weight: 11.9lbs
  • Box Dimensions (LxWxH): 23.1 x 19.3 x 6.5"
