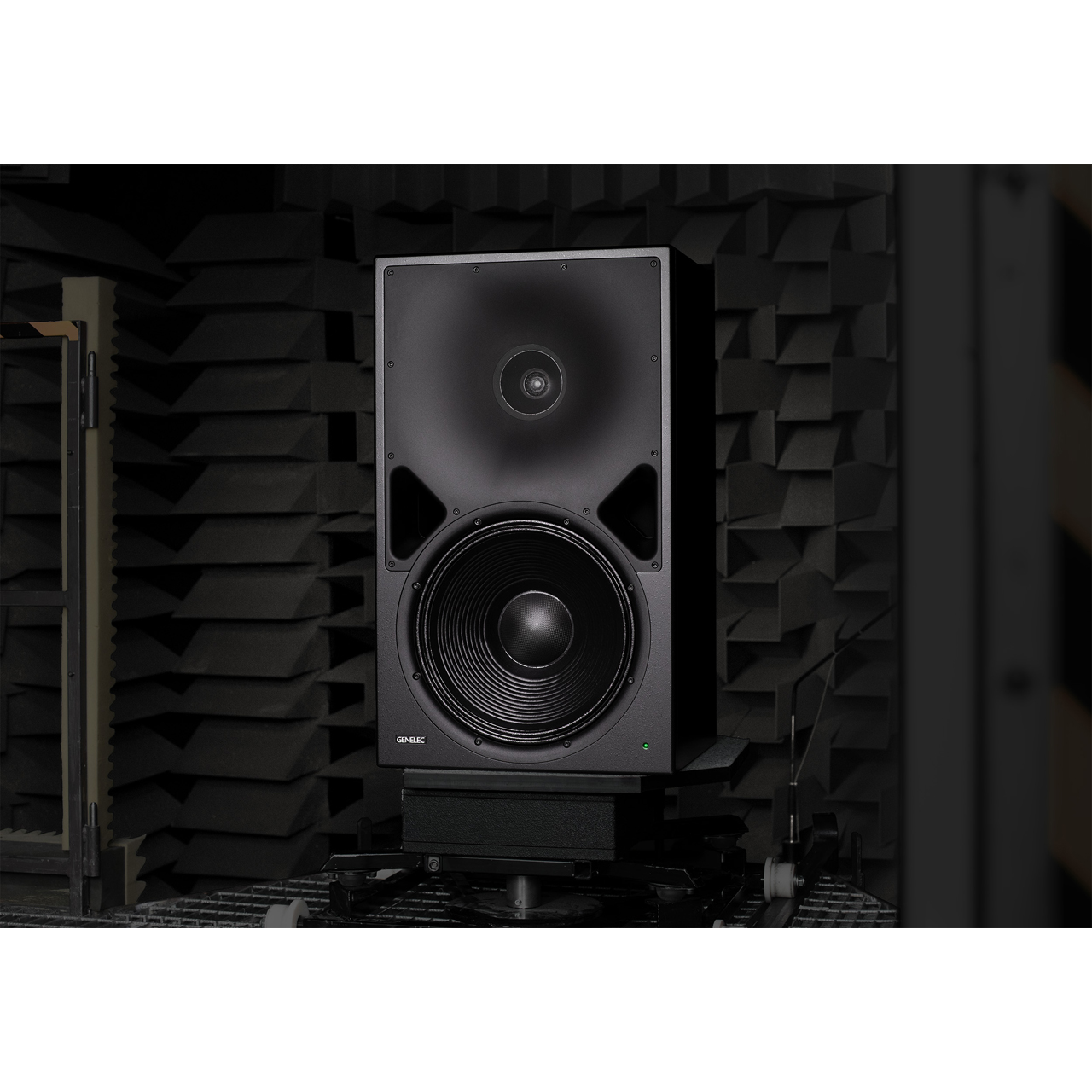

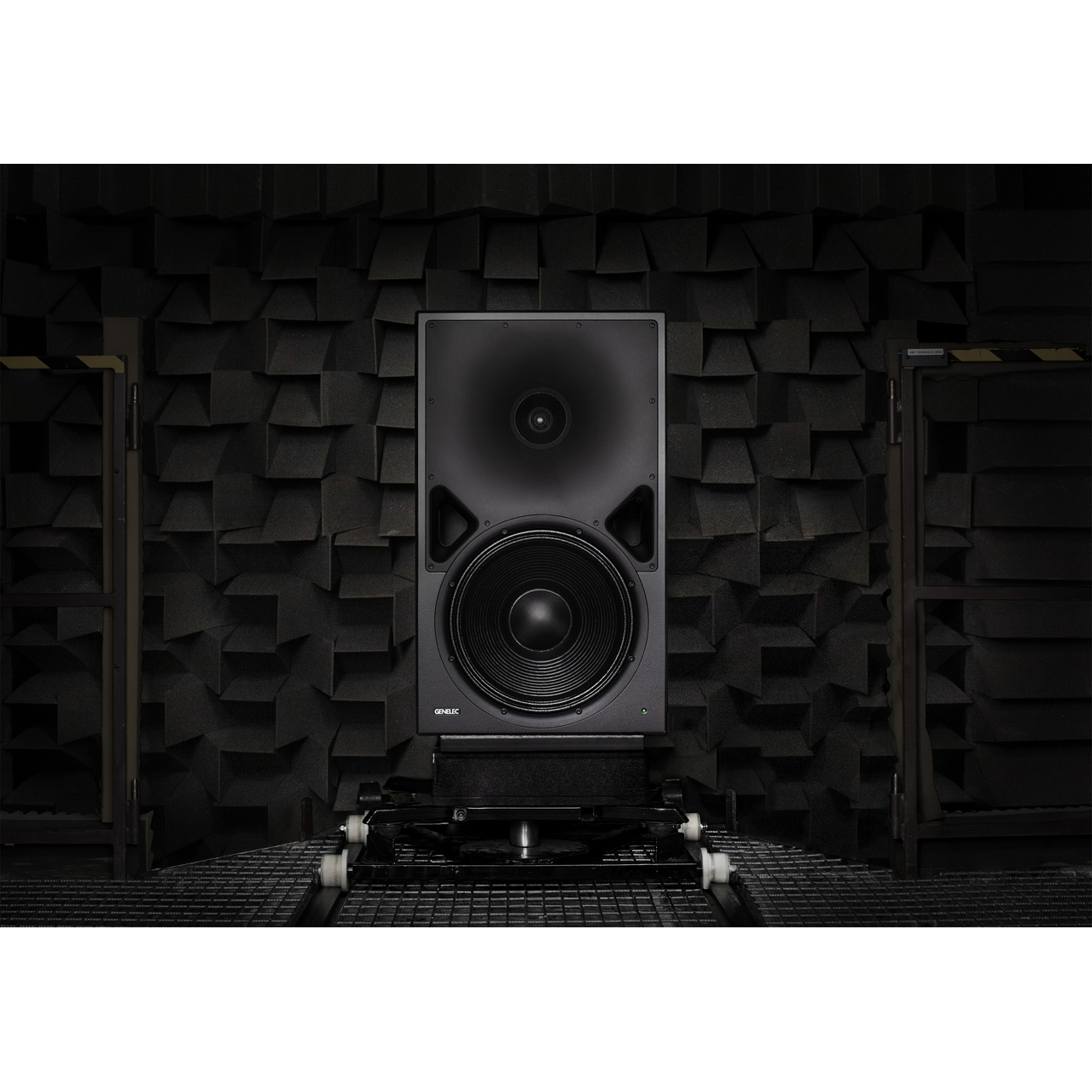

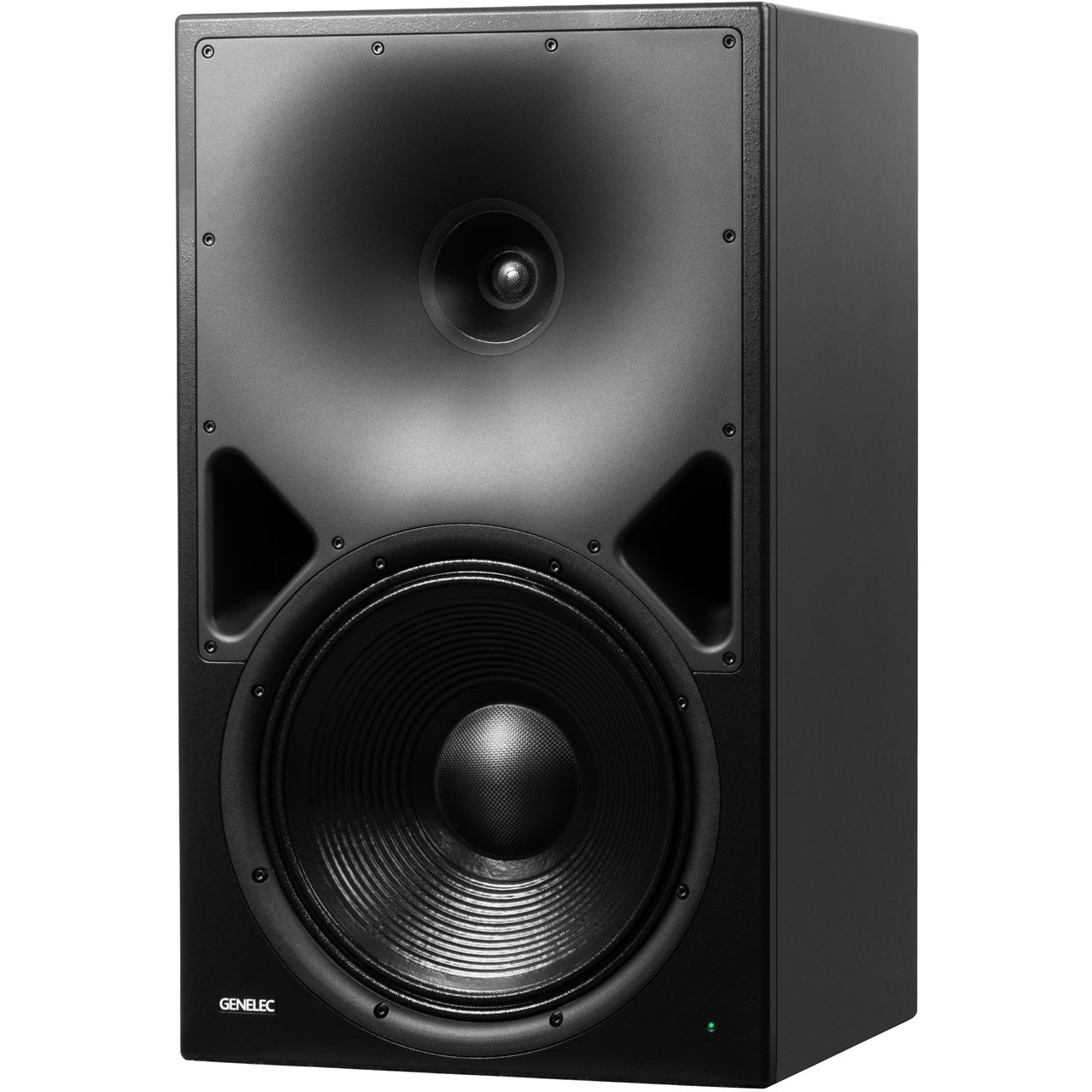

Genelec 8380AP Three-Way Midfield SAM Main Ones Studio Monitor for Medium to Large Control Rooms - Black - Each

8380AP - Overview

Three-way midfield SAM™ Main Monitor

• Features:

  Essential Key Features
  • Enhanced reflex port linearity, two forwardfacing reflex ports

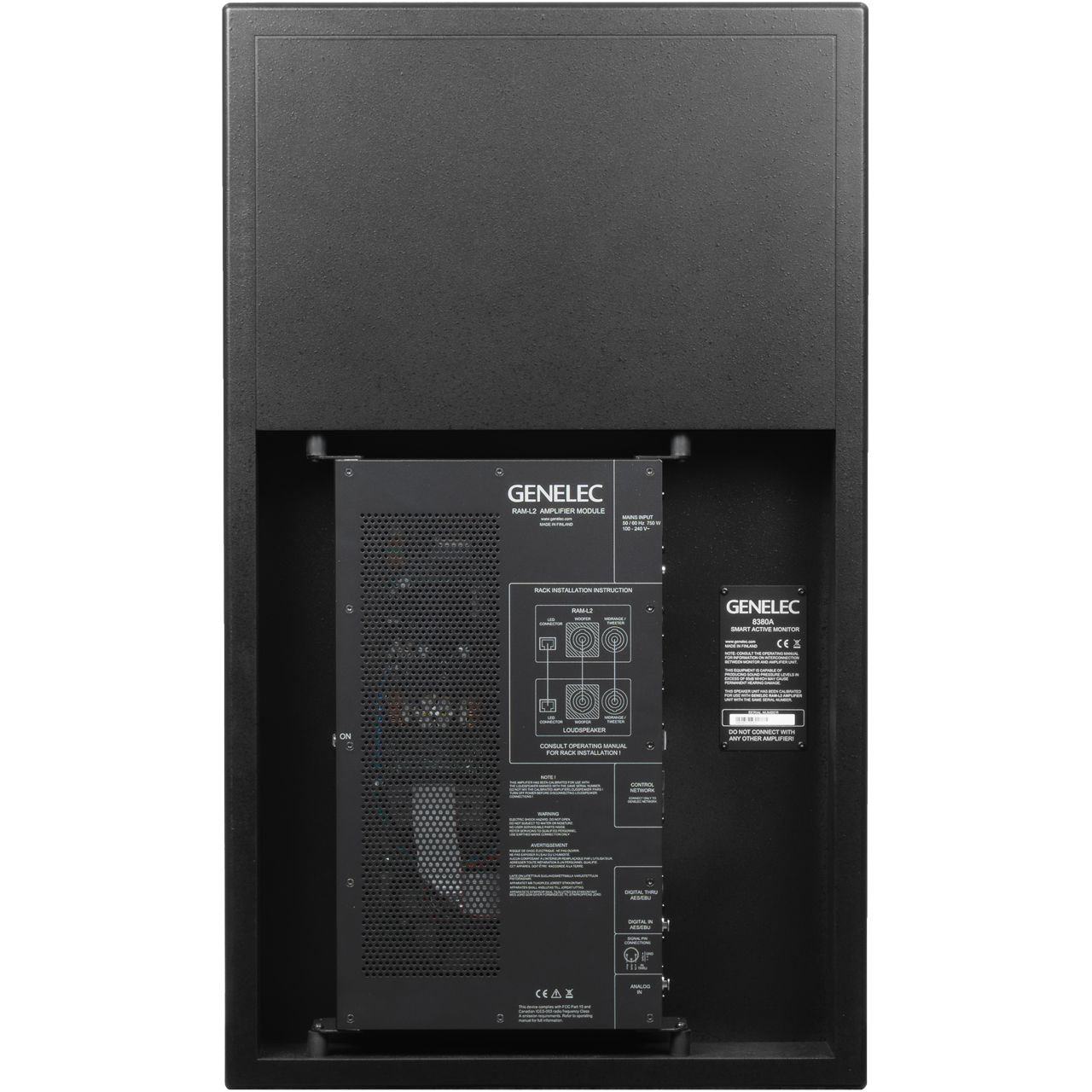

  • New, integrated RAM-L2 amplifier module can be remoted to a rack
  • External dimensions equal to the 1038/1238 enable easy replacement in existing applications
  • Black and white enclosure colors

    Key Figures

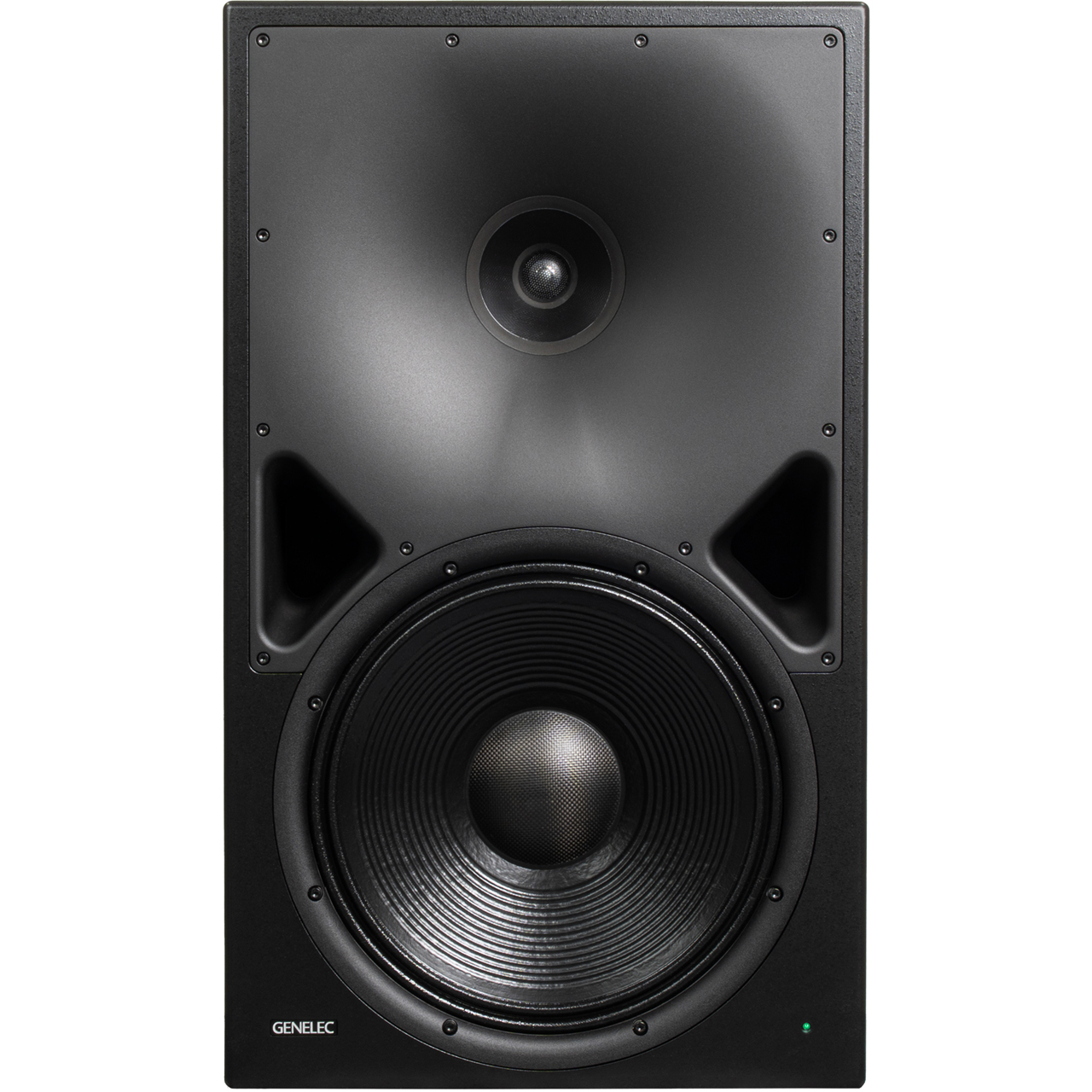

  • Drivers:
    - Bass: 15" (380mm)
    - Midrange: 4⅞" (125mm)
    - Treble: 1" (25mm)
  • Coaxial midrange-tweeter system originally developed for 8381A and adapted for 8380A
  • High linearity woofer driver
  • Crossover frequencies: 480Hz, 2500Hz

    Coaxial Design Benefits
  • Coaxial midrange-tweeter system results in precise and stable imaging
  • MDC driver in large directivity waveguide contributes to extremely clean off-axis sound character
  • Neutral sound character in very wide listening area
  • Minimum listening distance < 4.25ft

    Reflex Port Advance
  • Enhanced reflex port linearity minimizes chuffing noises, improves linearity and lowers harmonic distortion (re. 1238A)
  • High linearity port contributes to very clean
  • LF output at the highest levels
  • Front-facing ports enable traditional flush mount installations
  • MDC driver in a large DCW hides reflex port openings acoustically at mid and high frequencies

    Time Domain Excellence
  • Excellent phase matching with 8300 Series monitors, The Ones and The Main Ones, offering excellent imaging in mixedproduct systems
  • Delay-equalised output preserves transients
  • Very low system input to audio output latency 2.8ms (EPL off), compared to 5.1ms in 1238A
  • Phase accurate, within ±35° (110Hz - 20kHz)
  • Group delay variation with EPL: < 1ms (f >130Hz), < 5ms (f > 70Hz) < 10ms (f > 50Hz)
  • 10ms less delay at 40Hz re. 1238A

    New Amplifier Design
  • Fanless zero noise amplifier design
  • RAM-L2 has the same dimensions as RAM-L but conforms with the newest safety and EMC standards SPEAKON links enable easy and flexible amplifier remoting in all flush mounted applications
  • SMPS power supply has universal mains voltage support (100V - 240VAC, 50 - 60Hz)
  • Class D amplifiers for woofer and midrange: (W 500W + M 250W)
  • Class AB amplifier for tweeter (T 200W)
  • Idle consumption 21W, ISS sleep consumption 2.2W

    Endless Dynamic Range
  • Advanced RAM-L2 amplifier design offers noise-free operation (re. 1238A)
  • Super low self-generated noise: negative 2dB SPL (16µPa, at 1m) enables excellent access to low level audio details
  • Max short-term sine: 122dB SPL
  • Max long-term: 115dB SPL
  • Excellent low frequency linearity - highly linear bass reflex system with high-excursion woofer driver enables clean LF output at very high levels


• Specifications:

  Drivers
  • Bass: 15" (380mm)
  • Midrange: 4⅞" (125mm)
  • Treble: 1" (25mm)
  • Coaxial midrange-tweeter system originally developed for 8381A and adapted for 8380A
  • High linearity woofer driver
  • Crossover frequencies: 480Hz, 2500Hz

    Dynamic Range
  • Advanced RAM-L2 amplifier design offers noise-free operation (re. 1238A)
  • Super low self-generated noise: negative 2dB SPL (16µPa, at 1m) enables excellent access to low level audio details
  • Max short-term sine: 122dB SPL
  • Max long-term: 115dB SPL
  • Excellent low frequency linearity - highly linear bass reflex system with high-excursion woofer driver enables clean LF output at very high levels

    Physical
  • Weight (Monitor With Integrated Amplifier): 119lbs
  • Dimensions: 31-7/8" x 18-7/8" x 16-9/16"
  • Amplifier Dimensions (In Rack Mount Configuration):
    - Front Panel - Height: 3RU 5-3/6"
    - Amplifier Casing - Height : 3-1/8"
    - Front Panel - Width: 19"
    - Amplifier Casing - Width: 16-3/4"
  • Weight (Monitor With Amplifier Removed): 106lbs
  • Amplifier Weight: 13lbs


• Item Includes:

  • 1x 8380A
  • 1x Operating Manual
  • 1x GLM software


• Warranty:

  • 2 years, 5 years (in total) for registered users.


• GTIN:

  0643812818011
