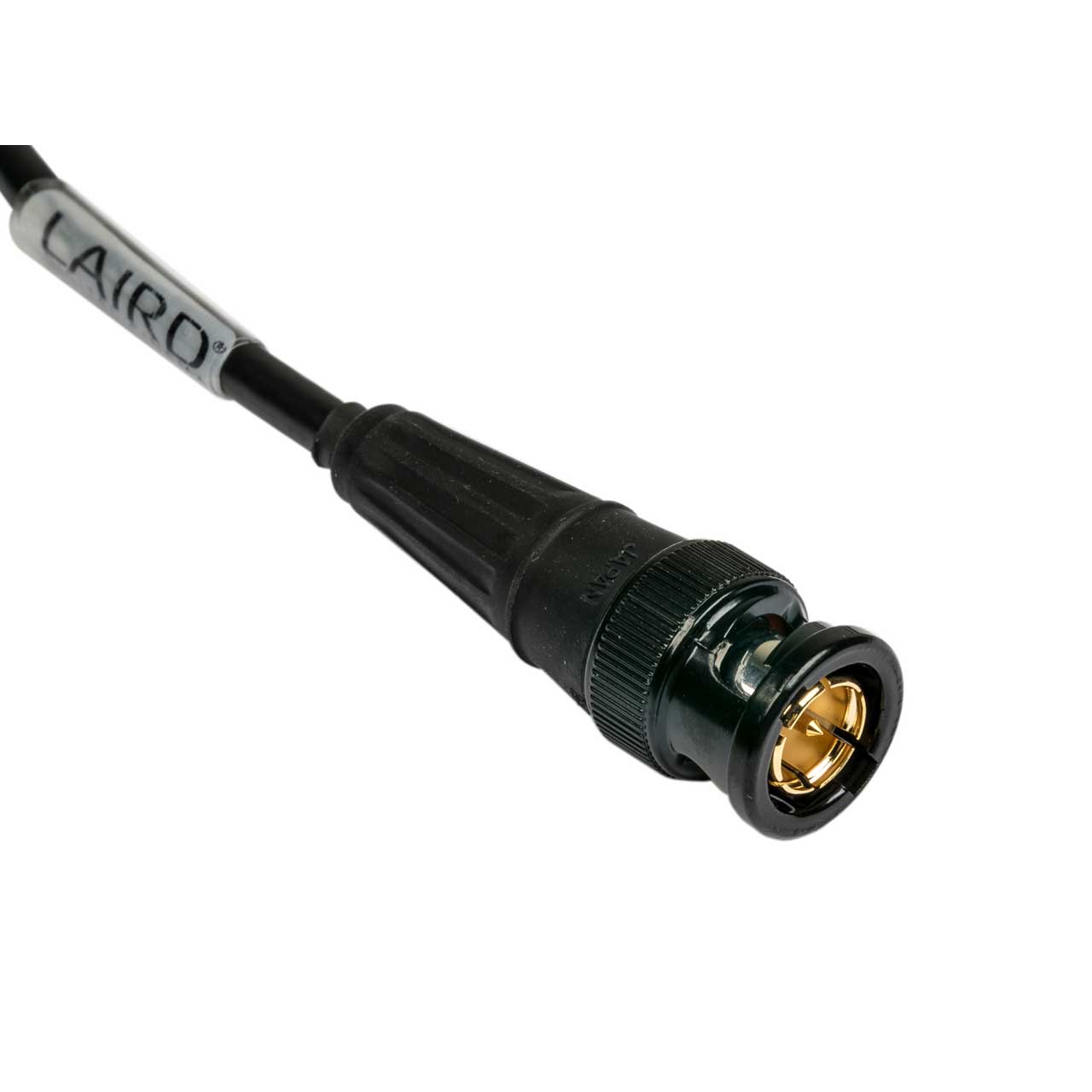

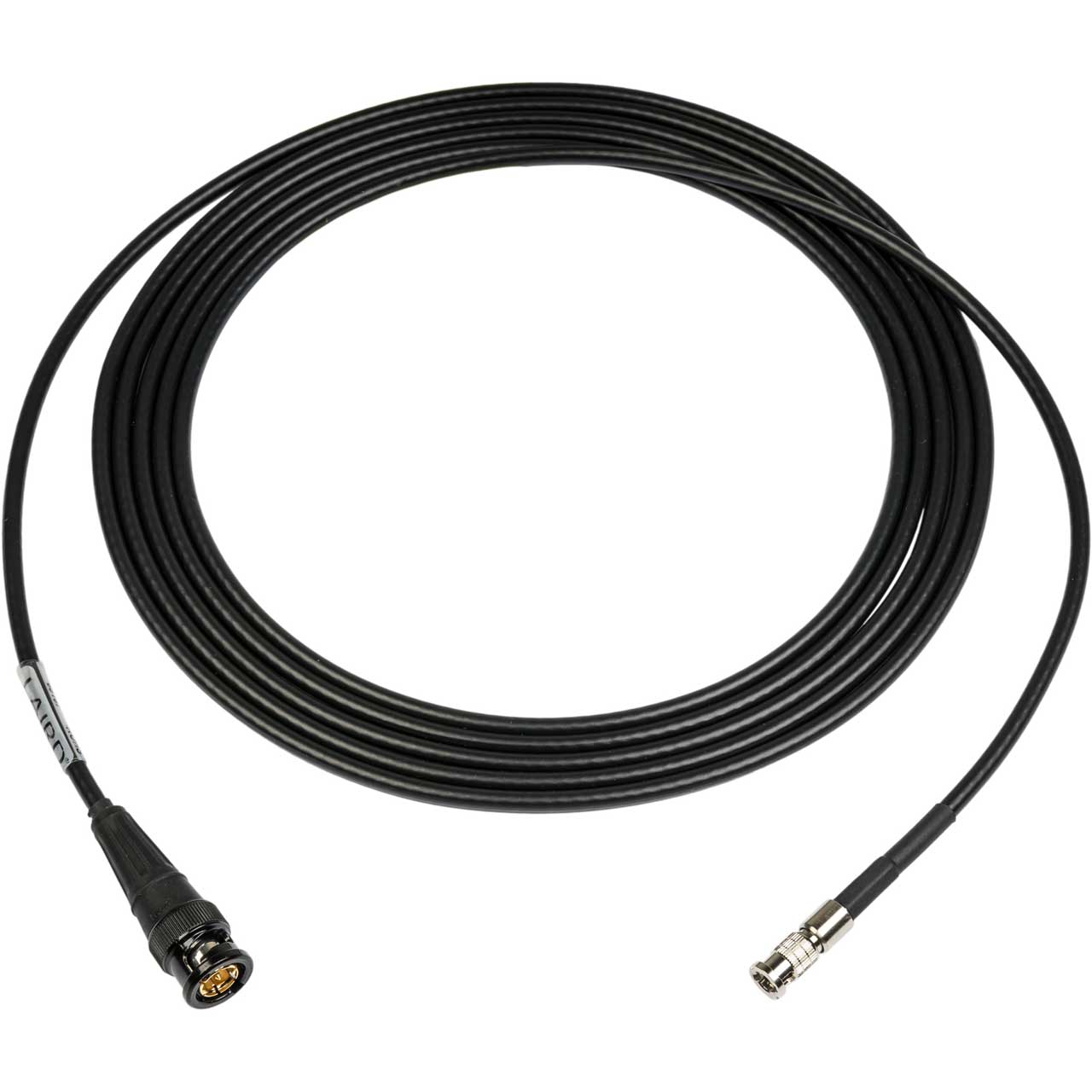

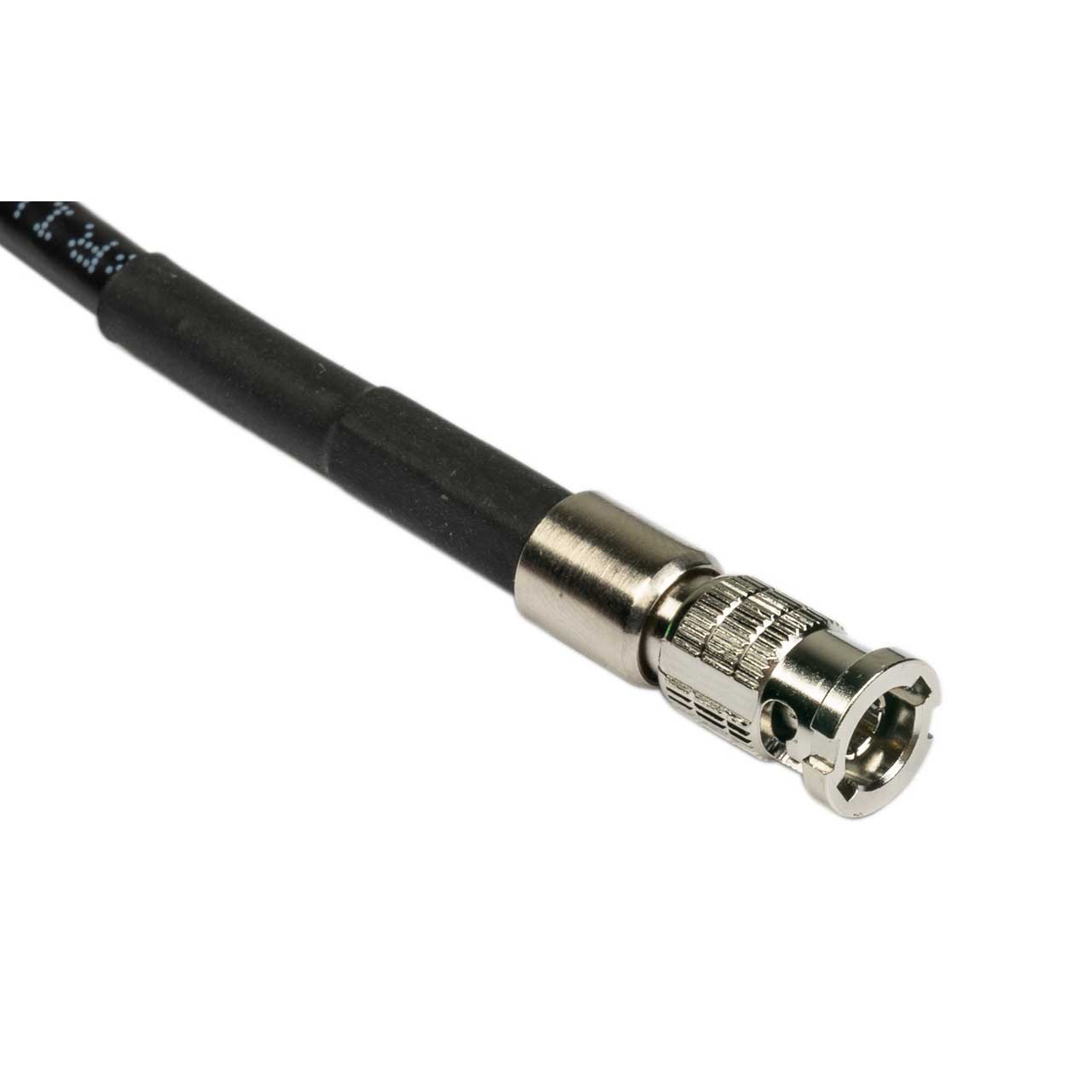

Laird HDBNC1855-B01 High Density HD-BNC Male to Standard BNC Male 6G HD-SDI Cable - 1 Foot

ITEM #: HDBNC1855-B01 MFG #: HDBNC1855-B01

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with Minimum Order Banner

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    HDBNC1855-B01 - Overview

    The HD-BNC (aka Micro-BNC) is fast becoming popular on broadcast routers like the Harris Selenio as well as devices like the Gennum GS3440 Equalizer and GX3290 Crosspoint. HD-BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless. One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. Connectors provide a solid, anti-splay outside diameter to mitigate any "wiggle."

    • Features:

      • Belden 1855A RG59/23 SDI Coaxial Cable Amphenol Connectors
    • Warranty:

      • 1 Year

    HDBNC1855-B01 - Required Accessories

      HDBNC1855-B01 - Recommended Accessories
