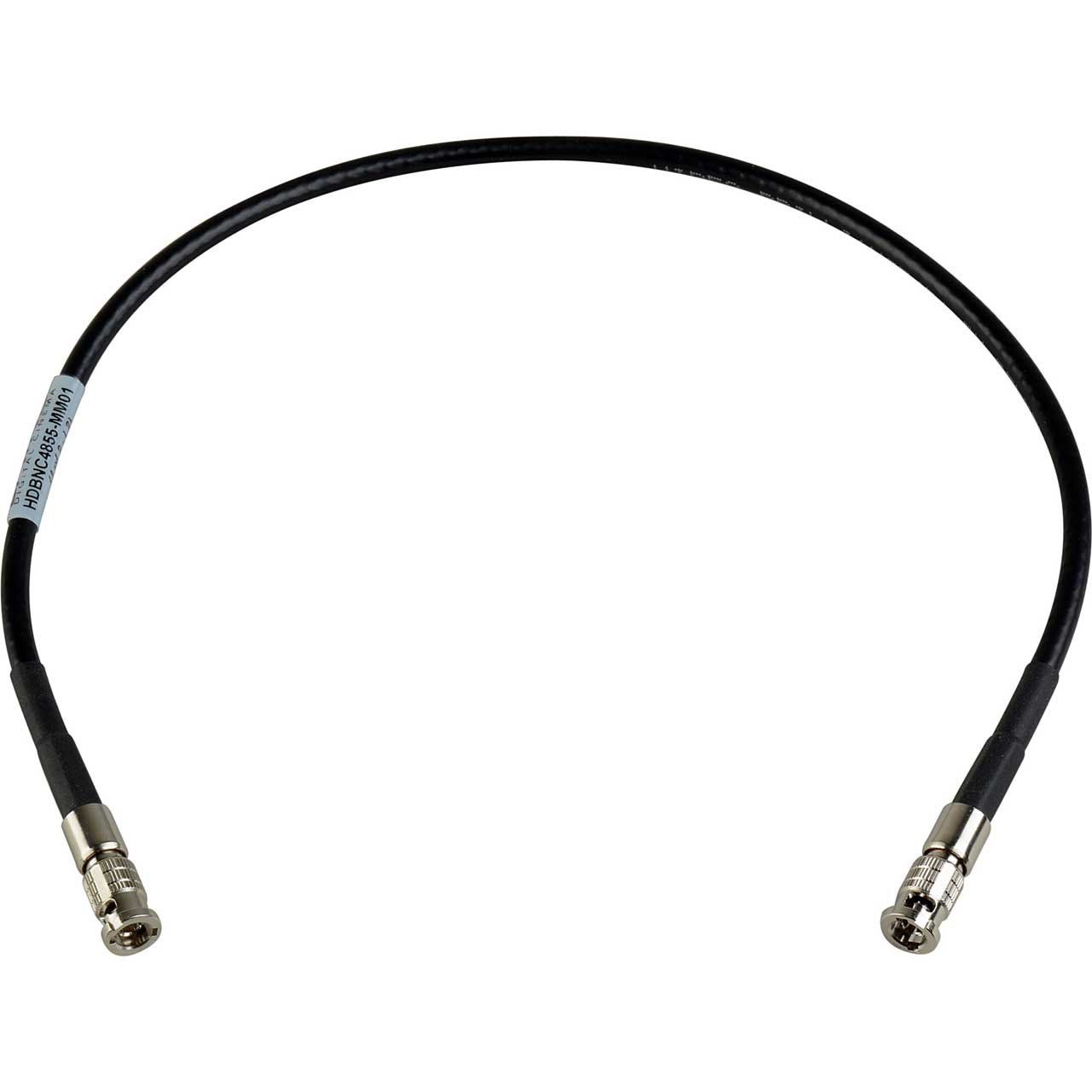

Laird Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 1 Foot

ITEM #: HDBNC4855-MM01 MFG #: HDBNC4855-MM01

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$44.95

Our Price:

$39.95

Availability: In Stock
iAvailability Description Popup


    HDBNC4855-MM01 - Overview

    The Laird HDBNC4855 Series of low profile coax HDBNC to HDBNC male adapter cables are designed for transmitting high resolution uncompressed 12G-SDI / 4K UHD video signals. Ideal for high density jackfields, routers and signal distribution systems where RF performance is critical. The HDBNC utilizes a bayonet style mating analogous to traditional BNCs for a reliable coupling. These Laird cables are built with Belden low loss 4855R coax rated for 12G-SDI runs up to 150 feet. The cable's new braid design, silver-plated copper conductor, and a new polyethylene formula are all design features that contribute to significant RL improvement and an 8 dB improvement on cable attenuation compared to existing coaxes. Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards.

    • Features:

      • Designed for UHD and 4K Video Transport
      • 12 GHz, 4K UHD Precision 75-Ohm Video Cable
      • 12G SDI Optimized BNC Connectors
      • Optimized Transmission Distance for UHDTV
      • Transmits up to 149 ft/45m
      • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
      • Meets SMPTE ST-2082-1 and ST-2081-1 Standards

    • Specifications:

      • Belden 12G SDI Mini-RG59 Coax Cable with PVC Jacket
      • Compatible with 12GSDI single link format devices
      • Nominal Impedance: 75Ω
      • Conductor: Silver Plated Copper
      • Insulation: Gas Injected Foam HDPE
      • Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield
      • Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft)
      • Outer Shield Resistance: 3.900 DCR@20°C(Ohm/1000ft)
      • Nominal Inductance: .107 ΜH/ft
      • Nominal Capacitance Conductor to Shield: 16.3 pF/ft
      • Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet
      • Amphenol Connectors
      • Meet SMPTE Standards for 12G-SDI
      • Durability: 500 Cycles

    • Warranty:

      • 1 Year
