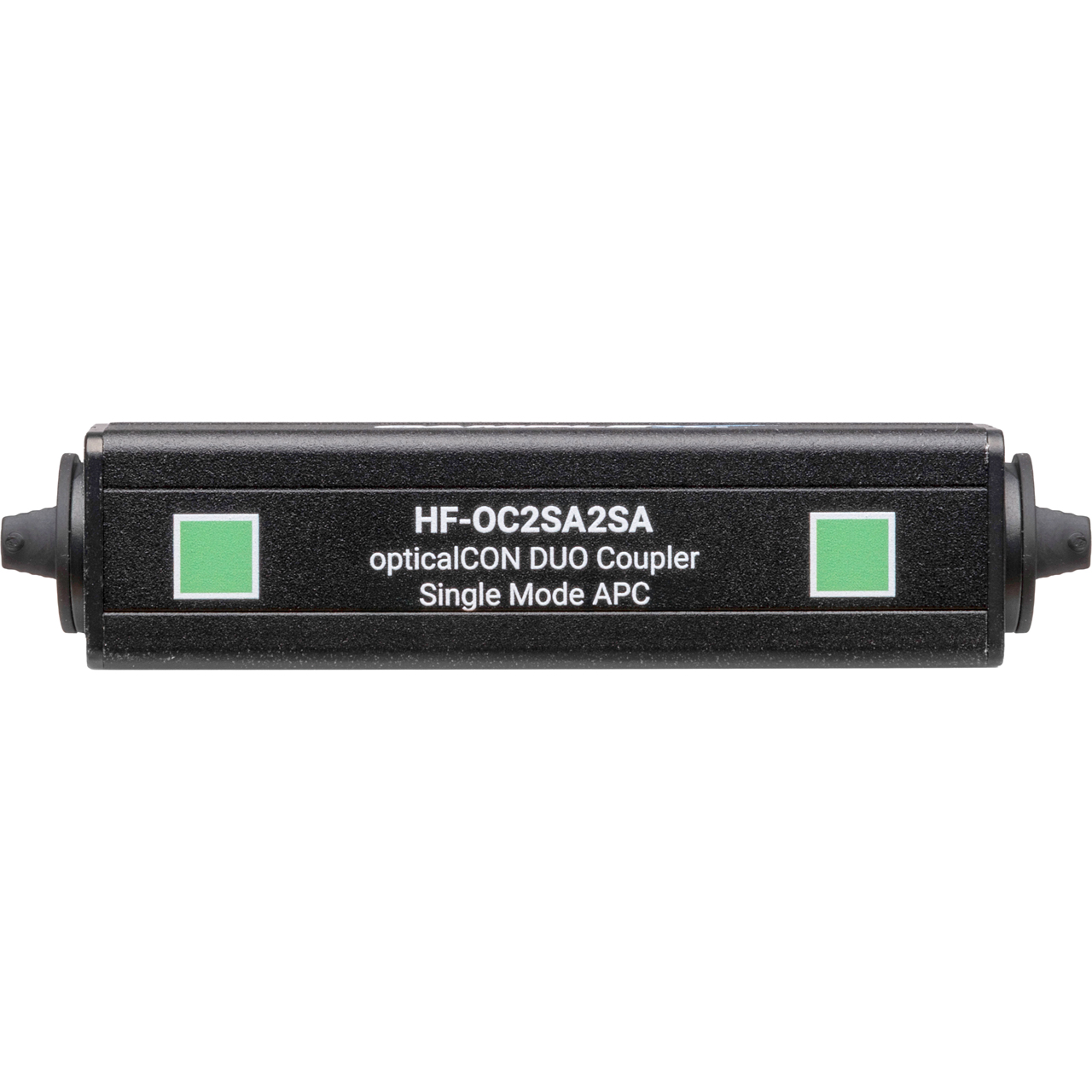

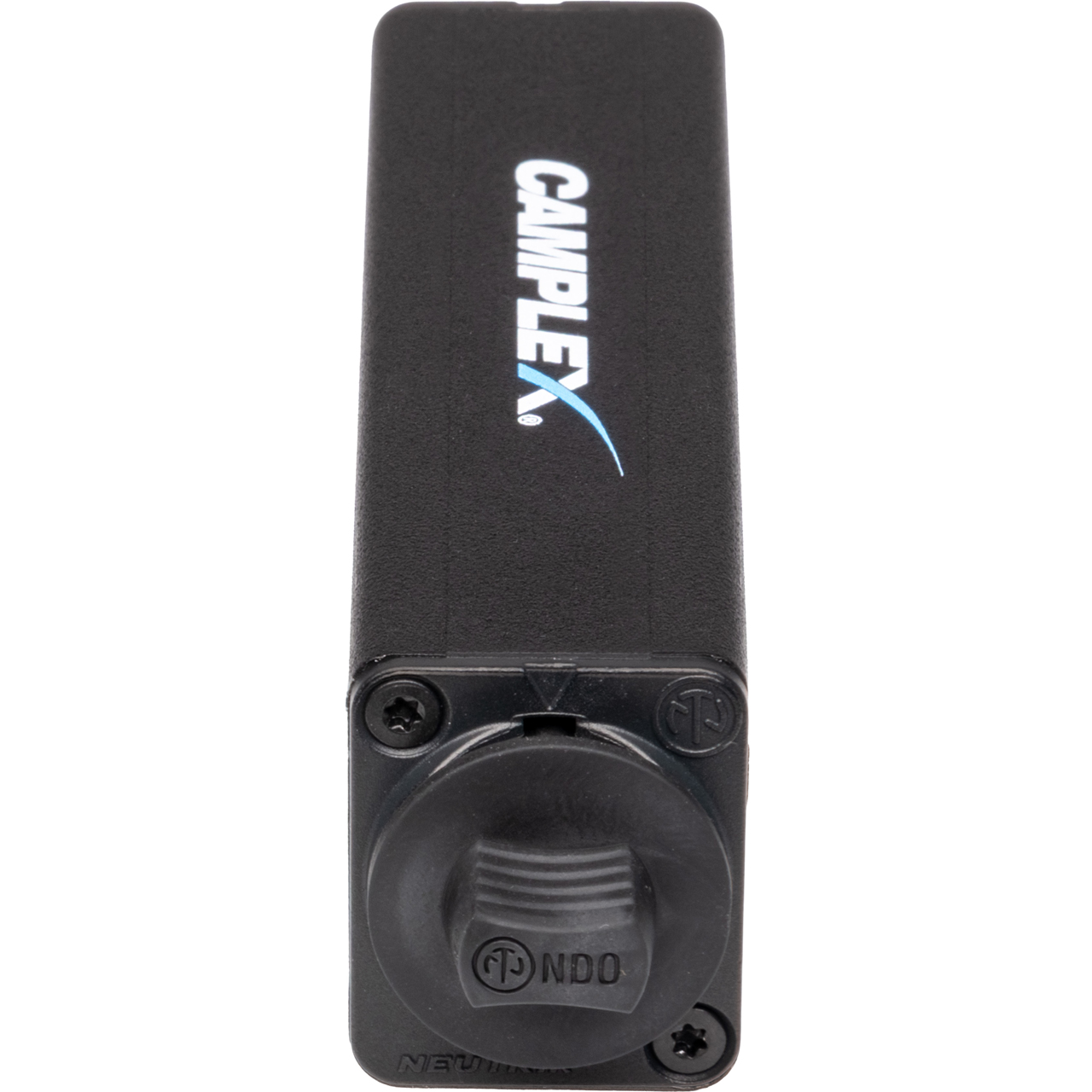

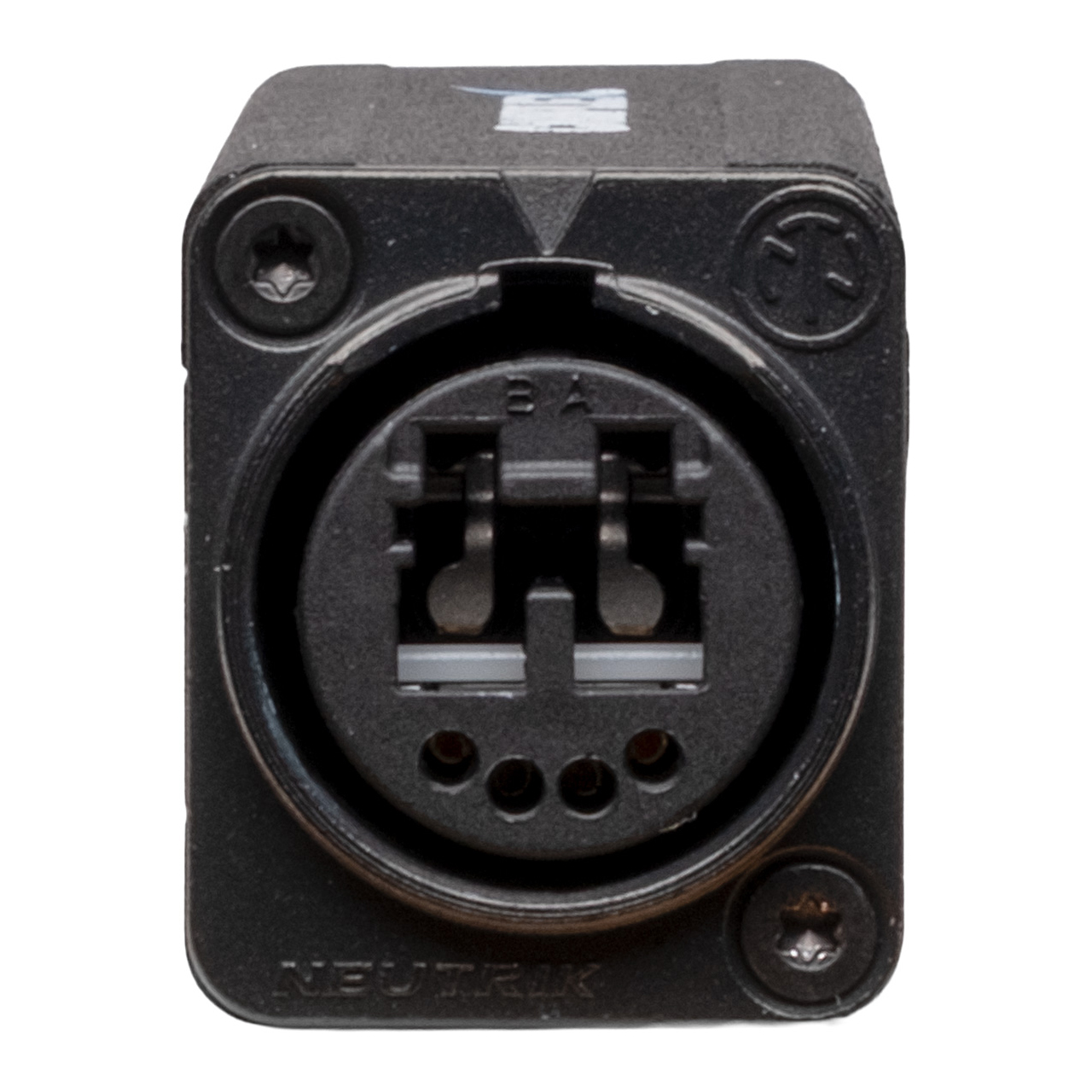

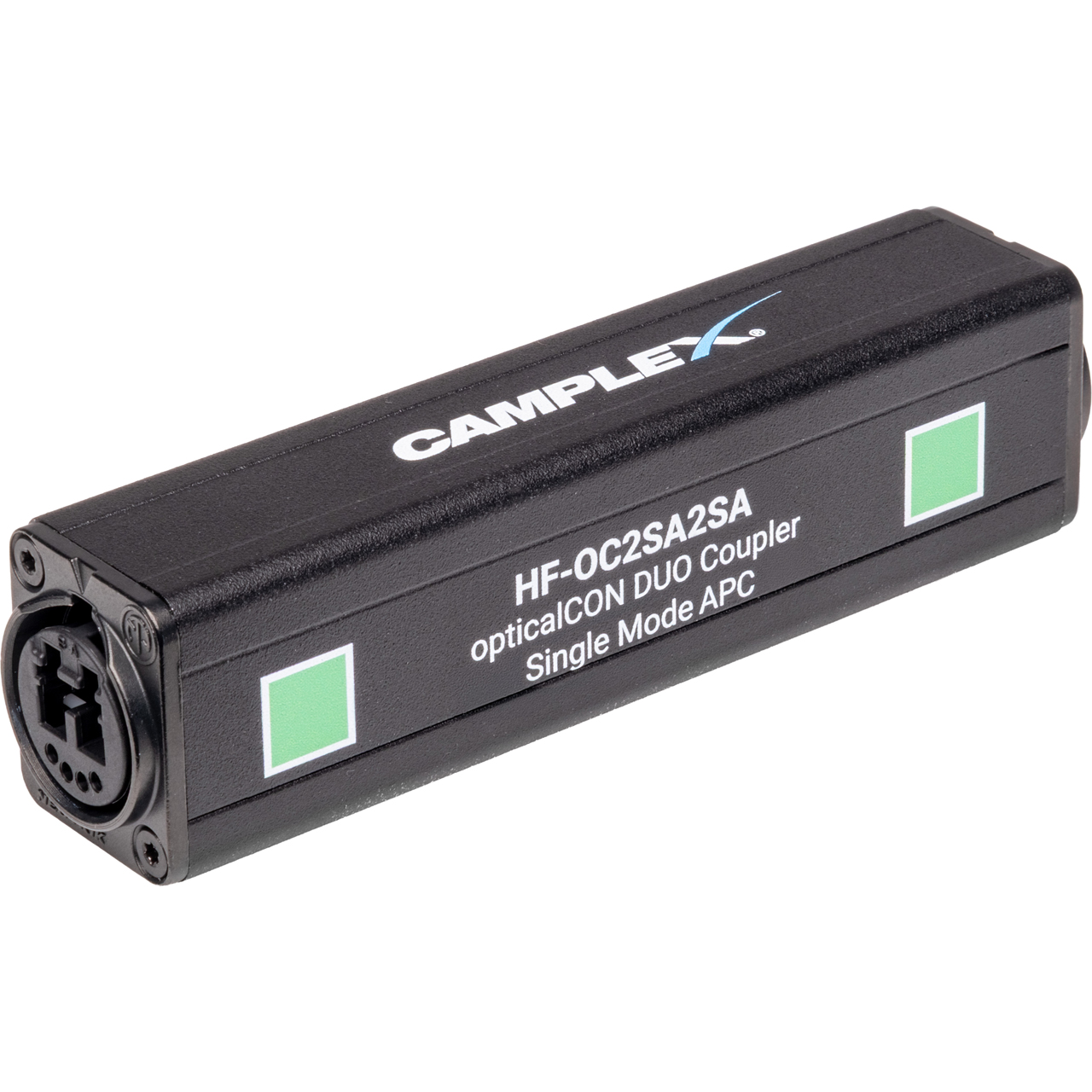

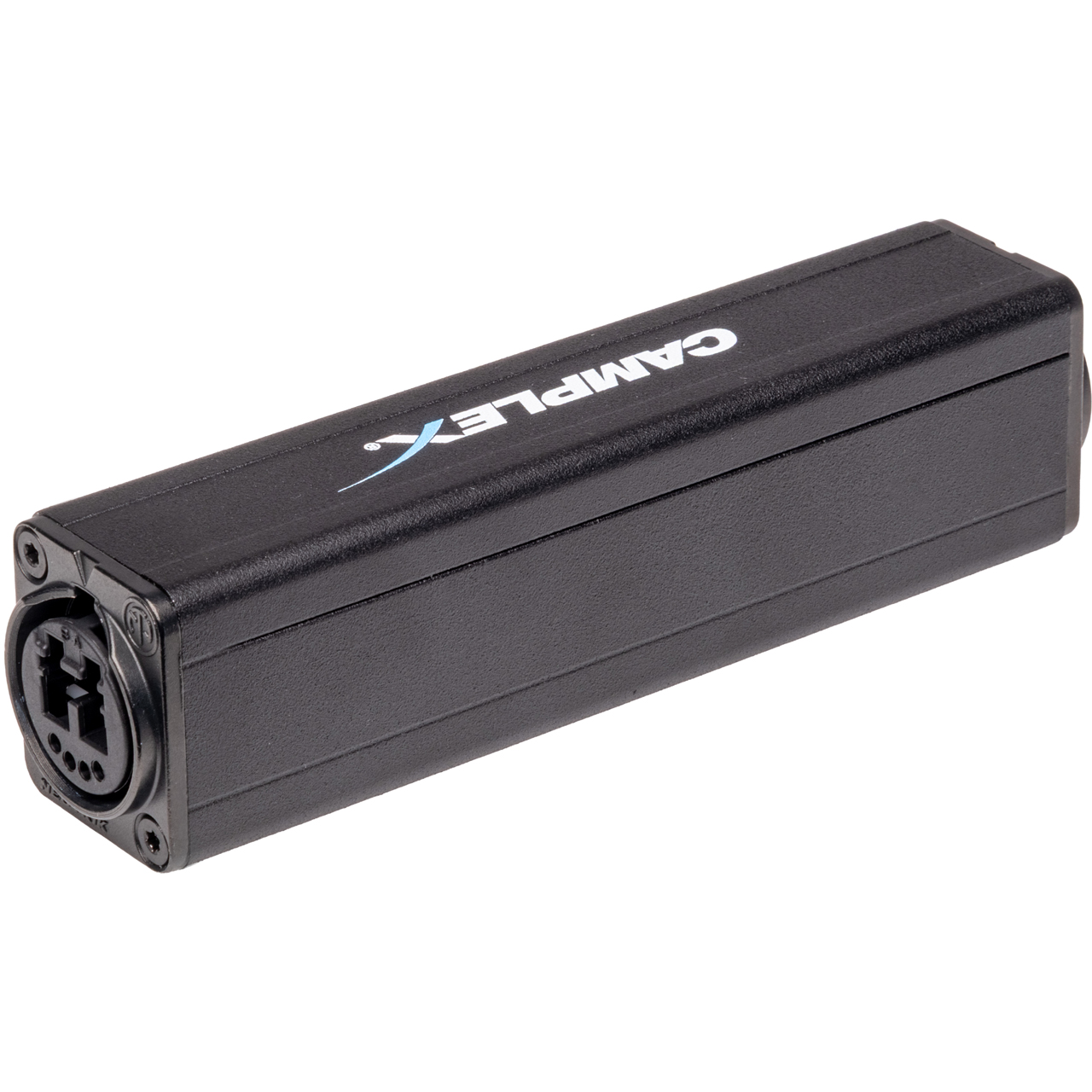

Camplex Inline Coupler - opticalCON DUO-APC to opticalCON DUO-APC Single Mode Fiber Only

HF-OC2SA2SA - Overview

• Features:

  • Inline opticalCON Coupler with Minimal Loss
  • Automatic sealing cover provides superior dust and dirt protection
  • Durable Black Powder-Coated Aluminum Housing


• Specifications:

  Overall
  • Dimensions: 5.44" x 1.13" x 1.63"
  • Weight: 5.9 oz

    Mechanical
  • Insertion force: < 45 N
  • Withdrawal force: < 45 N
  • Lifetime: 5000 mating cycles
  • Locking device: Push-Pull

    Optical
  • Insertion loss: < 0.4 dB / connection

    Electrical
  • Contact Resistance: < 7 mΩ
  • Dielectric Strength: 1.5 kVdc
  • Insulation Resistance: > 2 GΩ (initial)

    Material
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Black chromium
  • Split sleeve: ceramics


• Warranty:

  • 1 Year
