Hammond BUSBAR4X10 4x10 Inch Copper Ground Bus Bar

ITEM #: HMND-BUSBAR4X10 MFG #: BUSBAR4X10

Primary Image
Hammond Manufacturing
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$181.00

Our Price:

$139.24

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    BUSBAR4X10 - Overview

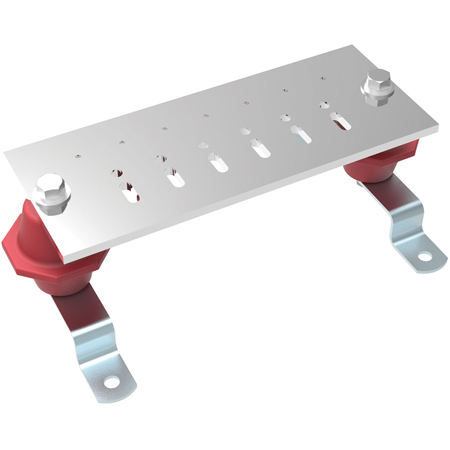

    The Hammond BBUSBAR4X10 is a 4x10 inch Bus Bar is 0.25 inch tin plated copper rated 3200V Glass-Reinforced Thermoset insulators.

    • Features:

      • Electro Tin Plated Copper Bus Bar, 100/300 micro inches of plating
      • 3200 Volt rated Glass-Reinforced Thermoset Polyester insulators
      • Mounting bracket holes 0.375” diameter
      • TAA compliant for GSA Schedule purchases.
      • RoHS Compliant.
      • Manufactured in North America.


    • Specifications:

      • Height: 4.15
      • Width: 6.63
      • Length: 11.50
      • Busbar Thickness: 0.25
      • Busbar Width: 4.00
      • Busbar Length: 10.00
      • 9/32 Inch Diameter: 12
      • 1/8 Inch Diameter: 7
      • 1/4 Inch Single Hole: 12
      • 1/4 Inch Double Hole: 6
      • Insulators/Brackets Included: 2


    • GTIN:

      0623980031576
