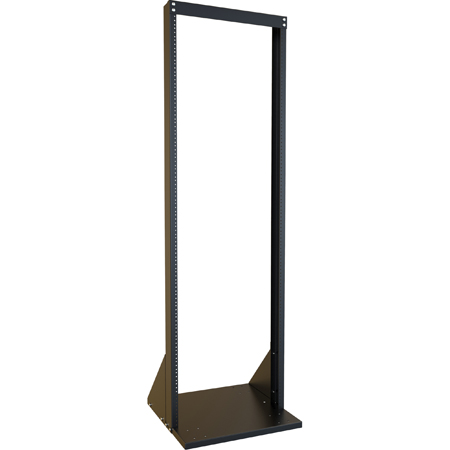

Hammond DNRR1963LDK 36RU 19 Inch Open Frame Rack - 10-32 Double-tapped 2-post - 66 Inch Overall Height - Knockdown

DNRR1963LDK - Overview

• Features:

  • Weighing in at just over 75 lbs., the DNRR Heavy Duty Knockdown Series boasts a 10-gauge steel frame which is the thickest steel rack on the market.
  • The knockdown self-squaring design takes just minutes to assemble.
  • Hammonds automated tapping process provides EIA compliant tapped rails on both the front and back to ensure flexibility when mounting equipment. Includes marked rack unit dividers to aid in equipment mounting.
  • When connecting multiple racks together, Hammond provided a 1.25" cable pass-thru. In addition we added numerous tapped and non-tapped holes for mounting power distribution, cable management and other accessories.
  • Includes two (2) pairs of integrated 10-32 ground studs, spaced 5/8" apart. Stud pairs are conveniently located across from each other inside the rail channel. For added convenience, a pair is located near the top of the rack, while the other pair is located at the lower side.
  • To keep it looking great, the DNRR undergoes a three-stage paint process which includes a coat of premium smooth black powder paint.
  • In order to prevent any damage that may occur during transportation, we cover the rails and base of the DNRR with a thick layer of cardboard.
  • Tested to nearly double the suggested static load rating of 1,200 lbs (544 kg).
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.


• Specifications:

  • Rack Units: 36
  • Rack Type: Open Rack
  • Paint Color: Black
  • Rail Type: Tapped 10-32
  • Size H x W x D: 66 in x 20 in x 19.81 in
  • Shipping Weight: 50 lbs


• Item Includes:

  • 1x Hammond DNRR1963LDK 36RU 19 Inch Rack Mounting 10-32 Double-tapped 2-post Rack - 66 Inch Overall Height - Knockdown


• GTIN:

  0623980965239
