Hammond DRZ42377 44RU 23 Inch 2-Post Seismic Zone-4 10-32 Double-tapped 2-Post Rack

ITEM #: HMND-DRZ42377 MFG #: DRZ42377

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,063.00

Our Price:

$817.70

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


DRZ42377 - Overview

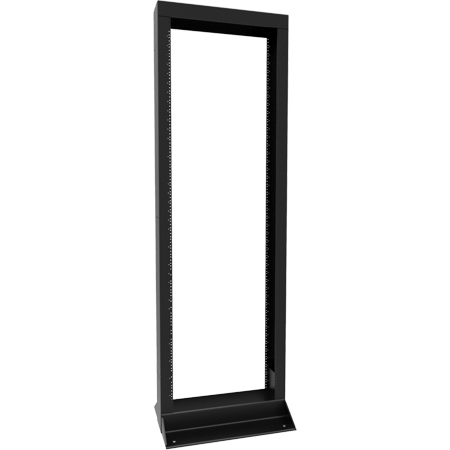

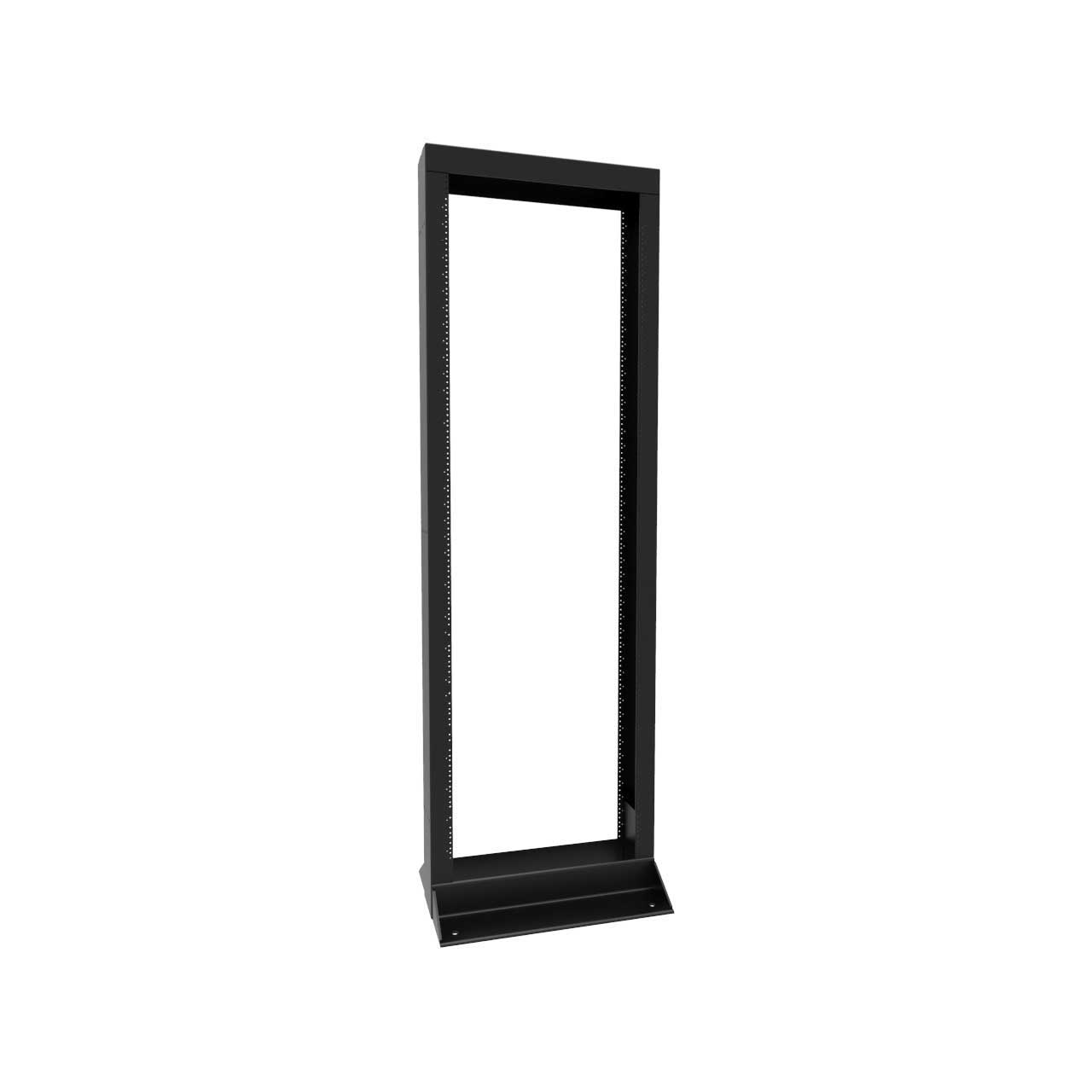

Hammond DRZ42377 44RU 23 Inch 2-Post Seismic Zone-4 10-32 Double-tapped 2-Post Rack. Rugged design was engineered to perform in the most critical seismic environments. Increased overall width of 22.75 inches provides additional side-to-side load strength.

  • Features:

    • Rugged design was engineered to perform in the most critical seismic environments.
    • Increased overall width of 22.75 inches provides additional side-to-side load strength.
    • EIA compliant 10-32 front and rear tapped (6.00" deep) rails with 19" mounting.
    • Includes marked rack unit dividers to aid in equipment mounting.
    • Two (2) sets of side mounting holes on side of rack allows for Hammond cable managers to be mounted facing front and rear.
    • The side mounting holes can also be used to gang racks together.
    • Includes two (2) pairs of integrated 10-32 ground studs, spaced 5/8" apart. Stud pairs are located conveniently at both ends of the rack. The upper location is centered inside the upper channel and the lower location is centered on the front base of the rack. This upgrade ensures a secure and easy ground lug attachment.
    • Includes top bracket mounting holes that are compatible with top cable accessories.
    • Includes large base for freestanding support of equipment.
    • Finished in smooth black powder paint.

  • Specifications:

    • Size H x W x D: 84 in x 23 in x 18 in
    • Shipping Weight: 85 lbs (38.56 kg)
    • Rack Units: 44
    • Rack Type: Open Rack
    • Paint Color: RAL9005 Black
    • Rail Type: Tapped 10-32

  • Item Includes:

    • 1x Hammond DRZ42377 44RU 23 Inch 2-Post Seismic Zone-4 10-32 Double-tapped 2-Post Rack

  • GTIN:

    0623980659800


DRZ42377 - Required Accessories
