Hall Technologies EX-HDU-R-IP HDMI and USB Extension on CAT6 with Audio Integrated Control and IP Receiver

ITEM #: HRT-EX-HDU-R-IP MFG #: EX-HDU-R-IP

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$526.35

Our Price:

$500.03

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    EX-HDU-R-IP - Overview

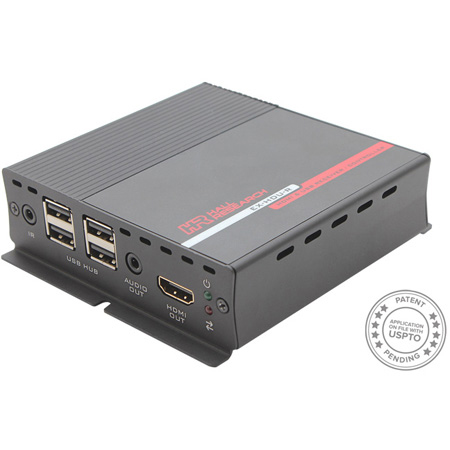

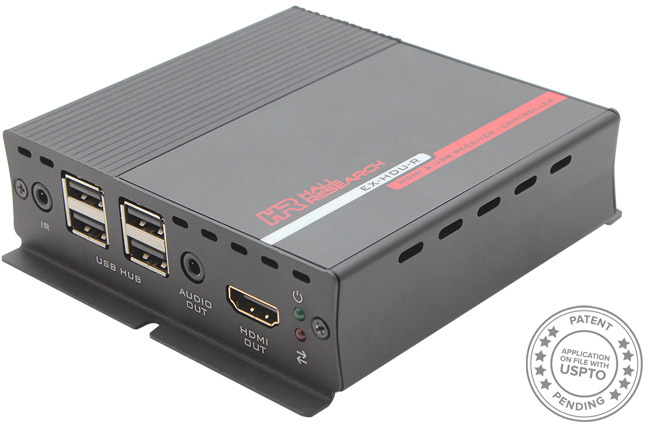

    The EX-HDU-R is used to extend HDMI video and USB data on a single Cat6 cable up to 200 ft (60 meters). HDMI audio is extracted and is provided as analog stereo. The EX-HDU-R can also be used to control other equipment by providing programmable contact closure I/O, RS-232 output, IR output, and optional LAN interface with internal WebGUI and IP control. The EX-HDU-R is designed to work with EX-HDU-WP single-gang wall plate transmitter. and an EX-HDU-R or EX-HDU-R-IP receiver. They connect using standard CAT5e/6 UTP cabling up to 200 feet (60 Meters) long.

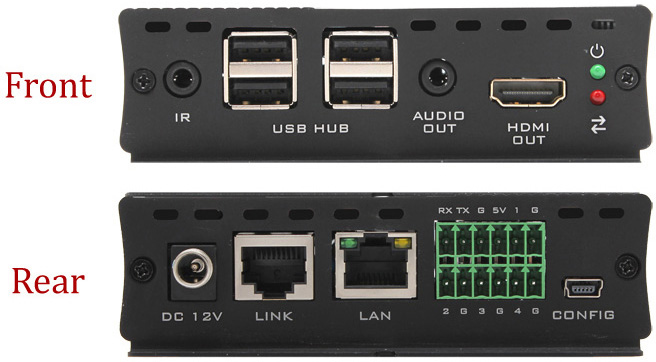

    The Receiver provides HDMI video output, stereo audio output, 4 USB ports, IR output, and a terminal strip that has RS-232 output plus 4 programmable digital I/O ports. A mini-USB port is also provided for configuration upload from a PC for cases where the Receiver is used also as a control system. Receiver with IP connectivity is the model EX-HDU-R-IP. It provides an ETHERNET port for control via IP commands or internal webpage.

    • Features:

      • Supports HDMI, DVI & HDCP
      • RS-232 port for auxilary device control
      • Store separate commands for the auxilary device
      • Compact, Rugged, Reliable and Economical
      • SPDIF audio extraction (wallplate)

    • Specifications:

      • Video Standards: DVI (Single Link) HDMI 1.4 HDCP 1.1
      • Signal Type: TMDS
      • Resolutions:DVI - VGA (640x480) thru WUXGA (1920x1200) HDTV - 480p thru 1080p60 (no interlaced support)
      • Audio Format: LPCM 2 Channel Audio (32-192kHz sample rate)
      • Power Supply: 100 to 240 VAC, 47-63 Hz, External; 12VDC
      • Storage Temperature/Humidity: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, non-condensing
      • Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing
      • Cooling: Convection
      • Enclosure: Metal (Steel)
      • Vibration: ISTA 1A in carton (International Safe Transit Association)
      • Safety: CE
      • EMI/EMC: CE, FCC Class A
      • MTBF: 90,000 hours (Calculated Estimate)
      • Warranty: 3 years parts and labor

    • GTIN:

      0608415712077
