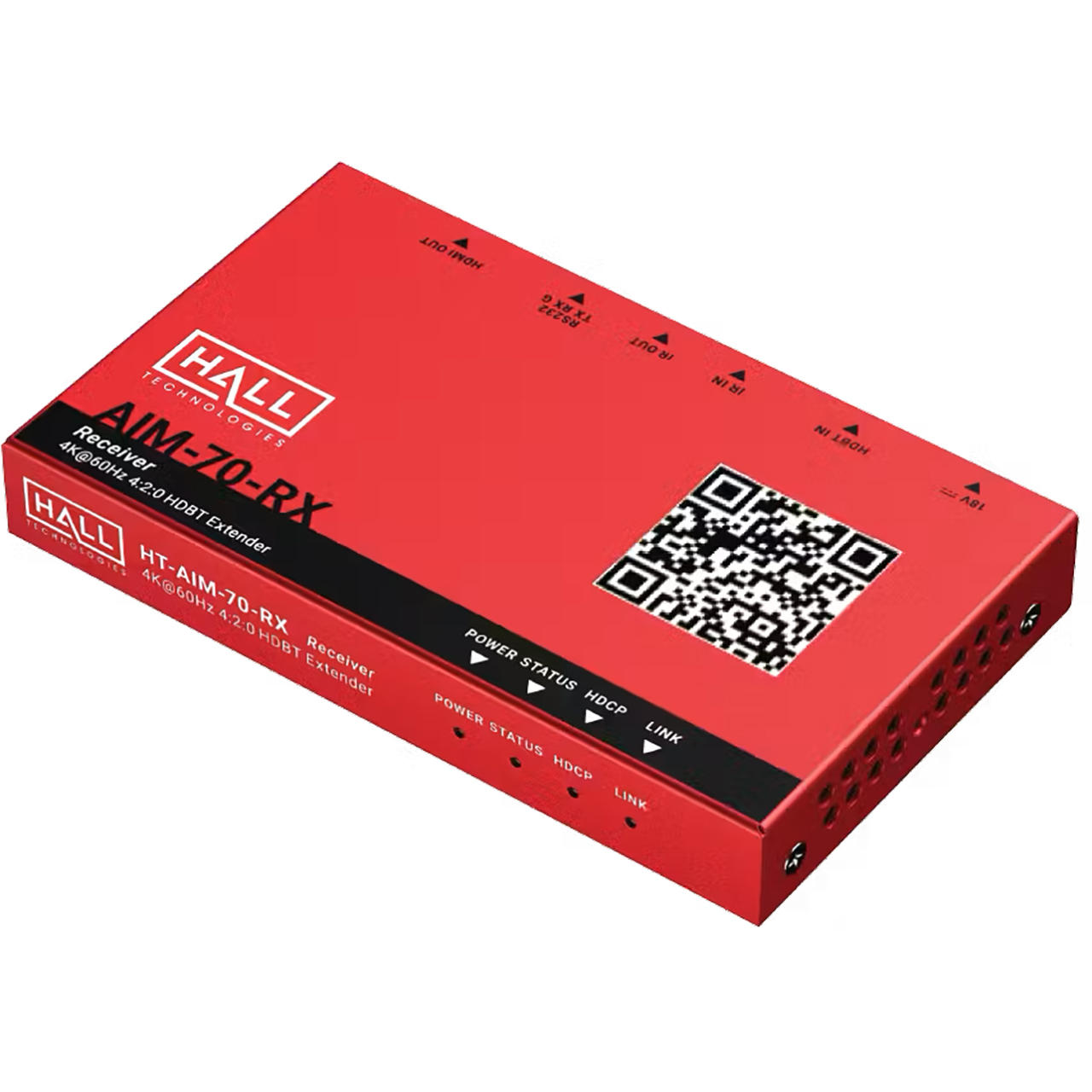

Hall Technologies HT-AIM-70-RX Slimline HDMI 4:2:0 HDBaseT Extender Receiver - 4K@60Hz Over Cat6a Up To 131 Feet

ITEM #: HRT-HT-AIM-70-RX MFG #: HT-AIM-70-RX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$225.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


HT-AIM-70-RX - Overview

Easily extend 4K 60Hz signals up to 35 meters and 1080p 60Hz signals up to 60 meters!

The Hall Technology HT-AIM-70-RX receiver complements the HT-AIM-70-TX transmitter by seamlessly receiving HDMI signals over extended distances, preserving the original video and audio quality (items sold separately). Designed to support resolutions up to 4K UHD at 60Hz with zero latency, this receiver ensures a smooth and uninterrupted viewing experience. It also features bi-directional IR and RS-232 control capabilities, providing enhanced control flexibility for various devices. With easy integration into any AV setup, the HT-AIM-70-RX receiver is a reliable component for achieving high-quality signal extension and distribution in professional environments.

  • Features:

    • Compatible with the HT-AIM-70 transmitter for seamless HDMI signal reception (sold separately)
    • Supports up to 4K 60Hz (4:2:0 8-bit) video resolution
    • Receives 4K 60Hz signals up to 40 meters and 1080p 60Hz signals up to 70 meters with CAT6A/7 cabling
    • Bi-directional PoC, IR, and RS232 pass-through for enhanced control flexibility
    • Built-in control pass-through allows control of source or display from either location
    • Slimline design for straightforward installation in various settings
    • Reliable performance for professional AV setups and installations

  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.0
    • Video Bandwidth: 10.2Gbps
    • Video Resolution: 4K@60Hz (8-bit 4:2:0), 4K@30Hz, 1080p, 1080i, 720p
    • HDCP Compliance: HDCP 2.2
    • Color Depth:
      • 8.10.12-bit (4K@60Hz)
      • 16-bit (1080p@60Hz)
    • HDMI Audio Formats: PCM 2.0/2.1/5.1/6.1/7.1, Dolby Atmos, Dolby TrueHD, DTS-ES, DTS HD Master, DTS-X
    • Resolution/Distance:
      • 4K60:
       - Cat5e/6: 115ft (35m)
       - Cat6a/7: 130ft (40m)
       - HDMI: 33ft (10m)
      • 1080p:
       - Cat5e/6: 200ft (60m)
       - Cat6a/7: 230ft (70m)
       - HDMI: 50ft (15m)

      General
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Humidity: 10% - 90%, non-condensing
    • Power Consumption: 8.88W (Pair, PoC)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Power: 1x DC 18V/1A (included)
    • Dimensions (LxWxH): 2.5" x 4.3" x 0.6" (64.2mm x 108.8mm x 15mm)
    • Weight: 0.4 lbs (180g)

  • Item Includes:

    • 1x Receiver Unit
    • 1x Power Adapter (DC 18V 1A)
    • 1x IR Emitter Cable
    • 1x 3-Pin Phoenix Male Connector
    • 2x Mounting Brackets (with screws)

  • Warranty:

    • 3 Year Limited Warranty

  • GTIN:

    0656750713242
