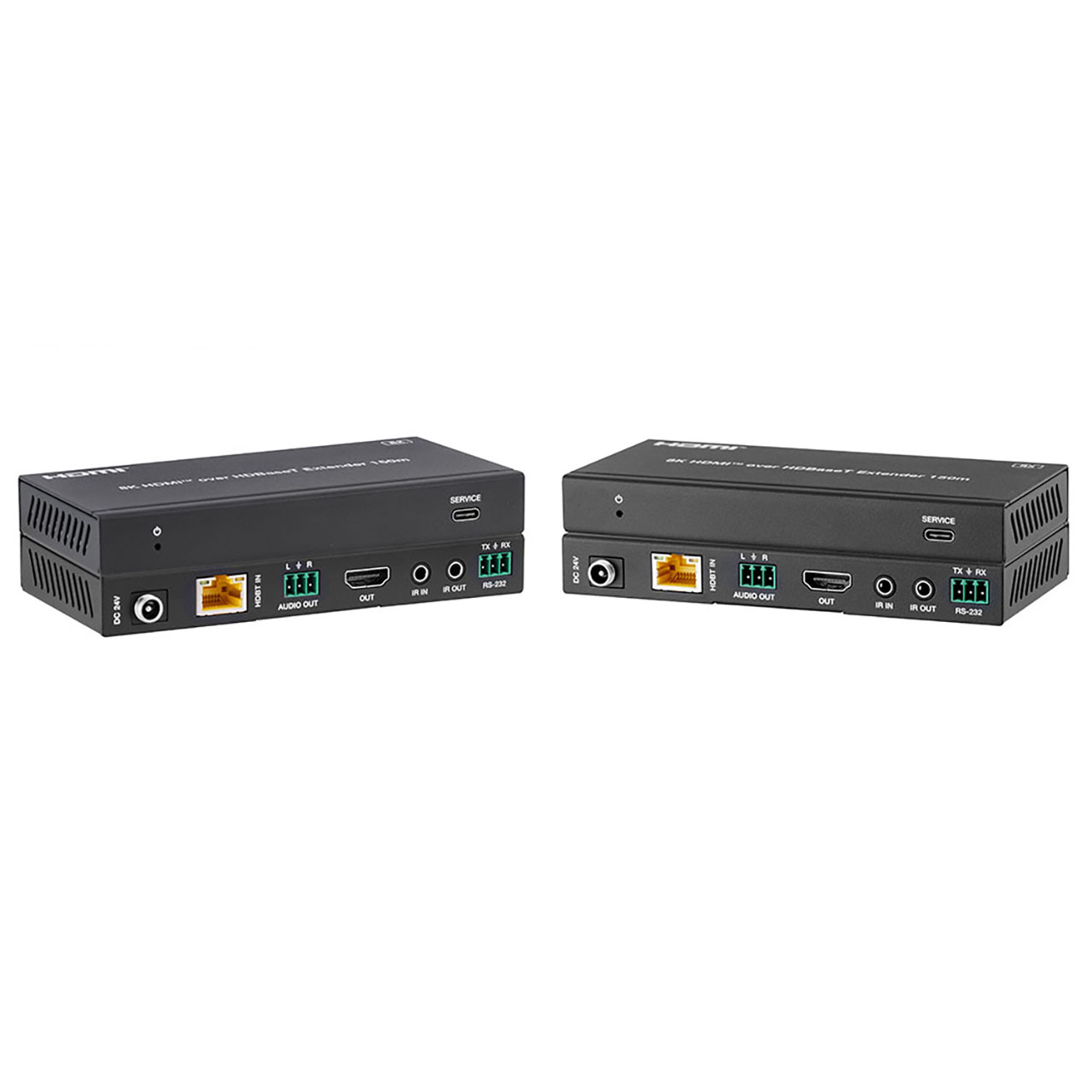

KanexPro EXT-HD8K-150M 48Gbps 8K HDMI over HDBaseT Extender Kit - Up to 492 Feet

EXT-HD8K-150M - Overview

Extend 8K/4K60/1080p over CAT6 with Bi-Directional IR, RS-232 & 24V PoC

• Features:

  • Extends HDMI 2.1 (48Gbps) signals up to 492ft (150m) over a single CAT6 cable- 8K@30Hz at 40m, 4K60 4:2:0 at 100m, 1080p@60Hz at 150m
  • HDMI 2.1 input on TX accepts 8K, 4K, and 1080p sources- HDMI 2.0 output on RX delivers to any compatible display
  • HDCP 2.3 compliant with full HDR support- HDR10, HDR10+, Dolby Vision, and HLG pass-through end-to-end
  • Bi-directional IR pass-through (20Hz - 60kHz) enables remote control of source and display from either end of the cable run
  • RS-232 pass-through via 3-pin phoenix connector on both TX and RX for third-party control system integration
  • Analog stereo audio de-embedding (L+R phoenix) on both TX and RX- local speaker feed without a separate audio extractor
  • 24V Power over CAT6 (PoC)- power the RX from the TX over the same CAT6 cable, reducing power outlet requirements at the display end
  • 7-mode DIP-switch EDID manager (1080p, 4K30, 4K60 x 2CH/7.1CH + sink copy)- no software required for setup
  • Locking HDMI connector on TX prevents accidental disconnection in rack or behind-wall installations


• Specifications:

  Video
  • HDMI Compliance:
    - TX Input: HDMI 2.1
    - RX Output: HDMI 2.0
  • HDCP: HDCP 2.3/1.4
  • Video Bandwidth: 48Gbps
  • HDR Formats: HDR10, HDR10+, Dolby Vision, HLG

    Transmission
  • Max Distance @ 8K@30Hz: 131ft (40m) (CAT6)
  • Max Distance @ 4K@60Hz 4:4:4: 197ft (60m)
  • Max Distance @ 4K@60Hz 4:2:0: 328ft (100m)
  • Max Distance @ 1080p@60Hz: 492ft (150m)

    Mechanical
  • Dimensions (TX/RX): 8.46" x 6.10" x 1.02" (215mm x 155m x 26mm)
  • Weight (TX/RX): 1.46lbs (660g)
  • Power Supply: DC 24V/2.7A; 24V PoC supported
  • Certifications: CE, FCC, RoHS


• Item Includes:

  • 1x Transmitter (TX) unit
  • 1x Receiver (RX) unit
  • 2x DC 24V/2.7A power adapters
  • 2x IR receiver cables
  • 2x IR blaster cables
  • 2x Mounting ear brackets
  • 1x User manual


• Warranty:

  • 3 Year Limited Warranty


• GTIN:

  0813982024175
