Lightware HDMI-TPS-RX100AY HDBaseT Receiver with Relay Modules and Balanced Audio Out

ITEM #: LWE-HDMITPSRX100 MFG #: 91540021

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,633.50

Our Price:

$1,033.86

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


91540021 - Overview

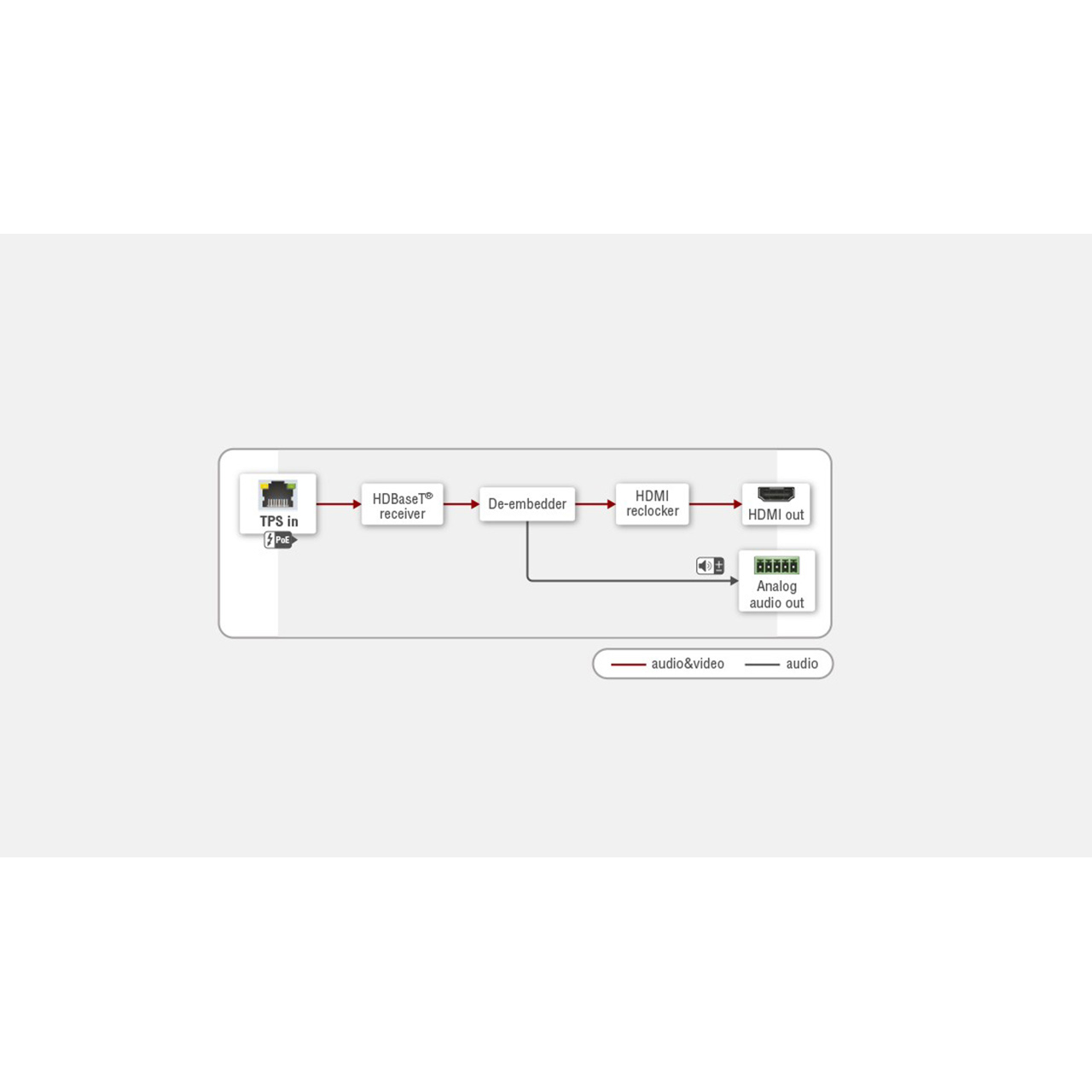

The Lightware HDMI-TPS-RX110AY is an HDBaseT Receiver with Relay Modules and Balanced Audio Out. This dual relay capable HDBaseT compatible TPS receiver has one PoE capable TPS input and one HDMI output, and features audio de-embedding.The HDMI audio is de-embedded to the balanced audio output via a Phoenix (Euroblock) connector, the audio port has volume control. The unit is HDCP compliant and has 4K/UHD and 3D capabilities. The built-in Event Manager room control feature provides the necessary control in a less complex application environment. Both the Event Manager feature and the dual relay module of the device are configurable via the freely available Lightware Device Controller software. USB, RS-232, IR (in and out) and Ethernet ports provide further connection options for control.

  • Specifications:

    • Resolution: Up to 4K UHD 3840x2160@30Hz, 1600x-1200@60Hz, FullHD 1920x1080@60Hz
    • Digital Audio Formats: Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats
    • Input Cable Equalization: Automatic max 558ft (170m)
    • EDID Emulation: Yes, Advanced EDID Management
    • EDID Memory: 120 factory preset, 15 user programmable
    • HDCP Pass-Through: Yes
    • RS-232 Pass-Through: Yes, configurable
    • RS-232 (control option): 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through TPS)(default: 57600)
    • Local Power: 2-pole, DC 12V, 1A
    • Power over TPS: DC 48V, 0.3A
    • Power Consumption: max. 10W
    • Dimensions (HxWxD): 1.02" x 8.70" x 3.95" (26mm x 221mm x 100.4mm)
    • Enclosure: 1mm metal
    • Weight: 1.34lbs (610g)
    • Compliance: CE
    • Digital Video Output: HDMI connector
    • Balanced Audio Output: 5-pole Phoenix (Euroblock) connector
    • Relays: 2x2-pole Phoenix (Euroblock) connector
    • Ethernet: RJ45
    • IR In and Out: 3.5mm jack
    • TPS Input: RJ45
    • Serial Port: 3-pole Phoenix (Euroblock)
    • Power: Locking DC connector (2.1mm/5.5mm)
    • Volume: -57dB - 0dB
    • Mute Function: Yes
    • Balance: -100 .. 0 .. 100%

  • Warranty:

    • 3 Year Warranty
