Hall Technologies HT-TRK1 Apollo Technology Room Kit for Education and Conferencing

ITEM #: HRT-TRK1 MFG #: HT-TRK1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,088.90

Our Price:

$1,520.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    HT-TRK1 - Overview

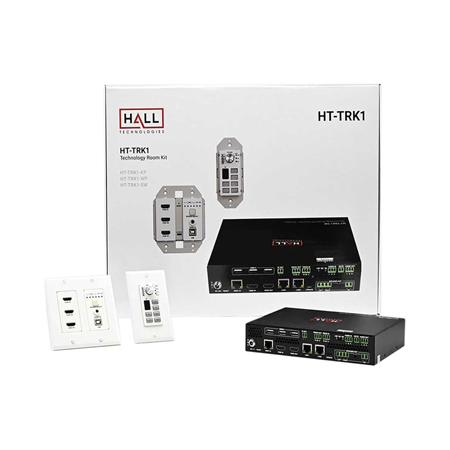

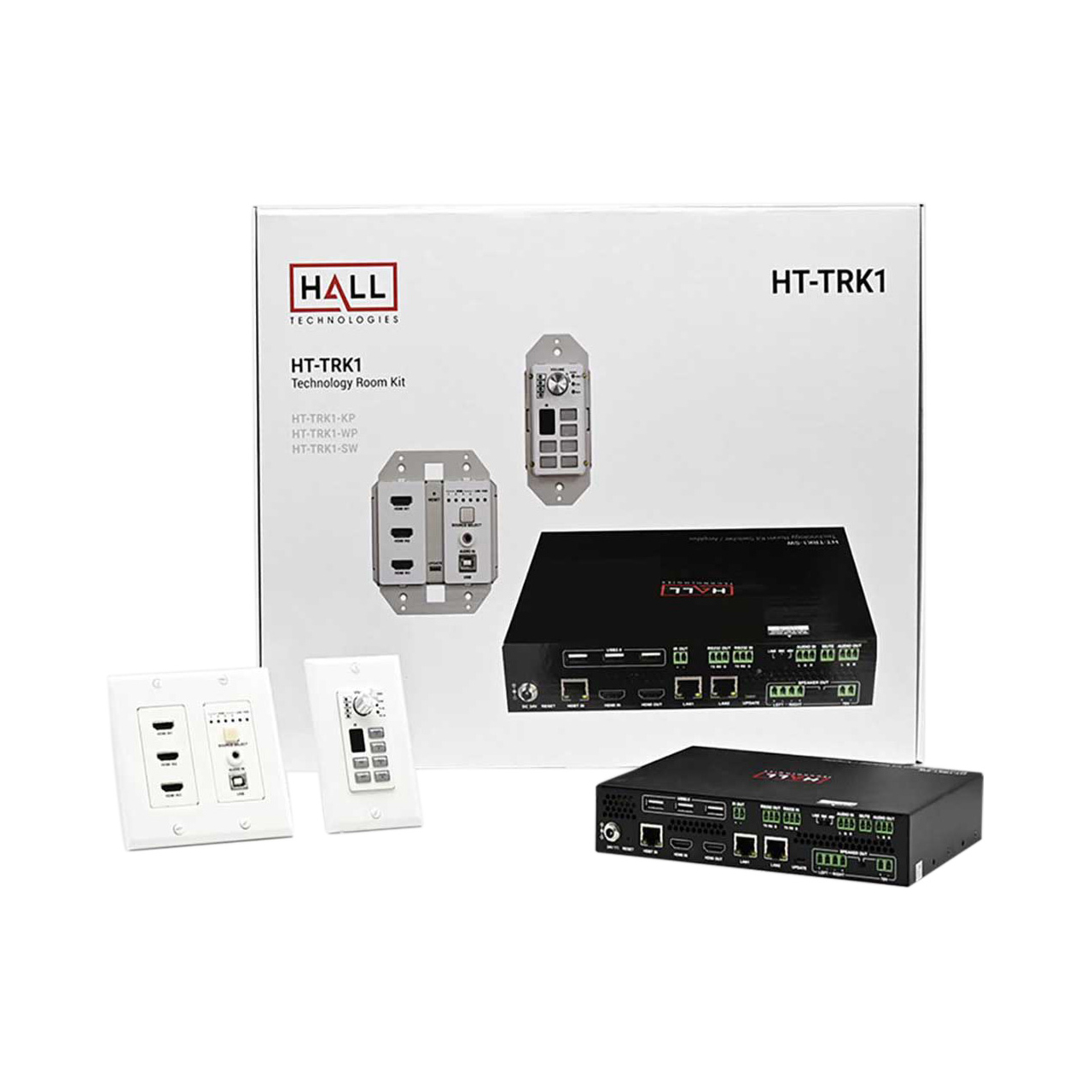

    Designed with ease of use, flexibility and reliability in mind, the Hall Technologies HT-TRK1 offers a complete packaged solution for workspaces and learning environments alike. HT-TRK1 provides HDMI video switching, system control, video extension and analog audio amplification - all in a convenient three-piece kit.

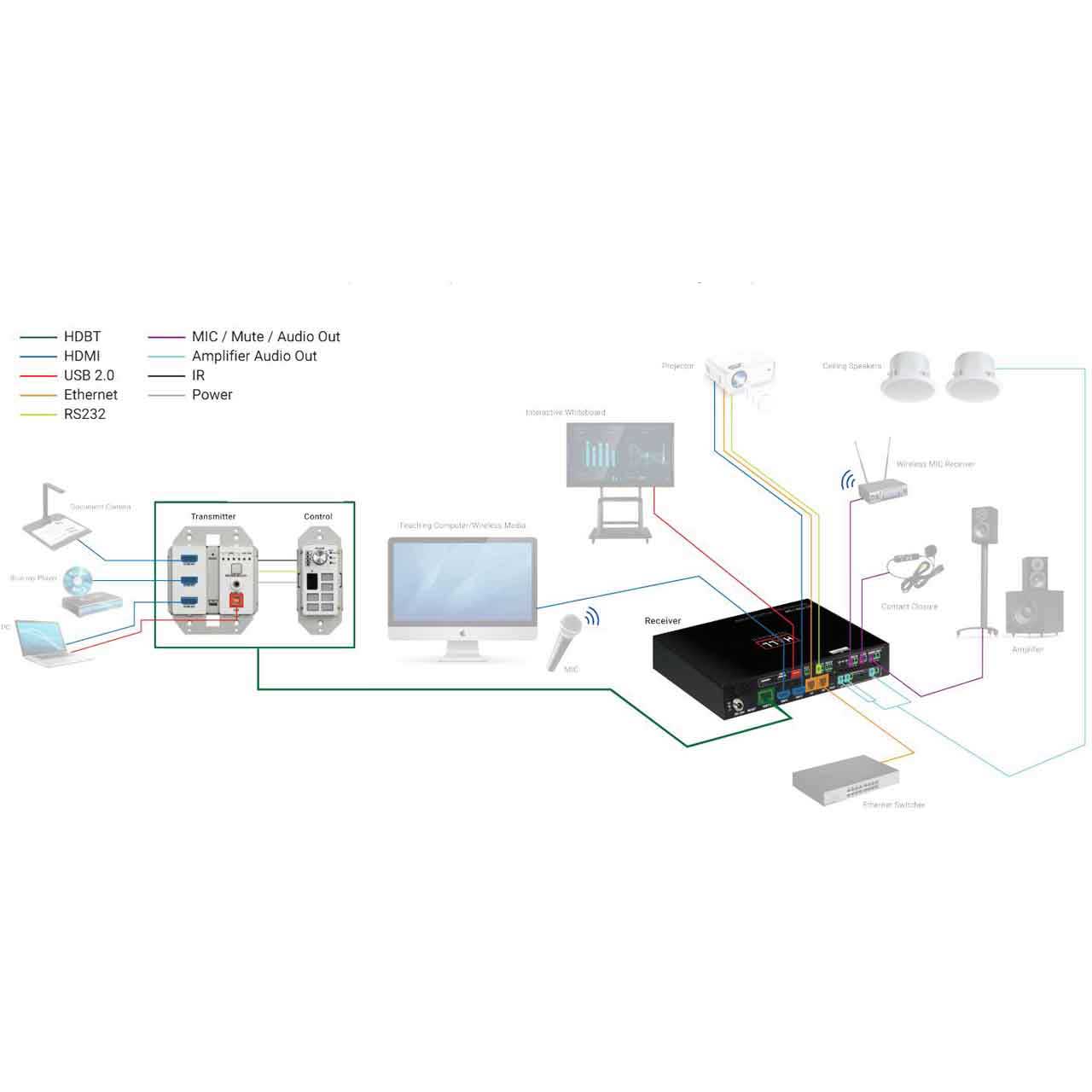

    Utilizing long-range HDBaseT technology, power, control, video up to 4K@60Hz and audio are transported over a single Category 6a cable between a wall plate transmitter and the receiver with a minimum transport distance of 30m/100ft.

    The wall plate control panel connects to the wall plate transmitter with a second Category 6a cable. The wall plate control panel allows remote switching of the sources and volume control from a convenient location. You can switch among four HDMI Inputs, and you can scale the HDMI inputs up to 4K@60Hz. All the power needed for the system is provided by the receiver.

    Additionally, the receiver features a built-in Web UI for control and analog audio de-embedding to your choice of a built-in 20W stereo amplifier for driving low impedance speakers, a 70V amplifier for driving commercial 70V speakers or stereo analog audio outputs. DSP is also supported allowing for output mixing of any VIDEO audio inputs, TX AUDIO IN and RX AUDIO IN.

    The system includes monitoring software for easy multi-room configuration, system monitoring and control along with easy firmware updating of all devices from a central networked computer. An integrated Ethernet switch allows easy configuration with the IP Network. Remote USB 2.0 connectivity adds to the features that make it an all-in-one box solution for any modern classroom or conference space.

    • Features:

      • 4K Compatibility Built with Long-Range HDBaseT Technology
      • Versatile, All-in-One System
      • Control and Security
      • DSP Mixing Function
      • Built-In Audio System
      • Power, Video and Control over Cat6a up to 330 feet
      • Simple Operation with Web GUI Interface

    • Specifications:

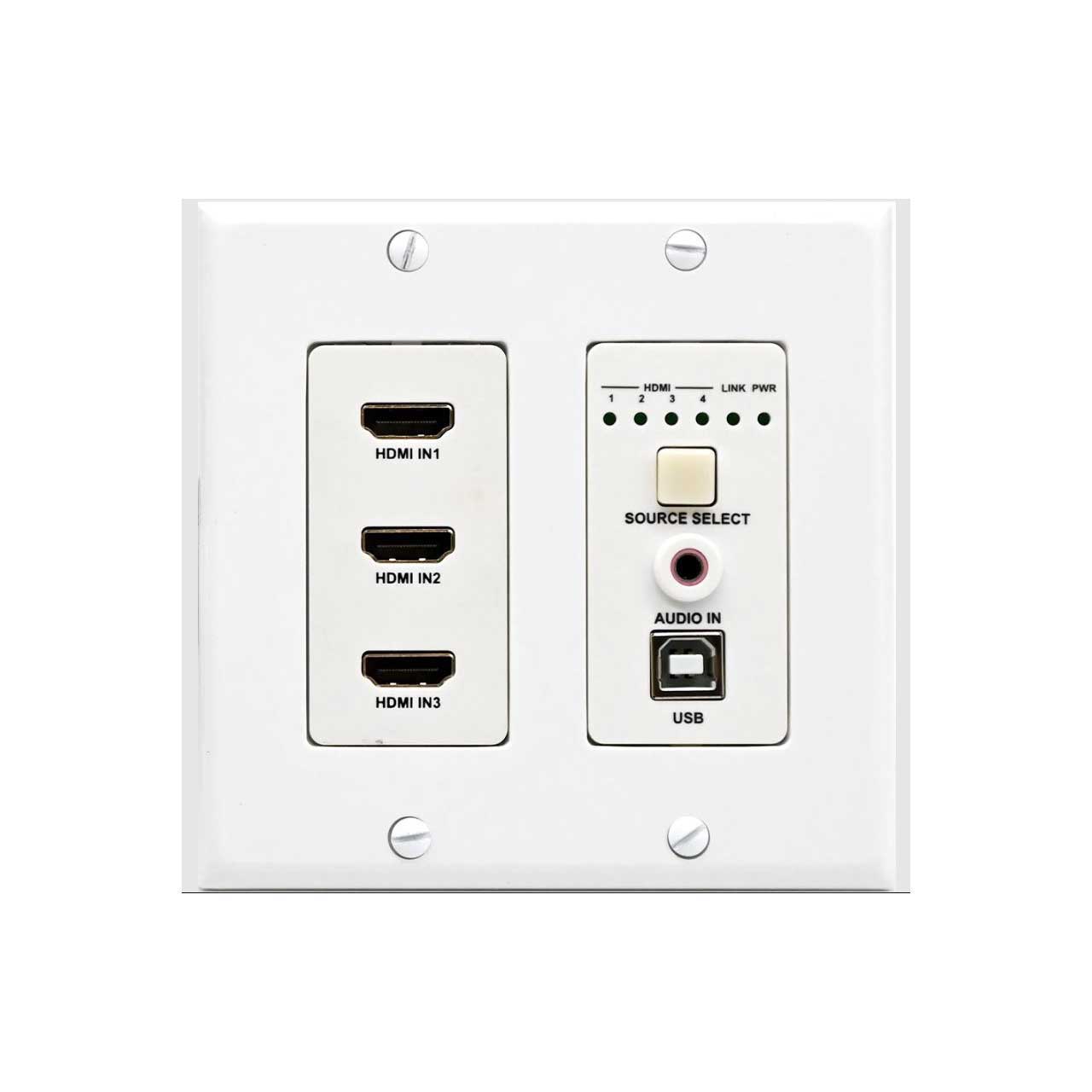

      • Transmitter Input/Output Ports
      • 3x HDMI IN; 1x Source Selector Button; 1x AUDIO IN
      • 1x USB Type-B Host; 1x Micro USB FW update port
      • 1xHDBT OUT; 1x RJ45; 1x REBOOT BUTTON

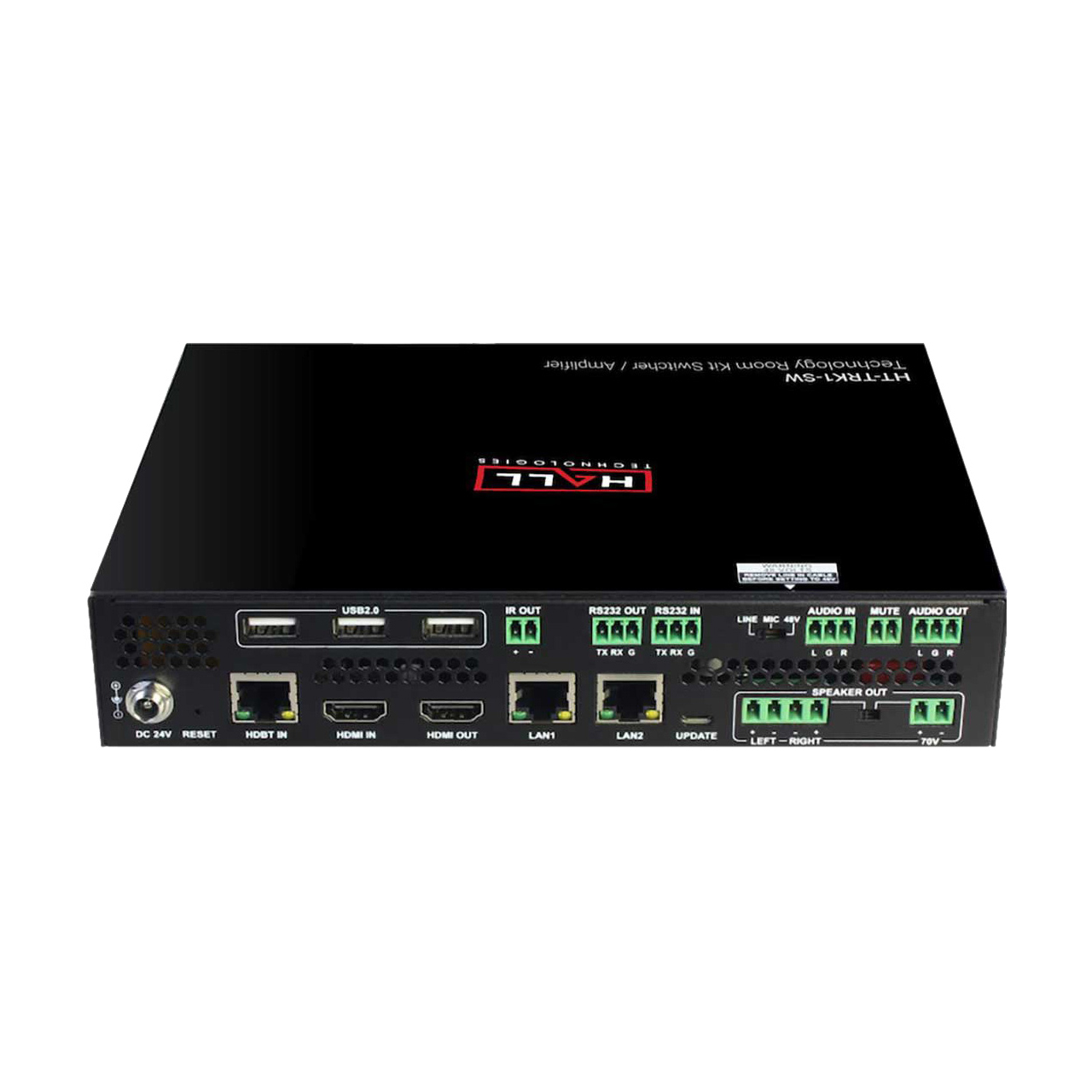

        Receiver Input/Output Ports
      • 1x HDBT IN; 1x HDMI IN, 1x HDMI OUT; 2x LAN
      • 1x Micro USB FW update port; 1x 4Ω/8Ω SPEAKER OUT
      • 1x 70V SPEAKER OUT; 1x Speaker Out Select Switch
      • 3x USB Type-A Device; 1x IR OUT; 1x RS232 IN
      • 1x RS232 OUT; 1x select switch (LINE IN/MIC IN/MIC IN with phantom power
      • 1x AUDIO IN; 1x MUTE IN
      • 1x AUDIO OUT; 1x DC 24V; 1x RESET Button

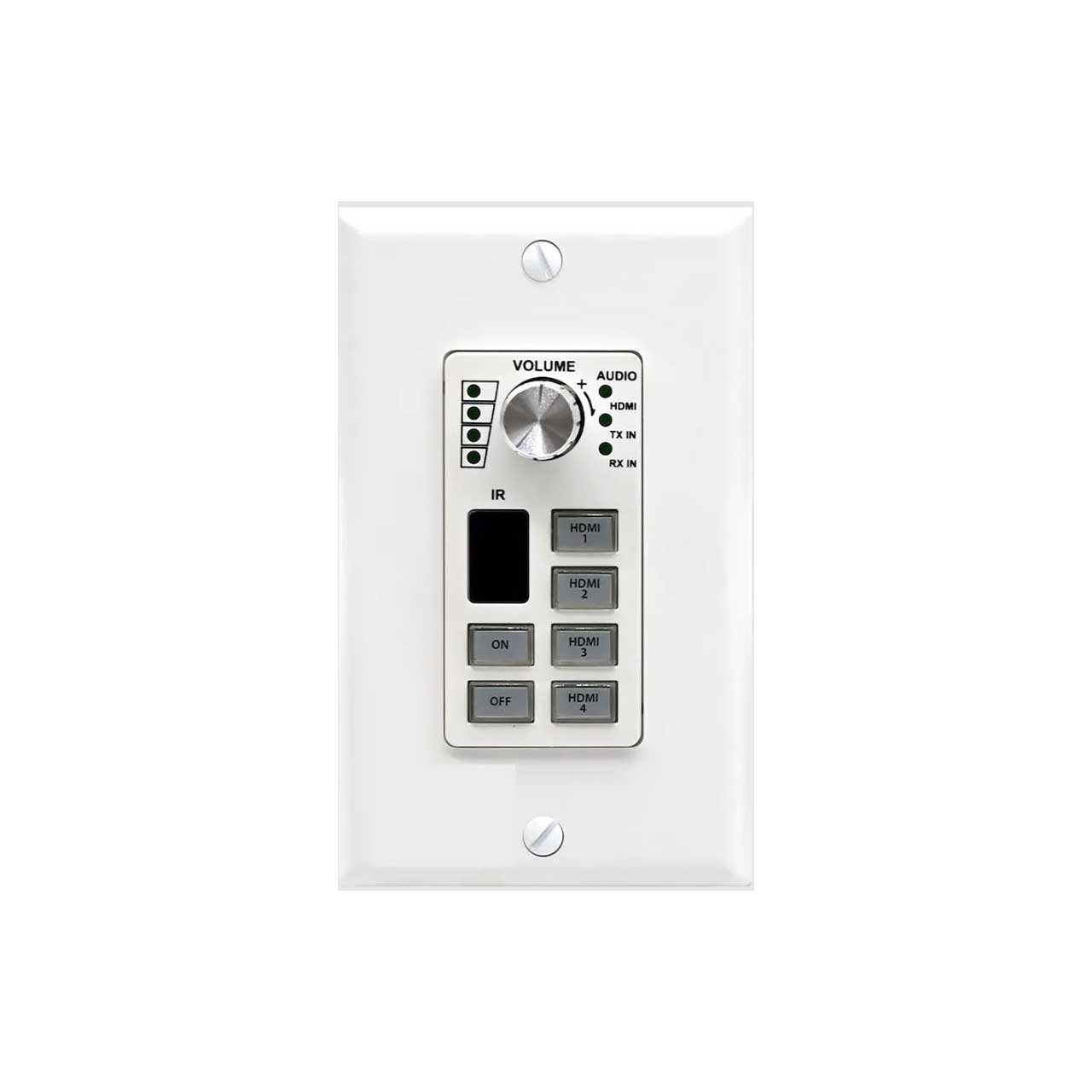

        Control Panel Input/Output Ports
      • 1x Volume Control Knob; 1x IR Sensor; 6 x Button; 1x RJ 45

        Input Signal Types
      • Transmitter: HDMI with 4K@60Hz YUV 4:2:0, HDCP 2.2
      • Receiver: HDMI with 4K@60Hz YUV 4:4:4, HDCP 2.2

        Input Resolution Supported
      • HDMI IN on Transmitter
        VESA: 800x600 (8), 1024x768 (8), 1280x768 (8), 1280x800 (8), 1280 x960 (8), 1280x1024 (8), 1360x768 (8), 1366x768 (8), 1440x900 (8), 1600x900 (8), 1600x1200 (8), 1680x1050 (8), 1920x1200 (8)
        SMPTE: 1280x720P (6,7,8), 1920x1080P (6,7,8) , 3840x2160 (2,3,5,8*), 4096x2160 (2,3,5,8*)
        1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, * = 4:2:0
      • HDMI IN on Receiver:
        VESA: 800x600 (8), 1024x768 (8), 1280x768 (8), 1280x800 (8), 1280x960 (8), 1280x1024 (8), 1360x768 (8), 1366x768 (8), 1440x900 (8), 1600x900 (8), 1600x1200 (8), 1680x1050 (8), 1920x1200 (8)
        SMPTE: 1280x720P (6,7,8), 1920x1080P (6,7,8), 3840x2160 (2,3,5,8), 4096x2160 (2,3,5,8).
        1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz

      • Output Signal Type: HDMI with 4K@60Hz YUV 4:4:4, HDCP 2.2
      • Output Resolution Supported: VESA
      • Audio Format: HDMI IN/OUT Stereo, All Audio In & Mic/Line IN: Stereo, Audio Out & 4Ω/8Ω Speaker Out: Stereo, 70v Speaker Out:Mono
      • Maximum Data Rate: HDMI IN, HDBT OUT on transmitter & HDBT IN on receiver: 10.2 Gbps
      • Control Method: Control Panel; Button on Transmitter
      • LAN Control (Web UI/Telnet): RS232
      • Operating Temperature: 0°C to 45°C (32°F to 113°F)
      • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
      • Humidity: 10% to 90%, non-condensing
      • ESD Protection: Human-body Model: ±8kV (Air-gap discharge)/, ±4kV (Contact discharge)
      • Power Supply: DC 24V 5A
      • Power Consumption (Max): 81W

        Dimensions
      • Transmitter: 3.5" x 4.16" x 1.69"
      • Receiver: 8.46" x 1.65" x 6.31"
      • Control Panel: 1.77" x 4.16" x 1.13"

        Weight
      • Transmitter: 0.66lb
      • Receiver: 3.15lb
      • Control Panel: 0.35lb

        Distances/Outputs
      • Cat 5e: 100m/330 ft - Up to 1080P@60Hz 36bpp 90m/295ft - 1080P@60Hz 48bpp
      • Cat 6/6a/7: 100m/330ft - 1080P@60Hz 3D - 4K@30Hz 4:4:4 24bpp - 4K@60Hz 4:2:0 24bpp
      • HDMI: Input: 15m/50ft / Output: 10m/33ft - 1080P@60Hz 24bpp, Input/Output: 10m/33ft - 4K@30Hz 4:4:4 24bpp - 4K@60Hz 4:2:0 24bpp, Input: 5m/16ft/Output: 3m/10ft - 4K@60Hz 4:4:4 24bpp

    • Item Includes:

      • Receiver
      • 1x Receiver
      • 1x DC 24V 5A Power Adapter
      • 1x AC Cables with US Pins
      • 1x IR Emitter
      • 2x Phoenix Male Connectors (3.5mm, 2 Pins)
      • 4x Phoenix Male Connectors (3.5mm, 3 Pins)
      • 1x Phoenix Male Connector (5.08mm, 2 Pins)
      • 1x Phoenix Male Connector (5.08mm, 4 Pins)
      • 2x Mounting Brackets
      • 4x Mounting Screws
      • 4x Rubber Feet

        Wall Plate Transmitter
      • 1x Transmitter
      • 1x 2-Gang US Plastic Decora Plates, White
      • 4x #6-32*20mm Screws, Silver
      • 4x #6-32*7mm Screws, White

        Control Panel
      • 1x Control Panel
      • 1x 1-Gang US Plastic Decora Plates, White
      • 2x #6-32*20mm Screws, Silver
      • 2x #6-32*7mm Screws, White
      • 1x Sheet of pre-printed button labels
