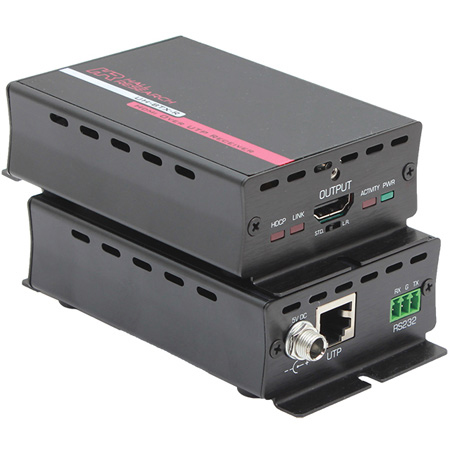

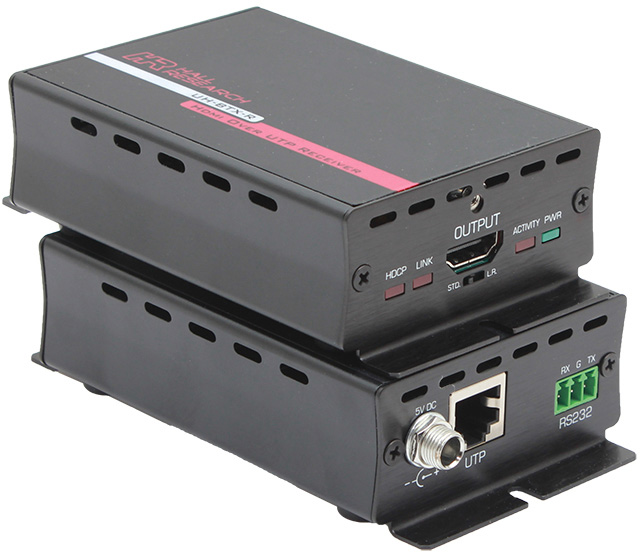

Hall Technologies UH-BTX-R HDMI over UTP Receiver with HDBaseT Extends HDMI or DVI over Single Cat 5e/6 up to 330 Feet

Item #: HRT-UH-BTX-R MFG #: UH-BTX-R

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$326.70

Our Price:

$310.37

Availability: More on the Way
iAvailability Description Popup


    UH-BTX-R - Overview

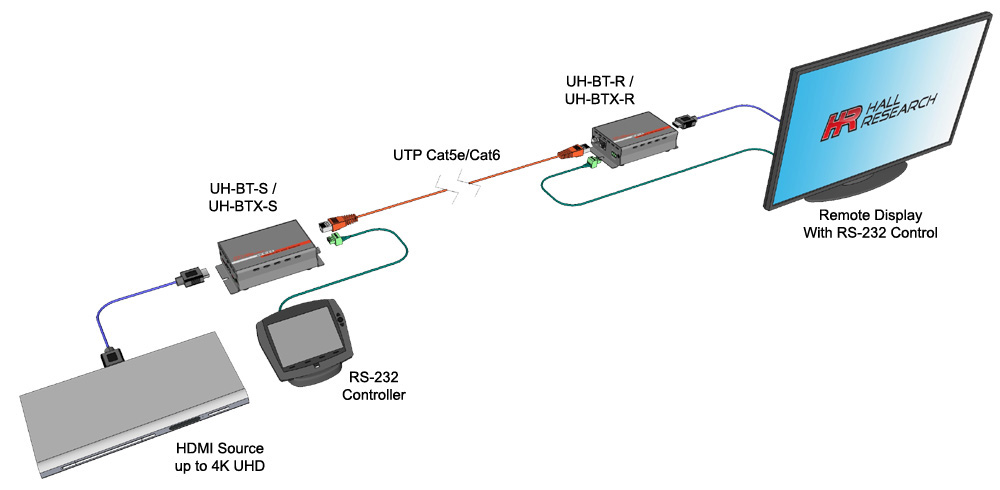

    The Hall Technologies UH-BT and UH-BTX are a family of HDBaseT™ compliant Senders and Receivers used to extend uncompressed HDMI video and RS-232 control signals up to 230 ft (-BT models) or 328 ft (-BTX models) over a single CAT5e/CAT6 UTP cable. The extenders are comprised of a Sender (-S) and a Receiver (-R) and extend all PC and HD resolutions without compression, up to 4K UHD.

    Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps.

    Notes:

  • The UH-BT and UH-BTX Senders and Receivers are compatible with each other; however the maximum distance achievable is dictated by the lower of the two - 230 ft / 70 m.
  • If the Category cable is to be run adjacent to or near interfering electrical sources such as ballasts, generators, motors etc., then Shielded Twisted Pair (STP) cabling is highly recommended.
  • UH-BTX-R - Recommended Accessories
