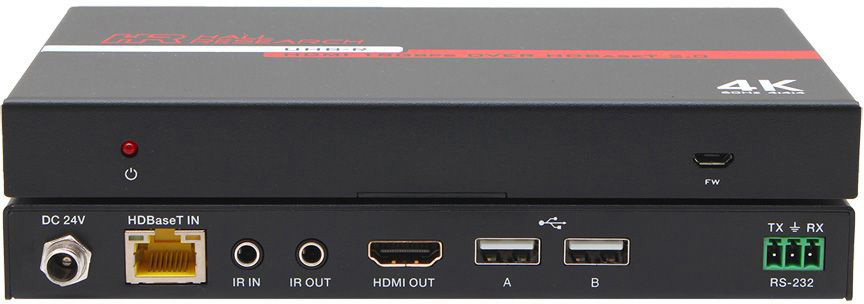

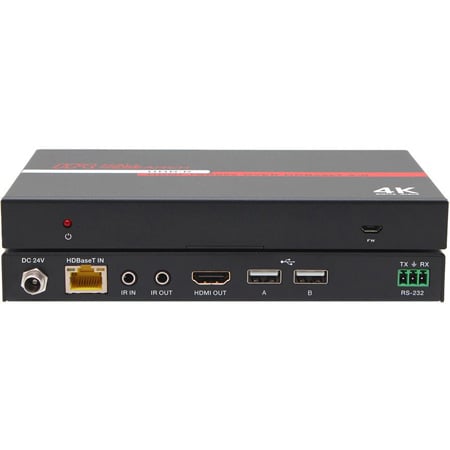

Hall Technologies UHB-R VGA & HDMI Auto-Switching Wall-Plate with HDBaseT Receiver is comprised of a 2-gang wall plate transmitter together with a low profile Receiver. The wall plate provides auto-switching VGA and HDMI inputs as well as a USB port for connection to a Host computer. The system uses HDBaseT 2.0 technology for superior data integrity and reliable operation. HDMI input supports 4K/60 4:4:4 HDR with upto 18G bandwidth. VGA and its associates Audio inputs are converted to HDMI and scaled to be displayed on any TV or projector.

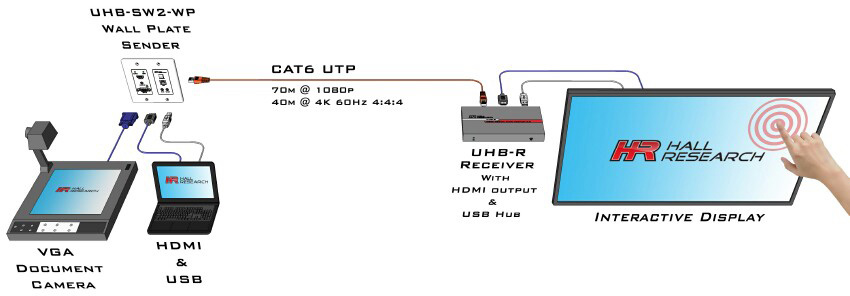

The UHB-R can extend the signals over a single CAT6 cable to a distance of 120 ft for 4K@60Hz or 220ft for 1080p video. USB and RS-232 control signals are also extended. For convenience the Receiver provides power to the wall plate via the CAT6 cable, and it also provides two USB ports for connection of any USB 1.1 or 2.0 devices. Interactive touchscreen displays, memory devices, keyboard/mouse, and webcams can be connected to the Receiver.
