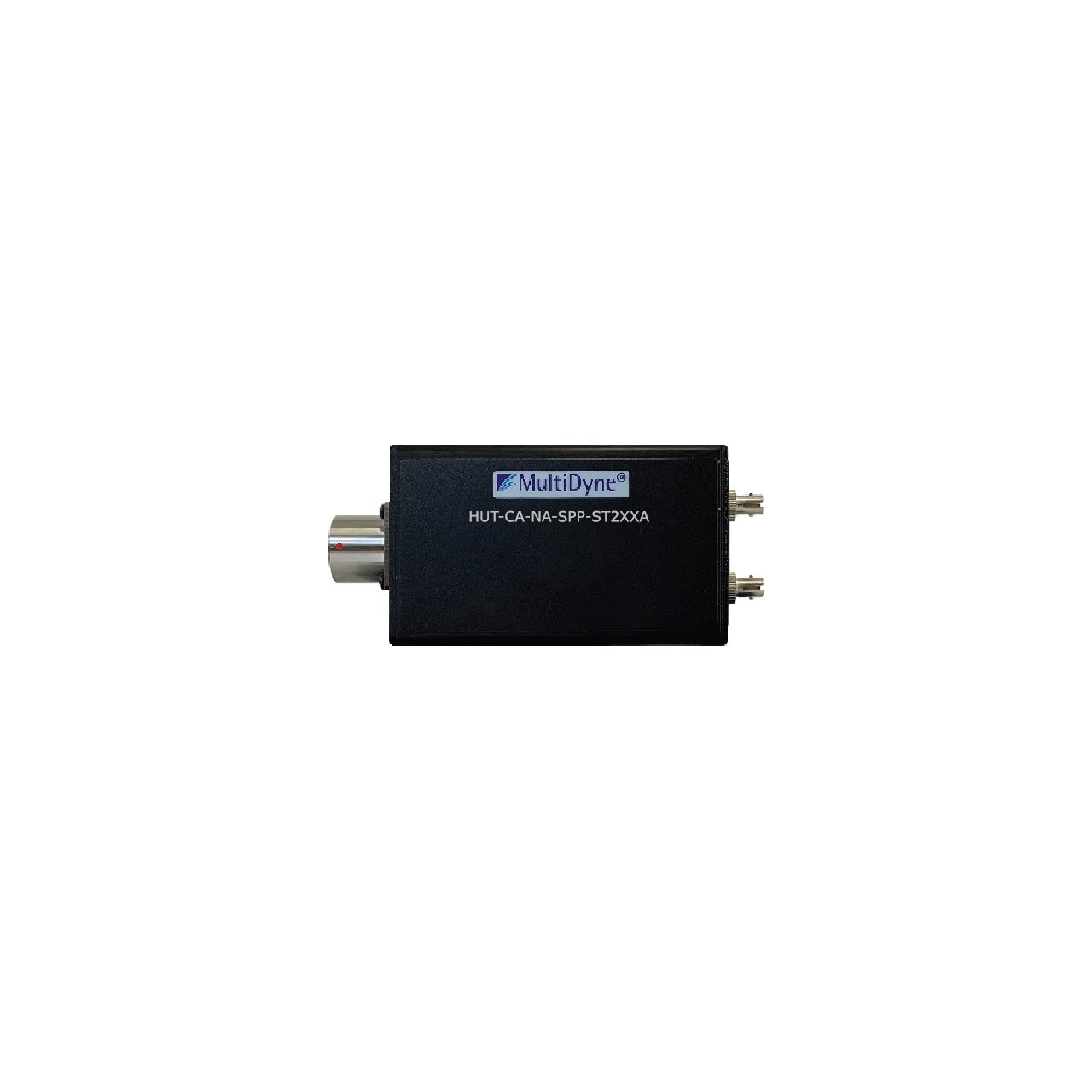

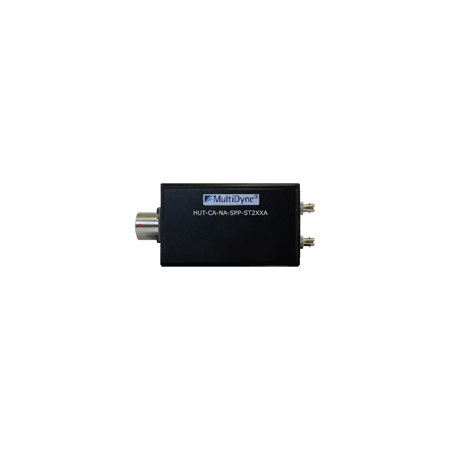

Multidyne HUT-CA-NA-SPP-ST2XXA Passive Camera Side SMPTE Breakout Adaptor / Portable / 2 Singlemode Fibers


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    HUT-CA-NA-SPP-ST2XXA - Overview

    Multidyne HUT-CA-NA-SPP-ST2XXA HUT system frees camera chains from the limitations of hybrid copper and/or fiber cabling permitting cameras to be separated from their CCUs by distances of over 10km using inexpensive, conventional single mode fiber. This has many advantages over SMPTE hybrid cable including: Eliminating RF, EMI and grounding issues, Faster set and strike times saves time and money, Reduced weight makes for lighter OB trucks, B-units and cable shipments

    Connect Anywhere Easily
    The plug and play system allows camera chains to connect via a facility's fiber infrastructure or on tactical fiber cable in the field using industry-standard connectors, such as STs, LCs, SCs, or OpticalCON. The HUT system works by "spoofing" (or "tricking") the camera and CCU into seeing a physical copper connection between them when connected only by single mode fiber cable.

    Local Or Remote Power
    After a long run of single mode fiber, HUT-enabled camera systems can be configured in one of two ways: Power the camera with the HUT-CP over 1Km of hybrid cable. Power is sufficient for hand held cameras or cameras installed in sleds with long lenses and other high-power accessories. Power the camera locally with 12VDC.

    Route And Multiplex Cameras
    Once the hybrid cable is removed, a camera chain can be easily routed through optical routers, such as the LightningSwitch or EOS-5000. Use MultiDynes FiberSaver systems to multiplex up to nine cameras onto just one strand of single mode fiber.

    Passive Or Active Optics
    While typically passive to the camera chain optics, the HUT system is also available with active optics, that can be used to: Multiplex a camera chain onto a single fiber strand, Boost the optical range, Remap the camera & CCU optics to different wavelengths or extended distances of up to 80km. In addition to the below example, signals can be configured to run in either direction on the fiber.

    Remote Broadcasting
    Shared Control Rooms
    Campus Facilities
    Arenas and Stadiums

    • Features:

      • SMPTE Standard
      • Operate Cameras on Plain Single Mode Fiber
      • Take Advantage of Installed Fiber Backbones
      • Extend Distance Without Sacrificing Performance
      • Plug & Play Operation
      • Carry Less Hybrid Cable
      • Choice of Optical Connectors
      • Choice of Hybrid Connectors
      • Can Provide Power for Cameras Up to 1km
      • Supports Camera Chains from Sony, Ikegami, Hitachi, Panasonic & Grass Valley
      • Optional Optical Repeating/ Remapping
      • Rugged Design
      • Designed and Manufactured in NeYork
      • Optional Remote Camera Shut-Of
    • Specifications:

      • Electrical: IEC 320 (3-pin)
      • Hybrid Optical: SMPTE 304M, Fischer FOH2, Tajimi OPS, OpticalCON
      • Optical Only: ST, SC, SC/APC, MX, OpticalCON
      • HUT-CP Input Voltage: 110-240 VAC
      • Output Max Load: up to 260W
      • Power Consumption: 25W (standby)
      • Temperature Range: -25°C to +70°C
      • Humidity Range: 0 to 95% non-condensing
      • Dimensions (LxWxH), Weight: 7 x 2.5 x 2 inches, 0.7 lb.
    • Item Includes:

      • 1x Multidyne HUT-CA-NA-SPP-ST2XXA Passive Camera Side SMPTE Breakout Adaptor / Portable / 2 Singlemode Fibers
