    FS-900BS1SCAM3 - Overview

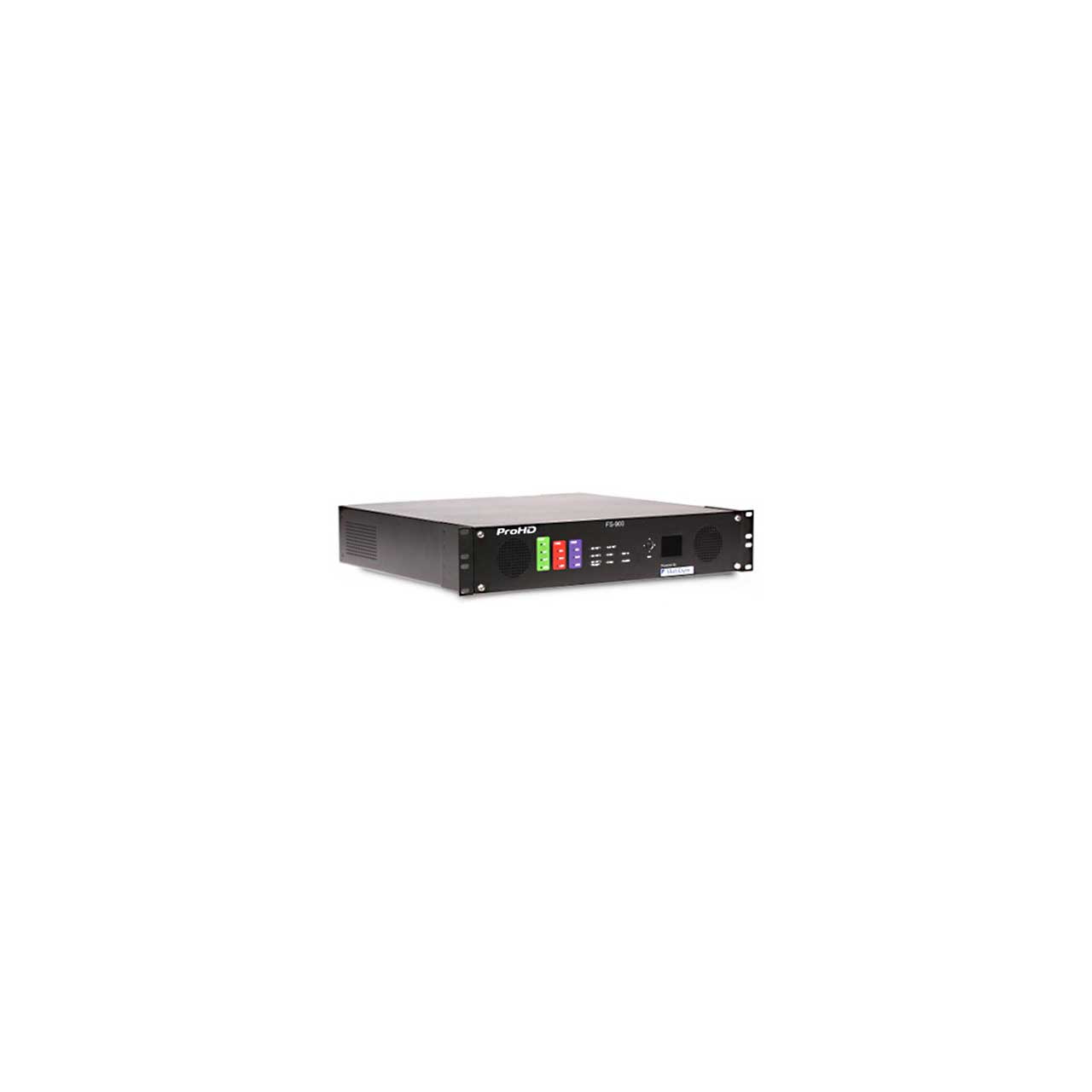

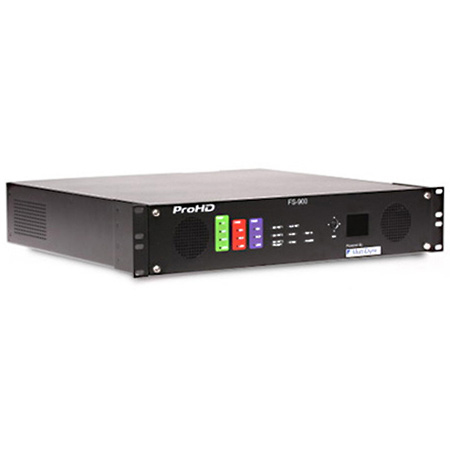

    The Multidyne FS-900 Fiber System from JVC offers bi-directional 3G-SDI 1080p/60 video feed-and-return for up to three JVC GY-HM890 camcorders using SMPTE-304M fiber cable and a single base station. Control, audio, sync, and intercom are also transmitted between camera and base station. The FS-900 base station has built-in gigabit Ethernet that works with the GY-HM890's streaming capabilities to provide video-over-IP transmission as well. Three camera adapters and one base are included in the system (cameras are available separately).

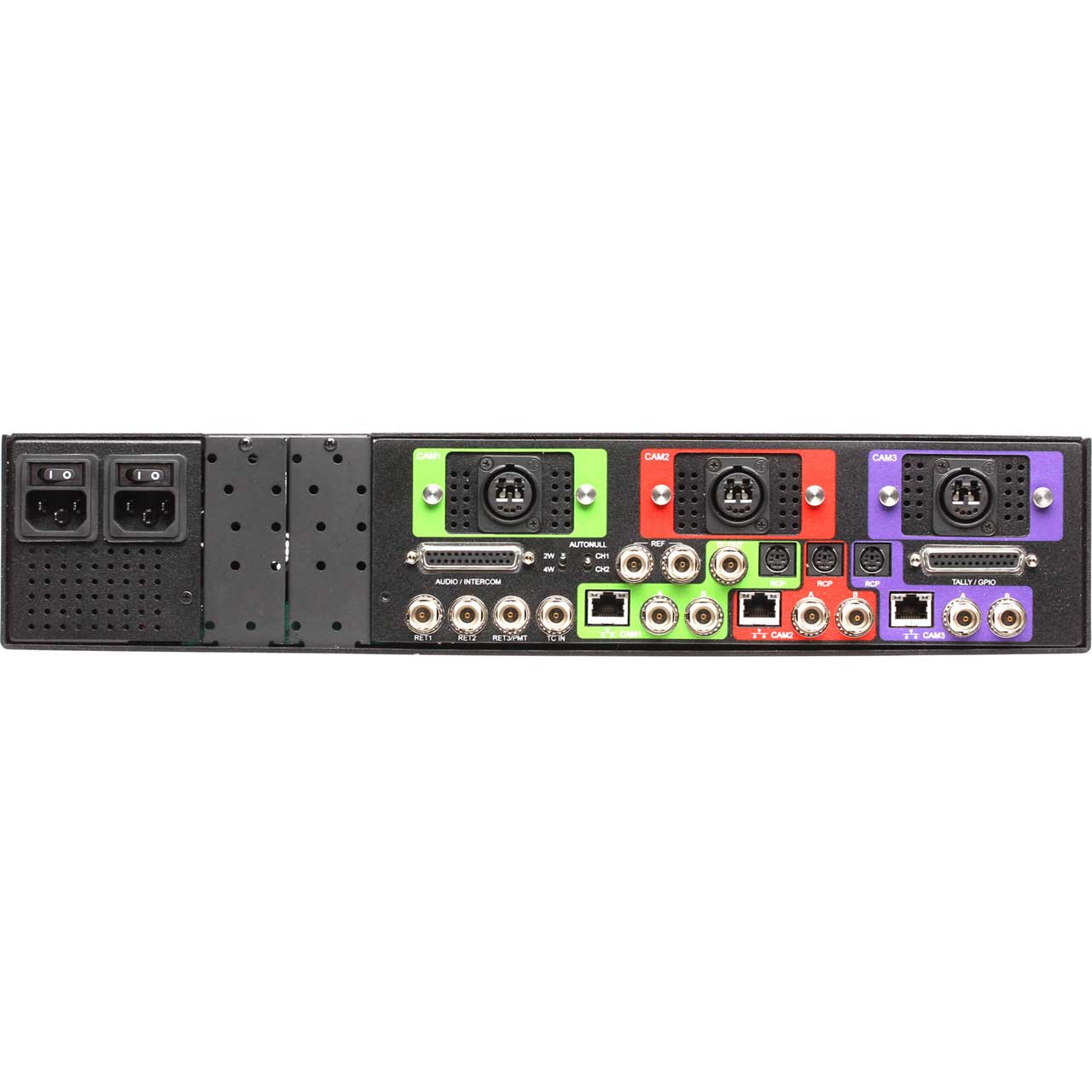

    The FS-900 base station is designed to integrate with existing systems, providing two HD/SDI outputs with return SDI and VBS connections (for analog signals), audio (RTS TW intercom module) and sync/control functions including bi-level /tri-level sync, teleprompter input, time code, GPI signals, and remote camera control input. The camera modules attach directly to the camera backs using a 68-pin interface, eliminating the need for external cable connectors. The base's redundant power supply offers a maximum of 150W for each camera and its accessories.

    • Features:

      • SMPTE-304M Transmission to GY-HM890
      • Multiple 3G-SDI 1080p/60 Inputs/Outputs
      • One Base Station Supports Three Cameras
      • Control, Audio, Sync & Intercom Signals
      • Video-over-IP & RC Via Gigabit Ethernet
      • Redundant Power for Up to Three Cameras
      • Both HDMI & SDI Teleprompter Feeds
      • Allows Use of SDI Monitors as Viewfinder
    • Specifications:

      • Video Interface: SDI (SMPTE ST259) HD-SDI (SMPTE ST292) 3G-SDI (SMPTE ST424)
      • Data Rate Data Rate: 270 Mbps, 1.5 Gbps, 3 Gbps
      • Input/Output Level and Impedance: 800 mVpp, 75 Ohms
      • Number of Channels: Camera to Base: Maximum supported by camera Base to Camera: 2
      • Level: Base to Camera: +4 dBu nominal, +24 dBu maximum
      • Connector: Camera Unit: DB9 Base Unit: DB25
