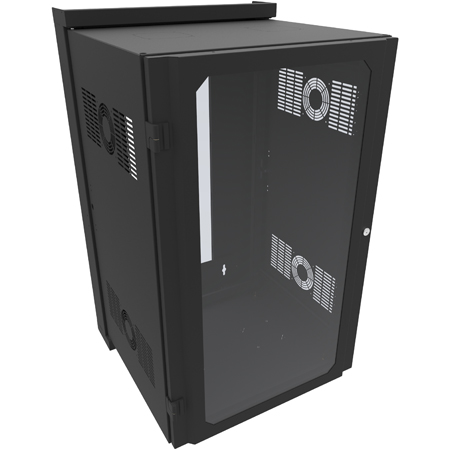

Hammond HWM2420U20WDBK 20RU 25 Inch Deep Swing Out Wall Cabinet with Acrylic Window Door for HWM Series

HWM2420U20WDBK - Overview

• Features:

  • Available in two (2) depths and four (4) heights.
  • All sizes include either vented 63% perforated front door or smoked window front door.
  • Includes one (1) pair of 10-32 threaded rack rails with support for additional optional rails (see accessory table).
  • Starter pack of SCREW1032-50 screws.
  • Center section features: Heavy duty spring-hinge pin for easy installation and removal. Sides that include two (2) vents and fan grill. Can be installed to swing from left-to-right or right-to-left.
  • Rear section features: The side of the rear section includes 2.50" and 2.00" knockouts. The top and bottom of the rear section includes 3.00" 2.00" 1.38" and 1.12" knockouts. Generous cable management lances located on the rear section as well as on mounting rails. Mounting points for outlet strips. Heavy duty keyhole for wall mounting. Large opening in rear for cable access.
  • Front locking door and center section keyed the same (optional key available).
  • 14-gauge welded rear section; 16-gauge center section and doors.
  • EIA compliant adjustable depth mounting rails.
  • Grounding lugs located on top and bottom of the door, center and rear sections.
  • UL Listed 2416 load rated for up to 350 lbs (158 kg). Static Load tested to 1,400 lbs (635 kg).
  • Rugged sand-textured black powder paint which reduces the look of fingerprints and marks.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.


• Specifications:

  • Size H x W x D: 41.75 in x 24.68 in x 25.7 in
  • Shipping Weight: 148 lbs (67.13 kg)
  • Rack Units: 20
  • Rack Type: Wall Mount
  • Paint Color: Black
  • Rail Type: Tapped 10-32


• Item Includes:

  • 1x Hammond HWM2420U20WDBK HWM 20RU with Acrylic Window Door


• GTIN:

  0623980578996
