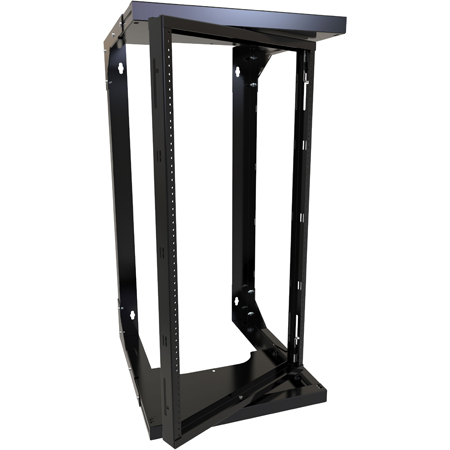

Hammond HWMR1920UBK 20RU Pivot Adjustable Depth Wall Rack

HWMR1920UBK - Overview

• Features:

  • Braces and rack rails are constructed of 12-gauge steel, while the other body components are constructed of 16-gauge steel.
  • EIA compliant 10-32 tapped rails with 19" mounting and rack unit indicators.
  • Rack frame swings (in both directions) at center providing convenient equipment access without exceeding the rack footprint.
  • Adjustable total variable depth from 18" to 24" using slots for easy set-up and adjusting.
  • Variable usable depth from 15.1" to 21.1"
  • Top and Bottom rack units have a usable depth from 12.4" to 18.4".
  • Three (3) spring pin positions allow for simplified equipment maintenance.
  • Side and rear cable access with multiple tie points for cable management.
  • Finished in smooth black powder paint.
  • Knockdown design ships unassembled for easy handling and shipping protection.
  • Tested to nearly double the suggested load rating of 220 lbs (100 kg).
  • TAA Compliant.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.


• Specifications:

  • Size H x W x D: 40.5 in x 20 in x 24 in
  • Shipping Weight: 52 lbs (23.59 kg)
  • Rack Units: 20
  • Rack Type: Wall Mount
  • Paint Color: Black
  • Rail Type: Tapped 10-32


• Item Includes:

  • 1x Hammond HWMR1920RUBK 20RU Pivot Adjustable Depth Wall Rack


• GTIN:

  0623980522562
