EL5353 - Overview

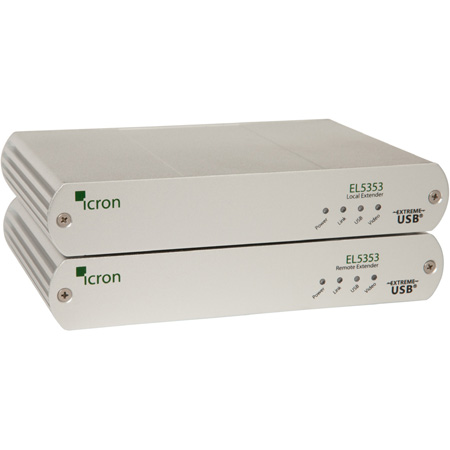

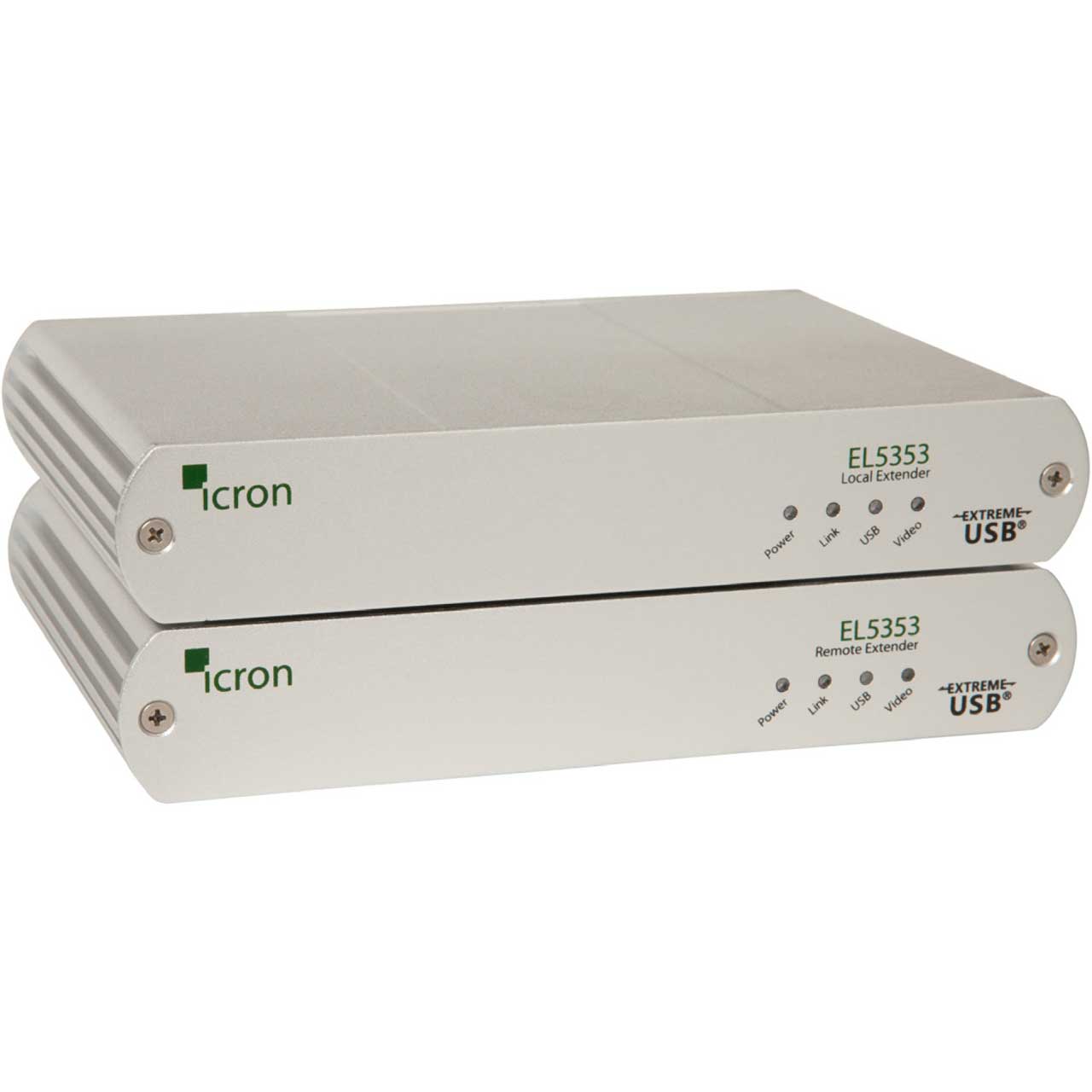

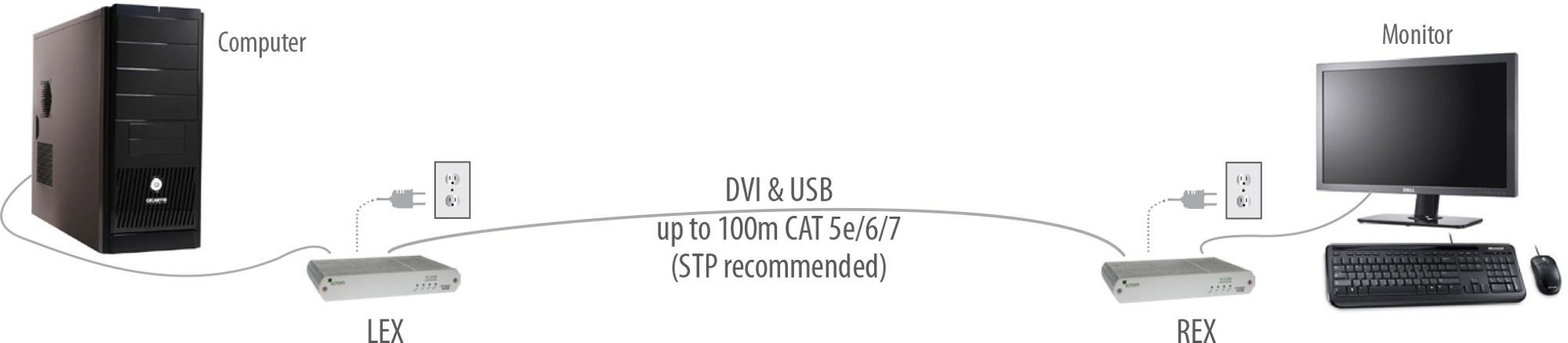

The Icron EL5353 KVM Extender System features the latest and most robust HD video and USB extension technology from Icron Technologies. The EL5353 lets you place a computer up to 100m (330 ft) away from a workstation using a single CAT 5e/6/7 cable. The system supports full HD video and USB 2.0, providing the ability to control keyboards, mice, flash drives, audio peripherals and other USB 2.0 and 1.1 devices.

EL5353 extends DVI uncompressed HD video, audio and USB 2.0 up to 100 meters. This KVM extender can be used in applications for proAV, interactive digital signage, medical and industrial environments. The video resolution is 1920 x 1200 with 24-bit color depth and it can support USB 2.0 throughput up to 40 Mbps. The video quality remains high even at the full 100-meter distance.

Apllications:
Professional Audio and Visual
Security
Medical
Interactive Digital Signage
Industrial environments where the computer must be remotely accessible

  • Features:

    • Point-to-point video and USB extension up to 100m over a single CAT 5e/6/7 cable
    • Full uncompressed 1920 x 1200 resolution HD video
    • 24-bit color depth
    • USB 2.0 throughput support up to 40 Mbps
    • ExtremeUSBr suite of features:
      Transparent USB extension
      True plug and play; no software drivers required
      Works with all major operating systems: Windows®, OS X®, and Linux®
    • Mounting Kit: allows units to be mounted to walls, desks or trays for 19" racks


  • Specifications:

    • Range
    • Direct Connect: Up to 100m (330 ft) over a single CAT 5e/6/7 cable

      Video
    • Resolution: High Definition 1920 x 1200
    • Color Depth: 24-bit color depth
    • Latency: Less than 1ms

      Speeds
    • USB 2.0: Up to 40 Mbps
    • USB 1.1: Up to 12 Mbps

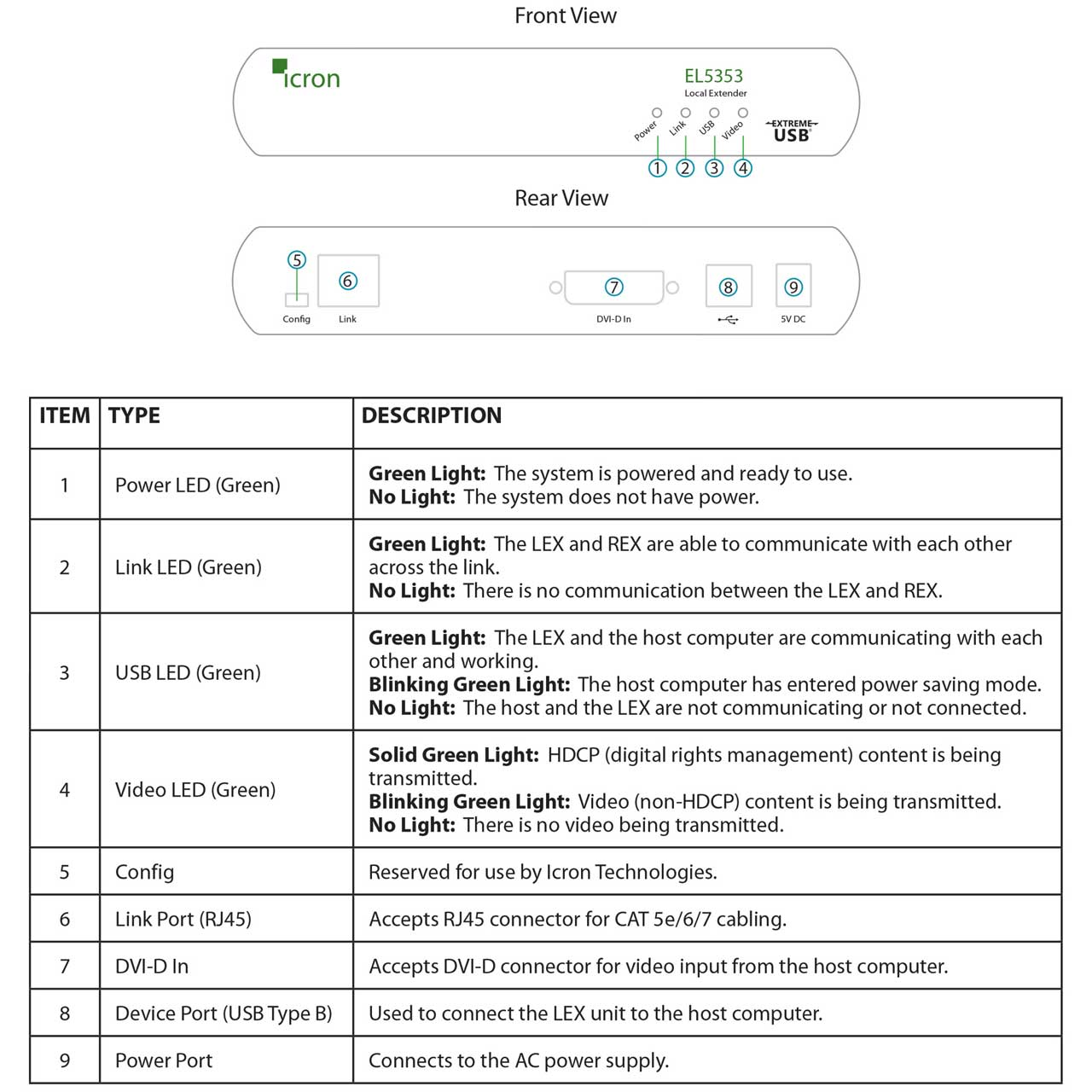

      LEX
    • Video Connector: 1x DVI
    • USB Connector: 1x USB Type B Receptacle
    • Link Connector: 1x RJ45
    • Dimensions: 112 x 175 x 30mm (4.4 x 6.9 x 1.2?)
    • Enclosure Material: Silver Anodized Aluminum
    • Power Supply: 100-240V AC input, 5V DC output

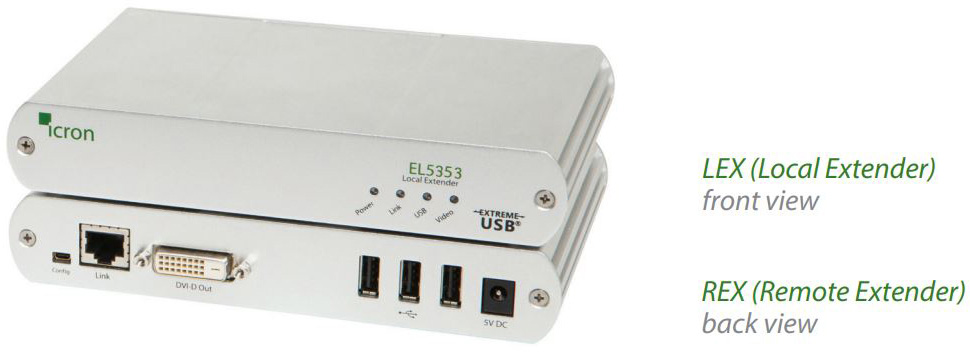

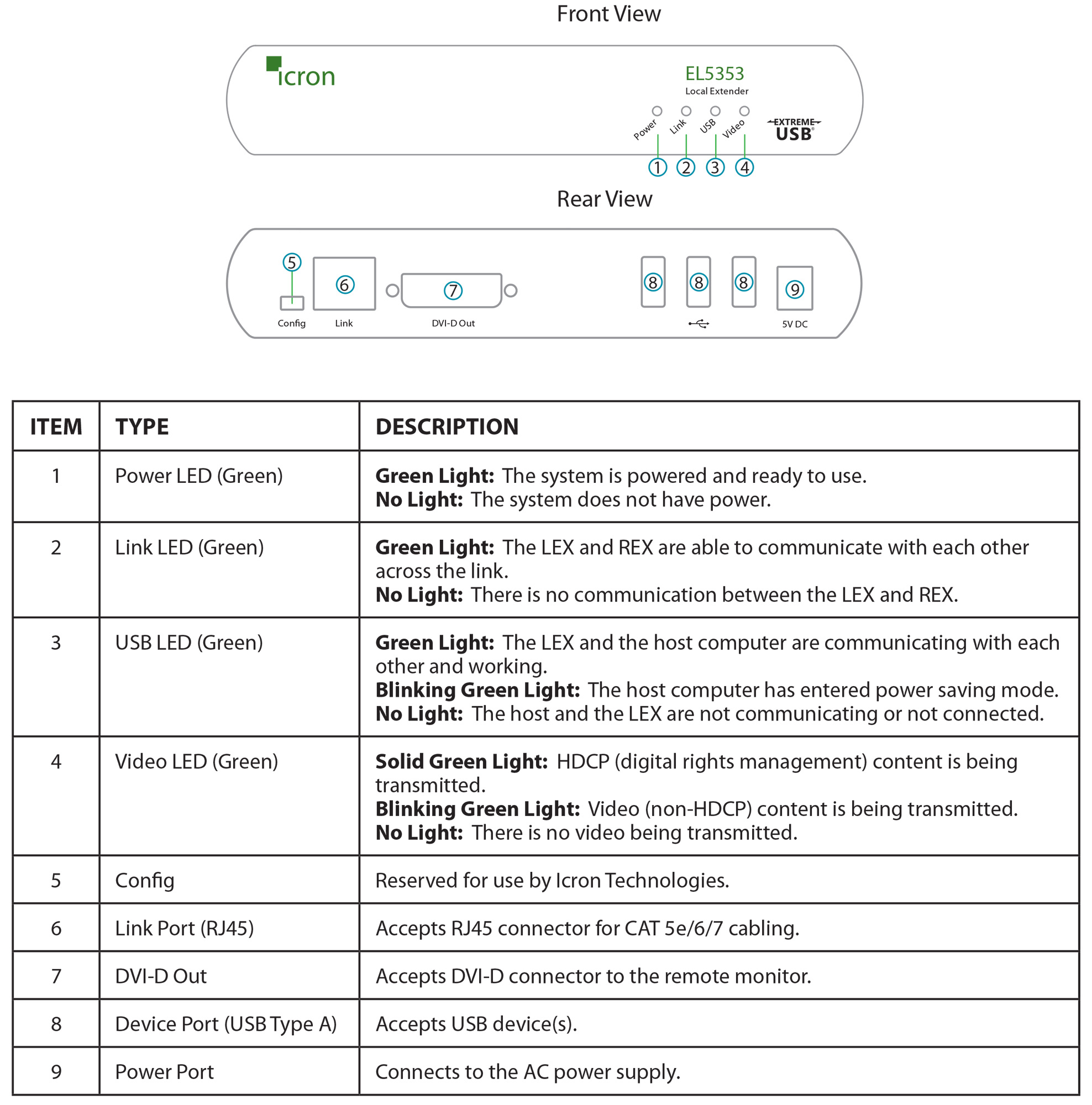

      REX
    • Video Connector: 1x DVI
    • USB Connectors: 3x USB Type A Receptacles
    • Link Connector: 1x RJ45
    • Dimensions: 112 x 175 x 30mm (4.4 x 6.9 x 1.2?)
    • Enclosure Material: Silver Anodized Aluminum
    • Available Current: 500mA for each USB port
    • Power Supply: 100-240V AC input, 5V DC output

      Environmental
    • Operating Temperature: 0° to 40°C (32° to 104°F)
    • Operating Humidity: +20% ~ 80% (non condensing)

      Compliance
    • EMC: FCC (Class A), CE (Class A), ICES-003
    • Environmental: RoHS2 (CE)


  • Warranty:

    • 2-year warranty
