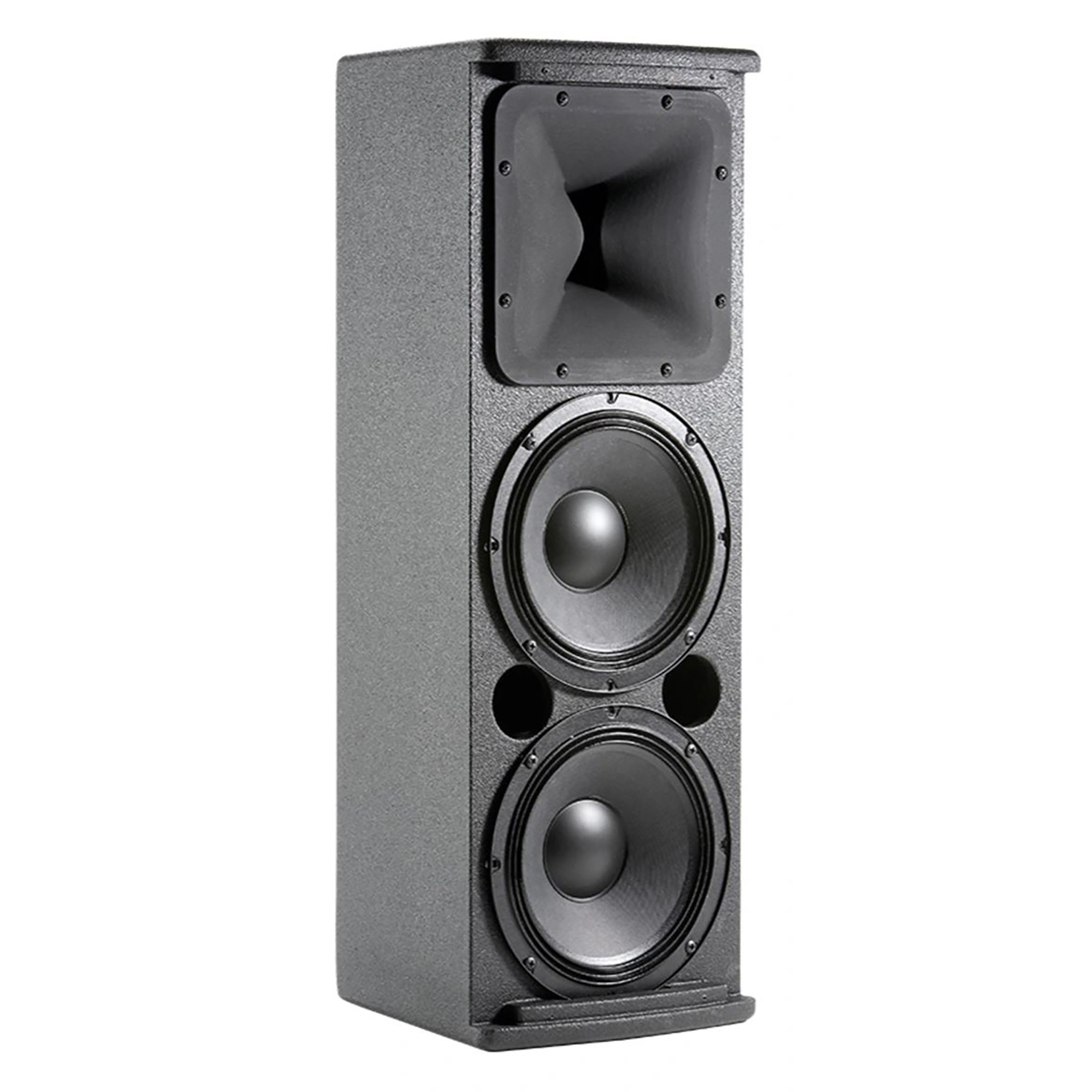

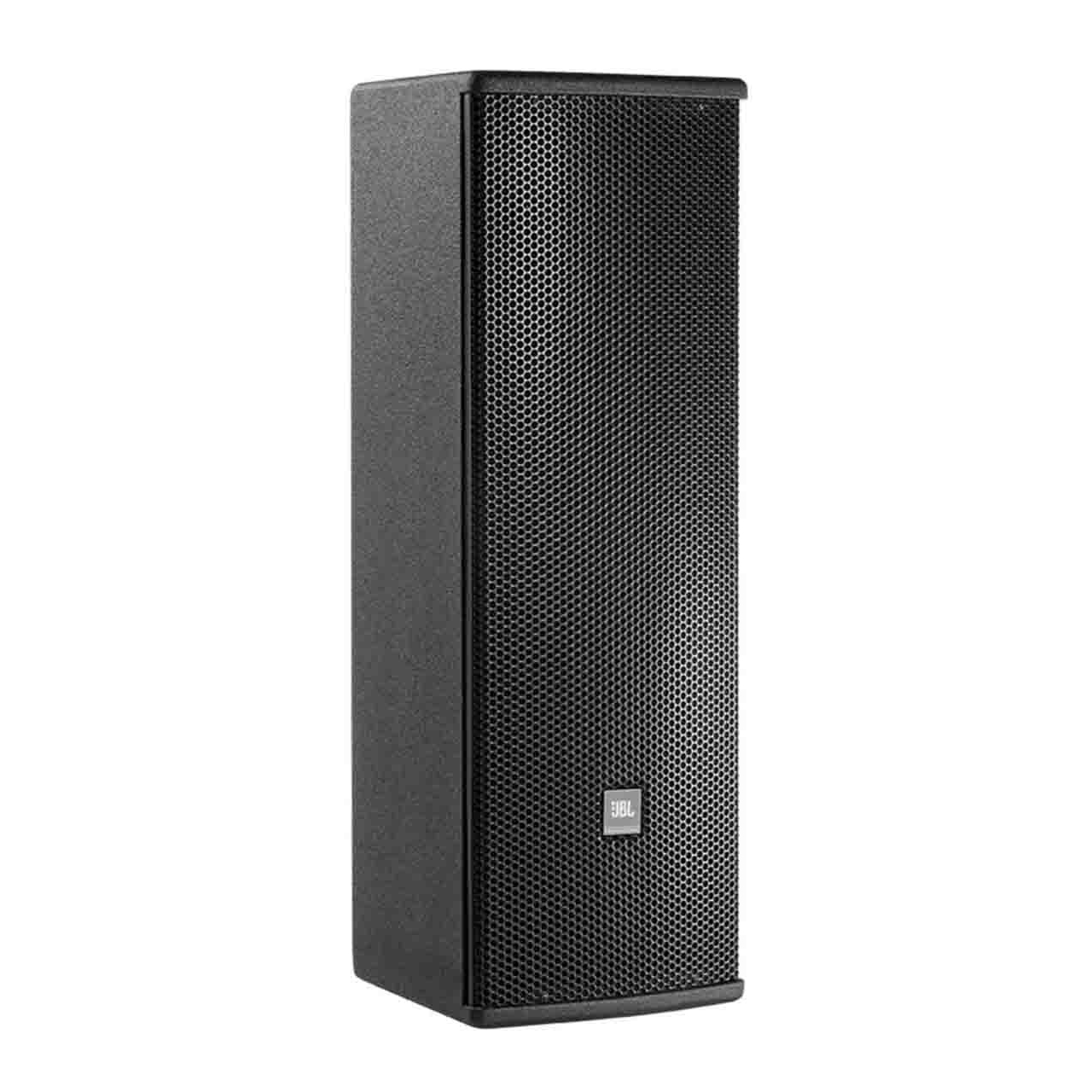

JBL AC28/95 Passive Compact 2-Way Loudspeaker with 2 x 8 Inch LF - 90 x 50 Degree Coverage

ITEM #: JBL-AC28-95 MFG #: AC28-95

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,930.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AC28-95 - Overview

Compact Dual 8-inch 2-way Loudspeaker with 90° x 60° Rotatable Horn

An extension of the industry-leading AE Series, the JBL AC28/95, part of the AE Compact family, consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The AC28 features 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.

Applications:
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues

  • Features:

    • 1" Exit Compression Driver with PT™ Waveguide
    • 8" (205mm) LF transducer
    • Compact enclosure
    • 750W Program
    • Dual Neutrik NL4 connectors plus screw terminal
    • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
    • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory

  • Specifications:

    • Frequency Range (-10dB): 53Hz - 20kHz
    • Frequency Response (±3dB): 65Hz - 20kHz
    • System Power Rating:
      - 700W (AES rated)
      - 375W/750W/1500W (Continuous/Program/Peak)(IEC rated)
    • Impedance:
    • Coverage Pattern:
      - /26: 120° x 60°
      - /95: 90° x 50°
    • Dimensions (HxWxD): 26.8" x 9.4" x 10.0" (679.5mm x 237.5mm x 254.0mm)
    • Net Weight (each): 40.9lbs (18.6kg)
    • Crossover Modes: Passive
    • Maximum SPL (1m): 120dB
    • System Sensitivity (1w @ 1m): 94dB SPL
    • LF Driver: 2x JBL 228J, 8" (205mm) SFG™ driver with 2.5" (64mm) edge wound voice coil
    • Nominal LF Driver Impedance:
    • HF Driver: 1x 2408H-1 1" (25mm) exit compression driver, 1.5" (38mm) voice coil
    • Enclosure: 12mm and 15mm exterior grade multi-ply hardwood plywood
    • Suspension Attachment:
      - 6x M8 points; 1 top, 3 bottom, 2 rear
      - 4x M8 rear for MultiMount® MM-120-BT
    • Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
