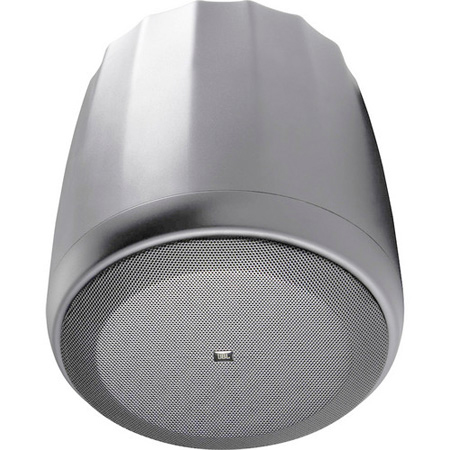

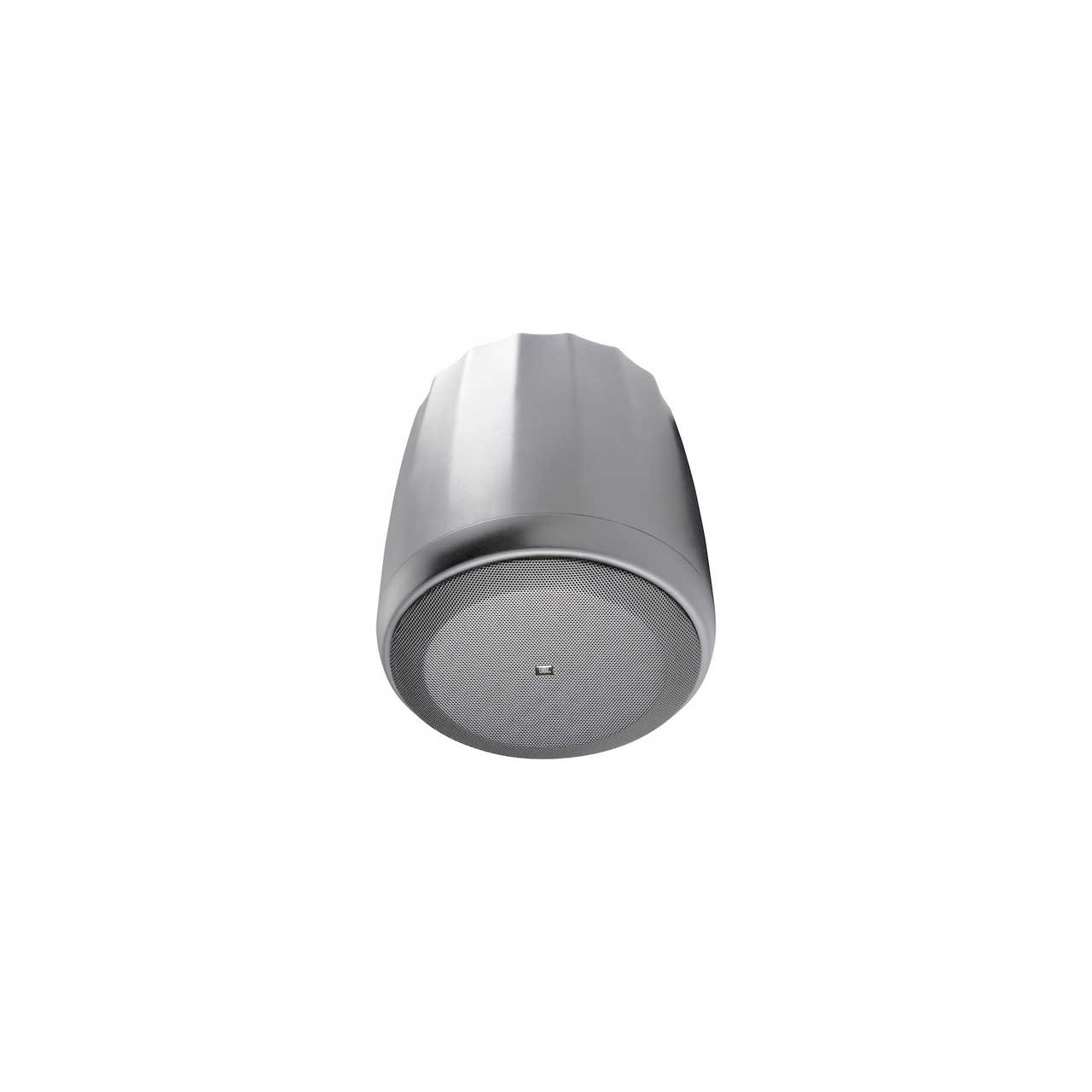

JBL C67HC/T Narrow-Coverage High Ceiling Pendant Loudspeaker w/RBI- White (PAIR)

ITEM #: JBL-C67HCT-WH MFG #: C67HC/T-WH

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$959.66

Our Price:

$798.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    C67HC/T-WH - Overview

    Control 67HC's well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics, such as convention centers, transit centers, exhibit venues and hotel atrium areas.

    • Features:

      • RBI Radiation Boundary Integrator Technology
      • Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
      • 6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
      • High 93 dB sensitivity
      • 75 Watts, 8 ohms and 60W multi-tap transformer
      • Black or white

    • Specifications:

      • Frequency Response (-10 dB) 75 Hz - 17 kHz
      • Frequency Range (±3 dB) 110 Hz - 16 kHz
      • Power Capacity 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
      • 150 Watts Continuous Program Power
      • Nominal Sensitivity 93 dB
      • Nominal Coverage Angle 75° (+15°/-20°)
      • Directivity (Q) 10.4
      • Directivity Index (DI) 9.8 dB
      • Rated Maximum SPL @ 1m 112 dB continuous pink noise, 118 dB peak
      • Rated Impedance 8 ohms
      • Transformer Taps 70V: 60W, 30W, 15W & 7.5W
      • 100V: 60W, 30W, 15W
      • Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
      • LF Driver 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround,
      • 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former HF Driver 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
      • Enclosure Material High impact polystyrene
      • Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable
      • for painting)
      • Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splashproof rating.
      • Termination Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
      • Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and GrippleT brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
      • Safety Agency Ratings Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Grippler-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
      • Dimensions 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
      • Net Weight (ea) 5.9 kg (13 lbs)
      • Shipping Weight (pair) 14.1 kg (31 lbs)
      • Included Accessories Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
      • Optional Accessories MTC-PC60HC top panel / terminal cover
      • Colors Available in black or white (-WH). Paintable.

    • GTIN:

      0050036903882


    C67HC/T-WH - Required Accessories
