CBT 50LA-LS - Overview

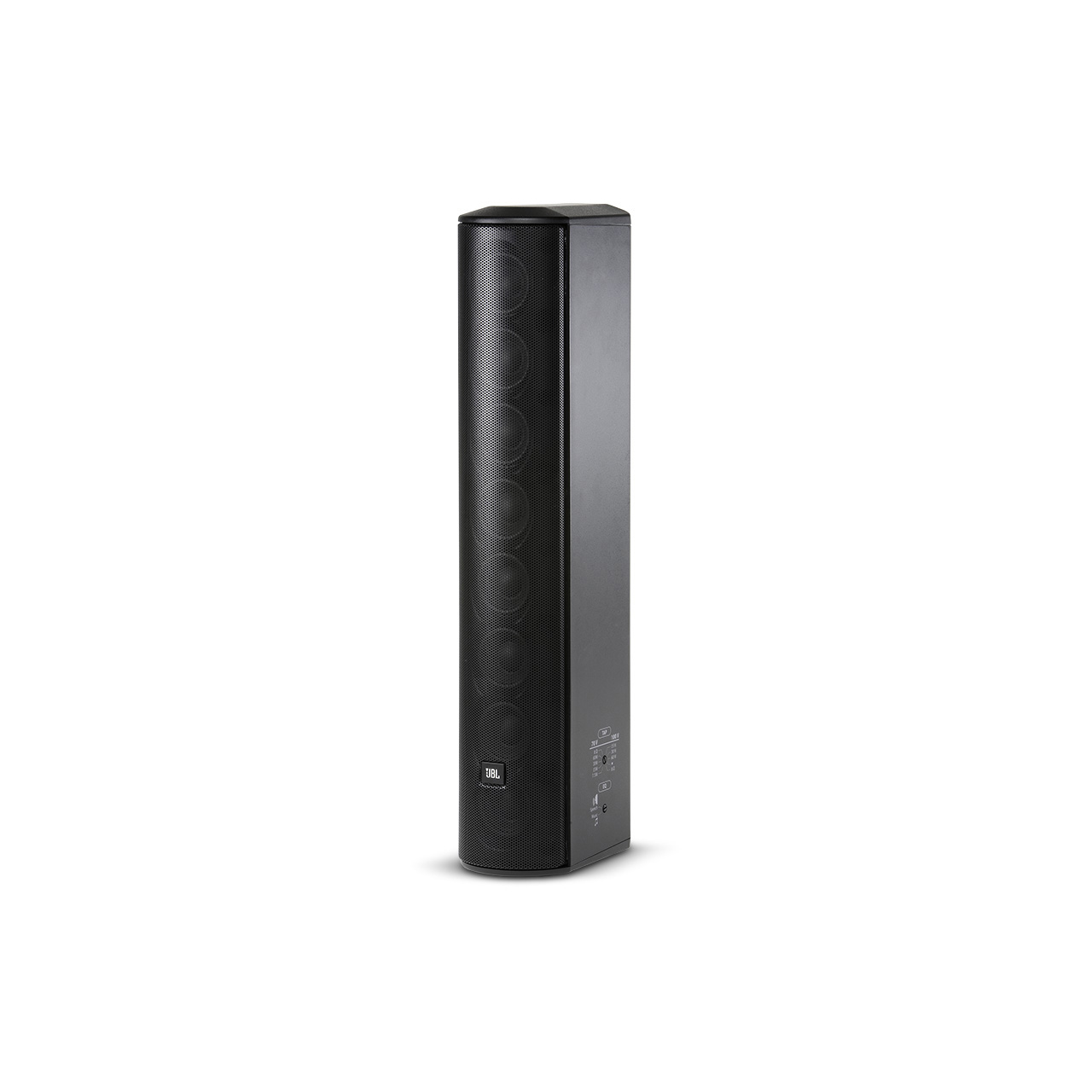

Line Array Column Loudspeaker with with Eight 2" (50mm) Drivers and EN54:24 Certification

The JBL CBT 50LA-LS, with Constant Beamwidth Technology, represents a breakthrough in pattern control, utilizing analog delay beamforming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers. This loudspeaker is EN 54-24 Compliant for life safety applications.

  • Features:

    • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
    • EN 54-24 Compliant for Life Safety Applications (when installed with included MTC-PC2 panel cover)
    • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
    • Dynamic SonicGuard overload protection
    • Built-in 70V/100V transformer, plus 8 ohm direct capability
    • Swivel (pan)/tilt wall bracket included


  • Specifications:

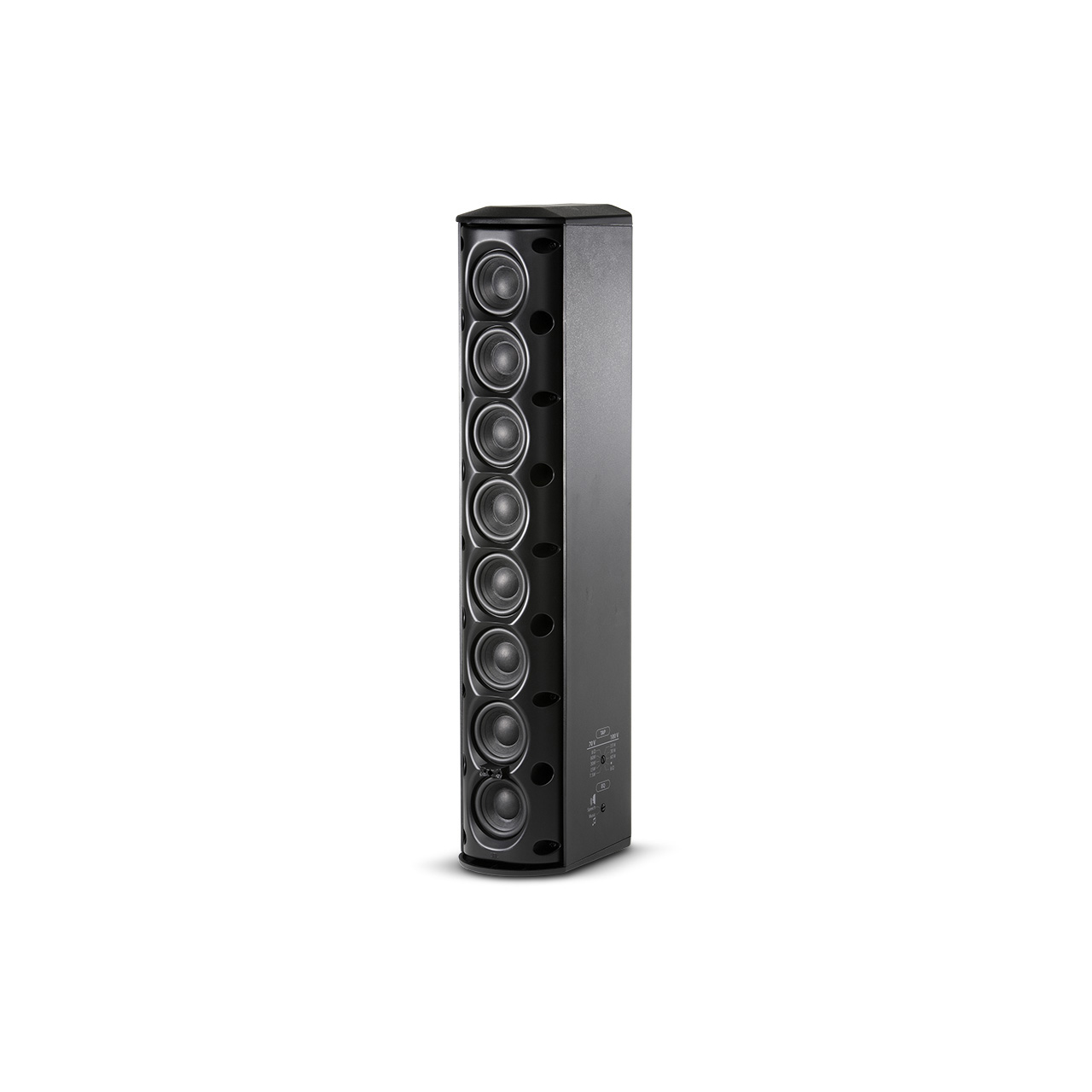

    • Components: Eight 50 mm (2 in) Full-Range
    • Frequency Range (-10 dB): 120 Hz - 20 kHz
    • Coverage Pattern:
      - Vertical: 20° (1.5 kHz - 16 kHz, ±10°)
      - Horizontal: 150° (ave, 1 kHz - 4 kHz, ±20°)
    • Coverage Angle:
      - Vertical: 4000Hz: 18° 2000 Hz: 32° 1000 Hz: 55° 500 Hz: 100°
      - Horizontal: 4000 Hz: 140° 2000 Hz: 210° 1000 Hz: 260° 500 Hz: 260°
    • Sensitivity (1W @ 1m):
      - 93 dB (speech mode, 2 kHz - 14 kHz); Sensitivity (1W @ 4m): S1 dB SPL (speech mode, 2 kHz - 14 kHz)
      - 89 dB (music mode, 300 Hz - 18 kHz); Sensitivity (1W @ 4m): 77 dB SPL (music mode, 300 Hz - 18 kHz)
    • Power Capacity: 150W (600W peak), 2 hrs (8 ohm setting): 100 W (400W peak), 100 hrs
    • Max SPL (1m):
      - Speech mode: 115 dB cont ave (121 peak); Maximum SPL (@ 4m): 103 dB cont ave (109 peak)
      - Music mode: 111 dB cont ave (117 peak); Maximum SPL (@ 4m): 99 dB cont ave (105 peak)
    • Nominal Impedance: 8 ohms (in bypass mode) - Taps are: 667 ohms (7.5W@70V; 15W@100V tap), 333 ohms (15W@70V; 30W@100V tap), 167 ohms (30W@70V; 60W@100V tap), 83 ohms (60W@70V; N/C@100V tap)

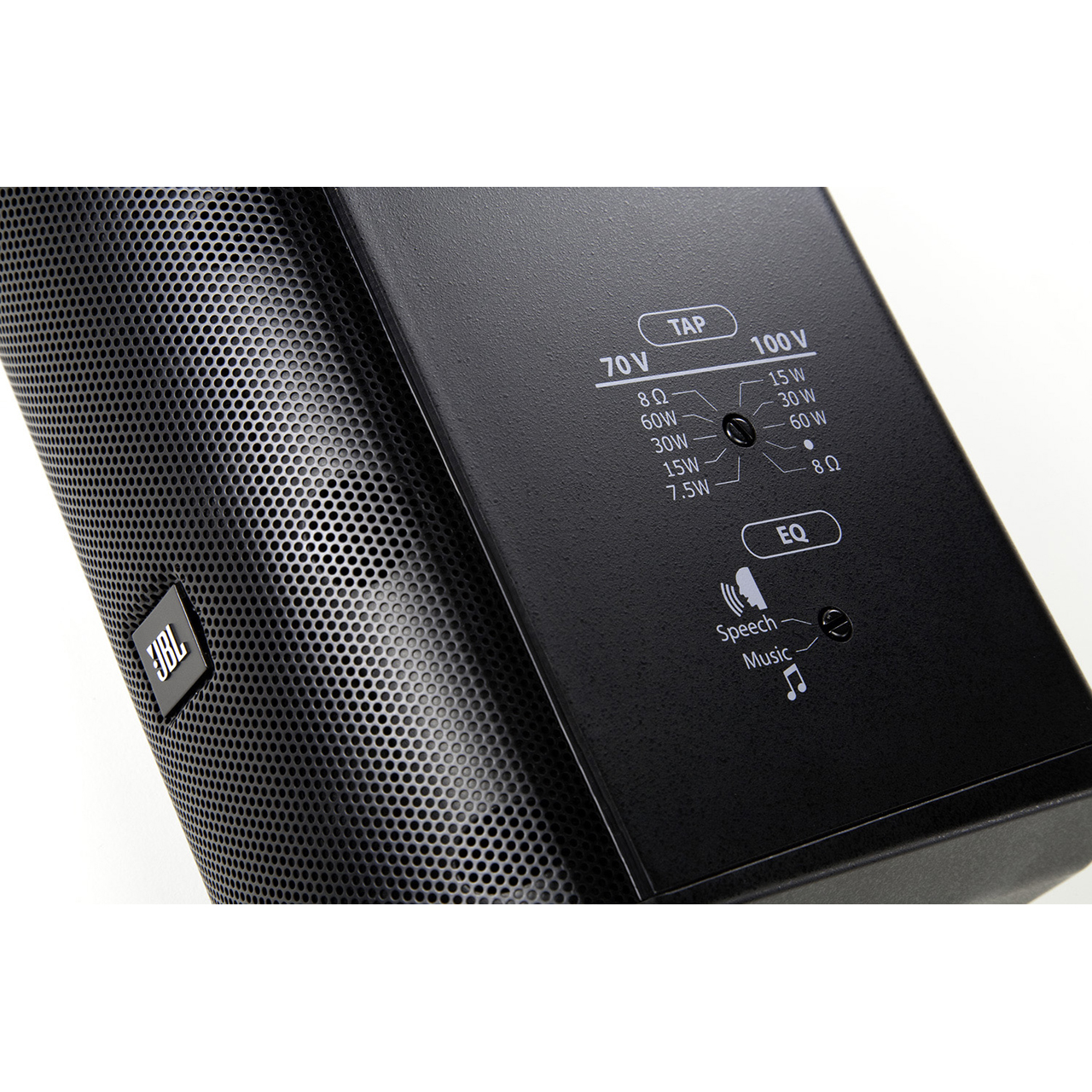

    • 70V/100V Transformer Taps: 60W, 30W, 15W, (7.5W at 70V only), and 8 thru, via switch
    • Enclosure: Fiberglass reinforced ABS cabinet (UL94+5VB and UL94+5VA flammability-rated), painted aluminum grille
    • Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
    • Color Black

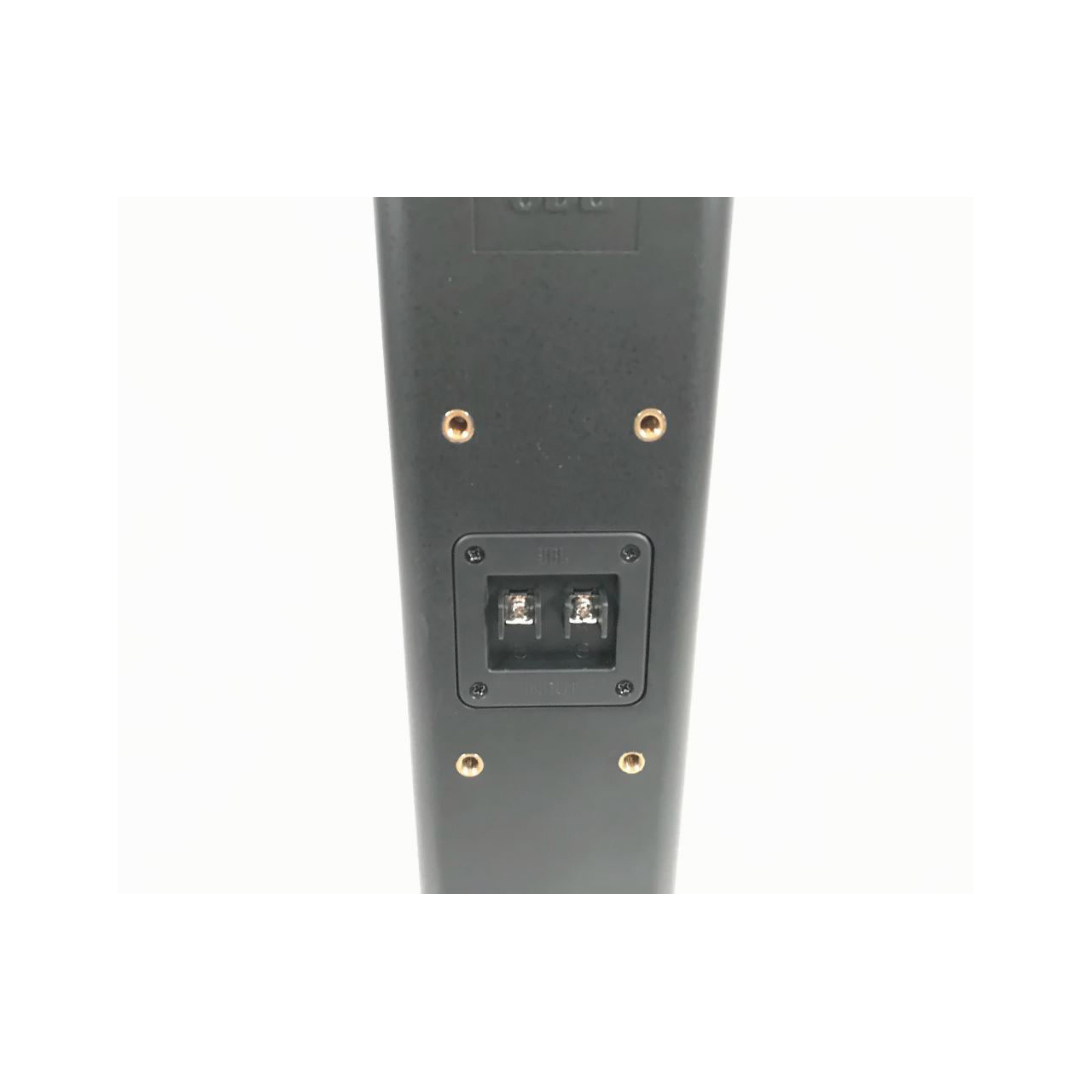

    • Insert Points: Ten M6 swivel (pan)/tilt insert points on back panel
    • Dimensions (HxWxD): 20.8" x 3.9" x 6.0" (528mm x 99mm x 153mm)
    • Net Weight: 9lbs (4.1kg)


  • Item Includes:

    • 1x JBL CBT 50LA-LS Line Array Column Loudspeaker
    • 1x Swivel/Tilt Wall Bracket
    • 1x MTC-PC2 Terminal Panel Cover


  • Warranty:

    • 1-Year Limited Warranty
