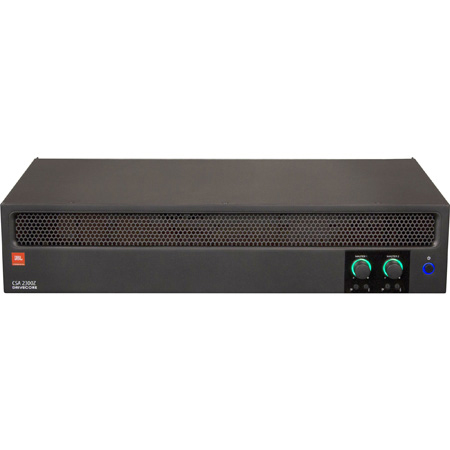

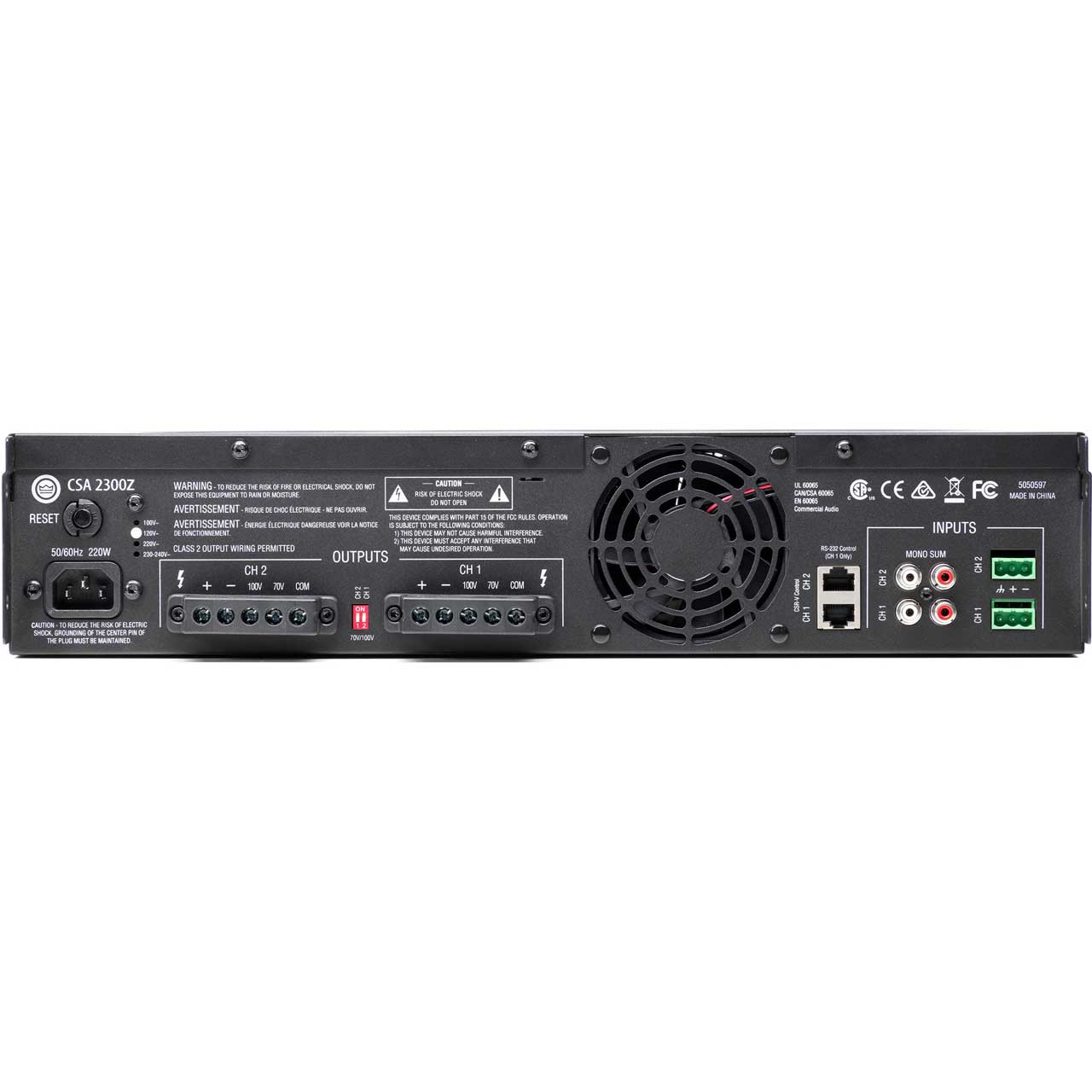

JBL CSA2300Z CSA 2300Z Dual-Channel 300W Amplifier

ITEM #: JBL-CSA2300Z MFG #: CSA2300Z

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,083.41

Our Price:

$871.00

Availability: In Stock
iAvailability Description Popup


    CSA2300Z - Overview

    By combining years of innovation, invention and insight from HARMAN brands, the JBL CSA2300Z Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.

    The efficient performance of Crown’s DriveCore Technology continues to set new standards in commercial power amplifier technology.

    Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.

    Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls, and with HARMAN’s GreenEdge environmental initiative, CS amps quickly pay for themselves in energy savings.

    • Features:

      • 1 or 2 channels X 300W output
      • Built-in 70V and 100V
      • Space-saving 2 RU design
      • Sleep mode disable function
      • Energy-efficient amplifier
      • Sleek industrial look with illuminated rings making knobs easy to see and use
      • Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors

    • Specifications:

      • Rated Power: 300W
      • Number of Output Channels: 2
      • Insertion Loss: 1 dB Maximum
      • Input Sensitivity: Balanced line input - 775mV; RCA Mono Sum input - 300mV
      • Frequency Response: ±1.0 dB
      • Total Harmonic Distortion: <0.5%
      • Signal-to-Noise Ratio: >97 dB
      • Input Impedance: Euro Block - 20 kΩ (balanced); RCA - 10 kΩ
      • Maximum input level: +22 dBu (Nominal)
      • Crosstalk: <-70 dB
      • Tone Controls: Bass ±12dB@100Hz, Trebel ±12dB@10kHz
      • Nominal AC Line Voltages: 100V, 120V, 220V, 230-240V, 50/60 Hz
      • Minimum Load Impedance: Low-Z Output - 4Ω; 70V Output - 12Ω; 100V Output - 24Ω
      • Operating Temperature: 0°C to 35°C
      • Storage Temperature: -20°C to 85°C
      • Humidity: 95% R.H. (non-condensing)
      • Dimensions (W x D x H): 17 x 10.8 x 3.5 In.
      • Weight: 17.8 lbs
      • Shipping Weight: 20.6 lbs

    • GTIN:

      0691991004148
