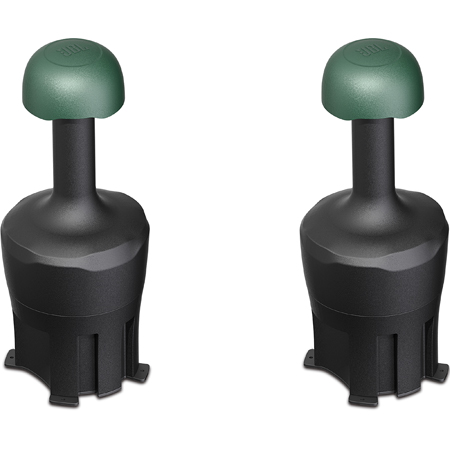

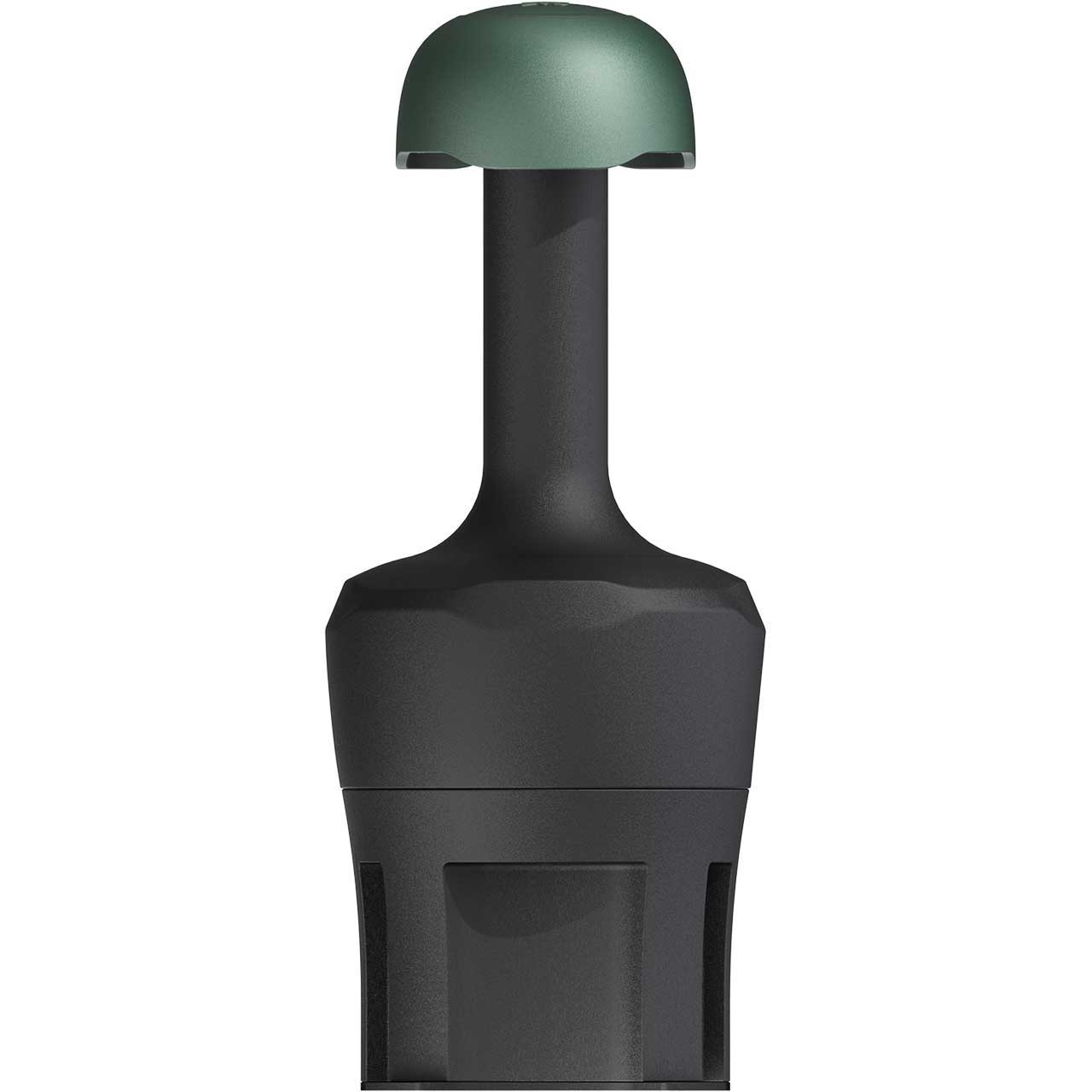

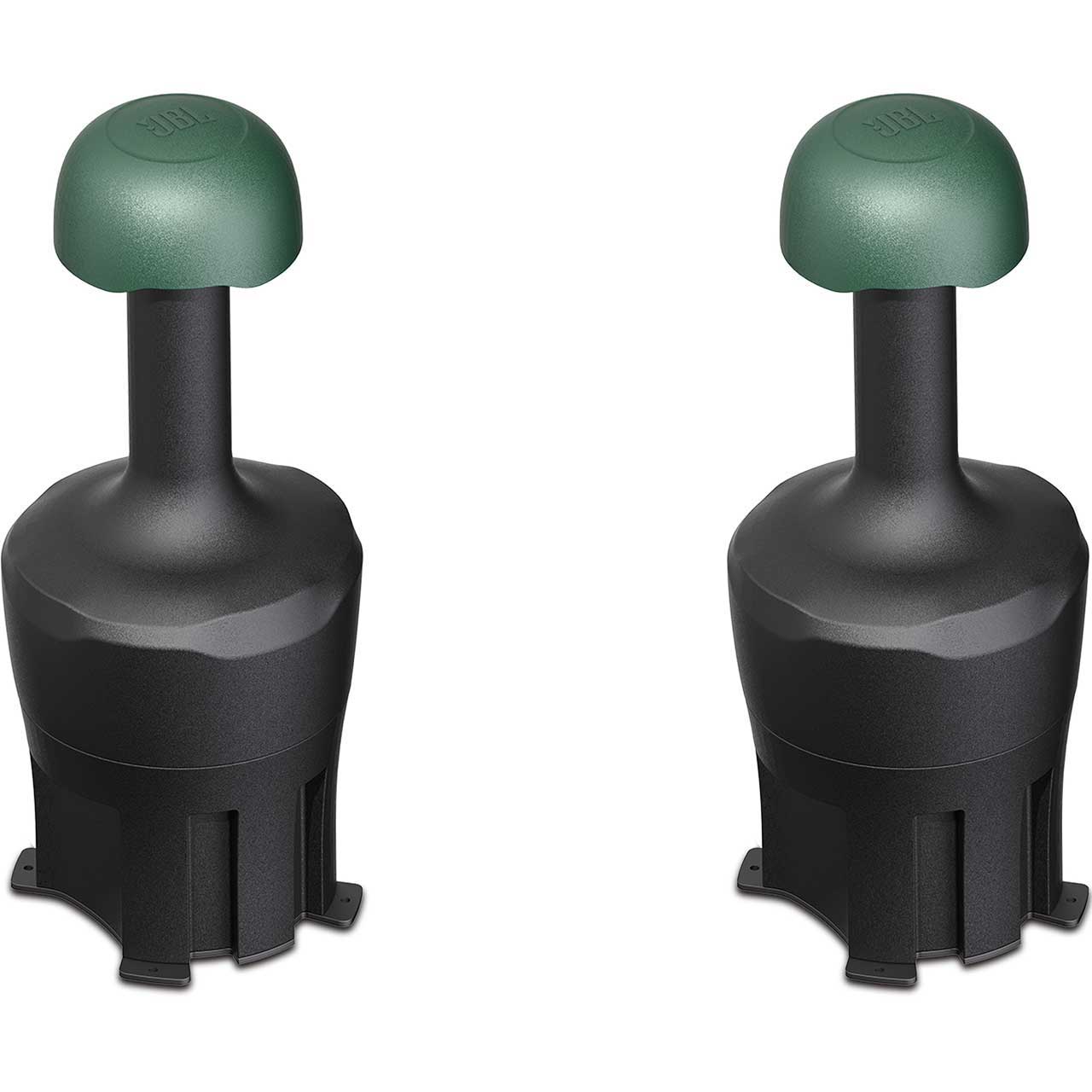

JBL GSB8-GN In-Ground Landscape Subwoofer 1kW Peak - Hunter Green - Pair

ITEM #: JBL-GSB8-GN MFG #: GSB8-GN

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,108.00

Our Price:

$888.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    GSB8-GN - Overview

    In-Ground Landscape Subwoofer
    The JBL GSB8 in-ground 8-inch landscape subwoofer augments the low-frequency performance of JBL GSF full-range landscape speakers to provide rich, full-range sound in lawn and garden areas of hospitality, corporate and retail spaces.

    The GSB8 focuses on fidelity, with true subwoofer extension down to 35 Hz and a steep, multiple-slope lowpass filter for superior sound. Its premium-grade, 100-watt subwoofer-band transformer allows use in 70V/100V systems or can be connected for low-impedance direct operation.

    This sleek, ultra-low-profile speaker-winner of international design awards for industrial design excellence-installs underground, with only the audio port visible. It's designed to withstand the elements: Its chamber is oriented directly below the audio port to prevent accidental damage from landscaping, which can be a problem with side-located chambers. Grab handles allow easy installation and tabs secure the subwoofer to blocks or anchors.

    Add the GSB8 to landscape areas of hotels, shopping complexes, restaurants, public spaces, theme parks or any application that demands legendary JBL sound with deep, rich, powerful bass.

    • Features:

      • Transducer: 209 mm (8") polypropylene driver, 38mm (1.5") voice coil on Kapton former
      • True subwoofer performance down to 35 Hz
      • Built-in steep, multiple-slope lowpass filter
      • Low-impedance ohm direct operation, plus premium-grade subwoofer-band transformer for use in 70V/100V systems
      • Forms a complete system with JBL GSF full-range landscape speakers

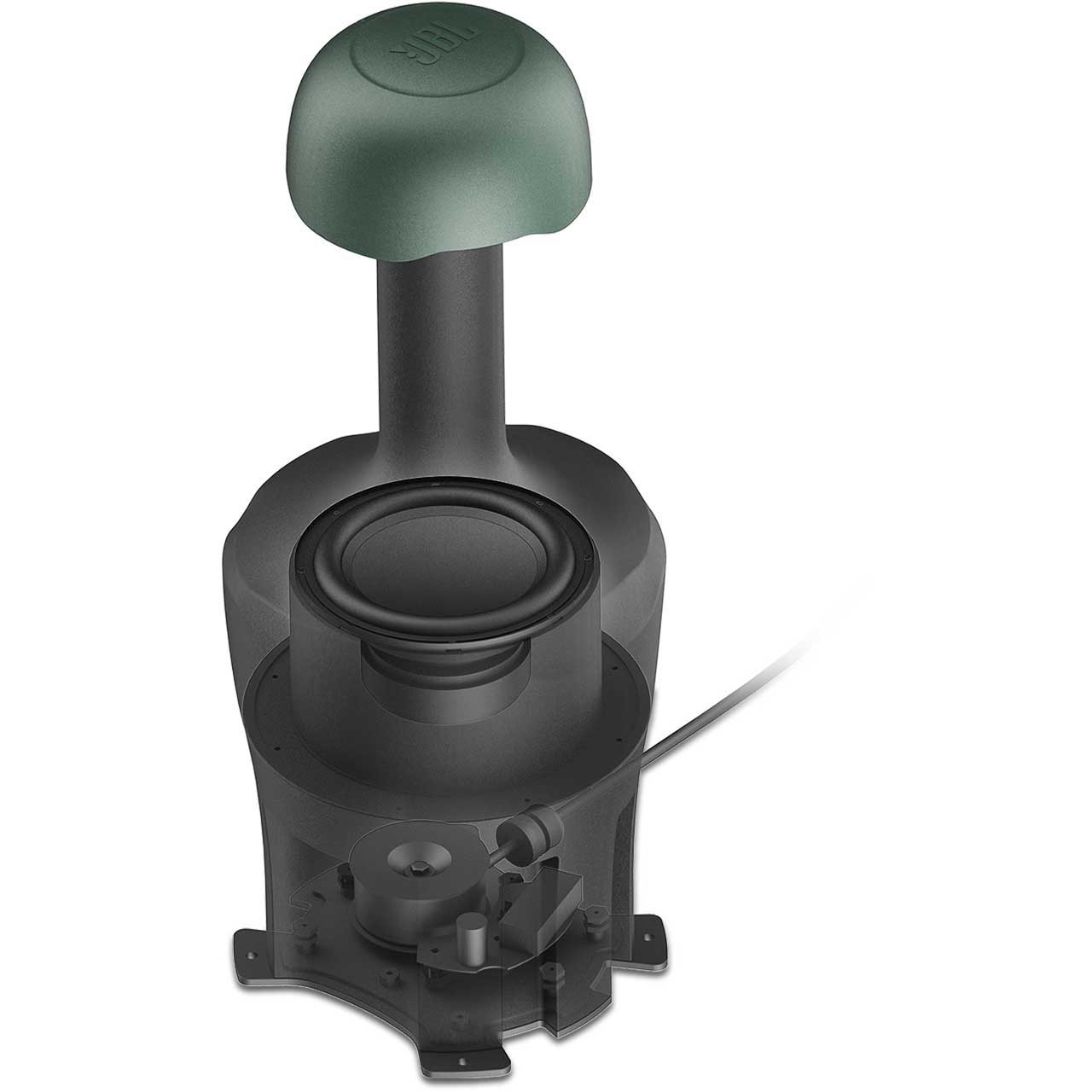

      • Chamber oriented directly below opening to prevent accidental damage from landscaping
      • Grab handles allow easy installation
      • Anchor points for securing cabinet to block or anchors
      • Available in hunter green or tan finishes to fit a wide variety of landscapes
      • Dimensions: 768 mm height x 311 mm diameter (30.1 x 12.2 in)

    • Specifications:

      • Frequency Range (-10dB): 35 Hz - 130 Hz
      • Frequency Response (+/-3 dB): 43 Hz - 120 Hz
      • Power Rating: 500 W Continuous Program (2 hrs), 250 W (1000 W Peak), Continuous Pink Noise (2 hrs), 150 W (600 W Peak), Continuous Pink Noise (100 hrs)
      • Sensitivity: 84 dB (ave. 43 Hz - 110 Hz)
      • Maximum SPL: 114 dB peak (108 dB continuous, 2 hr) @ 1m
      • Coverage Pattern: Omnidirectional
      • Nominal Impedance: 6Ω (at 6Ω tap)
      • Transformer Taps: 70V: 100 W, 50 W, 25 W, 100V: 100 W, 50 W
      • Driver: 209 mm (8-inch) driver, polypropylene injection cone, thermoplastic vulcanizate surround, 50 mm (2-inch) voice coil on glass fiber former
      • Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 7 wires with 14 AWG)
      • Enclosure Material: LDPE Polyethylene plastic, 6 mm minimum wall thickness, color throughout
      • Color: Hunter Green (RAL 6018) or Tan (RAL7004)
      • Dimensions: 768 mm height x 311 mm diameter (30.1 x 12.2 in)
      • Net Weight: 9.3 kg (20.5 lbs)

    • Item Includes:

      • 7x gel-filled wire nuts

    • GTIN:

      0691991039300
