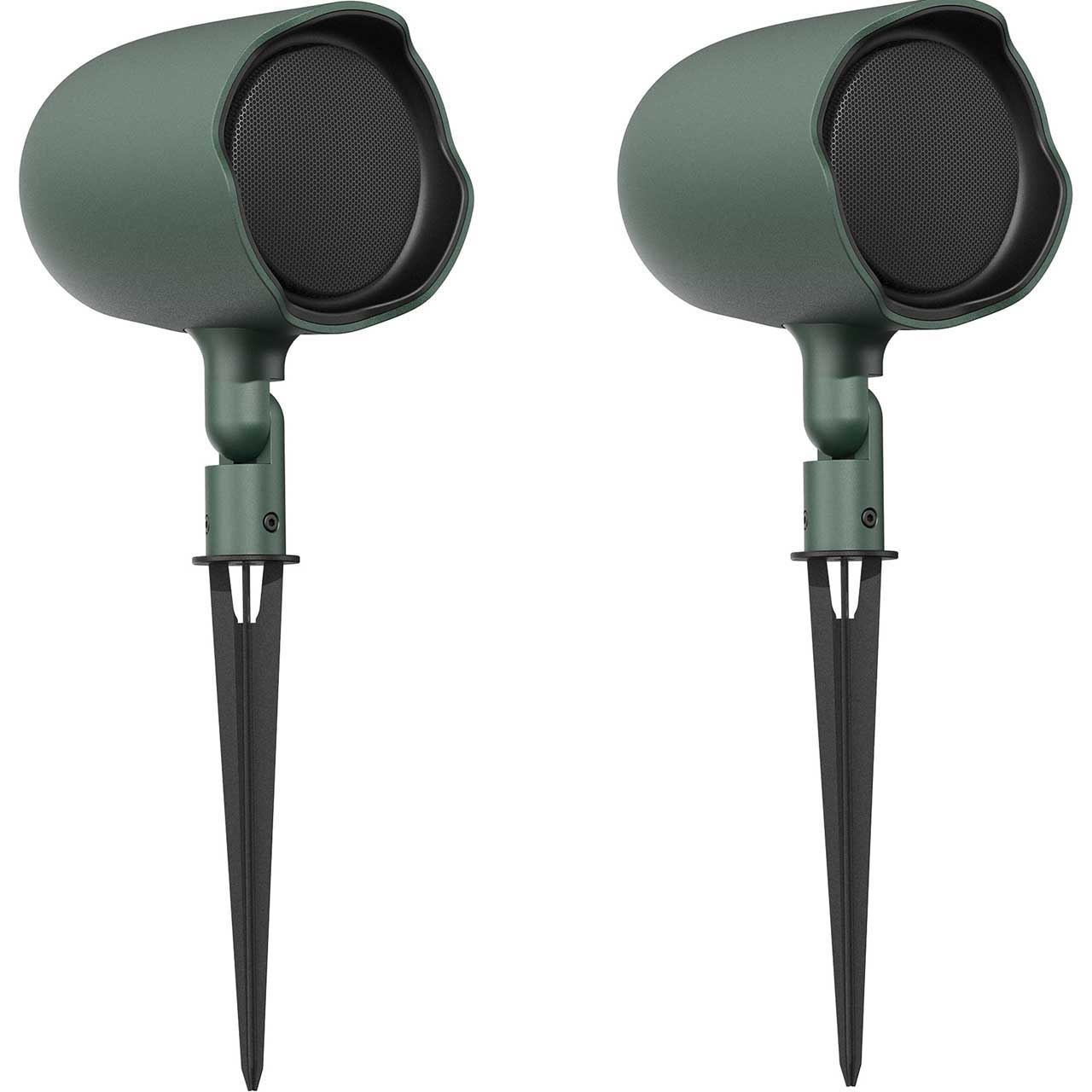

JBL GSF3-GN Ground-Stake Landscape Loudspeaker 120W Peak - Hunter Green - Pair

ITEM #: JBL-GSF3-GN MFG #: GSF3-GN

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$462.00

Our Price:

$370.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    GSF3-GN - Overview

    Ground-Stake Landscape Loudspeaker
    The compact, weather-resistant JBL GSF3 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 3-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 15-watt multi-tap transformer for use on 70V/100V distributed systems, and is switchable for 8-ohm direct operation.

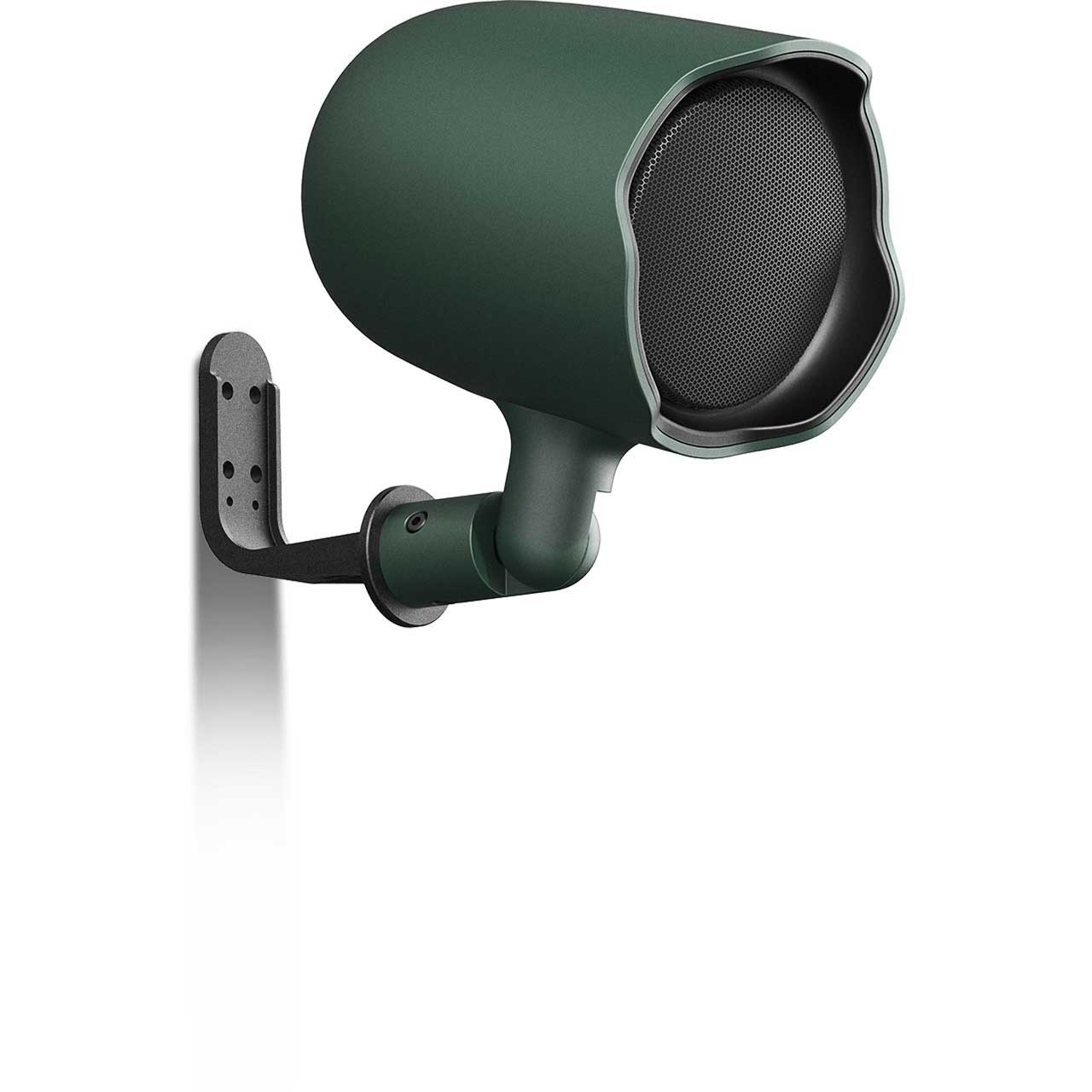

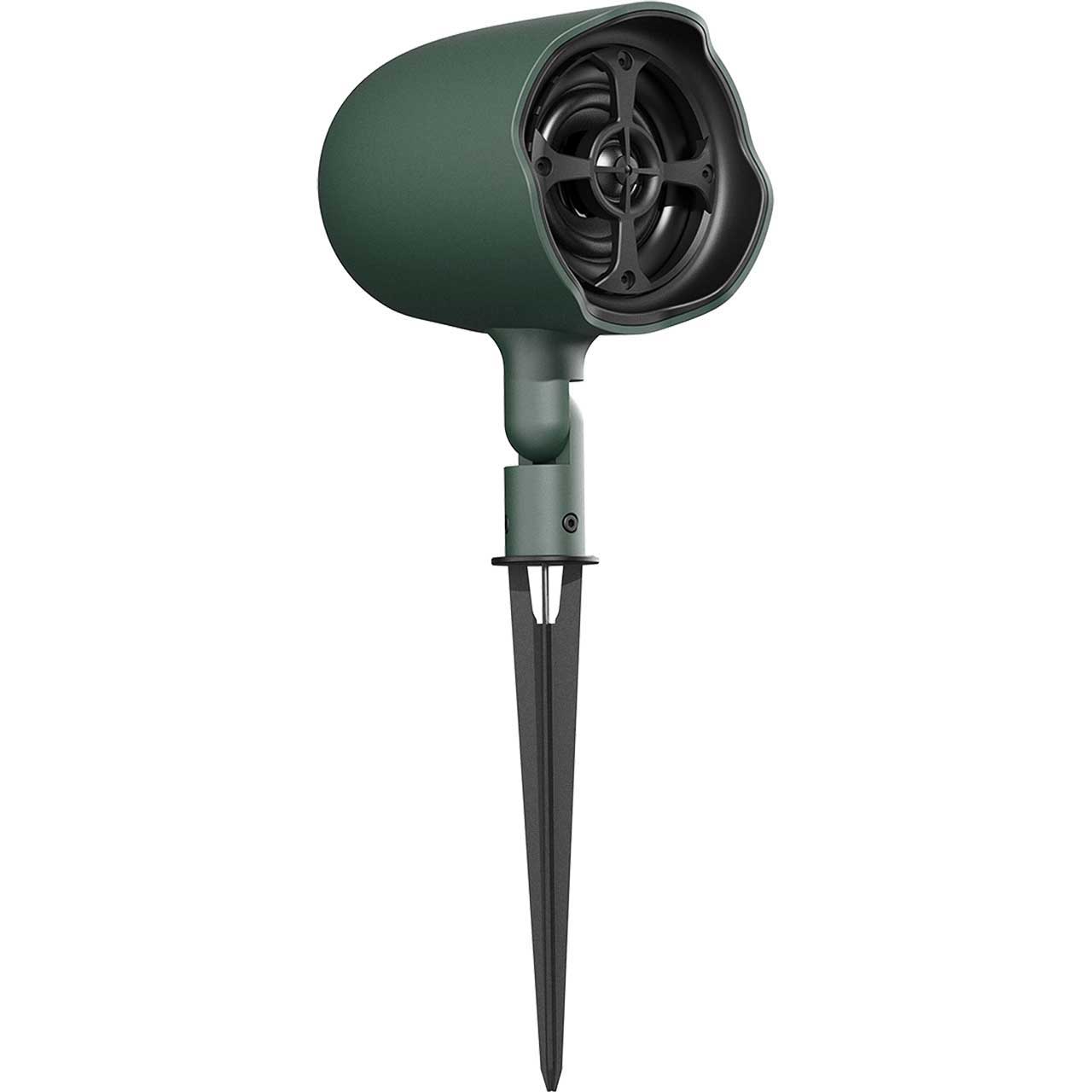

    Versatile mounting options include an included ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces. A low-profile, unobtrusive speaker, the GSF3 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

    The elegant, discreet GSF3-winner of international design awards for industrial design excellence-is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

    • Features:

      • Transducers: 83 mm (3") woofer with polypropylene cone and 25 mm (1") voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former.
      • Frequency range: 74 Hz - 20 kHz
      • Power handling (at 8Ω setting): 30W continuous pink noise, 60W continuous program
      • IP66 rated against water and dust ingress
      • Multi-tap 15W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
      • Bottom drip hole provides drainage for drivers
      • Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
      • Aimable via adjustable hinge
      • Includes ground stake and L-bracket for surface mounting

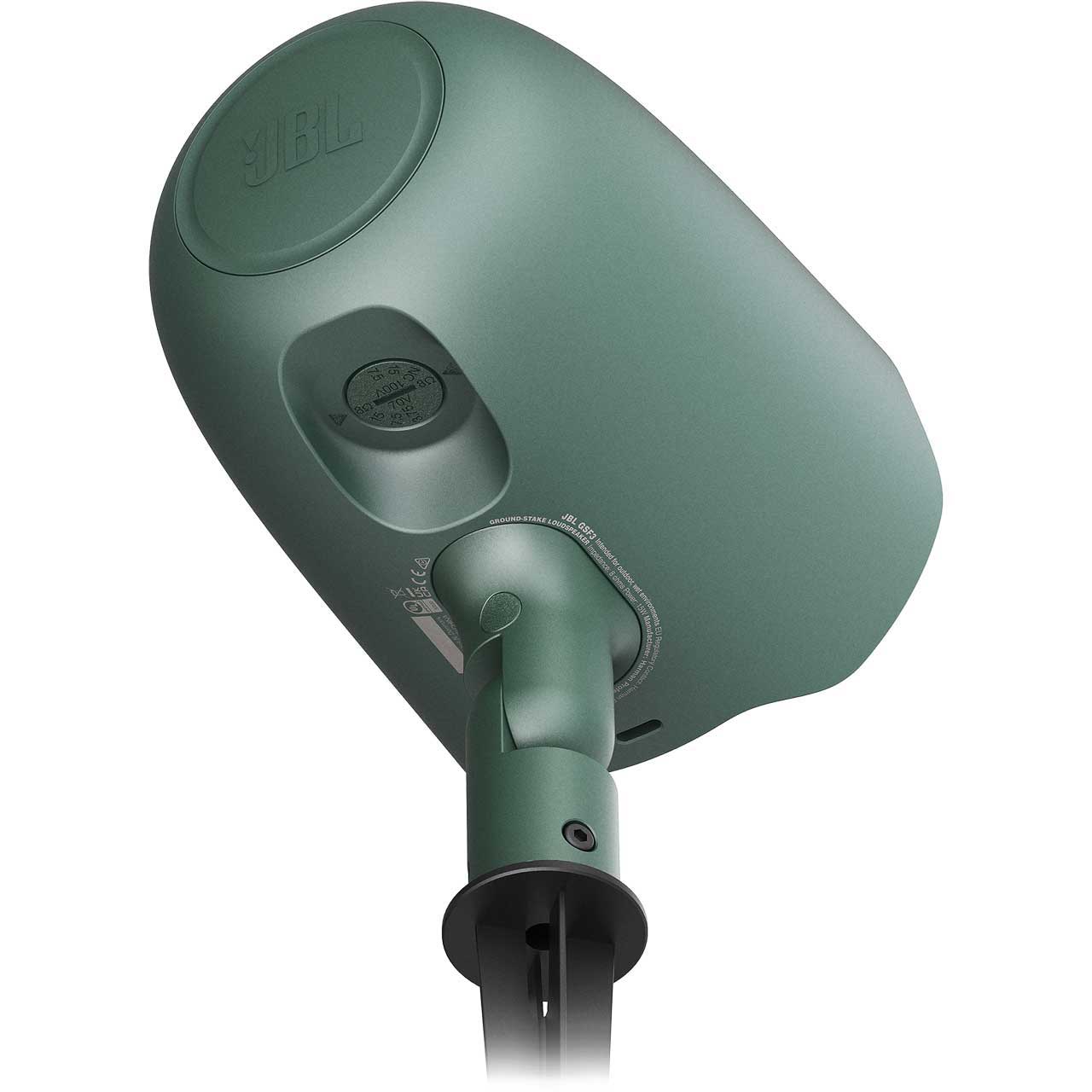

      • Includes tap selector located on bottom of speaker, away from water incursion
      • Available in hunter green or tan finish

    • Specifications:

      • Frequency Range (-10dB): 74 Hz - 20 kHz
      • Frequency Response (+/-3 dB): 120 Hz - 15 kHz
      • Power Rating: 60 W Continuous Program (2 hrs), 30 W (120 W Peak), Continuous Pink Noise (2 hrs), 20 W (80 W Peak), Continuous Pink Noise (100 hrs)
      • Sensitivity: 84 dB (43 Hz - 110 Hz)
      • Maximum SPL: 103 dB peak (95 dB continuous, 2 hr) @ 1m
      • Coverage Pattern: 90° conical
      • Nominal Impedance: 8 Ω (at 8Ω tap)
      • Transformer Taps: 70V: 15 W, 7.5 W, 3.75 W, 100V: 15 W, 7.5 W
      • Drivers: 83 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former, 20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former
      • Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
      • Enclosure Material: Polycarbonate + ABS, UL94V-0 flammability rated
      • Color: Hunter Green RAL 6018, or Tan RAL7004
      • Dimensions: Cabinet 132 mm diameter x 167 mm deep (5.2 x 6.6 in). Assembly height 289 mm (11.4 in) with L-bracket base (at 90°) and 430 (17.0 in) with ground stake base
      • Net Weight: 1.7 kg (3.8 lbs)
      • Directivity Factor (Q): 7.9
      • Directivity Index (dB): 9 dB

    • Item Includes:

      • 1x Ground Stake Bracket
      • 1x L-Bracket

    • GTIN:

      0691991039300
