MTC-81TB8 - Overview

Pre-Install In-Ceiling Tile Bridge for Pre-Install Backbox

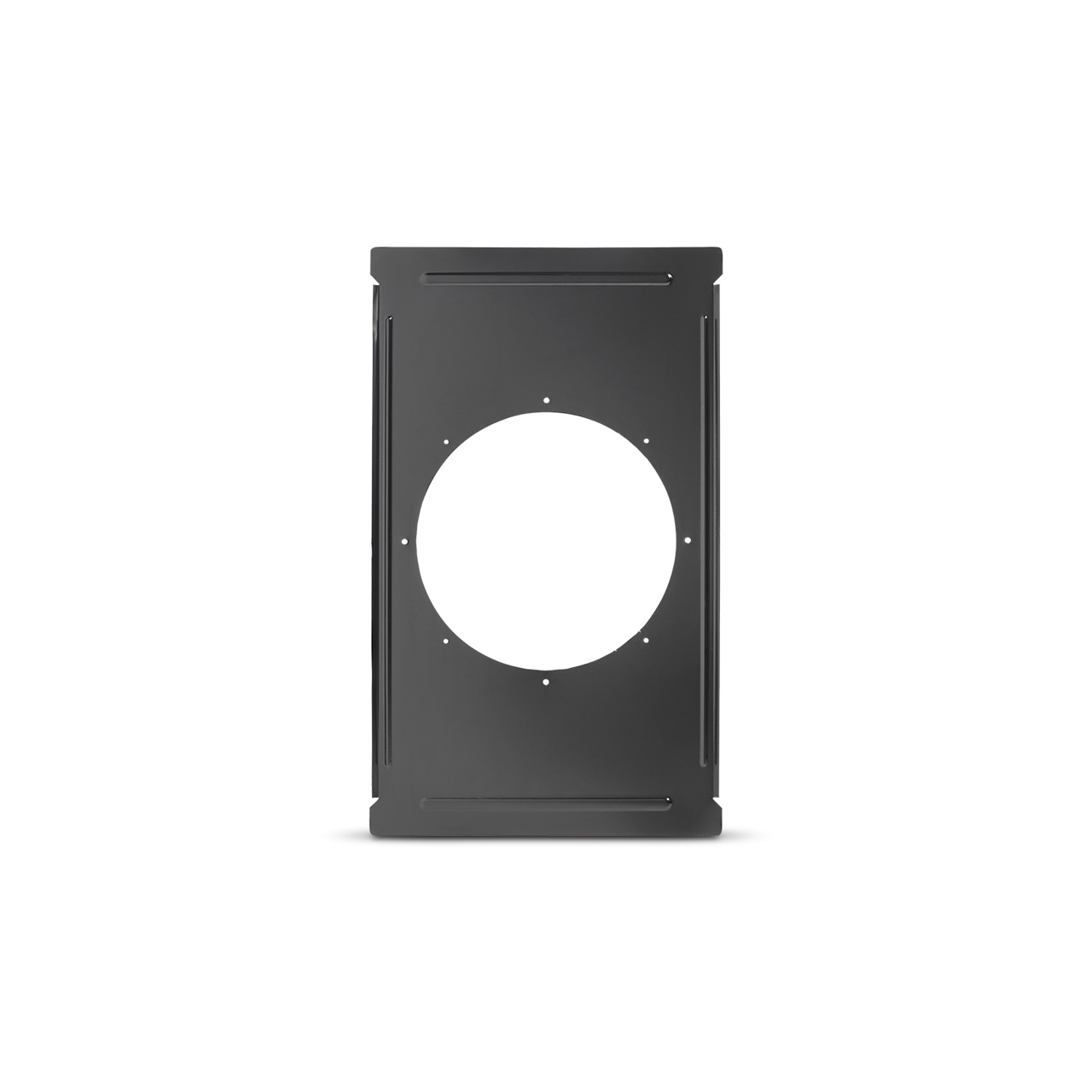

The JBL MTC-81TB8 tile bridge is designed for use in applications requiring pre-installed backcans in suspended ceiling applications and is compatible with ceiling speakers having a 11.25" (286mm) mounting circle diameter, such as the JBL 8138 ceiling loudspeaker, and the JBL MTC-81BB8 pre-install backbox.

Features:
- Fits 8138 speaker and MTC-81BB8 backbox
- Load-bearing bridge eliminates ceiling tile sag by distributing weight to the ceiling's support system
- Rust-resistant 19-Gauge (1mm thick) steel construction and e-coated finish ensures long service life
- Fits 24" (610mm) and 23.6" (600mm) tile grids
- Downloads
Specifications:
- Material: 19 gauge (1.0mm thickness) steel, finished in black polymer e-coating for a high level of rust resistance
- Attachment Points: 4x clip-nuts (ie, speed-clips, tinnerman clips) fit 4mm tapping screws attaching speaker to tile bridge
- Thru-Holes: 4x thru-holes on 11.25" (286mm) mounting circle for attaching tile bridge to backcan
- Dimensions (LxD): 23.6" x 14" (600mm x 359mm)
- Net Weight (each): 2.0lbs (0.9kg)
- Shipping Weight: 2.7lbs (1.3kg)
Item Includes:
- 1x JBL MTC-81TB8 Pre-Install In-Ceiling Tile Bridge
Warranty:
- 1 Year Limited Warranty
