Jensen Iso-Max SUB-1RR Single-Channel Low Frequency Sub-woofer Audio Isolator (RCA)

ITEM #: JEN-SUB1RR MFG #: SUB-1RR

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$164.99

Our Price:

$149.99

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    SUB-1RR - Overview

    Eliminates hum and buzz caused by ground loops

    The Jensen IsoMax SUB-1RR is a single channel low-frequency isolator designed especially for use with sub-woofers to eliminate hum and buzz caused by ground loops.

    Inside, a specially designed Jensen audio transformer with extended sub sonic response delivers powerful and articulated bass for maximum impact. Even when being subjected to extremes, the SUB-1RR is able to gracefully handle low frequencies down to 20 Hz with less than 0.01% distortion and less than 1° of phase shift. And with better than 100 dB of common mode noise rejection, it solves the most difficult installation problems so that you can enjoy the full performance of your audio system without noise.

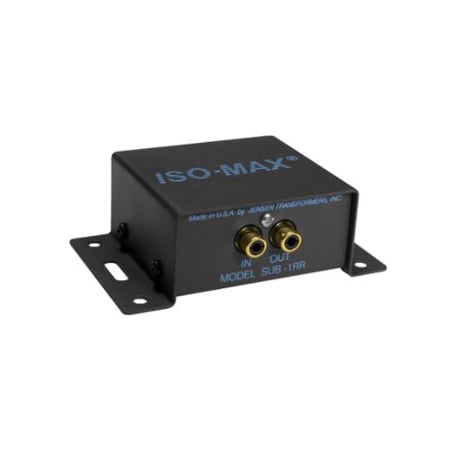

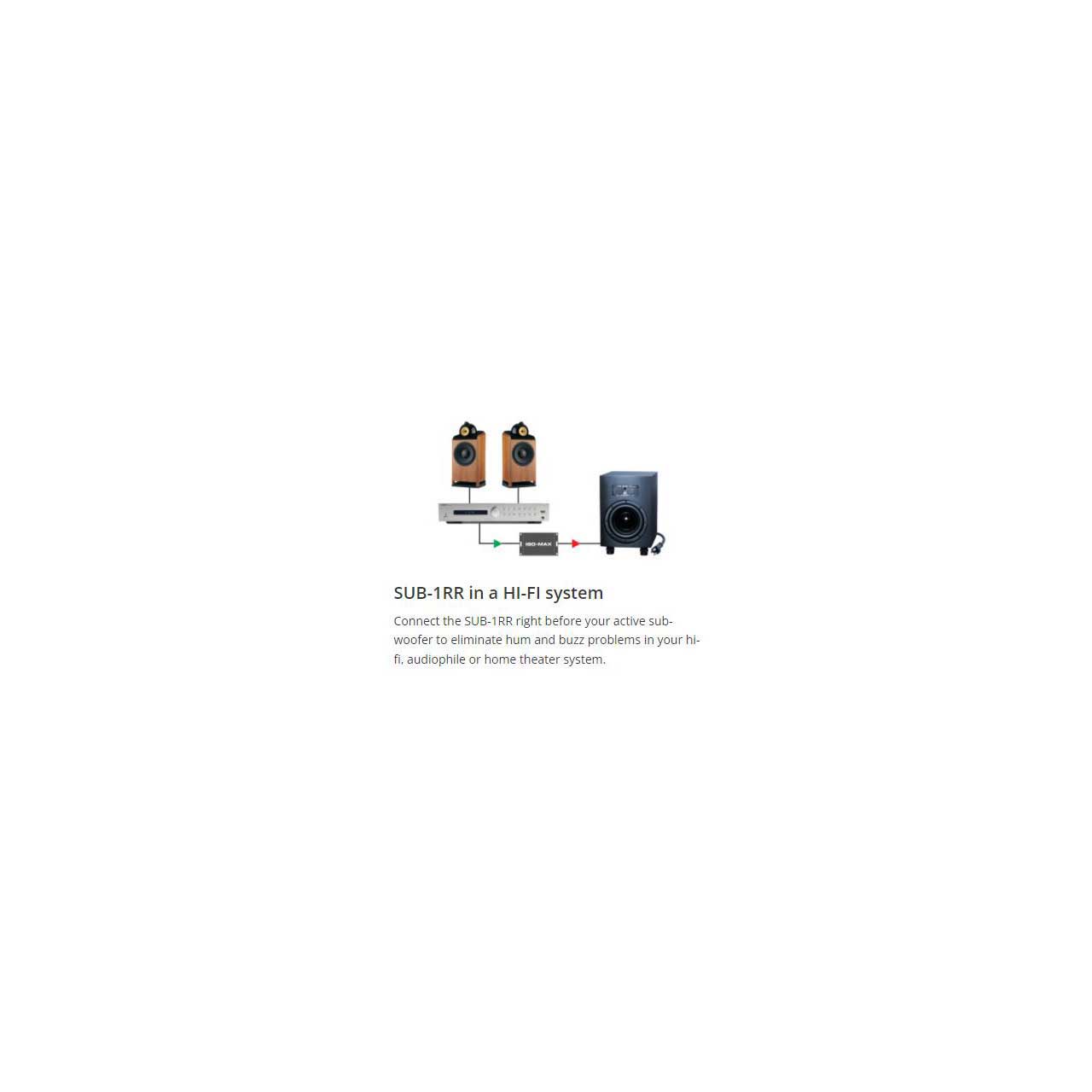

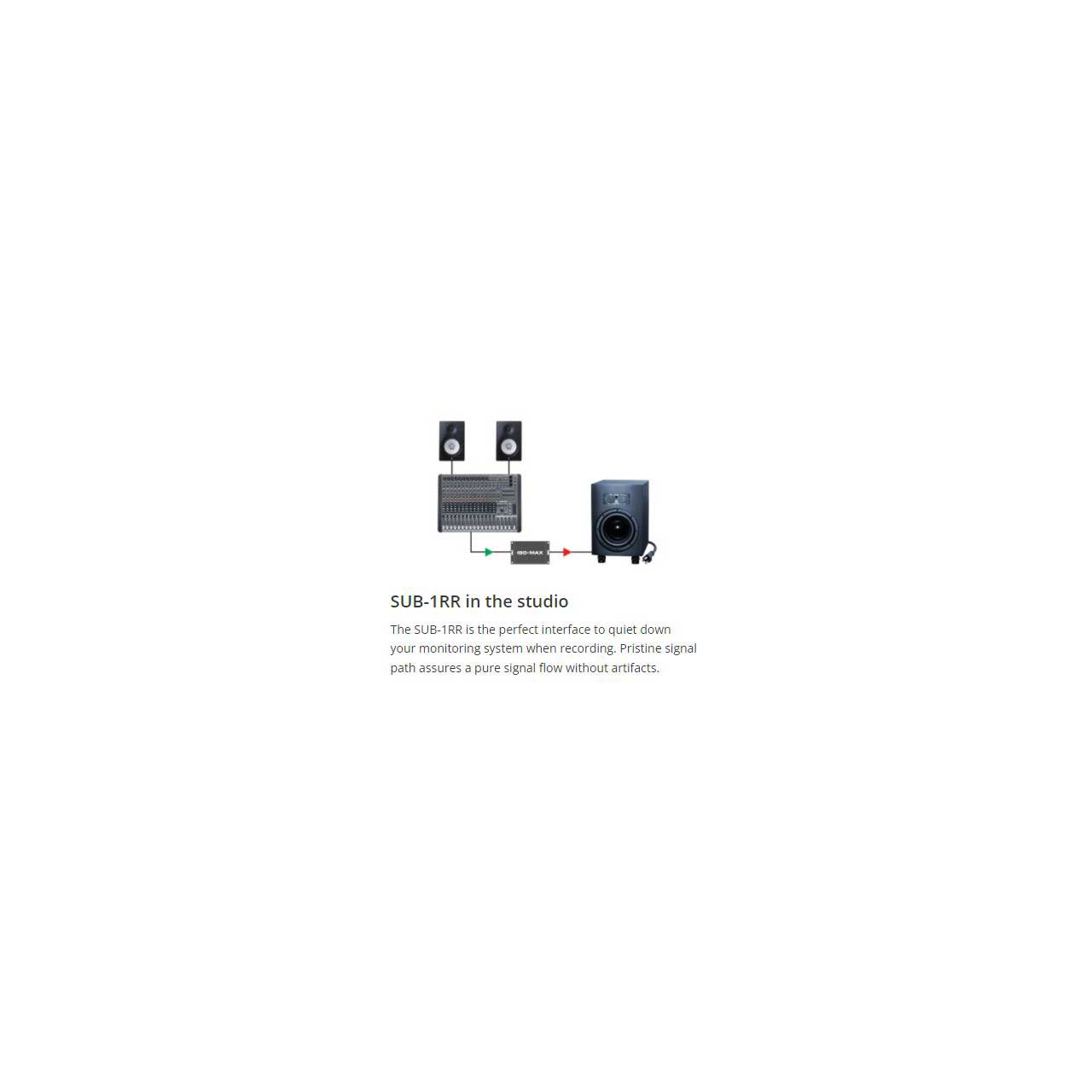

    Housed in a heavy duty steel enclosure, the SUB-1RR is equipped with a `screw down flange' for easy mounting inside an equipment rack, under a shelf or directly on the sub woofer. Gold plated RCA connecters ensure optimal signal transfer and will not corrode over time. The passive design does not require any power. You merely plug in and it goes to work without artifact or signal degradation. These combined features make the IsoMax SUB-1RR ideal for home theater, studio and car audio installations.

    • Features:

      • Eliminates hum and buzz caused by ground loops
      • Extended low frequency response down to 1 Hz
      • Less than 0.01% distortion at 20 Hz
      • Plug and play easy to use, no power required

    • Specifications:

      • Input Impedance:
      • 39.4㏀ (100Hz, -10dBV, test circuit 1)

      • Deviation from linear phase (DLP):
      • +0.7/-0 ° (10Hz to 2kHz, -20dBV, test circuit 1)

      • Distortion (THD):
      • 0.01 % (20Hz, -10dBv, test circuit 1)

      • Maximum 20Hz input level:
      • -18 dBV (1% THD, test circuit 1)

      • Common-mode rejection ratio (CMRR):
      • 105 dB (60Hz, test circuit 2)

      • Output Impedance:
      • 5㏀ (100Hz, test circuit 1)

      • Input DC Resistances:
      • 1.73㏀

      • Output DC Resistances:
      • 2.74㏀

      • Capacitances at 1kHz:
      • 85 pF (1kHz, input to output)

      • Allowable Source Impedance:
      • 600 ohms (output impedance of device driving the ISO-MAX input)

      • Allowable Load Impedance:
      • 47㏀ (input impedance of device loading the ISO-MAX output)

      • Operating Temperature (Maximum):
      • 158°F

      • Operating Temperature (Minimum):
      • 32°F

    • Item Includes:

      • SUB-1RR Single-Channel Low Frequency Sub-woofer Audio Isolator

    • Warranty:

      • For a period of 1 YEAR after purchase, Jensen Transformers, Inc. will, free of charge, repair or replace any part of an ISOMAX® product that fails due to defective materials or workmanship.
        For a period of 20 YEARS after purchase, Jensen Transformers, Inc. will, free of charge, repair or replace any Jensen OEM transformer or any Jensen tranformer contained in an ISOMAX® product that fails due to defective materials or workmanship.

    • GTIN:

      0657248890087
