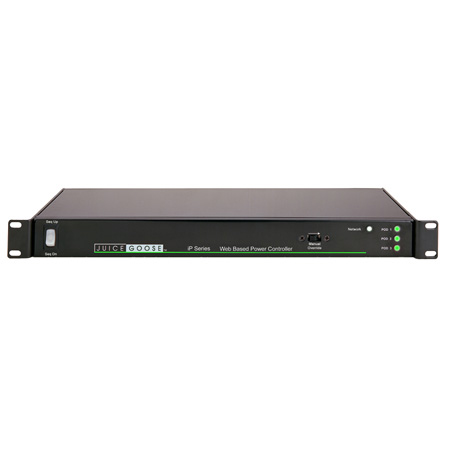

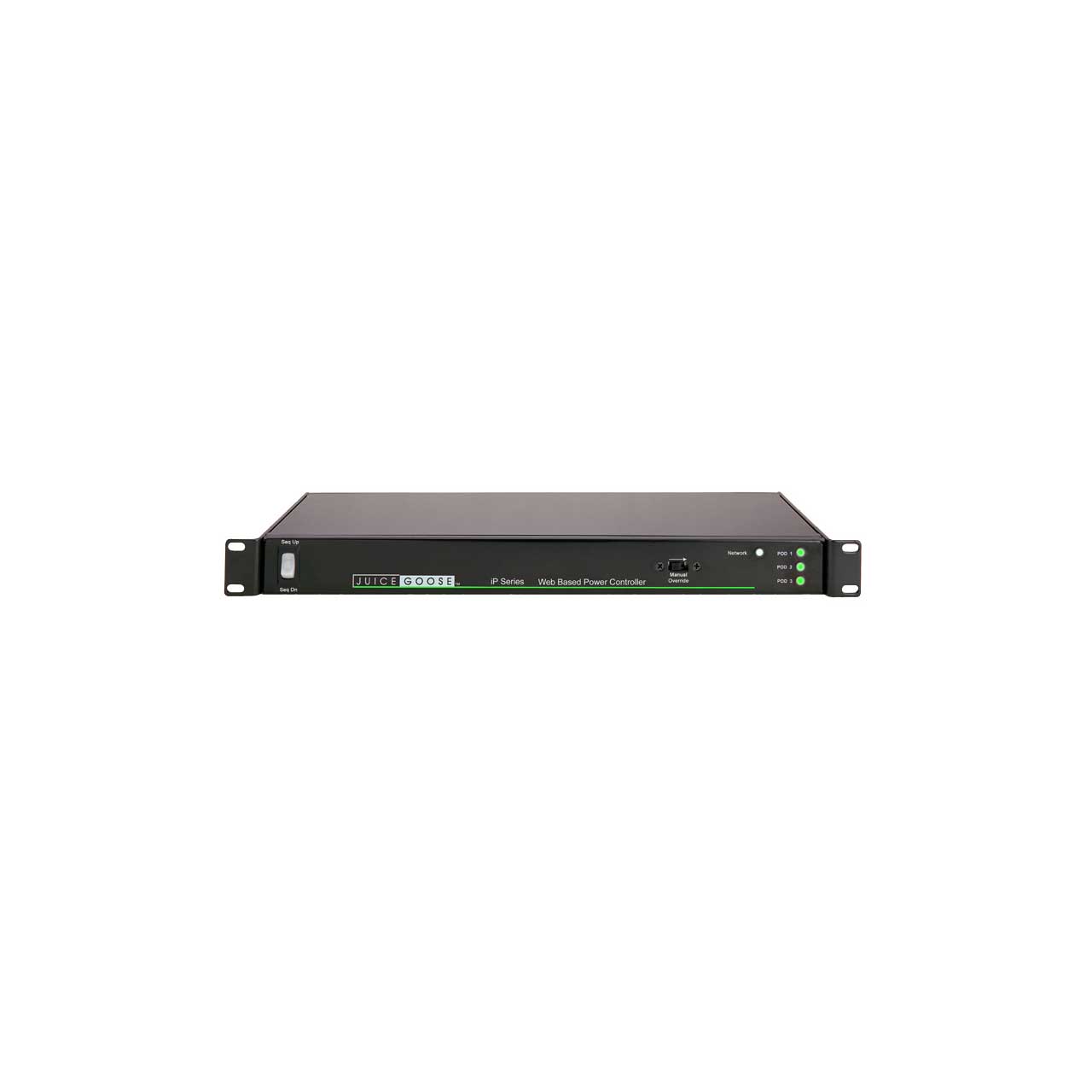

Juice Goose iP-1515-RX Surge Protection and Rackmount Web Based Power Controller - 15 Amp

ITEM #: JG-IP-1515-RX MFG #: IP-1515-RX

Free Shipping with Minimum Order Banner

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    IP-1515-RX - Overview

    Juice Goose iP-1515-RX is a rack mounted Web based power controller with 3 individually addressable Power Pods. 15 amps. Communicate via UDP, TCP/IP or RS232. Inlcudes AC line filtration and surge protection. Line interactive design includes a "buck-boost" transformer that corrects incoming voltage to provide proper 120 VAC output. This process improves power line quality while reducing the need for battery usage.

    The Juice Goose iP Series products are web (IP) based power management devices that can be accessed via local, intranet or Internet communications.

    They are designed to interface with a broad range of control systems, whether developed by commercial systems companies or stand alone systems developed by or for end users.

    The iP Series on board web server provides a graphic user interface ("GUI") to allow network and user setup as well as control and monitoring functions activate AC outlets and display current on each power Pod on a particular iP model.
    iP Series models will also respond to text commands over RS232 (rack mounted model only) or using TCP/IP or UDP protocol.

    Made in America

    • Features:

      • Web server (GUI), TCP/IP, UDP or RS232 remote control
      • Local fail safe sequencing and manual override
      • On-board web server for easy set up, control, sequencing and monitoring
      • Front panel indicators for network connection and outlets on
      • Amperage monitoring from 0.20 to 15.0 amps per power POD
      • Administrator and User login options
      • Automatic Power Cycle to reboot a network data router if network connection is lost
      • AC line conditioning and surge protection
    • Specifications:

      • Chassis: 16 gauge steel with 11 gauge rack mount brackets
      • Dimensions: 17.5"H x19"W x 7"D
      • Weight: 10 lbs
      • Circuit Breaker: 15A (iP 1515) or 20A (iP 1520) thermal on back of the chassis
      • Technical Current Rating: 12A (iP1515) or 16A (iP1520)
      • Number of Addressable Power Pods: Three
      • Power Input: Seven foot power cord with NEMA 5/15P (iP1515) or NEMA 5/20P (iP1520) (NOTE: iP1520 requires a 5/20R receptacle)
      • Power Output: Six switched NEMA 5/15R (iP1515) or 5/20R (iP1520), plus one unswitched, NEMA 5/15R (iP1515) or 5/20R (iP1520)
      • Input Voltage: 120 VAC @ 60Hz
      • Signal Connections: Ethernet (RJ-45) RS 232 (RJ-11)
      • Network Protocol: HTML, TCP, UDP, RS232, SNMP (special model)
      • Monitor Features: Local and remote, network connection and current level. Current level monitoring is not available on SNMP models
      • Operating Temperature Range: -10C to +40C
    • GTIN:
