Juice Goose RX100-RM 1U Rackmount AC Surge Protection and AC Filter - 15 Amp

ITEM #: JG-RX100-15A MFG #: RX100-15A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$543.00

Our Price:

$489.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    RX100-15A - Overview

    The Juice Goose RX100-RM provides ultra clean power and protection against AC line surges and spikes as well as in-wall wiring faults. Hybrid Filter Technology reduces high frequency noise and high energy surges both on normal (line - neutral) and common (neutral - ground) mode paths.

    Compare the RX Series performance to any other power conditioning device. Compare our high levels of line noise filtration and extremely low surge let through levels. In particular, compare performance on hot, neutral and ground paths. Now compare our price.

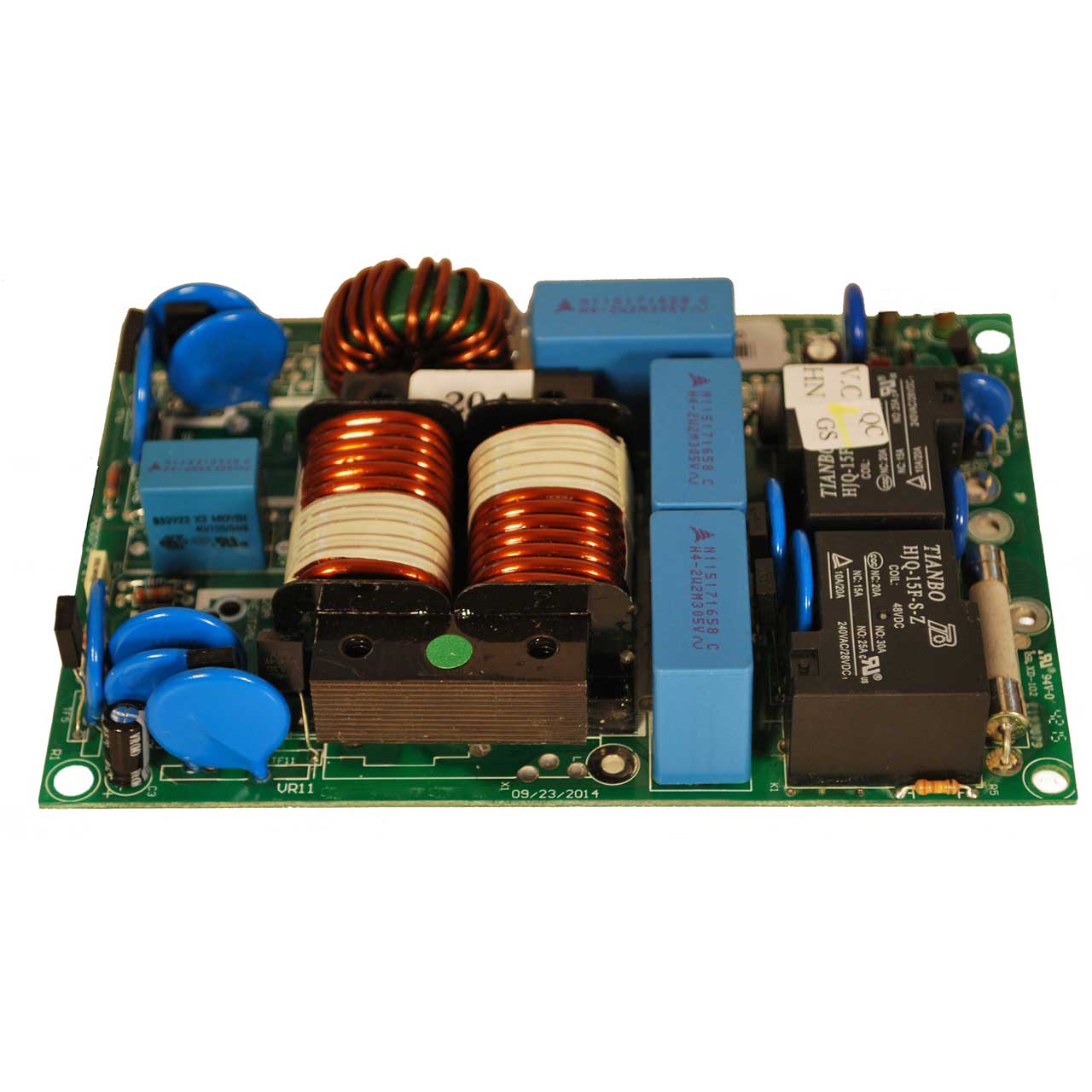

    The Hybrid Filter design in the RX100-RM includes a differential transformer, lots of filtering capacitance and control circuitry providing protection from dangerous surges, high frequency interference, building wiring faults and over voltage. RX technology delivers performance enhancement and protection comparable to an isolation transformer - but at a fraction of the price and in a fraction of the space.

    This Juice Goose power protection technology is particularly valuable because it works against common mode as well as normal mode events. While common mode surges and disturbances don't typically cause catastrophic damage, they can result in operating failures and improper performance of digital processing equipment.

    Compared with the low operating voltage of processor logic, a power anomaly of even 1 or 2 volts on data lines or logic ground can cause problems. That's why the RX100-RM is designed to have a voltage surge let through of only 1/2 volt between neutral and ground.

    The Hybrid Filter also protects against more dramatic events. Connected equipment is safe from surges up to 6,000 volts at 3,000 amps on hot, neutral and ground.

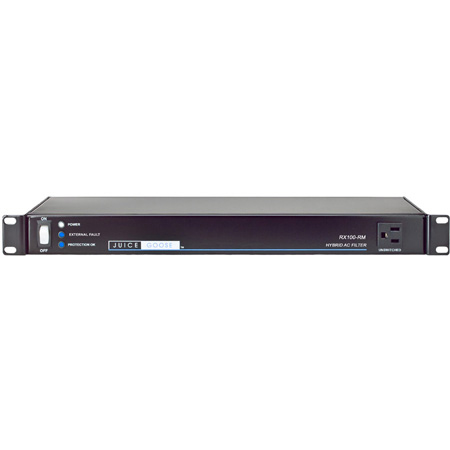

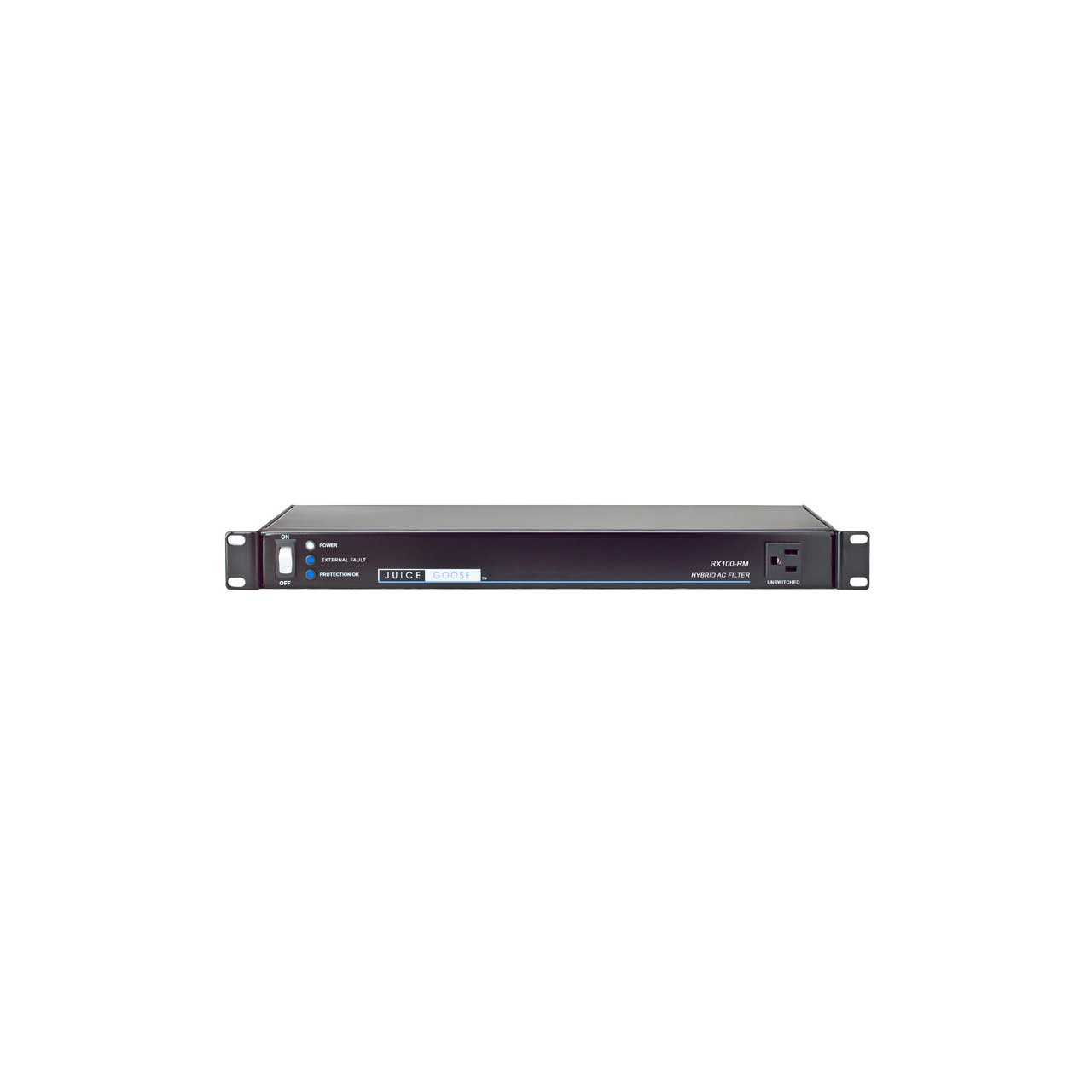

    The sturdy, Tour Class™ chassis of the Juice Goose RX100-RM is built for an exceptionally long service life. It features a "unibody" construction - with the front, bottom and back formed from a single piece of magnetic shielding, cold rolled steel. The reinforced mounting brackets are attached to the chassis in eight places.

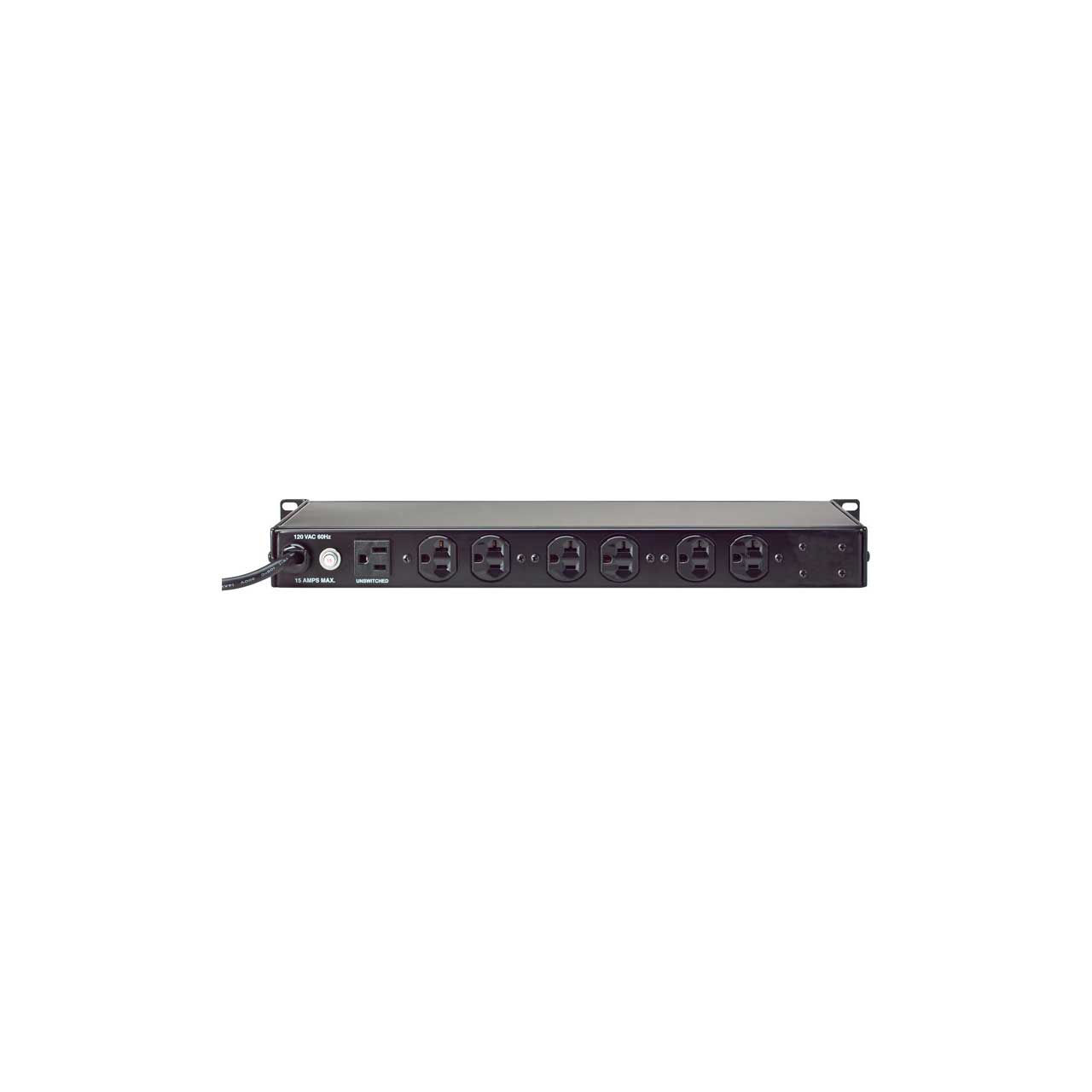

    Eight AC outlets provide ample connection opportunity, including unswitched outlets on the front and back of the chassis. The twelve foot power cord enables use at a greater distance from power sources.

    Compare all the advantages of the Juice Goose Hybrid Filter Technology: performance, features and price. The RX100-RM does a lot more for a lot less.

    Please Note: The RX100-RM is designed to operate with 120VAC, 60 Hz. Operation with 220 or 240 volts will damage the unit and possibly cause personal injury

    Made in America

    • Specifications:

      • Dimensions: 1.72" x 19.00" x 7.00"
      • Weight: 12lbs
      • Amps: 15
      • Power Input: 120 VAC, 60Hz
      • Power Outlets: 11 single NEMA 5-15R
      • Current Capacity: 15 AMPS
      • Power Cord: 12 foot, 14/3 SJT
      • Transient Energy Absorbtion (Joules): 1020
      • Maximum Applied Surge Current (Amps): 3000
      • Maximum Applied Surge Pulse Voltage (Volts): 6000
      • Surge Let Through Rate (Volts):
        L-N: 10
        N-G: 0.5
      • Common Mode (N-G) Line Noise Rejection (dB):
        100kHz: 30
        300kHz: 77
        1MHz: 80
        10MHz: 80
        30MHz: 80
      • Normal Mode (L-N) Line Noise Rejection (dB):
        100kHz: 21
        300kHz: 56
        1MHz: 60
        10MHz: 60
        30MHz: 60
      • Chassis Design: Tour class - unibody
      • Chassis Finish: Powder coat enamel

    • GTIN:

      0097652783313
