Juice Goose RX30 RX Series Surge Protection and Line Filtration Cord

ITEM #: JG-RX30 MFG #: RX30

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$252.00

Our Price:

$229.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    RX30 - Overview

    A Cleaner Ground from a Small Filtercord
    The RX 30 Filtercord features the Juice Goose Hybrid Filter Technology to improve performance of electronic components and protect against dangerous power line surges on the hot, neutral and ground power leads.

    Juice Goose RX Series technology reduces ground line (common mode) surges to a maximum of 0.50 (on half) volt. While ground line surges and disturbances don't typically cause catastrophic damage, they can result in operating failures and improper performance of digital processing equipment.

    The Hybrid Filter also protects against more dramatic events. Connected equipment is safe from surges up to 6,000 volts at 3,000 amps on between hot and neutral. The RX Series circuitry allows a maximum 10.0 volt normal mode surge.

    The RX Series uses a Hybrid Filter Technology that will not contaminate the ground. Instead, it cleans it up.

    Video Performance
    Improve performance of HD monitors and projectors while protecting your valuable investment. When high frequency interference reaches your HD image through the power cord, image quality is lost along with much of the reason for going HD in the first place. At the same time, dangerous high energy events you may or may not notice can shorten the life of your video machine.

    Convenience

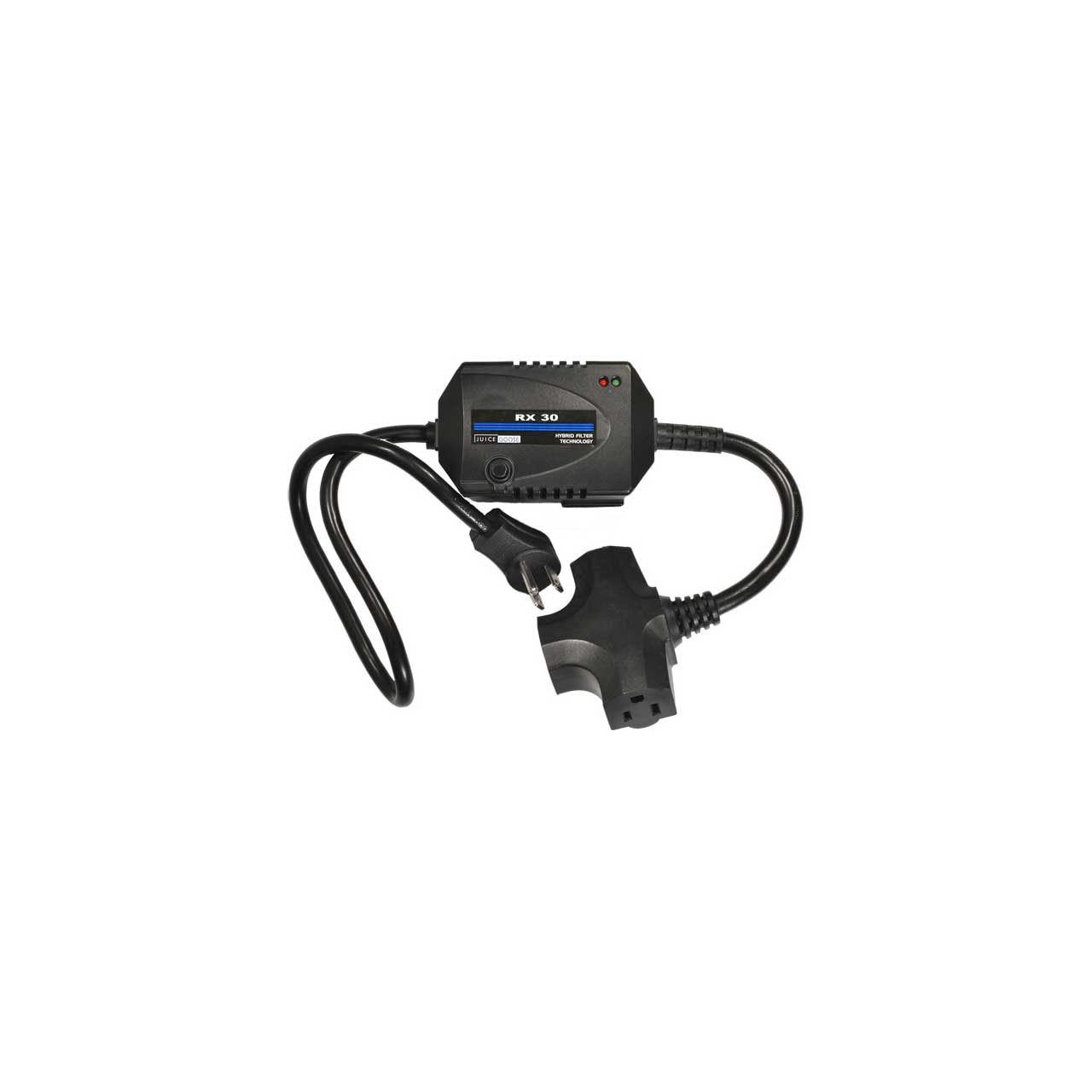

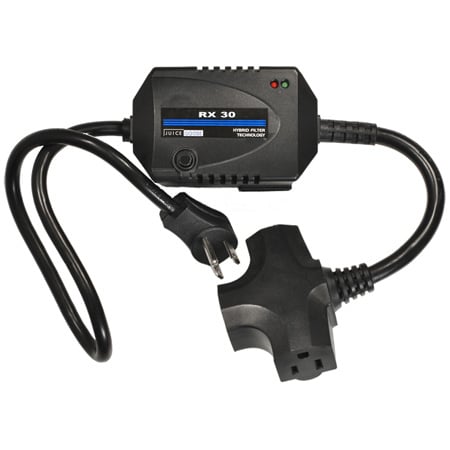

    The Juice Goose RX 30 is built into the middle of a power cord ("Filtercord") to provide a convenient, easy to install package for use with non racked equipment such as digital signage monitors, media players and projectors. It can also be used as added protection for a rack mounted power strip. The RX 30 features a three foot power source cable with a right angle plug to lie flat against a wall.

    The power outlet side of the RX 30 includes three receptacles placed 90 degrees from each other to accommodate multiple components including AC adapters. This design allows for better filter module placement and connection with hard to reach AC outlets.

    RX 30 FEATURES
    The Juice Goose RX 30 has three NEMA 5-15R receptacles to connect and protect multiple components in a small space. The 3 foot long power source cable is fit with a convenient right angle plug to lie flat against a wall. This design allows for better filter module placement and connection with hard to reach AC outlets.

    Made in America

    • Features:

      • 10 Amp Capacity
      • High Voltage Surge Protection
      • High Frequency Normal and Common Mode Noise Filtration
      • Over Voltage Shutdown
      • Protection Against Building Wiring Faults
      • Three power receptacles

    • Specifications:

      • Transient Energy Absorption (Joules): 1020
      • Maximum Applied Surge Current (Amps): 3000
      • Maximum Applied Surge Pulse Voltage: 6000
      • Let Through Surge Voltage (Volts):
        N-G: 0.5
        L-N: 10
      • Common Mode (N - G) Interference Filter (dB):
        3000kHz: 77
        1 MHz: 80
        10 MHz: 80
        30 MHz: 80
      • Normal Mode (L - N) Interference Filter (dB):
        300 kHz: 56
        1 MHz: 60
        10 MHz: 60
        30 MHz: 60
      • Voltage: 120VAC, 60 Hz
      • Maximum Current Mode: 10A
      • Weight: 3lbs
      • Power Cord Lenght (Input): 3 feet
      • Plug (Right Angle): NEMA 5-15P
      • Receptacles (NEMA 5-15R): Three

    • GTIN:

      0097652783337
